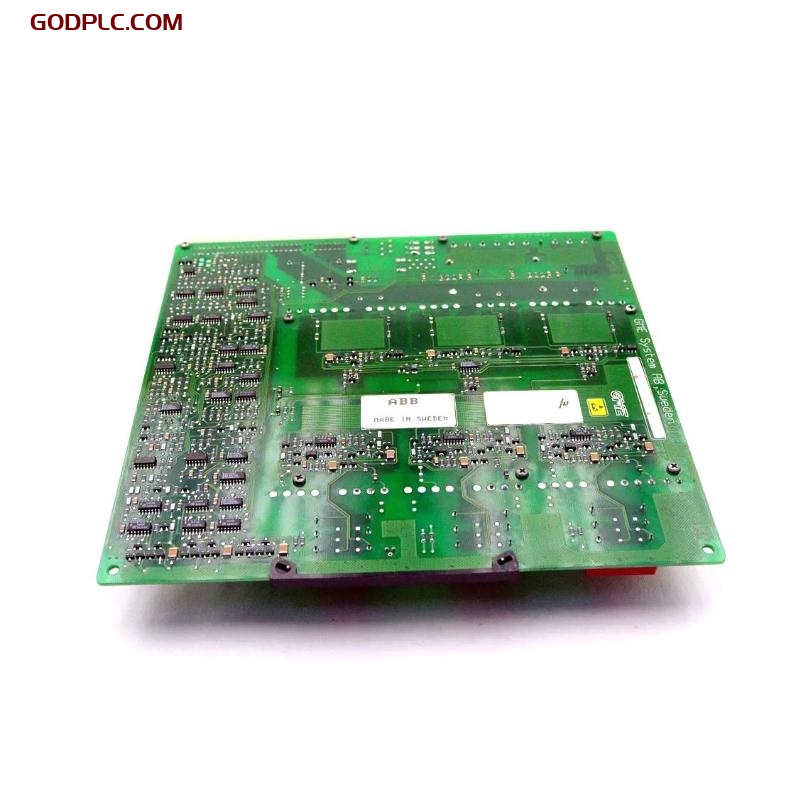

ABB DSQC236G YB560103-CD Servo Drive Control Board
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
ABB DSQC236G YB560103-CD Servo Drive Control Board
1. Product Overview
The ABB DSQC236G YB560103-CD Servo Drive Control Board is a core module used in ABB automation control systems, specifically designed to control servo drive systems. As a high-performance control board, the DSQC236G offers exceptional precision and reliability, making it ideal for applications such as precise motion control, robotics, and automated production lines. It integrates seamlessly with other ABB control systems and devices, ensuring efficient operation and long-term stability.
The servo drive control board supports multiple industrial communication protocols and provides powerful processing capabilities, enabling real-time control of servo motors and continuous monitoring and adjustment of the system. The DSQC236G offers high flexibility and accuracy, making it particularly suitable for demanding automation control environments.
2. Key Features
-
High Precision Control: The DSQC236G offers precise servo drive control, enhancing system efficiency and stability.
-
Real-time Feedback Mechanism: With high-speed data transmission and real-time feedback, the board can adjust the servo motor’s state instantly to ensure control precision.
-
Modular Design: The modular design simplifies system expansion and maintenance, reducing system complexity.
-
Wide Compatibility: Fully compatible with ABB automation control systems and various servo motors, supporting multiple communication protocols to meet different application needs.
-
High Reliability and Stability: The DSQC236G has been rigorously tested to provide high reliability and long-term stability in harsh industrial environments.
-
Intelligent Adjustment: The board automatically adjusts motor speed and torque based on the load conditions, optimizing system performance.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120mm x 80mm x 40mm |
| Weight | 0.5 kg |
3.2 General Information
| Item | Specification |
|---|---|

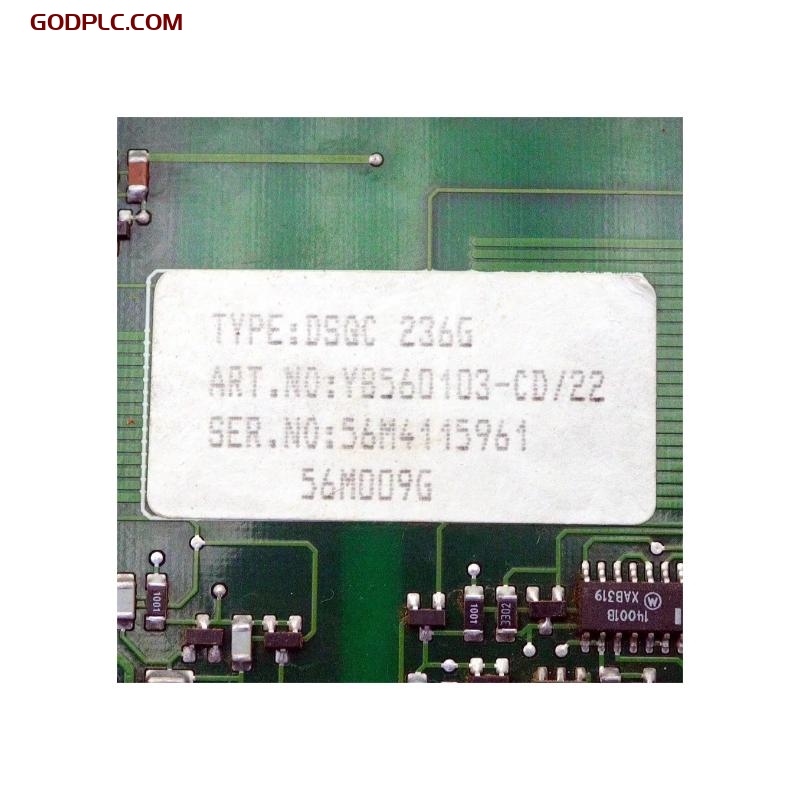

| Product Model | DSQC236G YB560103-CD |
| Manufacturer | ABB |
| Type | Servo Drive Control Board |
| Applicable Systems | ABB Automation Control Systems |
| Input Voltage | 24V DC |
| Power Consumption | Max 20W |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
3.3 Performance and Functions
| Item | Specification |
|---|---|
| Input Voltage | 24V DC |
| Power Consumption | Max 20W |
| Control Function | Precision servo drive control, real-time adjustment of motor speed and torque |
| Output Signal Type | PWM Output signal, compatible with various servo motors |
| Communication Interface | RS-232, RS-485, Ethernet/IP |
| Data Processing Capacity | High-speed data transmission, real-time feedback and adjustment |
| Supported Protocols | Modbus, Profibus, Ethernet/IP |
| Protection Features | Overcurrent protection, overvoltage protection, overtemperature protection |
3.4 Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% – 95% Non-condensing |
4. Industry Applications
The ABB DSQC236G YB560103-CD Servo Drive Control Board plays a crucial role in various industries that require precise control and real-time feedback for automation systems. Key applications include:
-
Robot Control: In industrial robot systems, the DSQC236G provides high-precision servo drive control, ensuring precise movements and efficient operation.
-
Automated Production Lines: The control board is widely used in motion control systems within automated production lines, improving operational efficiency and precision.
-
Precision Assembly and Manufacturing: In precision assembly and manufacturing processes, the DSQC236G controls
ABB DSQC236G YB560103-CD Servo Drive Control Board is in stock. Please contact us for a quick quote and competitive pricing.
