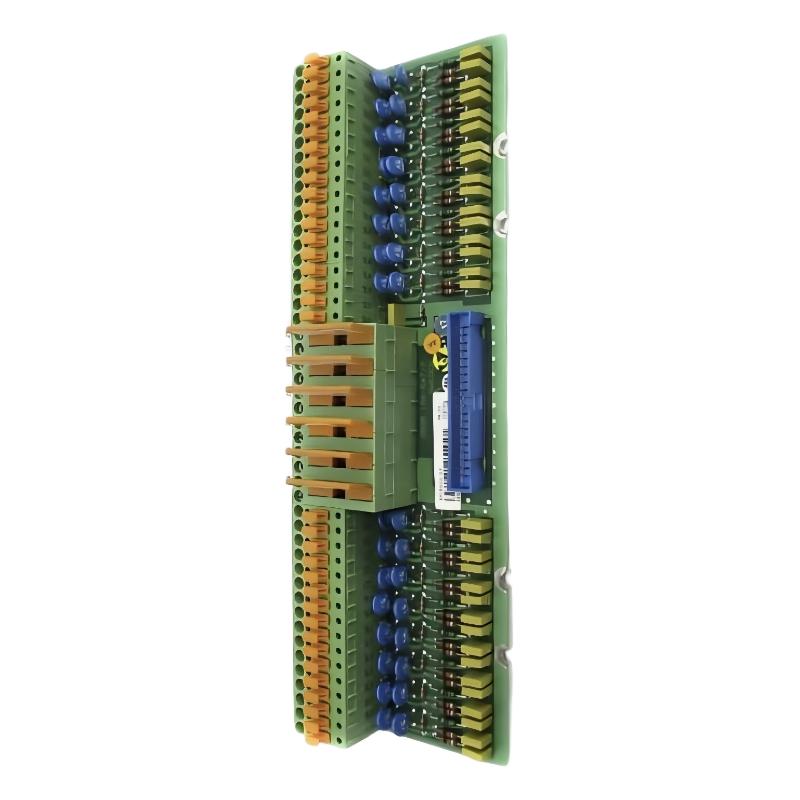

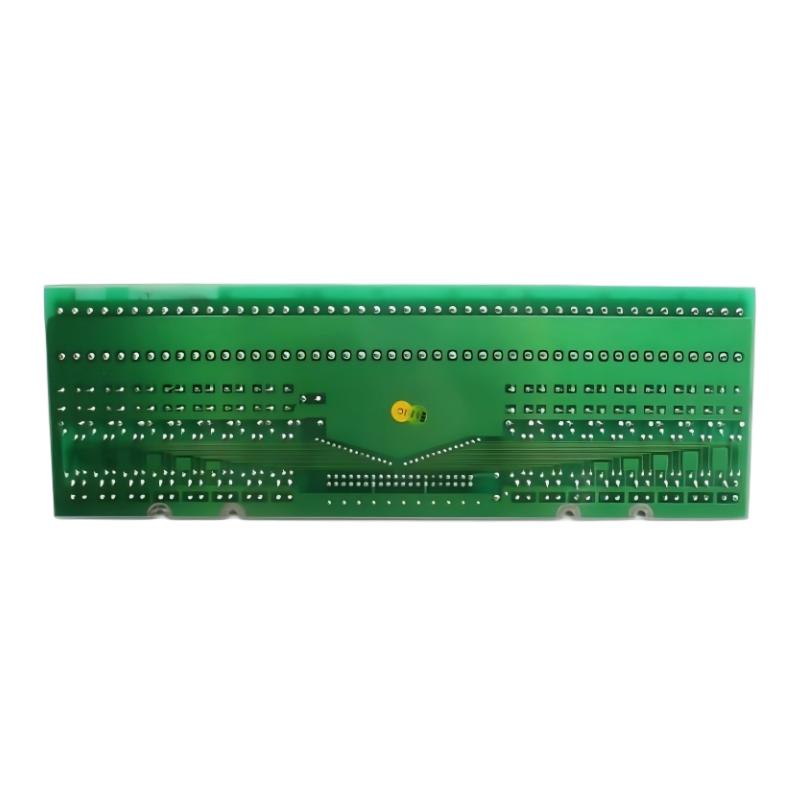

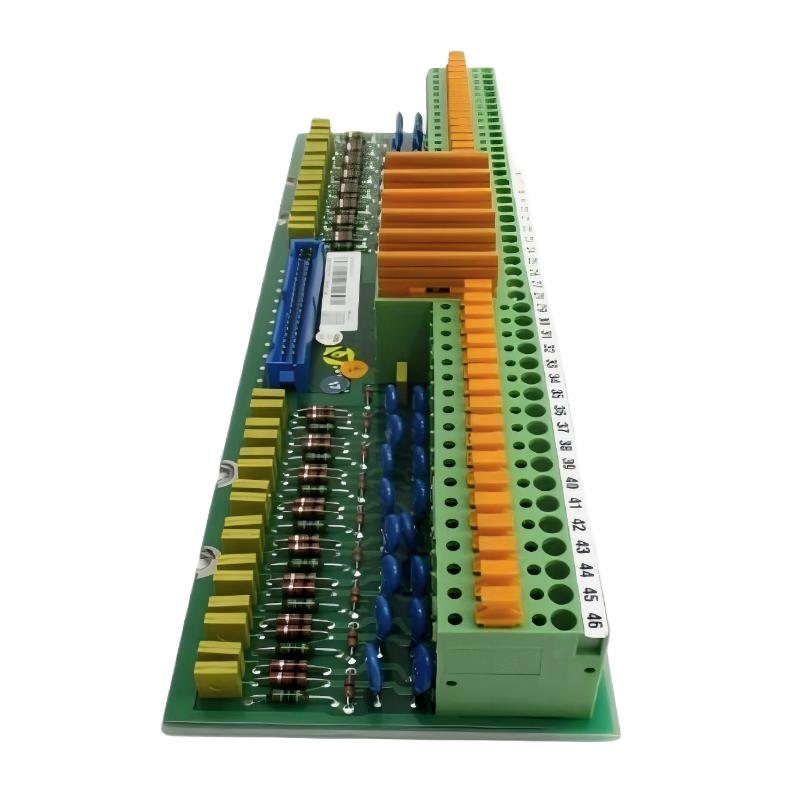

ABB DSTX 120 57160001-MA Connection Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | DSTX 120 |
| Ordering Number | 57160001-MA |
| Product Type | Connection Unit |
| Manufacturer | ABB |
| Application Area | Industrial automation control system signal connection |
| Core Function | Signal connection, interface adaptation, and communication support |
| Connected Objects | Control system and field I/O modules |
| Communication Method | Industrial signal and system bus transmission |
| System Compatibility | Compatible with ABB DCS automation systems |
| Installation Method | Cabinet-mounted modular installation |
| Main Function | Reliable inter-module signal connection and distribution |
| Operating Role | Signal relay and interface adaptation |
| Interface Type | Industrial control connection interface |
| Operating Environment | Continuous industrial automation operation |
| Dimensions | 306 × 58.5 × 99 mm |
| Weight | 0.375 kg |
FAQ
1. What is the main function of the ABB DSTX 120 Connection Unit?
The DSTX 120 Connection Unit is used in industrial automation systems to provide reliable signal connection between the control system and field I/O modules. It handles signal distribution, interface adaptation, and communication support, ensuring stable and consistent data transmission within the automation architecture.
2. What role does the DSTX 120 play in a control system?
The unit acts as a signal interface bridge, ensuring that input and output signals from field devices are correctly transmitted to the control system and that control commands are reliably delivered back to the field. It helps maintain coordinated operation across the entire automation system.
3. In which industries is the DSTX 120 commonly used?
The DSTX 120 is widely used in industries such as power generation, petrochemical processing, metallurgy, water treatment, pulp and paper, and manufacturing automation. It is suitable for systems that require stable signal transmission and high communication reliability in complex control environments.
4. How does the DSTX 120 improve signal reliability?
The unit uses standardized interfaces and stable internal signal routing to reduce wiring complexity and minimize electrical interference. This improves transmission accuracy and enhances the overall reliability of system communication.
5. What happens if the DSTX 120 fails during operation?
If the DSTX 120 fails, certain I/O signals may not be properly transmitted to the control system. This can result in incomplete data acquisition or incorrect control execution, potentially leading to localized process disruptions or unstable system behavior.
6. Is the DSTX 120 compatible with ABB automation systems?
Yes, the DSTX 120 is specifically designed for ABB distributed control systems. It integrates seamlessly with related I/O modules and control units, ensuring reliable signal connectivity within ABB automation platforms.
7. What should be considered during maintenance of the DSTX 120?
Maintenance should include checking terminal connections for looseness or oxidation, ensuring proper electrical contact, and keeping the control cabinet clean. Anti-static precautions should be followed to avoid damage to sensitive electronic components.
8. How does the DSTX 120 contribute to system performance improvement?
By simplifying signal wiring and improving connection reliability, the DSTX 120 reduces communication errors and enhances system integration efficiency. This leads to improved stability, easier maintenance, and more reliable operation of industrial automation systems.
ABB DSTX 120 57160001-MA Connection Unit is in stock. Please contact us for a quick quote and competitive pricing.
