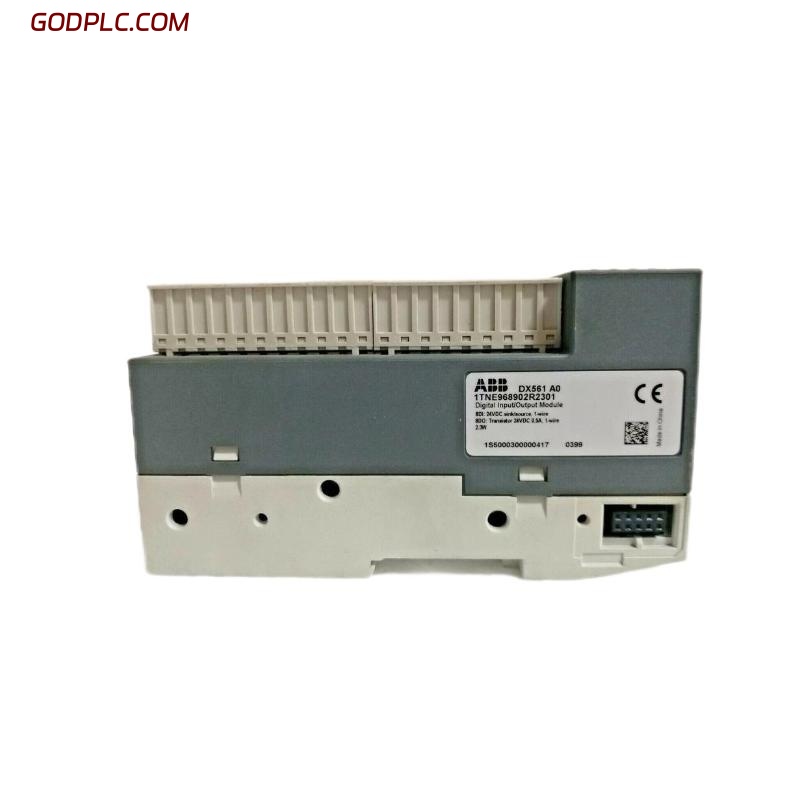

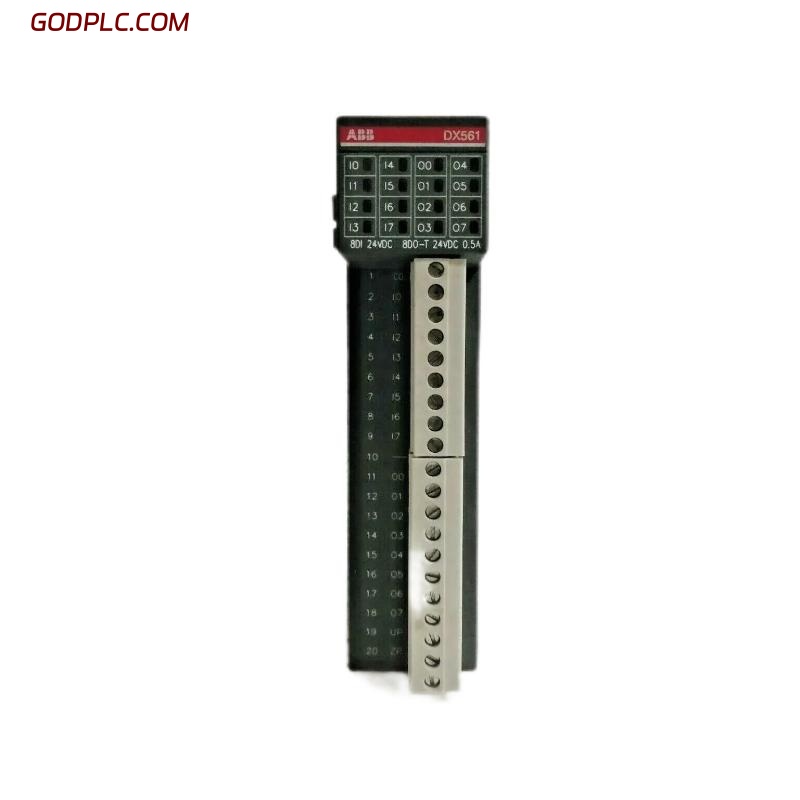

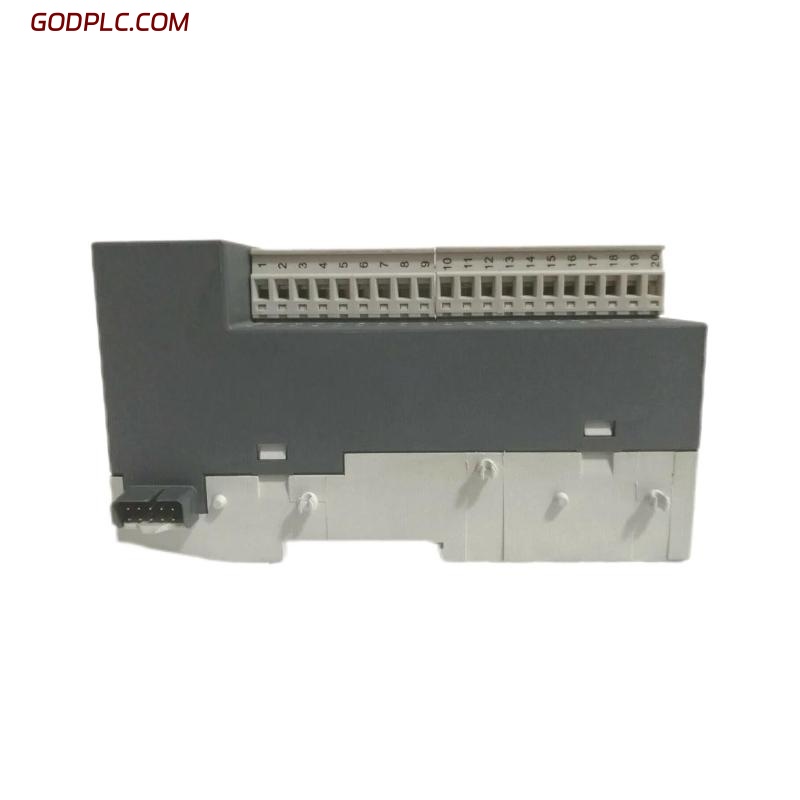

ABB DX561 1TNE968902R2301 Digital Input/Output Module
Product Overview
The ABB DX561 1TNE968902R2301 Digital Input/Output Module is a versatile and high-performance I/O module designed to facilitate digital signal processing in industrial automation systems. Part of the ABB Advant Controller 550 family, this module provides efficient handling of both digital inputs and outputs, making it ideal for applications in manufacturing, process control, and energy management. With robust diagnostics, high-speed processing, and easy integration into existing systems, the DX561 ensures operational efficiency and reliability in critical control environments.
Key Features
-
Digital I/O Capabilities – Handles both digital inputs and outputs for seamless integration in control systems
-
High-Speed Processing – Fast response times for time-sensitive applications, ensuring real-time monitoring and control
-
Advanced Diagnostics – Inbuilt diagnostic features for continuous monitoring of module health and status, allowing for proactive maintenance and troubleshooting
-
Compact Design – Space-efficient design that fits in control panels and tight spaces, optimizing system layouts
-
Flexible Connectivity – Compatible with ABB’s Advant Controller 550 and other ABB automation systems, allowing for easy system integration
-
Wide Input Voltage Range – Accommodates a wide range of voltage inputs, enhancing flexibility in diverse industrial environments
-
Redundant Configuration Support – Can be configured in redundant systems to enhance fault tolerance and reliability in critical processes
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 75 x 135 x 34 mm |
| Weight | 0.12 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC nominal |
| Input Voltage Range | 0–30 VDC |
| Output Voltage Range | 0–30 VDC |
| Current Rating | 2 A per channel (max) |
| Digital Inputs | 16 inputs |
| Digital Outputs | 16 outputs |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | ABB Advant Controller 550 family |
| Mounting | DIN rail-mounted |
Industry Applications
-
Manufacturing – Supports automation in production lines by controlling and monitoring digital signals from machines and sensors
-
Oil & Gas – Facilitates control and monitoring of field devices, enabling real-time data acquisition in exploration and production sites
-
Power Generation – Enhances reliability and performance of power plant automation systems by providing precise digital control and monitoring
-
Water Treatment – Used in controlling pumps, valves, and sensors in water and wastewater management systems
-
Transportation – Controls traffic management systems, airport automation, and infrastructure monitoring in transportation networks
The ABB DX561 1TNE968902R2301 Digital Input/Output Module offers an efficient and flexible solution for digital signal processing in industrial automation systems. With its high-speed processing, diagnostic capabilities, and compatibility with ABB’s Advant Controller 550 systems, it is a dependable choice for critical control applications in various industries.
ABB DX561 1TNE968902R2301 Digital Input/Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
