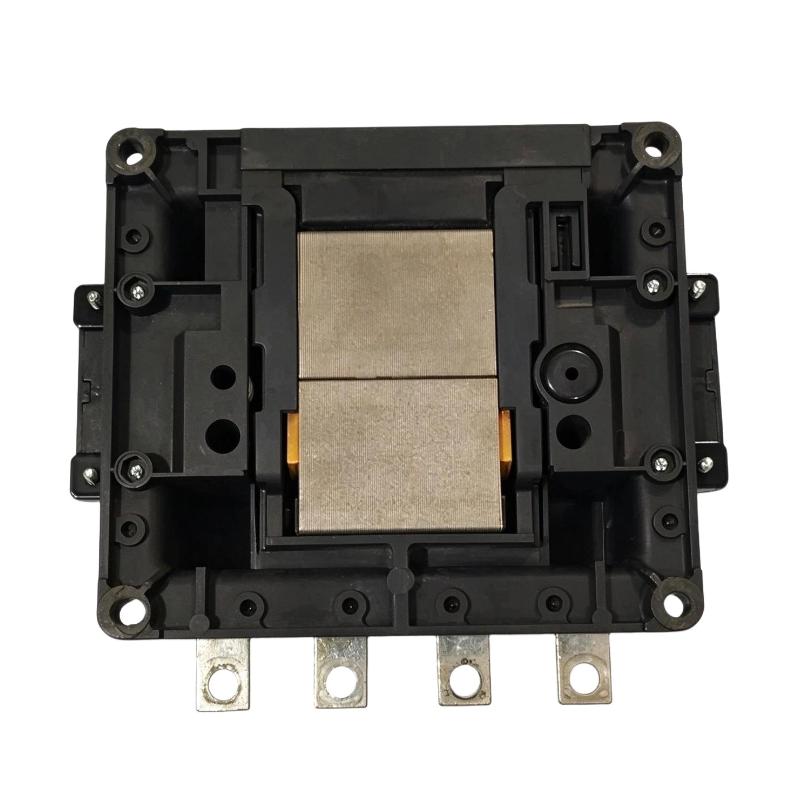

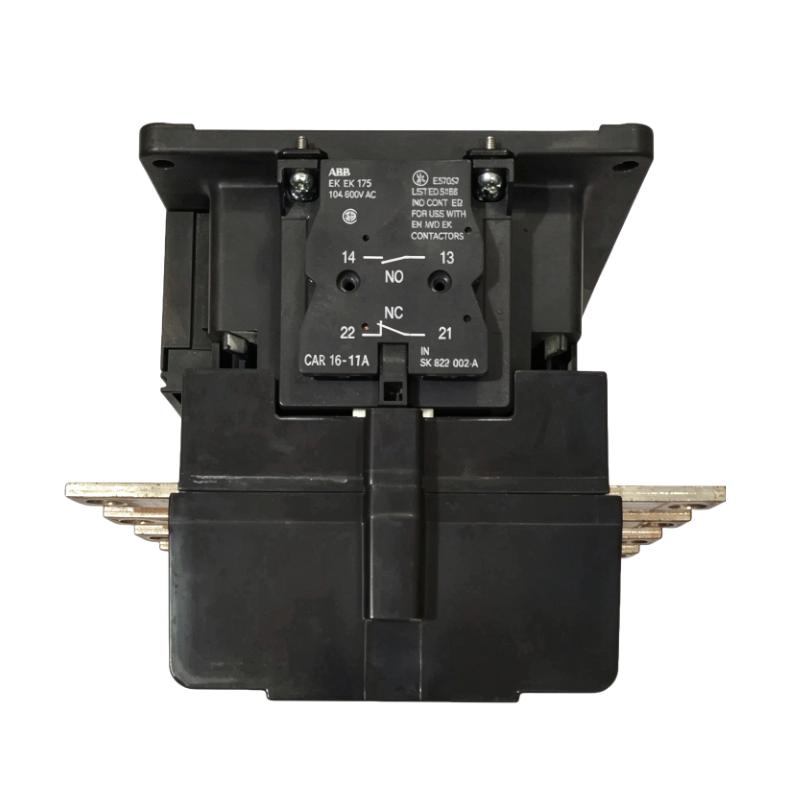

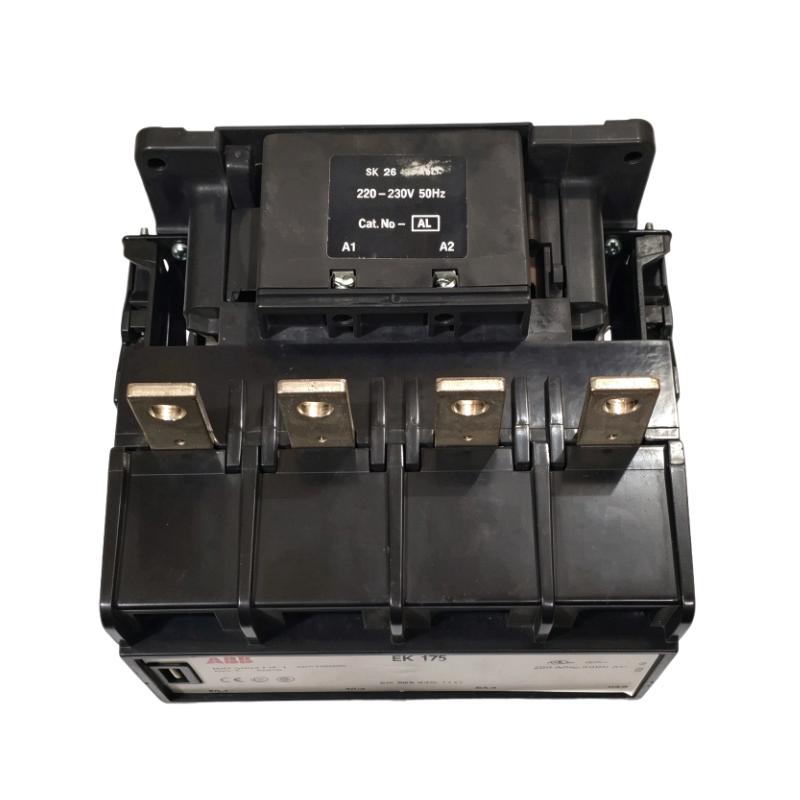

ABB EK175-40-11 SK825440-AM Contactor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | EK175-40-11 |
| Ordering Number | SK825440-AM |
| Product Name | Contactor |
| Product Type | Industrial Electrical Contactor |
| Primary Function | Switching and controlling electrical power circuits |
| Typical Applications | Industrial motor control, power distribution, and electrical switching systems |
| Operating Principle | Electromagnetic actuation of the main contacts |
| Main Contact Configuration | Confirm the contact arrangement from the product nameplate or technical documentation |
| Rated Operational Voltage | Refer to the manufacturer’s specifications for the exact model |
| Rated Operational Current | Confirm the applicable rating according to the load and operating conditions |
| Coil Voltage | Verify the rated coil voltage and frequency before energizing |
| Auxiliary Contacts | Configuration and availability depend on the specific product version |
| Load Compatibility | Confirm suitability for the intended motor or electrical load |
| Installation Requirements | Follow the specified mounting arrangement and terminal wiring diagram |
| Protection Requirements | Use suitable short-circuit and overload protection according to the system design |
| Maintenance | Inspect contacts, terminals, coil operation, and signs of overheating |
| Dimensions | 230 × 178 × 207 mm |
| Weight | 7.05 kg |
FAQ
1. What is the main function of the ABB EK175-40-11 contactor?
The ABB EK175-40-11 is identified as a contactor used for switching electrical circuits. In industrial control systems, contactors allow electrical loads to be operated through a control circuit, supporting remote switching and automated equipment operation.
2. How can the correct coil voltage be confirmed?
Check the coil marking, product nameplate, and model-specific technical documentation. The supply voltage and frequency must match the installed coil specifications. An incorrect supply can cause unreliable operation, excessive heating, or coil failure.
3. Can the EK175-40-11 be used for motor control?
Suitability depends on the contactor’s rated current, operating voltage, utilization category, and the motor’s starting and running characteristics. Confirm these parameters before selecting the contactor for a motor starter or other switching application.
4. What is the difference between the contactor’s main contacts and auxiliary contacts?
Main contacts carry the switched load current. Auxiliary contacts are generally used for control functions such as status feedback, electrical interlocking, and signaling. The actual contact arrangement must be verified for the specific product version.
5. Why might a contactor fail to pull in when the control signal is applied?
Possible causes include incorrect coil voltage, an interrupted control circuit, loose wiring, a defective coil, or a mechanically obstructed armature. Check the control supply and circuit continuity first, then inspect the contactor after safely isolating the equipment.
6. What can cause overheating at the contactor terminals?
Loose connections, excessive current, damaged contact surfaces, unsuitable conductor sizing, or poor connection quality can generate excess heat. Inspect the terminals and wiring, verify the load against the contactor rating, and correct any connection or protection issues.
7. What should be checked when replacing an EK175-40-11 contactor?
Verify the model and ordering number, coil rating, main-contact configuration, auxiliary-contact requirements, current rating, mounting arrangement, and terminal layout. Confirm compatibility with the existing control circuit and protective devices before installation.
8. What maintenance practices help improve contactor reliability?
With the circuit safely isolated, inspect contact surfaces, wiring terminals, insulation, coil condition, and mechanical movement. Look for pitting, discoloration, loose connections, unusual noise, or overheating. Follow the product-specific maintenance instructions and replace components that show unacceptable wear or damage.
ABB EK175-40-11 SK825440-AM Contactor is in stock. Please contact us for a quick quote and competitive pricing.
