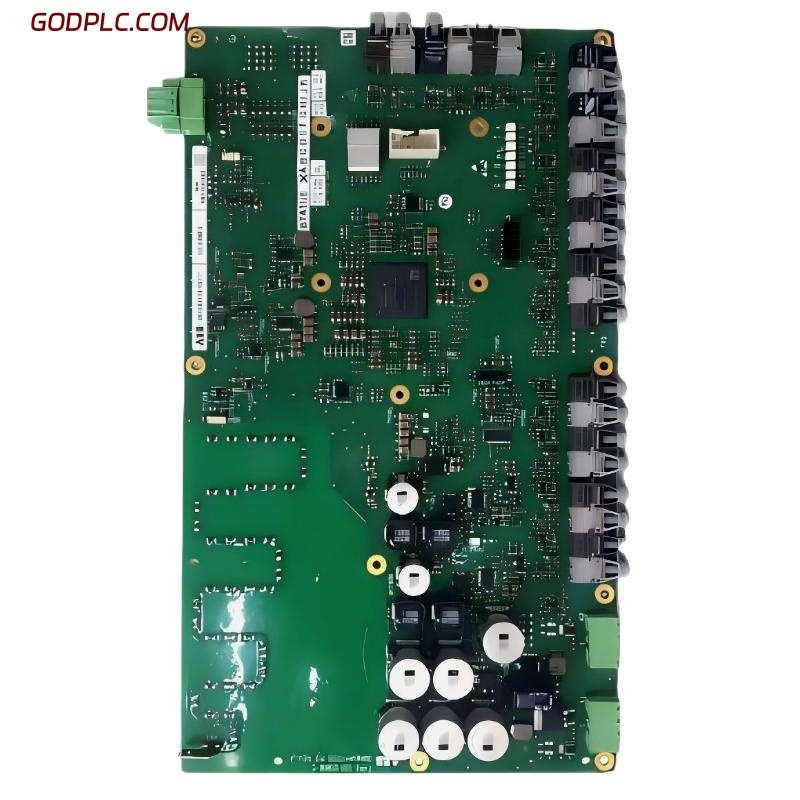

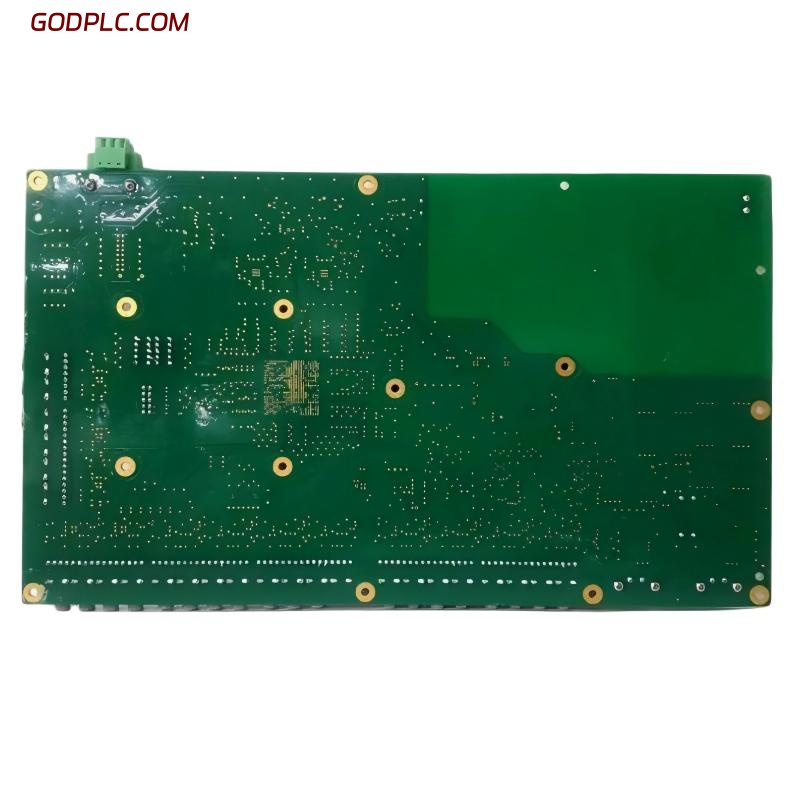

ABB GD D360 C 3BHE047217R0101 High Voltage Inverter Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Name | High Voltage Inverter Board |
| Model | GD D360 C |
| Part Number | 3BHE047217R0101 |
| Module Type | High-voltage inverter control board |
| Application | Industrial high-voltage drive and inverter systems |
| Function | Inverter switching control and signal processing |
| Supported Topology | IGBT-based inverter configuration |
| Input Signals | PWM and control logic signals |
| Output Function | Gate drive control for power semiconductor stage |
| Voltage Class | Suitable for high-voltage industrial applications |
| Isolation | Galvanic isolation between control and power circuits |
| Protection Features | Overvoltage, overcurrent, and fault detection |
| Cooling Method | System-integrated cooling (air or forced ventilation) |
| Power Supply | Supplied from inverter auxiliary power system |
| Diagnostic Capability | Real-time fault monitoring and status feedback |
| Installation Type | Integrated mounting within inverter cabinet |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Dimensions | 166 × 100 × 46 mm |
| Weight | 0.4 kg |
