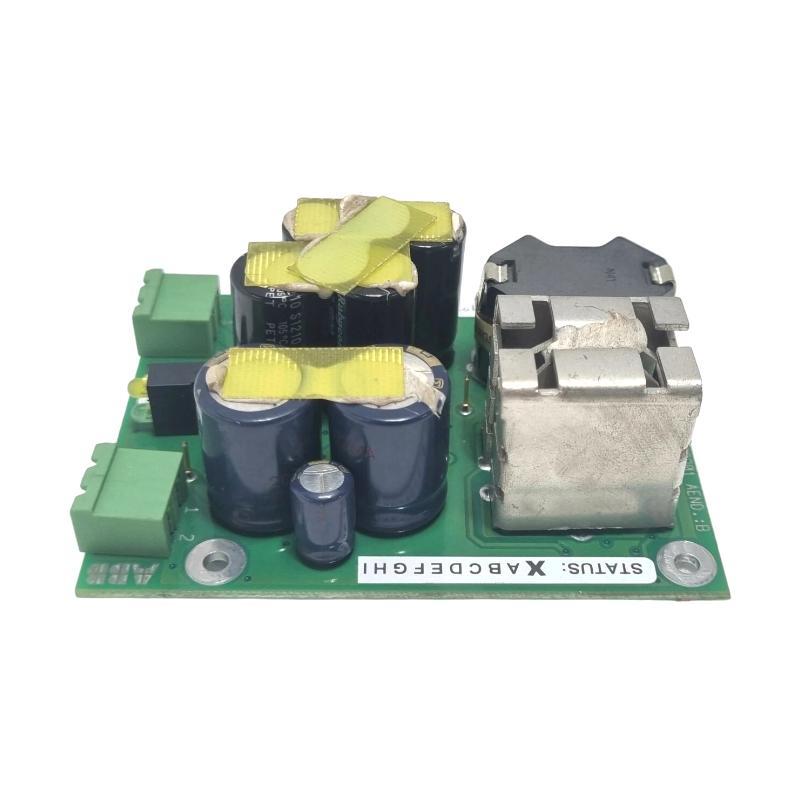

ABB KV C757 A127/KVC757A 3BHE020959R0127 Driver Circuit Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KV C757 A127 / KVC757A |
| Ordering Number | 3BHE020959R0127 |
| Product Type | Driver Circuit Board |
| Brand | ABB |
| Function Type | IGBT / Power semiconductor driver |
| Control Architecture | Industrial driver circuit design |
| Input Signal Types | Digital / Analog control signals |
| Output Functions | IGBT gate drive and power control |
| Communication Interface | Industrial-grade interface |
| Power Supply | Industrial DC supply |
| Mounting Method | Control cabinet or rack installation |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| EMC Compliance | Meets industrial EMC standards |
| Protection Rating | IP20 |
| Application Areas | Industrial variable frequency drives, drive systems, power automation |
| Dimensions | 180 × 120 × 30 mm |
| Weight | 0.25 kg |
FAQ
1. What is the main function of this driver circuit board?
This driver circuit board is designed to control the switching of IGBT or other power semiconductor devices. It converts industrial control signals into precise gate drive voltages, ensuring fast and accurate switching of IGBTs. This function is critical for improving system efficiency, reducing switching losses, and protecting power devices in industrial applications.
2. In which industrial systems is this driver board typically used?
The board is widely used in industrial variable frequency drives, motor drive systems, and power automation equipment. It is suitable for medium- to high-power IGBT driving applications, ensuring motors and power conversion devices operate efficiently and reliably in industrial production environments.
3. What types of input and output signals does the board support?
This module supports both digital and analog input signals from controllers or PLCs. It provides gate drive outputs to precisely control the IGBT switching state, accommodating different power control needs and industrial applications.
4. Does the driver board include protection features?
Yes, the board is equipped with short-circuit, overcurrent, and overvoltage protection. These protections allow the board to respond quickly to abnormal electrical conditions, preventing damage to the IGBT and the drive system, and enhancing the safety and stability of industrial equipment.
5. What installation considerations are recommended?
During installation, ensure the system power is disconnected and the board is properly grounded. The board should be installed in a ventilated control cabinet or rack, and signal wires should be separated from high-power lines to minimize electromagnetic interference. Avoid environments with excessive vibration or impact to ensure long-term stable operation.
6. How should output abnormalities be diagnosed?
Check whether the input control signals and power supply are stable, and ensure all output connections are secure. Inspect load conditions and environmental temperature to confirm the board is not overloaded. If necessary, use an oscilloscope or industrial testing tools to check gate drive waveforms and pinpoint the source of any issues.
7. Is this board suitable for continuous industrial operation?
Yes, the board is designed with industrial-grade components capable of long-term continuous operation. Under normal cooling and power conditions, it can reliably provide gate drive signals, supporting continuous operation in industrial drive systems.
8. How can the lifespan and stability of the driver board be maximized?
To maximize lifespan and operational stability, keep the control cabinet clean and well-ventilated, regularly inspect terminal connections and power stability, and avoid prolonged overload conditions. Maintaining a proper operating environment and following standard maintenance practices will significantly extend the board’s life and improve the safety and reliability of the overall drive system.
ABB KV C757 A127/KVC757A 3BHE020959R0127 Driver Circuit Board is in stock. Please contact us for a quick quote and competitive pricing.
