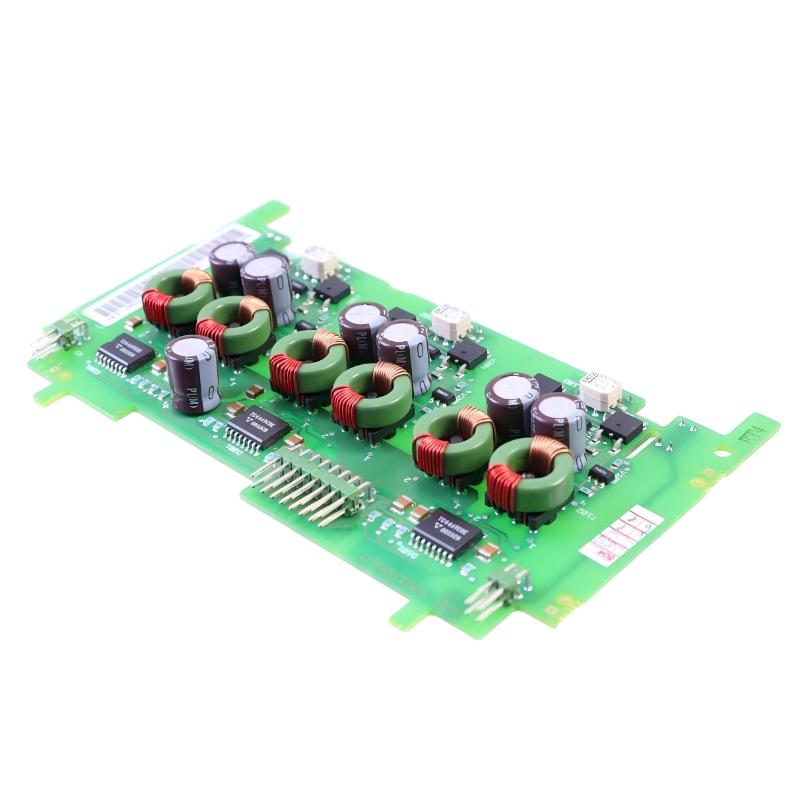

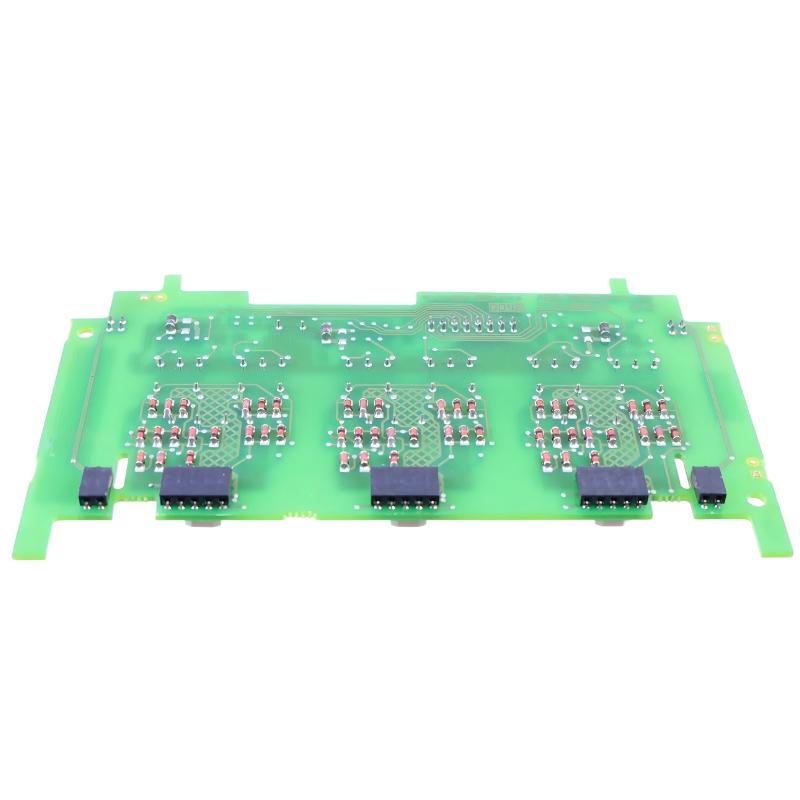

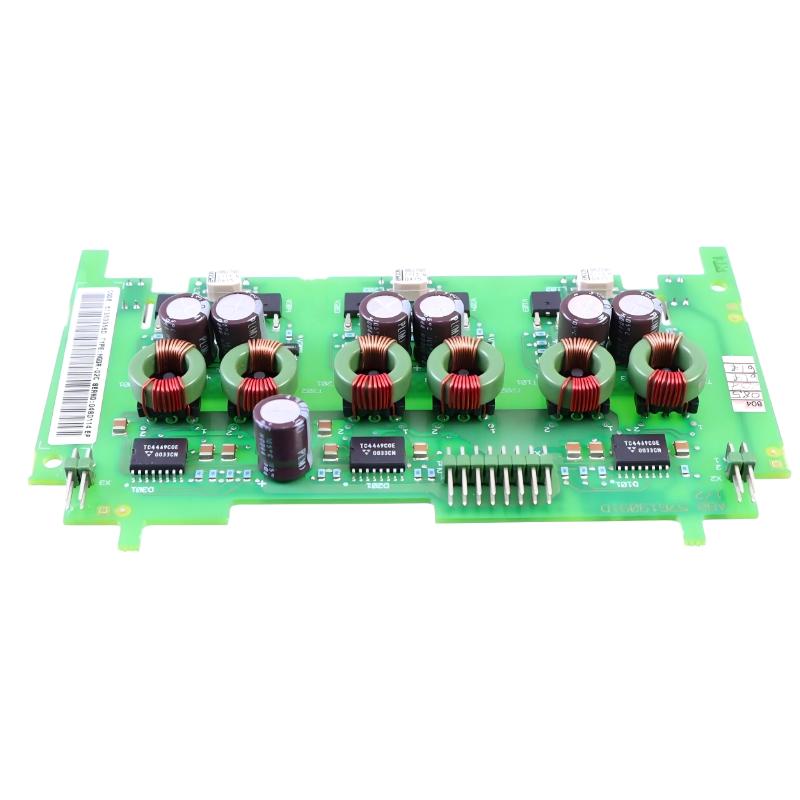

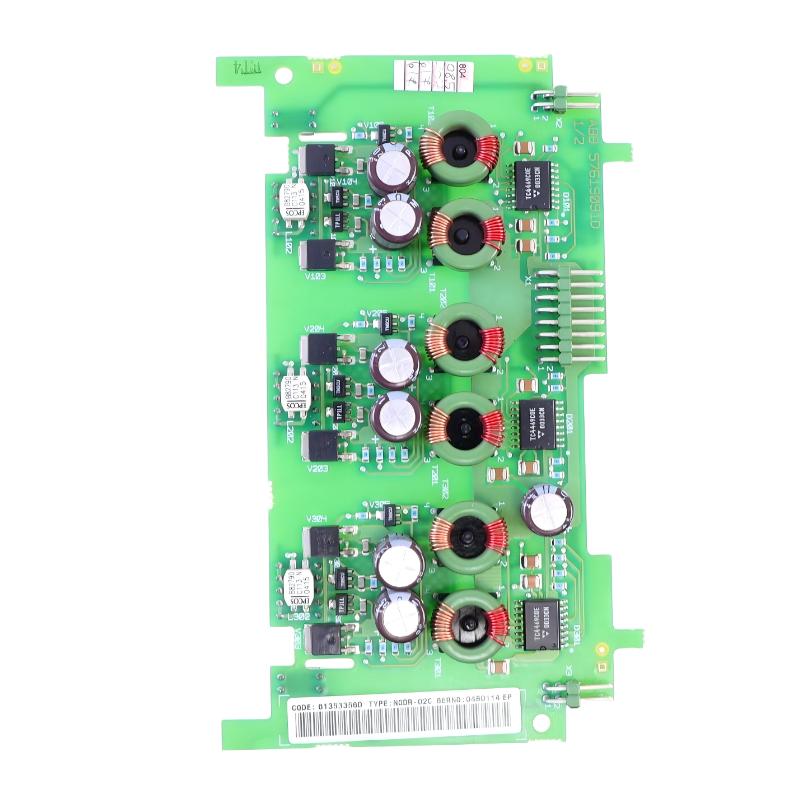

Q1. What is the primary function of the NGDR-02C Driver Board?

The NGDR-02C Driver Board is a key electronic control component used in ABB industrial drive systems to manage the operation of power switching devices. Its main function is to receive control signals from the main control system, process these signals, and generate accurate drive pulses for power semiconductor components such as IGBTs. The board ensures that the power stage operates according to the required switching sequence and timing, enabling precise motor control and stable energy conversion. In addition to signal driving, the board also provides status feedback and protection monitoring functions, helping the drive system detect abnormal operating conditions and respond quickly to prevent damage to critical components.

Q2. What role does the driver board play in an industrial variable frequency drive system?

The driver board acts as an important connection between the low-power control circuit and the high-power switching section of a variable frequency drive. The control board generates command signals, but these signals cannot directly operate high-voltage power devices. The driver board amplifies and conditions these signals so that power modules can switch safely and efficiently. Its performance directly affects motor acceleration, torque response, output stability, and overall drive reliability. A properly functioning driver board ensures accurate switching of power devices, reduces switching losses, improves system efficiency, and protects expensive power components from abnormal operating conditions.

Q3. What are the common symptoms of a faulty NGDR-02C Driver Board?

A faulty NGDR-02C Driver Board may cause various drive system problems, including failure to start, unexpected shutdowns, power module triggering failures, overcurrent alarms, output instability, or repeated protection trips. Some failures may appear intermittently, where the drive operates normally during initial startup but develops faults after extended operation due to temperature changes or component aging. Other symptoms may include incorrect feedback signals, abnormal switching behavior, or communication errors between control and power sections. Proper troubleshooting should include checking drive fault records, verifying power supply conditions, inspecting board connections, and measuring relevant control signals to determine whether the driver board is the actual source of the problem.

Q4. How can technicians determine whether the driver board needs to be replaced?

Determining whether the driver board requires replacement requires a systematic troubleshooting process. First, technicians should verify that the board receives the correct power supply and that all connectors, cables, and terminals are properly installed. Loose connections or damaged wiring can create symptoms similar to a defective board. Next, diagnostic information from the drive system should be reviewed to identify driver-related faults, abnormal gate signals, or power module control failures. If external wiring, configuration parameters, and related components are confirmed to be normal, further testing of the driver’s output signals or replacement with a verified working board can help confirm the failure. Before replacement, all cable positions and system settings should be documented to ensure accurate restoration after maintenance.

Q5. What factors can affect the service life of the NGDR-02C Driver Board?

The service life of the driver board depends on operating environment, electrical conditions, and maintenance quality. Excessive cabinet temperature, insufficient ventilation, dust contamination, high humidity, unstable power supply, electrical surges, electromagnetic interference, and frequent power cycling can accelerate component aging. In industrial environments, accumulated dust or moisture may reduce insulation performance and cause signal instability or short circuits. Mechanical vibration can also affect connectors and solder joints over long operating periods. To maximize service life, the control cabinet should be kept clean, cooling conditions should be maintained properly, and electrical connections should be inspected regularly to prevent potential failures caused by environmental stress.

Q6. What checks should be performed after replacing the NGDR-02C Driver Board?

After replacing the driver board, technicians should carefully verify the installation quality before returning the drive to normal operation. All connectors, power supply lines, and signal cables should be checked to ensure they are installed correctly and securely. The drive should then be powered on while monitoring initialization status, alarm messages, and diagnostic information. Communication between the driver board, main control board, and power modules should be confirmed to ensure proper signal exchange. A low-load test operation is recommended first to verify correct switching behavior and system response. After confirming stable operation, the equipment can gradually return to normal production conditions.

Q7. How should driver board control or signal problems be diagnosed?

When abnormal drive control or signal problems occur, troubleshooting should follow a structured approach from external connections to internal components. The first step is to verify the incoming control signals, power supply stability, and connector conditions. Any loose cables, damaged wiring, or poor contact points should be corrected before further testing. Next, technicians should check communication and feedback signals between the driver board and the main control system. If external conditions are normal, drive diagnostic tools can be used to analyze fault codes, switching status, and protection events. Comparing actual operating data with normal system behavior helps identify whether the issue originates from the driver board, power module, or another control component.

Q8. What maintenance practices can improve the reliability of the NGDR-02C Driver Board?

Regular preventive maintenance is essential for ensuring reliable operation of the NGDR-02C Driver Board in industrial applications. The control cabinet should be inspected periodically to prevent dust buildup, moisture accumulation, and excessive heat exposure. Electrical connectors should be checked for tightness and signs of oxidation, while cooling systems should be maintained to ensure stable operating temperatures. Engineers should also review drive fault history and operating conditions to identify early warning signs such as repeated alarms or abnormal current behavior. Maintaining stable power quality, avoiding unnecessary power cycling, and following scheduled inspection procedures can significantly reduce driver board failures and improve the overall reliability and availability of the ABB drive system.
