1. What is the main function of the ABB NINT-63 58976385?

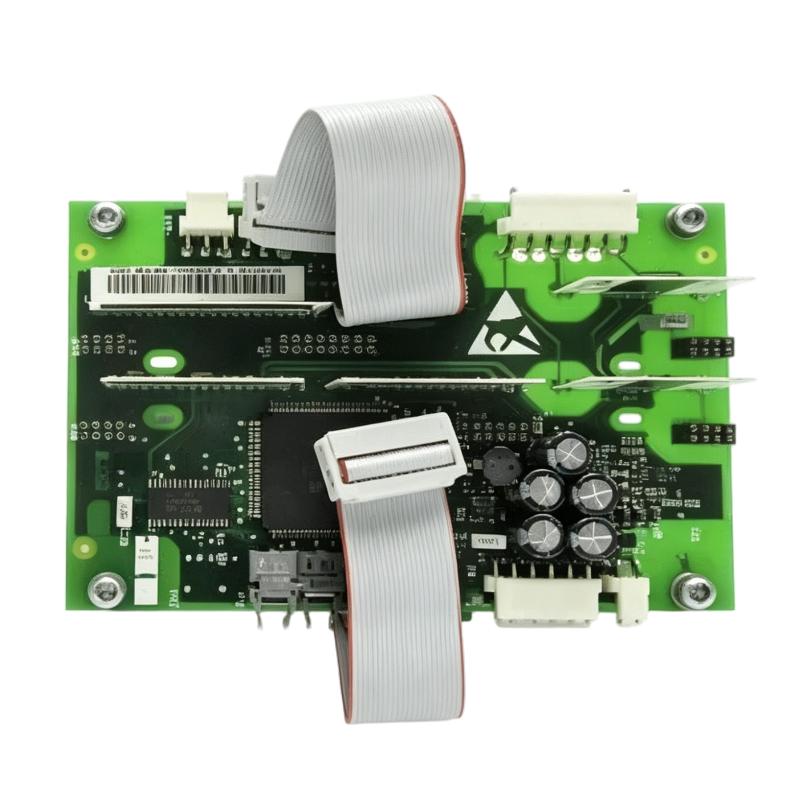

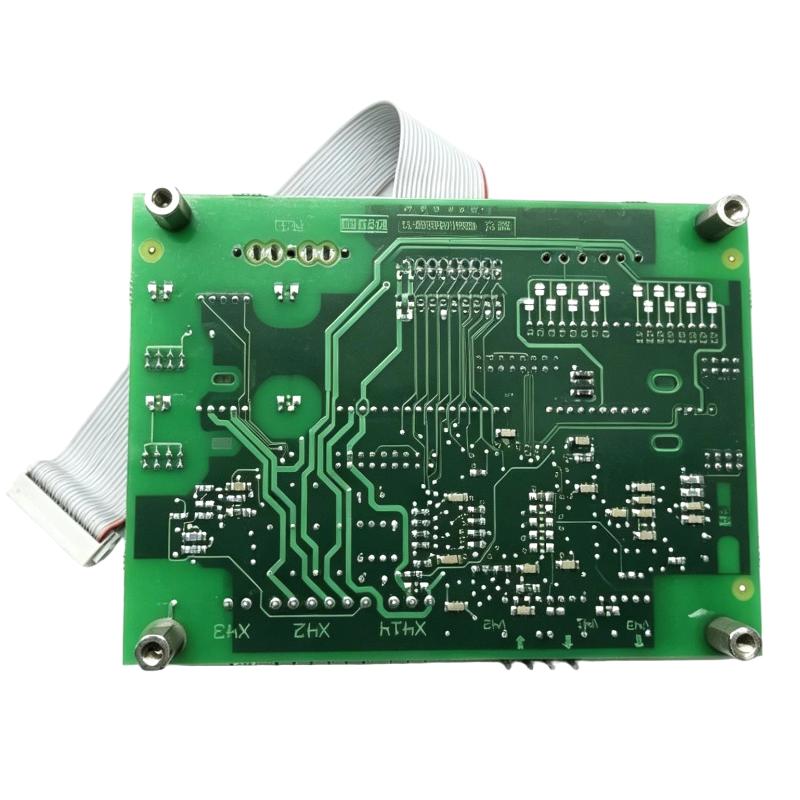

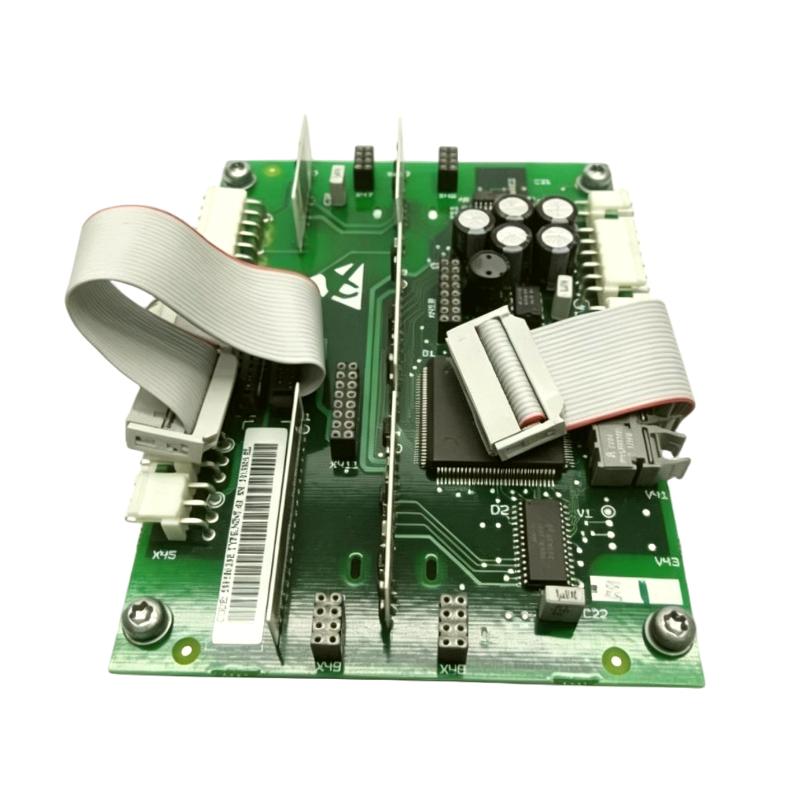

The ABB NINT-63 58976385 is an inverter-related control and interface board used in compatible ABB drive systems. It is part of the control architecture that connects the drive control electronics with the inverter power section. The NINT board family handles control commands and measurement signals, while associated gate-driver boards amplify control pulses for the IGBT power devices. This coordinated signal path allows the inverter to control the power stage correctly.

2. Which ABB drive systems can use the NINT-63?

The NINT-63 is associated with ABB ACS600 drive and inverter systems. Its actual application depends on the drive model, inverter configuration, hardware revision, and associated control boards. Before replacement, the original board identification should be checked carefully. For this product, the model is NINT-63 and the ordering number is 58976385.

3. What role does the NINT-63 play in the inverter control system?

The NINT-63 provides an important interface between the control electronics and the inverter power section. The NINT architecture receives control commands and sends measurement signals, while other boards distribute or amplify the corresponding control signals toward the IGBT power stage. This makes the NINT board an important part of the signal chain responsible for accurate inverter operation.

4. What symptoms may indicate an NINT-63-related problem?

Possible symptoms include inverter startup failure, abnormal control response, internal signal faults, repeated hardware alarms, or unexpected power-stage protection events. In systems using parallel inverters, diagnostic information can identify individual NINT board faults. Fault information may also indicate PPCC link, overcurrent, earth-fault, or short-circuit conditions. However, these symptoms do not automatically confirm that the NINT-63 itself is defective, so associated boards, connectors, power modules, and wiring should also be inspected.

5. How should an NINT-63 fault be troubleshot?

Begin by recording the complete fault code and the operating conditions when the fault occurs. Check the drive control supply and inspect the NINT-63 connectors for loose contacts, contamination, oxidation, damaged pins, or overheating. Then check the associated signal cables, control boards, distribution boards, and gate-driver circuits. If the drive reports an overcurrent, earth-fault, or short-circuit condition, the inverter power section should also be checked. A systematic diagnosis is preferable to replacing the NINT-63 based only on the displayed alarm.

6. Can a faulty connection cause an NINT-63-related fault?

Yes. The NINT-63 is part of the control signal path, so poor electrical connections can interrupt or distort signals between the control electronics and inverter power section. Loose connectors, damaged pins, contamination, oxidation, or degraded cables can result in intermittent faults or unstable inverter operation. During maintenance, connectors should be fully seated and securely fixed, and the associated wiring should be inspected for mechanical or thermal damage.

7. What precautions should be taken when replacing the ABB NINT-63 58976385?

Before replacement, verify the board model NINT-63 and ordering number 58976385 against the original hardware and the specific drive configuration. The drive must be completely isolated from its electrical supply, and stored DC-link energy must be safely discharged before internal maintenance. Label connectors and cables before removal to prevent incorrect reconnection. Appropriate ESD protection should be used when handling the PCB. After installation, carefully inspect the board and all connections before restoring power.

8. What should be checked after installing a replacement NINT-63?

First verify that all connectors, cables, and associated control boards are correctly connected. Check for loose wiring or visible damage around the inverter control and power sections. After controlled power-up, review the drive diagnostic information and confirm that no NINT, PPCC, overcurrent, earth-fault, or short-circuit-related alarms remain. Verify that control commands and measurement feedback are functioning correctly. A controlled low-load test should be performed before returning the inverter to normal operating conditions.
