1. What is the primary function of the ABB NINT-68?

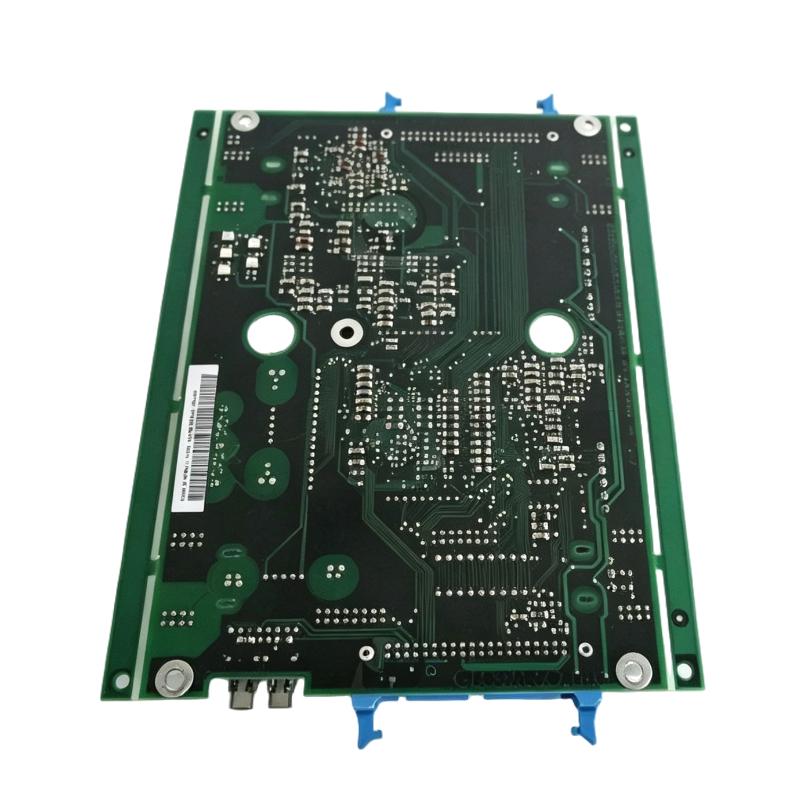

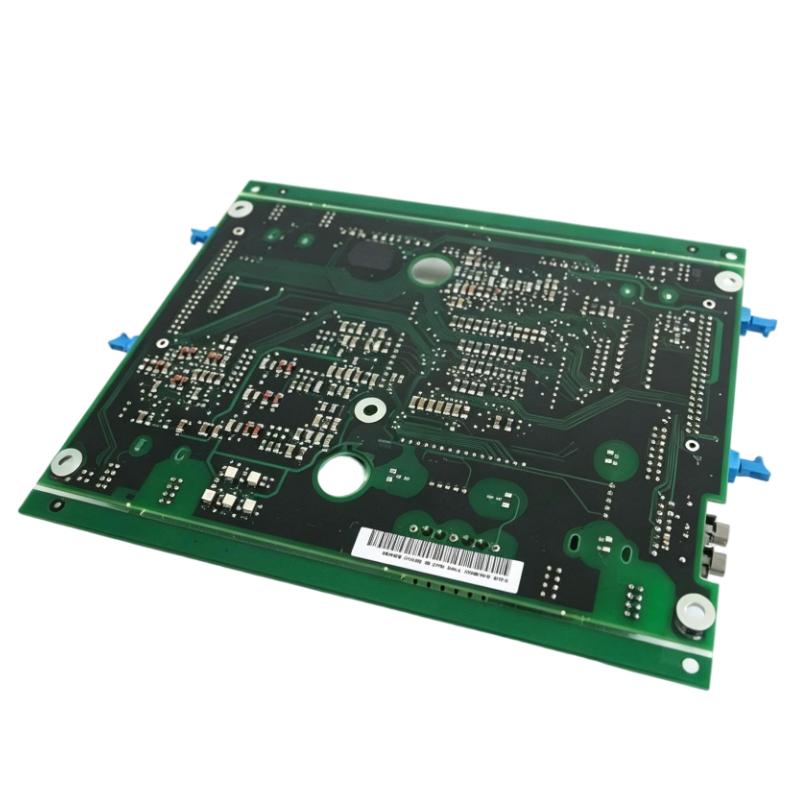

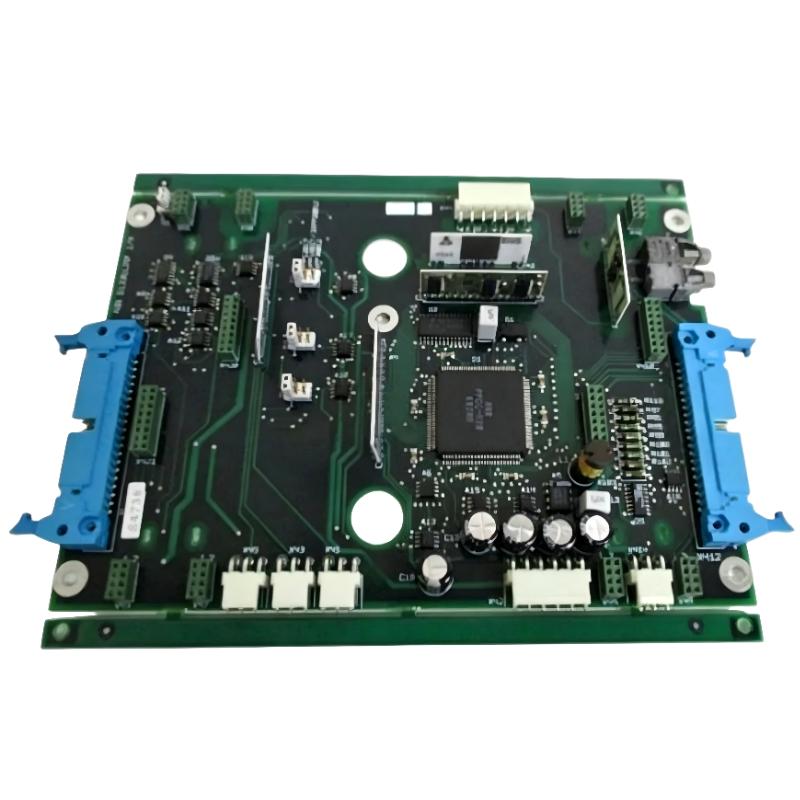

The NINT-68 is a Main Circuit Interface Board used to connect the control electronics with the inverter power section in applicable ABB drive systems. It provides an important signal interface for transferring control commands toward the power stage while returning measurement and operating-status information to the control electronics. This allows the drive control system to monitor power-stage conditions and coordinate inverter operation. The NINT board is part of the control architecture that connects the motor-control electronics with the power components responsible for generating the motor output.

2. What signals are handled by the NINT-68?
The NINT-68 handles control and measurement-related signals exchanged between the control electronics and inverter power section. Depending on the specific drive configuration, these signals can include power-stage operating information, phase-related feedback and fault information. The NINT interface is also associated with monitoring conditions such as PPCC link faults, overcurrent, earth faults and short-circuit conditions. Exact signal assignments should always be checked against the documentation for the specific ABB drive because the implementation can vary between different drive configurations.

3. How does the NINT-68 communicate with the inverter power section?
The NINT-68 acts as an interface between the control electronics and the inverter power components. Control information generated by the motor-control circuitry is transferred through the NINT interface toward the power stage, while measurement and status information is returned for monitoring and control purposes. In the ABB inverter architecture, the NINT board is associated with the power-stage control path and works together with other control and gate-driver boards. Reliable connections between these components are therefore essential for correct inverter operation.

4. What fault conditions can be associated with the NINT-68?
NINT-related diagnostics can provide information about PPCC link problems, overcurrent, earth faults and short-circuit conditions. Phase-specific information may also indicate faults involving the upper or lower IGBT sections of the U, V or W phases. However, an NINT-related fault indication does not necessarily mean that the NINT-68 itself has failed. Problems with IGBT modules, gate-driver circuits, cables, connectors, control boards or the power section can produce similar symptoms. Troubleshooting should therefore evaluate the complete signal and power path before replacing the interface board.

5. How should an NINT-68 fault be diagnosed?
Start by recording the active fault code and reviewing the drive’s fault history. Next, inspect the physical connections between the NINT-68, the associated control electronics and the inverter power section. Check connectors for looseness, contamination, damaged contacts or poor seating. If the fault involves PPCC communication or a power-stage condition, the relevant communication path and IGBT circuitry should also be checked. Measurements and diagnostic information should be compared with the expected operating condition. Replacing the NINT-68 should normally be considered only after the surrounding wiring, control circuitry and power components have been checked.

6. What symptoms may indicate a problem with the NINT-68?
A defective NINT-68 or an associated interface problem may result in persistent drive fault messages, abnormal measurement feedback, incorrect power-stage status information or communication problems between the control electronics and inverter section. The drive may also fail to start, stop unexpectedly or report power-stage-related faults. These symptoms are not unique to the NINT-68, however. Similar behavior can be caused by defective IGBT modules, gate-driver boards, control boards, connectors or wiring. A structured diagnostic process is therefore required to identify the actual failed component.

7. What precautions should be taken when replacing the NINT-68?
The drive must be completely isolated from its power source before the NINT-68 is removed. Appropriate electrical safety procedures, including discharge and verification of a safe working condition, should be completed before accessing the internal electronics. All connectors should be identified and documented before disconnection so they can be restored correctly. The replacement board should be verified as the correct NINT-68 version for the particular drive configuration. Because electronic boards can be damaged by electrostatic discharge, suitable ESD protection should also be used during handling, installation and inspection.

8. What should be checked after installing a replacement NINT-68?
After installation, verify that the board is correctly positioned and that every connector is fully seated and secured. Once the drive is safely re-energized, check the diagnostic system for any new NINT, PPCC or power-stage fault indications. Confirm that measurement feedback is reasonable and that the control electronics can communicate correctly with the inverter power section. Where applicable, verify U, V and W phase-related monitoring and perform a controlled operational test under approved commissioning conditions. If the original fault remains after replacing the NINT-68, the associated control board, gate-driver circuitry, IGBT power section, communication path and wiring should be investigated rather than assuming the replacement board is defective.
