1. What is the main function of the ABB NXPP-06C 68827817A Adapter Board?

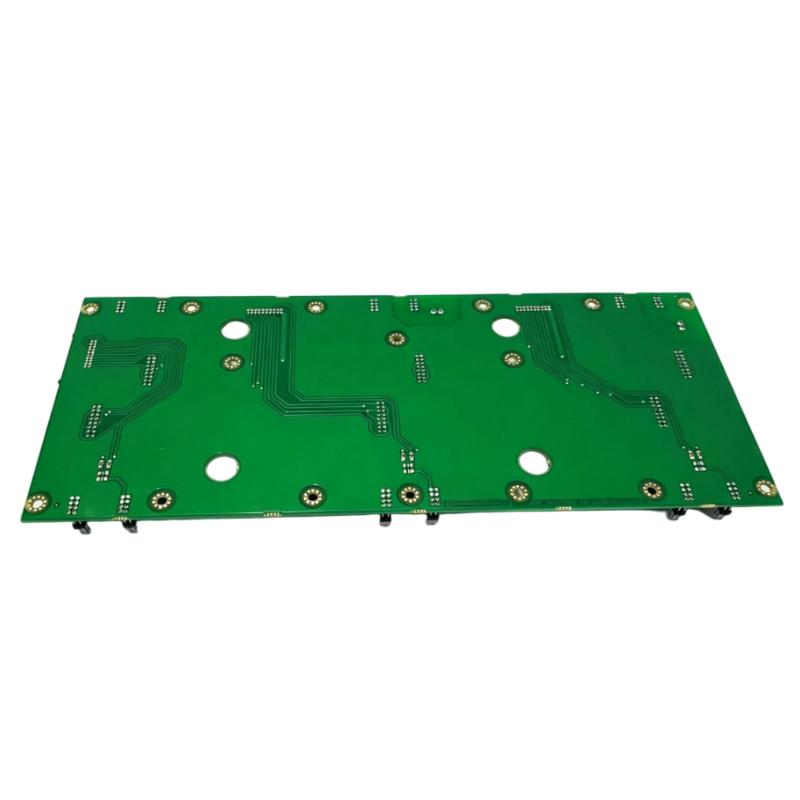

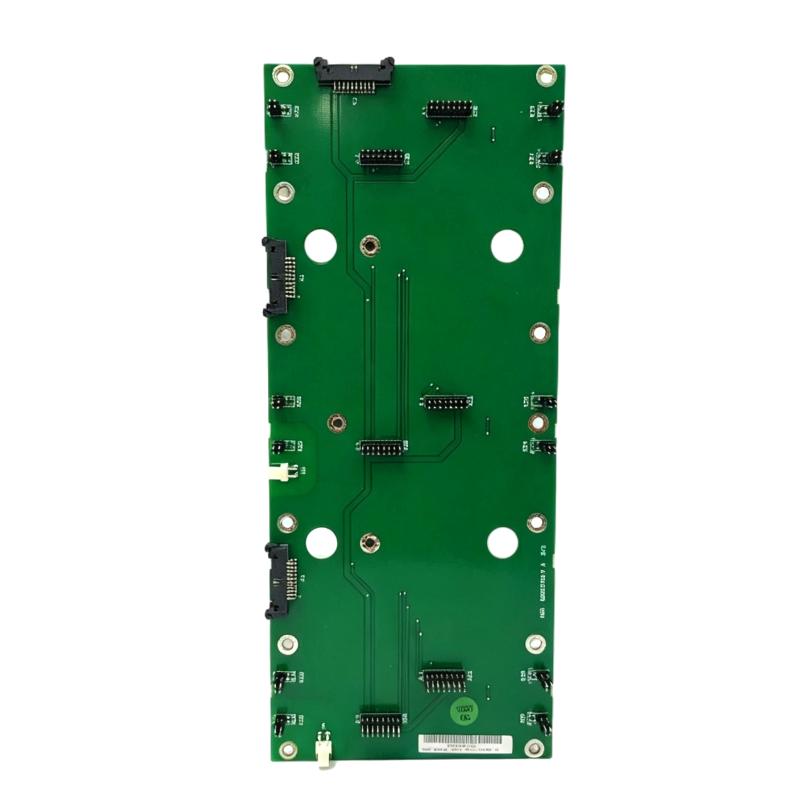

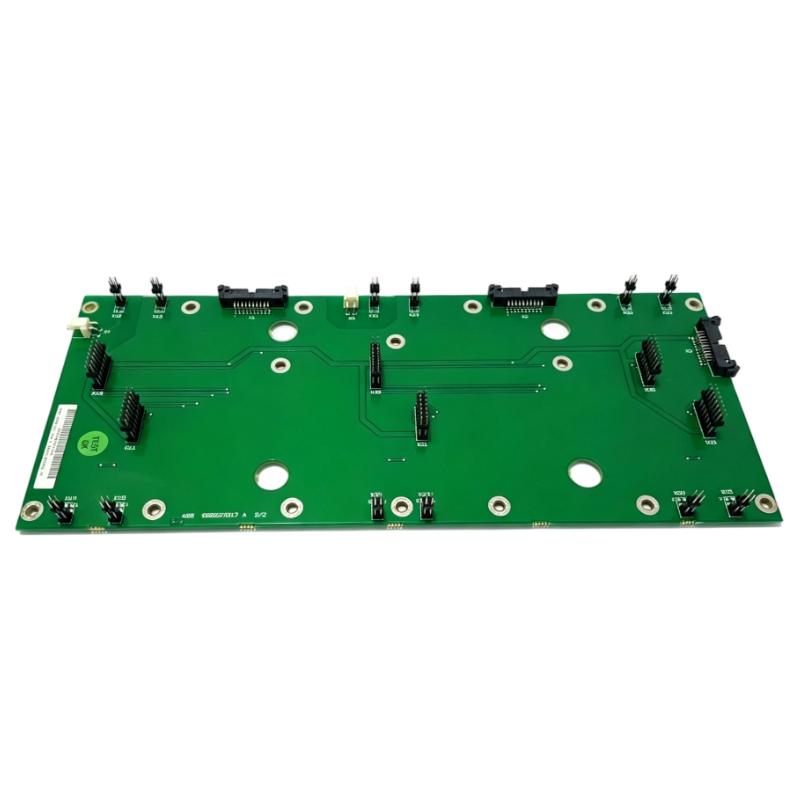

The ABB NXPP-06C 68827817A is an adapter board designed for use within compatible ABB industrial drive and power control systems. Its primary role is to provide interface adaptation, electrical connection, and signal routing between different electronic modules. The board establishes the required internal connection paths so that control boards, interface assemblies, and other electronic components can exchange signals according to the equipment design. The NXPP-06C normally operates as part of the overall drive architecture rather than functioning as an independent controller. Its performance therefore depends on the connected modules, connectors, wiring, and system configuration. When sourcing a replacement, both the NXPP-06C model and 68827817A ordering number should be verified carefully.

2. What types of industrial equipment use the NXPP-06C?
The NXPP-06C is intended for compatible ABB industrial drive, power conversion, and automation equipment that uses a modular internal electronic architecture. It can be used in variable frequency drives, motor-drive equipment, and other industrial control systems where internal modules require reliable interface connections and signal transmission. The exact function of the board depends on the hardware design of the associated ABB equipment. Because different circuit boards may have similar physical structures, compatibility should not be determined by appearance alone. The complete equipment model, original board identification, and ordering number should be checked before installation.

3. What should be checked before installing an NXPP-06C 68827817A replacement board?
Before installation, confirm that the original board is identified as NXPP-06C and that the ordering number is 68827817A. The associated ABB equipment model and internal hardware configuration should also be verified. Before removing the original board, document the position of all connectors, cables, and internal wiring. Photographs and cable labels can be useful for restoring the original configuration accurately. The equipment should be placed in the required maintenance state, and all applicable power isolation and discharge procedures should be completed. During installation, inspect the connectors for loose contacts, oxidation, contamination, bent pins, or mechanical damage. After fitting the replacement board, verify every connection before applying power.

4. What symptoms may indicate a problem with the NXPP-06C Adapter Board?
A problem with the NXPP-06C may result in abnormal signal transmission between internal modules, interface communication failures, loss of associated control functions, unexpected system alarms, or intermittent operation. Poor connector contact may also cause faults that appear only after the equipment has been operating for some time or has been exposed to vibration. However, these symptoms do not necessarily mean that the adapter board itself has failed. Damaged wiring, unstable auxiliary power, loose connectors, defective neighboring modules, or an incompatible hardware configuration can produce similar symptoms. A complete inspection of the interface circuit should therefore be performed before deciding to replace the NXPP-06C.

5. How should the NXPP-06C be tested during troubleshooting?
Troubleshooting should begin by placing the ABB equipment in the appropriate maintenance condition and completing all required electrical isolation procedures. The NXPP-06C should first be inspected for visible signs of overheating, discoloration, contamination, damaged components, cracks, or other abnormalities. The connectors should then be checked to make sure they are fully seated and correctly positioned, while associated wiring should be inspected for damage, incorrect routing, or poor contact. Relevant control power and signal paths can be checked according to the maintenance requirements of the specific equipment. If the power supply, connectors, and external wiring are confirmed to be normal, the NXPP-06C can be evaluated as part of the complete signal transmission path. The main objective is to verify that the expected signals are correctly transferred between the modules connected through the adapter board.

6. Can the ABB NXPP-06C 68827817A be replaced separately?
When the associated ABB equipment supports board-level maintenance, the NXPP-06C can generally be replaced as an individual internal spare part without replacing the complete drive. Before replacement, the model, ordering number, and hardware configuration should be verified to ensure that the replacement board is compatible with the original equipment. The connector arrangement and wiring should be documented before removing the existing board. After installation, the connected modules and interface circuits should be inspected carefully. A controlled startup and functional test should then be performed, with particular attention to system diagnostics and signal transmission. The equipment should only be returned to normal service after the relevant functions have been confirmed to operate correctly.

7. What are the common causes of NXPP-06C interface faults?
Potential causes include loose connectors, oxidized contacts, damaged wiring, incorrect connections, unstable auxiliary power, contamination, and prolonged electrical stress. Mechanical vibration in industrial environments can also cause connector contact problems over extended operating periods, sometimes resulting in intermittent faults that are difficult to reproduce. An incorrect replacement board or incompatible hardware version can create similar symptoms. Therefore, an interface fault should not immediately be attributed to a defective NXPP-06C. A systematic inspection of the power supply, connectors, wiring, neighboring control modules, and available diagnostic information can help identify the actual source of the problem and avoid unnecessary replacement.

8. What precautions should be taken when replacing the ABB NXPP-06C 68827817A?
Before replacing the NXPP-06C, the ABB equipment must be placed in a safe maintenance condition, with the required power isolation and discharge procedures completed. The original board’s connector and wiring arrangement should be carefully documented before removal to prevent incorrect reconnection. Since electronic components can be affected by electrostatic discharge, suitable ESD protection should be used during handling. The board should preferably be handled by its edges, avoiding unnecessary contact with electronic components, solder joints, and connector contacts. After installation, verify that every connector is correctly oriented and securely seated, and inspect the surrounding wiring for short circuits or incorrect connections. Power should then be restored in a controlled manner, followed by checks of the connected modules, interface signals, system diagnostics, and operating functions before the equipment is returned to normal service.
