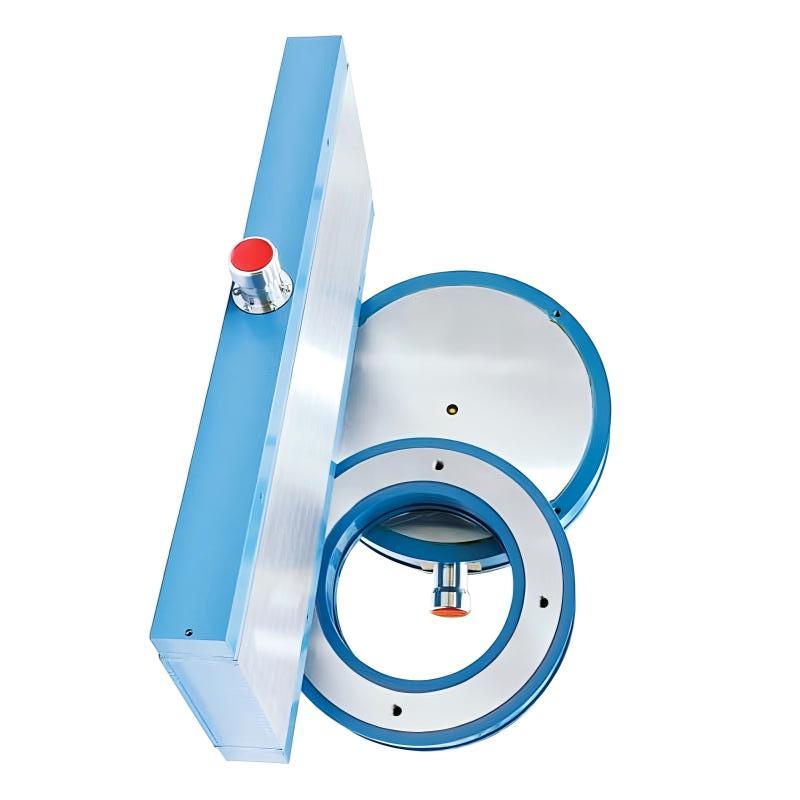

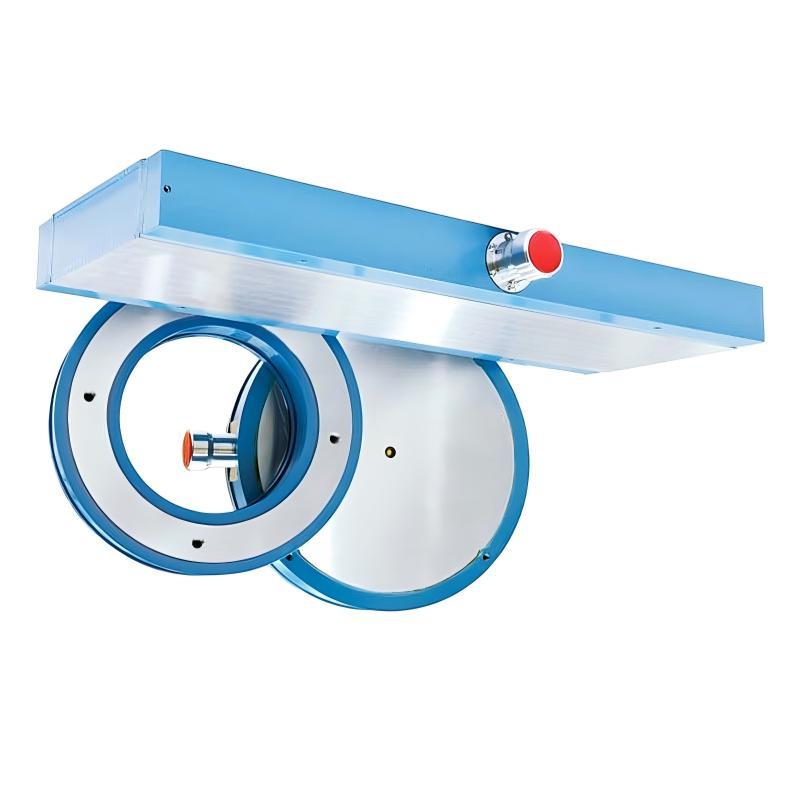

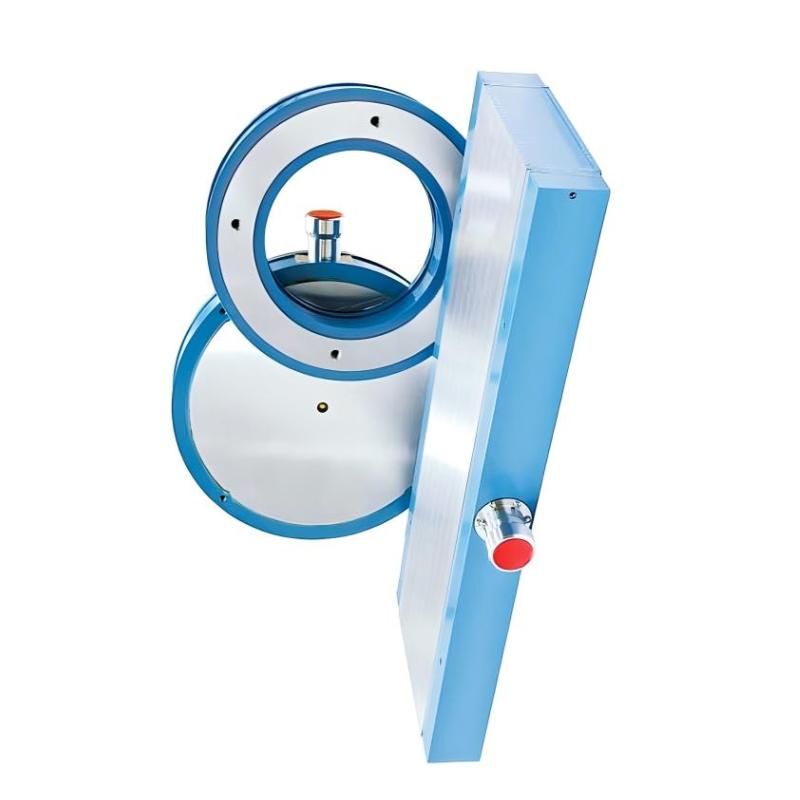

ABB PFVL 141V 3BSE025094R2500 Millmate Load Cell
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model Number | PFVL 141V |
| Ordering Number | 3BSE025094R2500 |
| Product Name | Millmate Load Cell |
| Product Type | Rectangular Load Cell |
| Product Series | Millmate Roll Force Systems |
| Measurement Type | Roll Force Measurement |
| Operating Principle | Pressductor magnetoelastic measurement technology |
| Measurement Range | PFVL 141V series: approximately 0.63–60 MN, depending on configuration |
| Installation Position | Beneath the lower backup roll bearing housing |
| Construction | Rectangular design with protective stainless steel side bars |
| Signal Processing | Requires compatible ABB matching unit and control electronics |
| Typical Applications | Rolling mills, steel processing lines, and industrial rolling-force monitoring |
| System Compatibility | ABB Millmate roll force measurement systems |
| Dimensions | 350 × 50 × 120 mm |
| Weight | 165 kg |
FAQ
1. What is the primary function of the ABB PFVL 141V Millmate Load Cell?
The ABB PFVL 141V measures rolling force in industrial rolling mills. Its measurement signal allows the associated control system to monitor force during rolling operations and support consistent strip thickness and process stability.
2. How does the PFVL 141V measure rolling force?
The load cell uses ABB Pressductor magnetoelastic technology. Mechanical loading changes the magnetic characteristics of the sensing element, allowing the system to convert applied force into an electrical measurement signal.
3. Which applications are suitable for the PFVL 141V?
It is designed primarily for rolling-force measurement in steel rolling mills and related metal-processing equipment. It is particularly suitable for installations where the sensor can be positioned beneath the lower backup roll bearing housing.
4. Which components are required to operate the PFVL 141V?
The load cell normally operates as part of an ABB Millmate roll force measurement system. Depending on the system configuration, compatible components include a matching unit, excitation equipment, control electronics, and the required connection cables.
5. What should be checked before installing the load cell?
Verify the exact ordering number, rated load, installation position, mounting surface, mechanical alignment, and cable arrangement. The mounting structure must be sufficiently rigid, and the load cell must be installed according to the applicable ABB instructions.
6. What can cause inaccurate rolling-force readings?
Potential causes include incorrect installation, uneven force distribution, mechanical vibration, damaged cables, electrical interference, or an incompatible matching unit. Check the complete measurement chain before concluding that the load cell itself has failed.
7. How can measurement stability be maintained during continuous operation?
Inspect the mounting arrangement and electrical connections regularly. Monitor measurement trends for unexpected drift or fluctuations, maintain the associated electronics according to the manufacturer’s instructions, and investigate abnormal readings before they affect rolling quality.
8. What information should be confirmed when replacing a PFVL 141V load cell?
Confirm the model, ordering number, rated load, mechanical configuration, cable requirements, and compatibility with the existing Millmate system. The PFVL 141V series includes different load ratings and configurations, so physical fit alone is not sufficient to establish interchangeability.
ABB PFVL 141V 3BSE025094R2500 Millmate Load Cell is in stock. Please contact us for a quick quote and competitive pricing.
