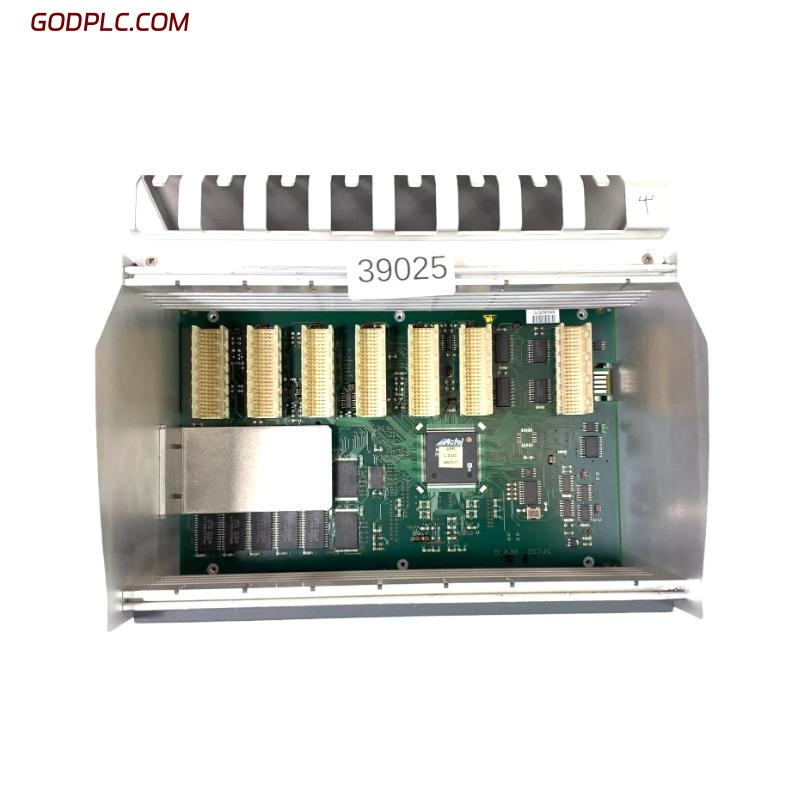

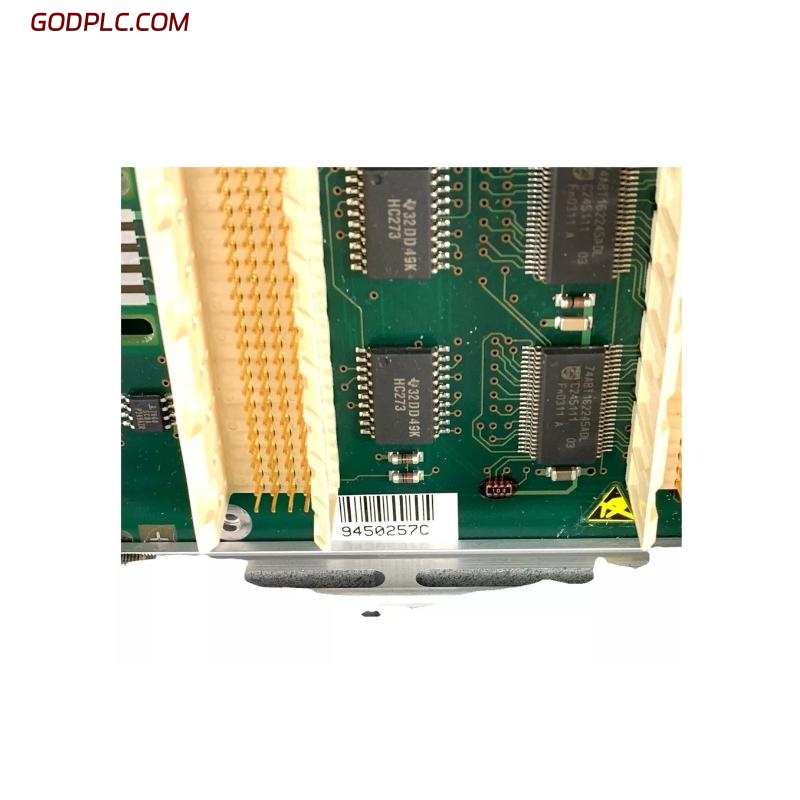

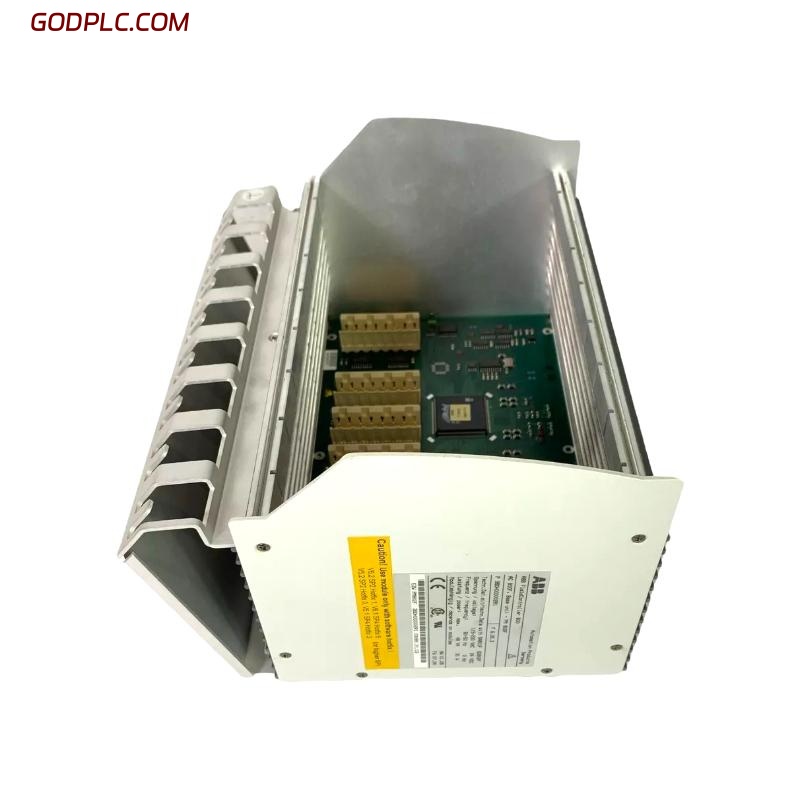

ABB PM 802F 3BDH000002R1 CPU Processor Unit
Product Overview
The ABB PM 802F 3BDH000002R1 is a central processing unit (CPU) module designed for use in ABB’s Advant OCS (Open Control System). It provides powerful control and processing capabilities for demanding industrial automation environments. As a core component of the control system, the PM 802F ensures reliable execution of process control strategies, logic operations, and communication with I/O and supervisory systems.
Key Features
-
High-performance 32-bit Processor – Enables fast and reliable control execution.
-
Real-time Control – Designed for continuous, deterministic process control operations.
-
Integrated Communication Ports – Supports multiple industrial communication protocols.
-
Advanced Diagnostics – Built-in monitoring and status LEDs for easy troubleshooting.
-
Expandable Architecture – Can interface with various I/O modules and network nodes.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 100 x 50 mm |
| Weight | 0.5 kg |
3.2 Processor and Memory
| Item | Specification |
|---|---|
| Processor Type | 32-bit CPU |
| Memory Capacity | RAM and Flash (user-configurable) |
| Program Execution | Real-time, deterministic |
| Battery Backup | Yes (for memory retention) |
3.3 Communication Interfaces
| Item | Specification |
|---|---|
| Serial Ports | 2 × RS-232/RS-485 |
| Ethernet | Optional via interface module |
| Protocols Supported | MODBUS, Advant Fieldbus 100, others |
3.4 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -25°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Class | IP20 |
3.5 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Advant OCS systems |
| Associated I/O Modules | AI, AO, DI, DO series modules |
| Software Support | Control Builder, Advant Engineering Tools |
Industry Applications
-
Power Generation – Centralized control and coordination of turbine and plant systems.
-
Oil & Gas – Reliable control of drilling, refining, and distribution systems.
-
Chemical Processing – Execution of complex batch and continuous processes.
-
Metals & Mining – High-speed control of furnaces, crushers, and conveyors.
-
Water Treatment – Real-time management of pumps, valves, and instrumentation.
The ABB PM 802F 3BDH000002R1 CPU Processor Unit is a robust and high-speed control module that enhances system performance and scalability across industrial automation applications.
ABB PM 802F 3BDH000002R1 CPU Processor Unit is in stock. Please contact us for a quick quote and competitive pricing.
