Technical Specifications

FAQ

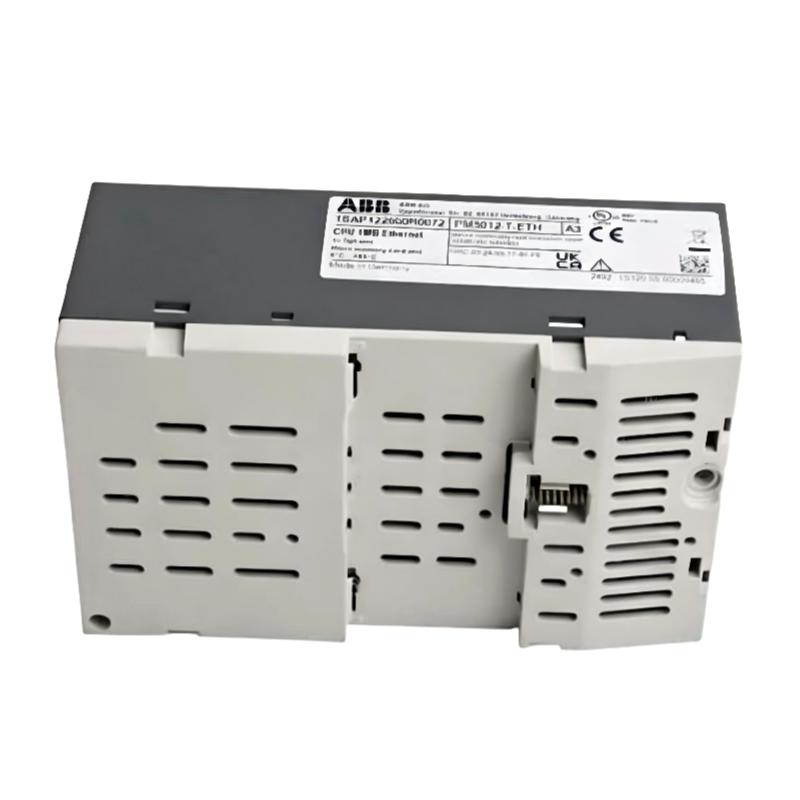

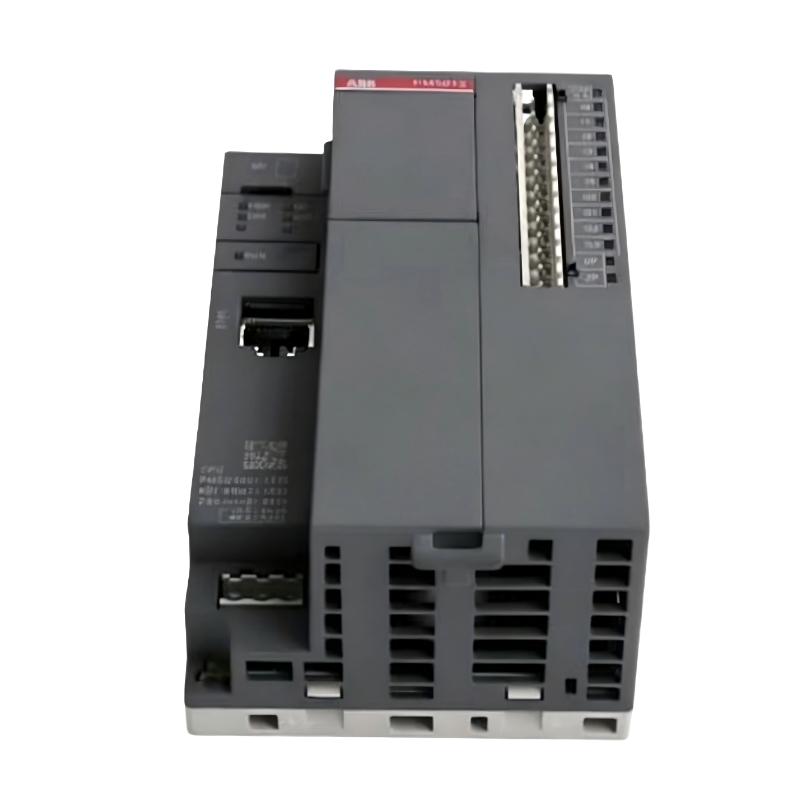

Q1: What is the primary function of the ABB PM5012-T-ETH Processor Module?

A1: The PM5012-T-ETH serves as the central processing unit within an ABB AC500 automation system. It executes user-defined control programs, processes input and output data, performs logic calculations, and coordinates communication among connected modules. By managing critical automation tasks in real time, the processor helps ensure stable, accurate, and efficient operation of industrial equipment and processes.

Q2: What are the benefits of the integrated Ethernet communication interface?

A2: The integrated Ethernet interface enables direct communication with HMI panels, SCADA systems, engineering workstations, and other industrial devices without requiring an additional communication module. This simplifies system architecture, reduces hardware costs, and improves data exchange efficiency. It also supports remote monitoring, diagnostics, and maintenance, making it suitable for modern connected automation environments.

Q3: Which industrial applications are suitable for the PM5012-T-ETH?

A3: The PM5012-T-ETH is designed for a wide range of industrial automation applications, including manufacturing lines, packaging machinery, material handling systems, water and wastewater treatment plants, energy management systems, HVAC control, and building automation projects. Its combination of processing performance and communication capability makes it suitable for both standalone and distributed control systems.

Q4: How does the PM5012-T-ETH support real-time control operations?

A4: The processor module is built to handle time-critical automation tasks with consistent performance. It continuously executes control algorithms, monitors process variables, and processes communication data while maintaining deterministic operation. This capability allows the controller to respond quickly to changing process conditions and helps ensure reliable operation in demanding industrial environments.

Q5: Can the PM5012-T-ETH be expanded with additional modules?

A5: Yes. The PM5012-T-ETH supports integration with a variety of AC500 expansion modules, including digital I/O modules, analog I/O modules, communication interfaces, and specialized function modules. This modular architecture allows users to tailor the control system to specific application requirements and expand system functionality as operational needs grow.

Q6: What diagnostic capabilities are available in the PM5012-T-ETH?

A6: The module includes comprehensive diagnostic functions that monitor processor status, communication performance, program execution, and system resources. Diagnostic information can be accessed through engineering software to identify faults, analyze operational conditions, and support preventive maintenance. These features help reduce troubleshooting time and improve overall system availability.

Q7: How is the PM5012-T-ETH programmed and commissioned?

A7: The processor module is configured and programmed using ABB’s AC500 engineering environment. Engineers can develop control applications, configure hardware parameters, establish network settings, and perform online commissioning through a unified software platform. The development tools also provide monitoring and debugging functions that simplify startup, testing, and maintenance activities.

Q8: What advantages does the PM5012-T-ETH offer in modern automation systems?

A8: The PM5012-T-ETH combines processing power, Ethernet connectivity, and system management capabilities in a compact industrial controller. It helps streamline system integration, improve communication efficiency, and support scalable automation architectures. These benefits enable manufacturers and plant operators to increase productivity, enhance operational reliability, and support long-term digitalization initiatives within industrial facilities.
