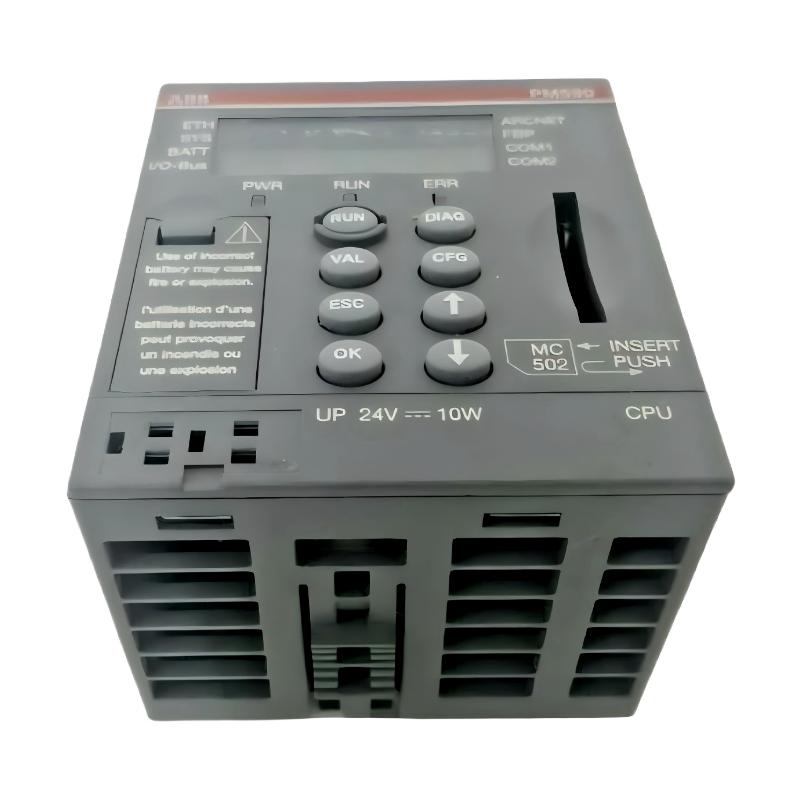

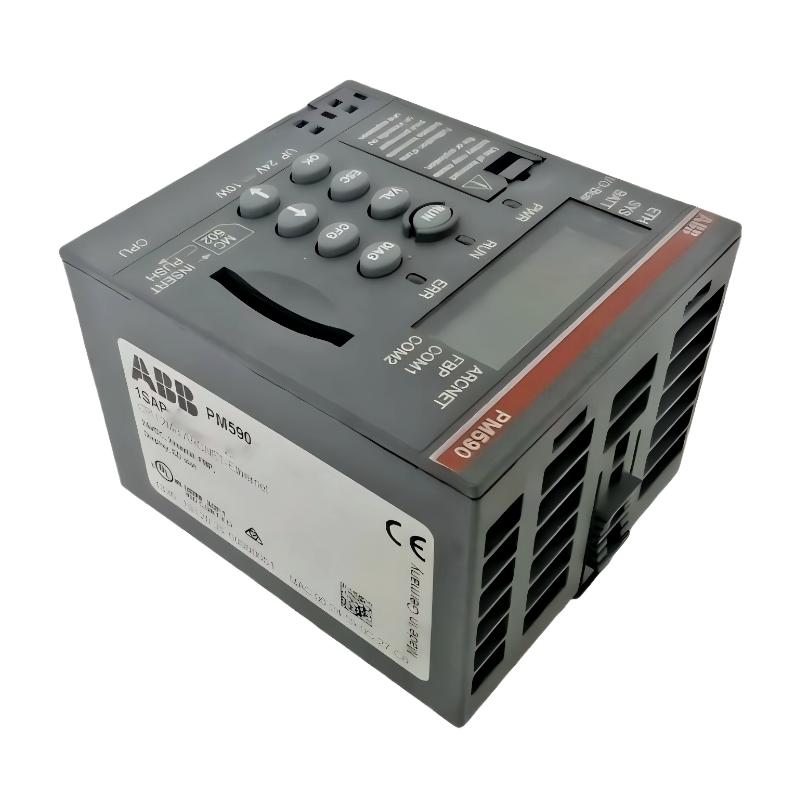

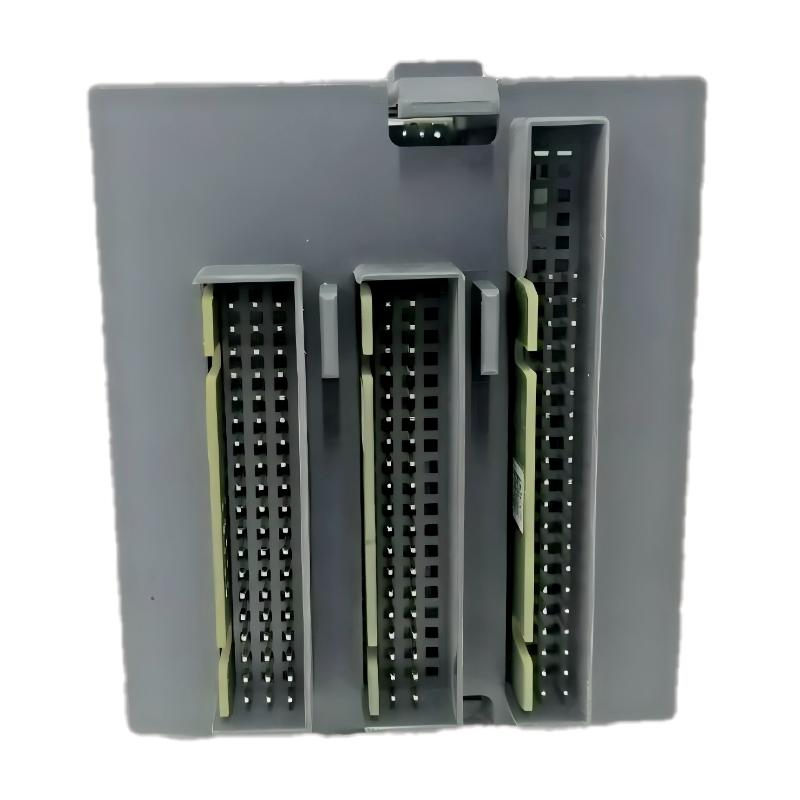

ABB PM591-ARCNET 1SAP150100R0160 CPU Processor Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | PM591-ARCNET |
| Order Number | 1SAP150100R0160 |
| Product Type | AC500 Series CPU Processor Unit |
| Brand | ABB |
| Series | AC500 PLC |
| Communication Interfaces | ARCNET, 2 × RS232/485, FBP Fieldbus Interface |
| Memory Capacity | 4 MB |
| Display | Integrated LCD Display |
| Power Supply | 24 V DC |
| Operating Voltage Range | 20.4 ～ 28.8 V DC |
| Power Consumption | Approx. 10 W |
| Mounting Type | DIN Rail Mounting |
| Protection Rating | IP20 |
| Processor Type | Industrial PLC CPU Processor |
| Programming Support | Supports AC500 Programming Environment and Industrial Automation Control |
| Data Storage | Supports Program and User Data Storage |
| Serial Communication | Supports Industrial Serial Communication and Device Networking |
| Application | Industrial Automation Control Systems |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.16 kg |
FAQ
1. What industrial applications is the PM591-ARCNET mainly used for?
The PM591-ARCNET is designed for small and medium-sized industrial automation systems, including production line automation, machine control, building automation, energy management, and process control applications. With integrated ARCNET communication capability, it is particularly suitable for systems requiring reliable real-time data exchange between distributed devices. The controller can communicate efficiently with remote I/O modules, HMIs, drives, and other industrial field devices.
2. Which communication protocols are supported by the PM591-ARCNET?
The controller primarily supports ARCNET industrial communication and also provides RS232/485 serial interfaces and an FBP fieldbus interface. The RS485 ports are commonly used for industrial serial communication such as Modbus RTU, while ARCNET is suitable for deterministic and high-speed industrial networking. These communication options allow integration with supervisory systems, distributed control devices, and industrial equipment.
3. Does the PM591-ARCNET support online programming and diagnostics?
Yes, the PM591-ARCNET supports online monitoring, diagnostics, and program maintenance. Engineers can use the ABB AC500 programming environment to monitor variables, check I/O status, troubleshoot faults, and perform certain program modifications while the system remains operational. This feature helps minimize downtime and improves maintenance efficiency in industrial environments.
4. How can communication issues on the PM591-ARCNET be diagnosed?
When troubleshooting communication problems, users should first verify the network topology, termination settings, and cable connections. It is also important to confirm that communication parameters such as baud rate, parity, and node addresses are configured correctly. The CPU status LEDs and diagnostic tools in the programming software can provide valuable fault information. In industrial environments, electromagnetic interference and improper grounding are also common causes of unstable communication.
5. Can the PM591-ARCNET be expanded with additional I/O modules?
Yes, the PM591-ARCNET is part of the ABB AC500 PLC platform and supports a wide range of expansion modules. Users can add digital I/O, analog I/O, temperature measurement, high-speed counter, and other specialized modules according to application requirements. This flexibility allows the controller to adapt to both simple and complex automation systems.
6. How can long-term operational stability be improved for the PM591-ARCNET?
For stable operation, it is recommended to use a reliable 24 V DC industrial power supply and ensure proper grounding of the PLC system. Communication cables should be shielded and routed separately from high-voltage power cables to reduce electrical interference. In harsh industrial environments, surge protection and signal isolation devices can further improve system reliability. Regular backups of the application program and configuration data are also strongly recommended.
7. Which programming languages are supported by the PM591-ARCNET?
The controller supports IEC 61131-3 standard programming languages, including Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC). These programming options allow engineers to select the most suitable method for different automation tasks, ranging from simple logic control to advanced process algorithms and data handling.
8. Can the PM591-ARCNET still be maintained in existing systems?
Although the PM591-ARCNET belongs to an earlier generation of the AC500 PLC family, it is still widely used in many industrial installations. Existing systems can continue operating through spare part management, hardware maintenance, and compatible replacement solutions. For long-term projects, it is advisable to maintain program backups and evaluate future migration options to newer AC500 series controllers in order to reduce maintenance risks and improve system lifecycle support.
ABB PM591-ARCNET 1SAP150100R0160 CPU Processor Unit is in stock. Please contact us for a quick quote and competitive pricing.
