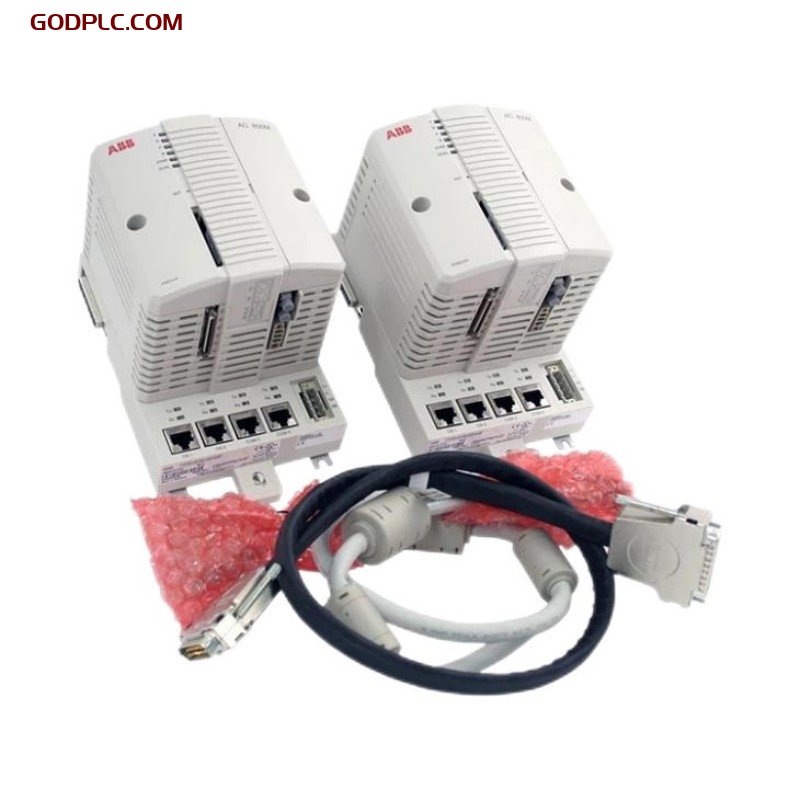

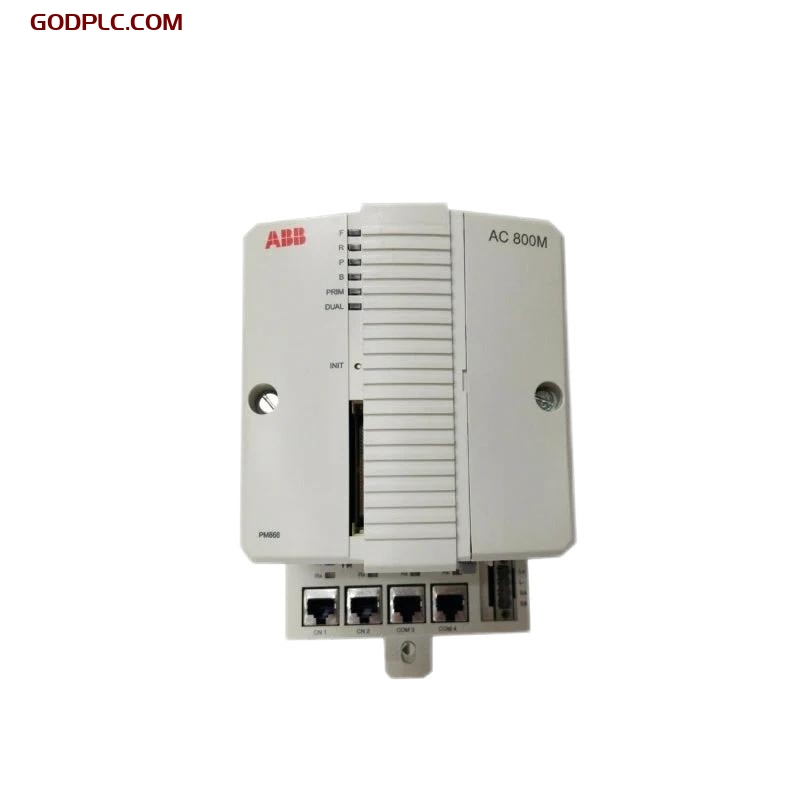

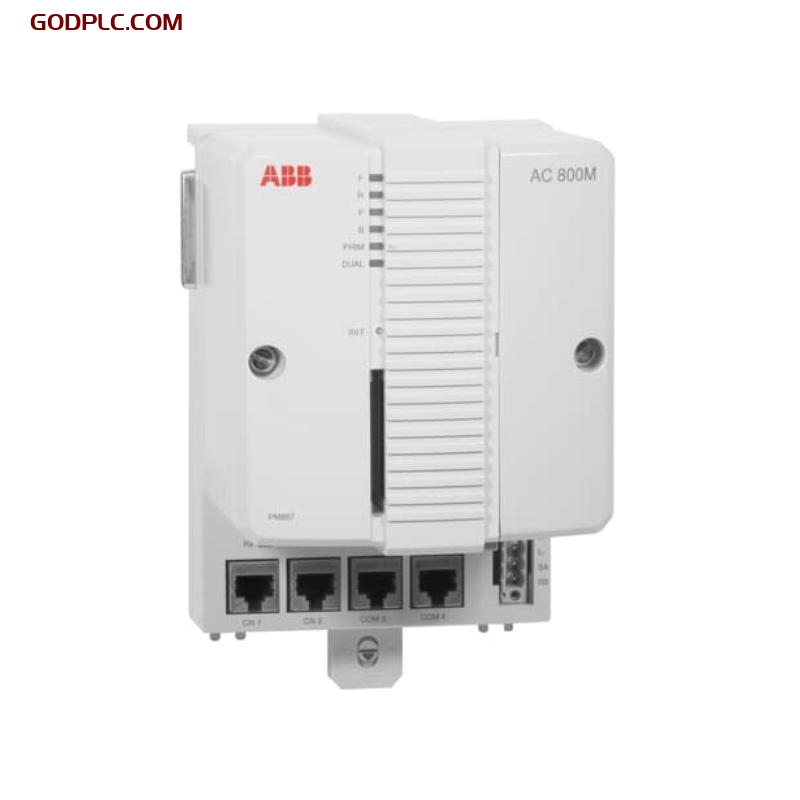

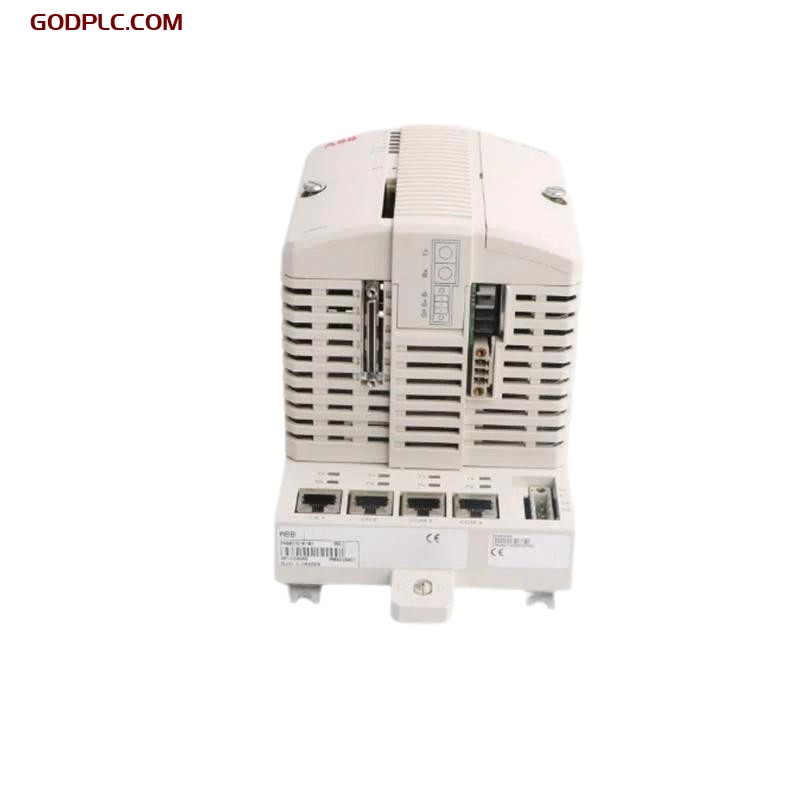

ABB PM867K01 3BSE076355R1 Processor Unit In Stock

ABB PM867K01 3BSE076355R1 Processor Unit In Stock
  • ABB PM867K01 3BSE076355R1 Processor Unit In Stock
  • ABB PM867K01 3BSE076355R1 Processor Unit In Stock
  • ABB PM867K01 3BSE076355R1 Processor Unit In Stock
  • ABB PM867K01 3BSE076355R1 Processor Unit In Stock
  • Manufacturer: ABB
  • Product Number: PM867K01 3BSE076355R1
  • Condition: New & In Stock
  • Product Type: Processor Unit
  • Origin: Sweden (SE)
  • Payment Methods: T/T, Western Union
  • Dimensions: 135 × 186 × 119 mm
  • Weight: 1.2 kg
  • Shipping Port: Xiamen, China
  • Lead Time: 1-3 Working Days
  • Warranty: One Year
  • Certificate: COO
  • Courier partners: DHL, UPS, TNT, FedEx and EMS.
Email:sales@industrial88.com WhatsApp:+8617350837383

Product Detail

Contact Us

FAQS

Packing & Delivery

Company Information
e-mail sales@industrial88.com
Mobile +8617350837383
Whatsapp +8617350837383
WeChat 17350837383
Add to Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The ABB PM867K01 3BSE076355R1 Processor Unit is a high-performance industrial control processor designed for applications requiring high reliability and integrity. This processor combines powerful processing capabilities, memory configurations, and multiple communication interfaces, making it suitable for ABB’s AC 800M control systems. The PM867K01 processor utilizes the MPC866 microprocessor and supports S800 I/O High Integrity functionality, providing an IEC 61508 and TÜV-certified SIL 2 and SIL 3 safety control environment. Its redundant design and comprehensive communication features make it ideal for applications requiring high availability.

Key Features

  • High Integrity Support: The processor supports SIL 3 certification when combined with the SM812 module and SIL-certified software, making it suitable for applications with high safety and integrity requirements.
  • Redundancy Support: Redundant CPUs, CEX buses, and communication interfaces ensure high availability and reliability.
  • Built-in Redundant Ethernet Ports: Redundant Ethernet ports ensure continuous network connectivity for critical control systems.
  • Powerful Processing and Memory Configuration: Supports up to 32 applications and 64 programs, with each application containing up to 128 diagrams.
  • Flexible I/O Expansion: Allows the expansion of up to 96 I/O modules via the Modulebus, supporting different types of I/O modules and scan rates.

Technical Specifications

Dimensions and Weight

Parameter Value
Dimensions 135 × 186 × 119 mm
Weight 1.2 kg

General Information

Parameter Value
Processor Type MPC866
Clock Frequency 133 MHz
Memory 64 MB
Available Memory 46.559 MB
Flash Memory None
Power Supply 24 V DC (19.2-30 V DC)
Power Consumption (24 V) Typical: 210 mA / Max: 360 mA
Power Dissipation 5.1 W (Max: 8.6 W)
Battery Type Lithium, 3.6 V
Clock Synchronization 1 ms via CNCP protocol
Backup Battery Built-in

Network Interfaces

Parameter Value
Ethernet Interface 2 RJ-45 Ethernet Ports
Network Protocol MMS (Manufacturing Message Service)
Control Network Protocol IAC (Inter Application Communication)
Recommended Network Backbone 100 Mbit/s Switched Ethernet
RS-232C Interface (COM3) 75-19200 Baud, RTS-CTS Support
RS-232C Interface (COM4) 9600 Baud, Opto Isolated, No RTS-CTS Support

High Integrity and Redundancy

Parameter Value
CPU Redundancy Yes
Redundancy Switch Time Max 10 ms
High Integrity Function Supports S800 I/O High Integrity
High Integrity Certification SIL 3, IEC 61508 Compliant
High Integrity Control Environment TÜV Certified SIL 2 and SIL 3
Redundant Power Status Input Yes

Performance

Parameter Value
Performance (per 1000 Boolean Ops) 0.09 ms
Cycle Time (Per Application) Down to 1 ms
Applications per Controller 32
Programs per Application 64
Tasks per Controller 32
Different Cycle Times per Controller 32
Event Queue per OPC Client Up to 3000 Events
OPC Server Transmission Speed 36-86 Events/sec, 113-143 Data Msg/sec

Other

Parameter Value
CEX Bus Modules 12
Power Current (CEX Bus) Max 2.4 A
I/O Clusters (Electrical) 1 Electrical, 7 Optical
Modulebus Scan Rate 0-100 ms (Dependent on I/O Modules)
I/O Capacity (Non-Redundant CPU) 96 I/O Modules
I/O Capacity (Redundant CPU) 84 I/O Modules

Industry Applications

The ABB PM867K01 3BSE076355R1 Processor Unit is widely used in industrial automation across various sectors, particularly in applications requiring high reliability and safety, such as chemical, power, and oil & gas industries. Its redundancy design and powerful processing capabilities make it the ideal choice for critical process control systems. Whether in safety-critical applications or general control applications requiring high availability and network redundancy, the PM867K01 excels in providing superior performance and reliability.

This processor unit is particularly suited for safety systems that require IEC 61508 certification, capable of handling both safety and business-critical process control without compromising safety integrity. This makes it highly applicable in industrial automation environments, especially where multiple systems and control networks need to be integrated.
