Overview

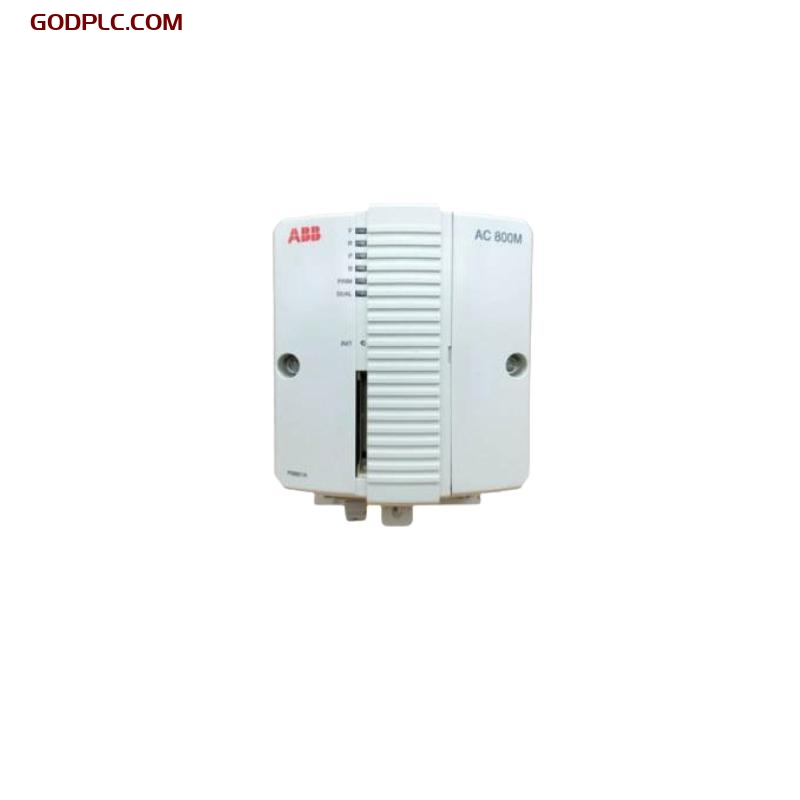

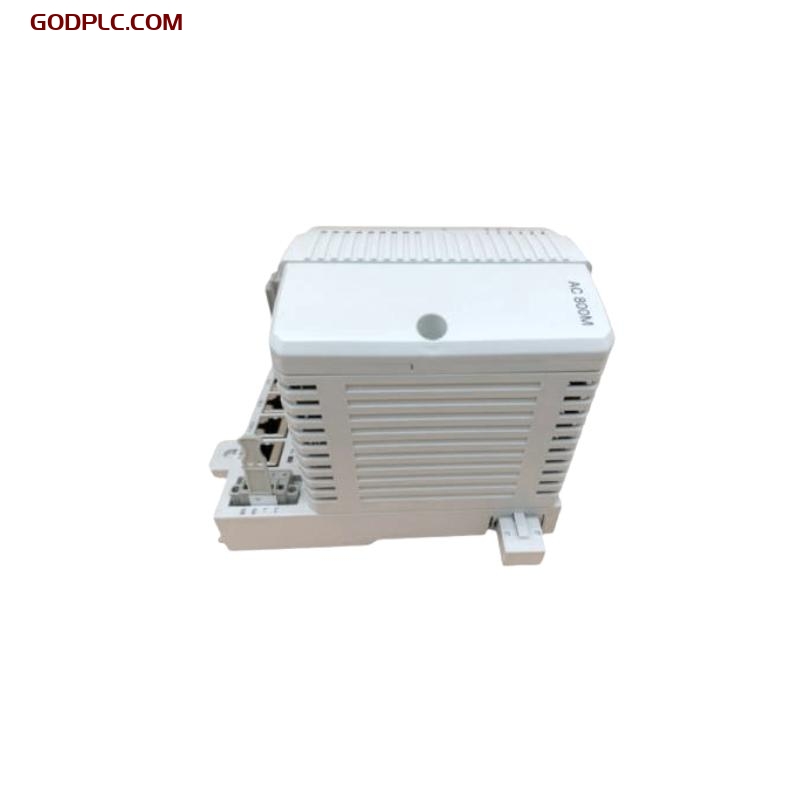

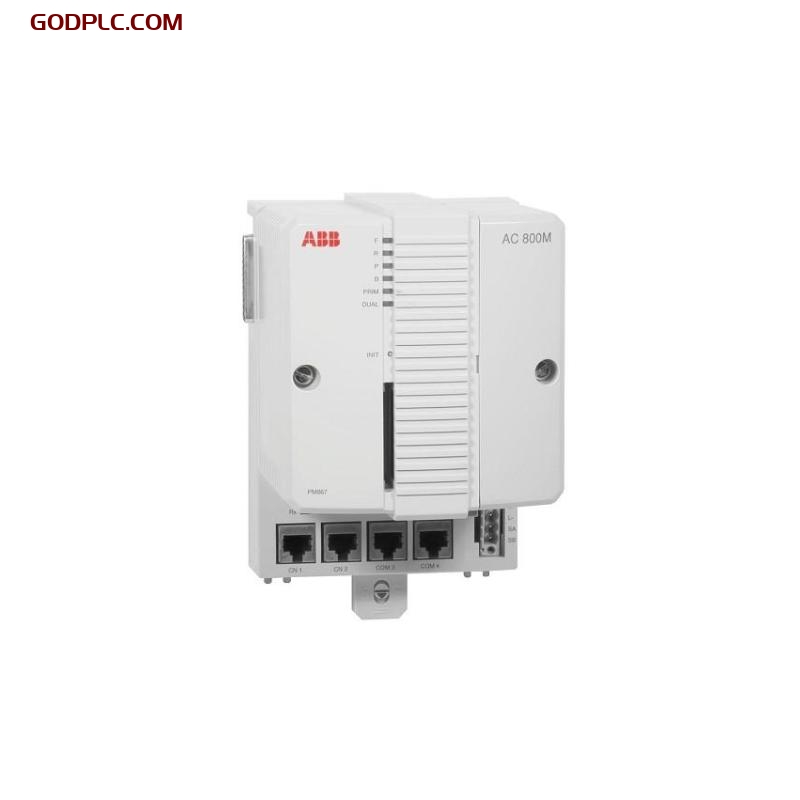

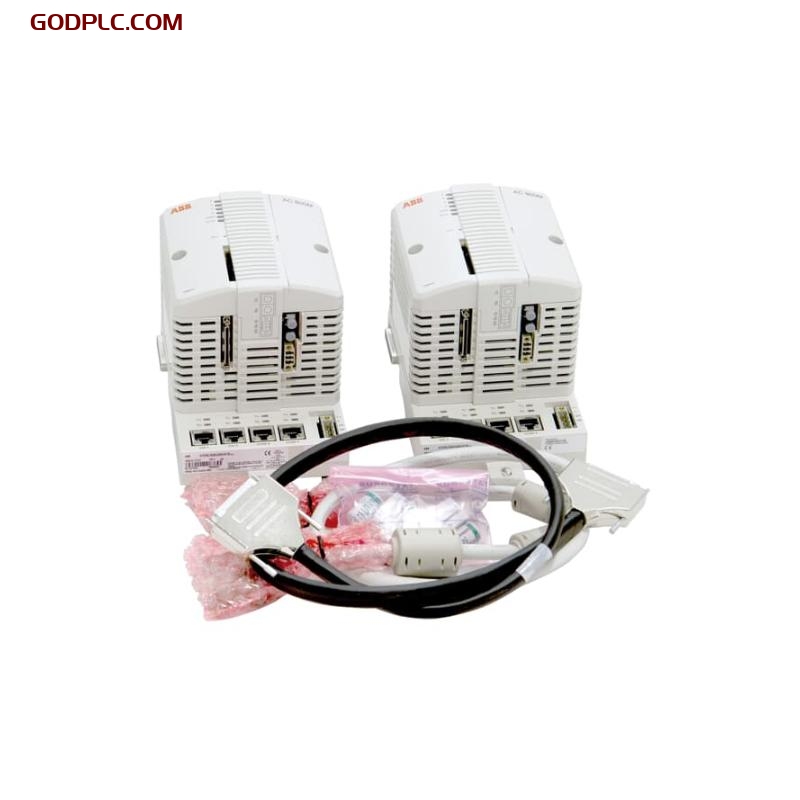

The ABB PM867K02 3BSE081638R1 is a redundant processor unit designed to ensure high availability and reliability in industrial control systems. It is an integral part of the AC 800M High-Integrity Controller series, specifically developed for environments requiring high safety standards such as SIL 2 and SIL 3. The processor unit, with built-in redundancy and high-integrity features, supports critical control systems while maintaining robust communication capabilities.
The PM867K02 is equipped with a 133 MHz MPC866 processor, 64 MB of memory, and advanced features like dual Ethernet ports for network redundancy and a built-in real-time clock for precise synchronization across systems. With a strong focus on reliability, the PM867K02 also incorporates IEC 61508, TÜV SIL 2, and SIL 3 certifications, ensuring that the controller meets stringent industrial safety requirements. It is compatible with ABB’s 800xA Control Builder, offering seamless integration into industrial automation environments.
This processor unit can be configured with 800xA and is ideal for industries where high integrity, redundancy, and safety are essential, including manufacturing and process control applications.
Main Features
- High Integrity Certification: Supports SIL 3 certification with the PM865/SM811 or PM867/SM812, ensuring a high level of safety and reliability.
- Redundant Communication Ports: Includes two Ethernet ports and two RS-232C ports, providing reliable communication with external devices and systems.
- Real-Time Synchronization: Synchronization between controllers with 1 ms precision using the CNCP protocol.
- Memory and Performance: 64 MB of total memory with 46.559 MB available for application use, delivering high-performance processing for up to 32 applications with 1 ms cycle times.
- Compact and Reliable: Designed for use in critical environments with low power consumption and robust backup battery support.
- Safety and Business Control Integration: Ideal for environments combining safety-critical operations with business processes without compromising system integrity.
Technical Specifications
1. Dimensions and Weight
| Parameter | Value |
|---|---|
| Dimensions | 135 × 186 × 119 mm |
| Weight | 2.7 kg |
2. General Information
| Attribute | Specification |
|---|---|
| Article Number | 3BSE081638R1 (PM867K02) |
| Redundancy | Yes |
| High Integrity | Yes |
| Clock Frequency | 133 MHz |
| Performance (1000 boolean ops) | 0.09 ms |
| Memory (Total) | 64 MB |
| RAM Available for Application | 46.559 MB |
| Flash Memory for Storage | No |
| Power Supply | 24 V DC (19.2-30 V DC) |
| Power Consumption (+24 V) | 210 mA (typ), 360 mA (max) |
| Power Dissipation | 5.1 W (typ), 8.6 W (max) |
| Backup Battery | Lithium, 3.6 V |
3. Communication Ports
| Port | Specification |
|---|---|
| Ethernet Ports | 2 (RJ-45, IEEE 802.3, 10 Mbit/s) |
| RS-232C Ports | 2 (one general, one for service tool) |
| RS-232C (COM3) | Non-redundant only, 75-19200 baud, not opto-isolated, full RTS-CTS support |
| RS-232C (COM4) | Non-redundant only, 9600 baud, opto-isolated, no RTS-CTS support |
4. I/O and Module Bus Details
| Parameter | Value |
|---|---|
| Maximum I/O Modules (Single CPU) | 96 I/O modules |
| Maximum I/O Modules (Redundant CPU) | 84 I/O modules |
| Module Bus Scan Rate | 0 – 100 ms (depends on number of I/O modules) |
| Supply Current on Electrical Modulebus | 24 V: max 1.0 A; 5 V: max 1.5 A |
5. Control Network and Protocols
| Parameter | Specification |
|---|---|
| Control Network Protocol | MMS (Manufacturing Message Service), IAC (Inter Application Communication) |
| Recommended Network Backbone | 100 Mbit/s switched Ethernet |
6. Additional Features
| Feature | Specification |
|---|---|
| Clock Synchronization | 1 ms between controllers via CNCP protocol |
| Event Queue | Up to 3000 events per OPC client |
| Transmission Speed to OPC Server | 36-86 events/sec, 113-143 data messages/sec |
| RS-232C Interfaces (COM3) | 75-19200 baud, non-redundant only |
| RS-232C Interfaces (COM4) | 9600 baud, opto-isolated, non-redundant only |
Industry Applications
The ABB PM867K02 3BSE081638R1 Redundant Processor Unit is ideally suited for industries that require reliable, high-integrity control systems. Its SIL 3 certification makes it a perfect choice for applications where safety is paramount, such as in chemical, oil & gas, and power generation industries.
Process Control: It can be integrated into complex process control systems where redundancy and high availability are critical to maintain continuous operation.
Manufacturing Automation: The unit’s ability to handle up to 32 applications, 64 programs per application, and 128 diagrams per application makes it suitable for industrial environments that demand high-performance control systems for automation and monitoring.
Safety Systems: With TÜV and IEC 61508 certifications, this unit is well-suited for safety-related applications, allowing users to integrate safety and business-critical processes in a single, redundant controller.
The PM867K02 is also designed for high-performance control in applications that demand stringent safety requirements, ensuring uptime and operational efficiency in mission-critical processes.
ABB PM867K02 3BSE081638R1 Redundant Processor Unit 2 Days Delivery is in stock. Please contact us for a quick quote and competitive pricing.
