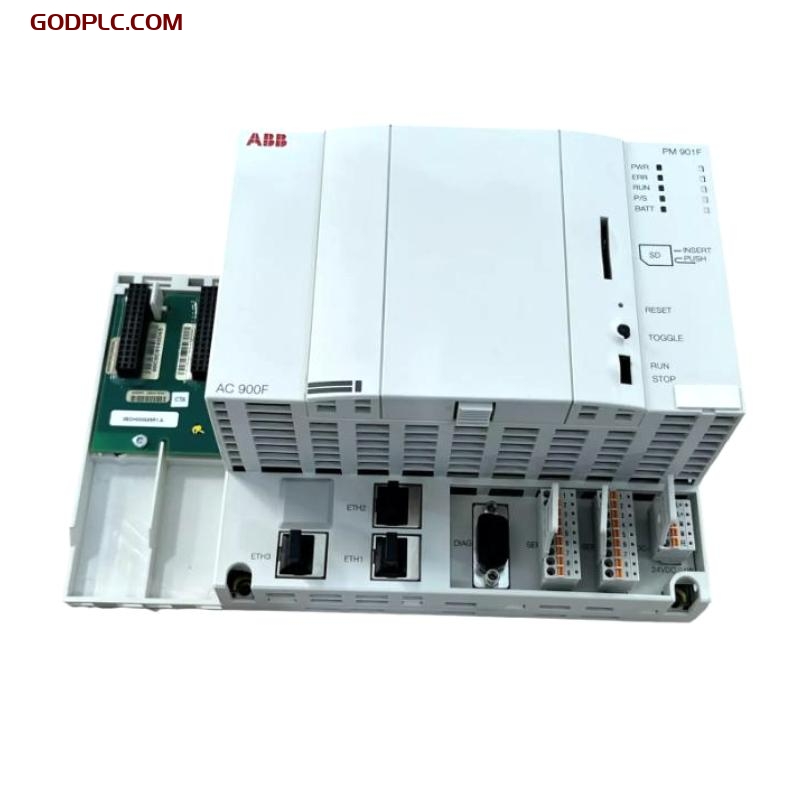

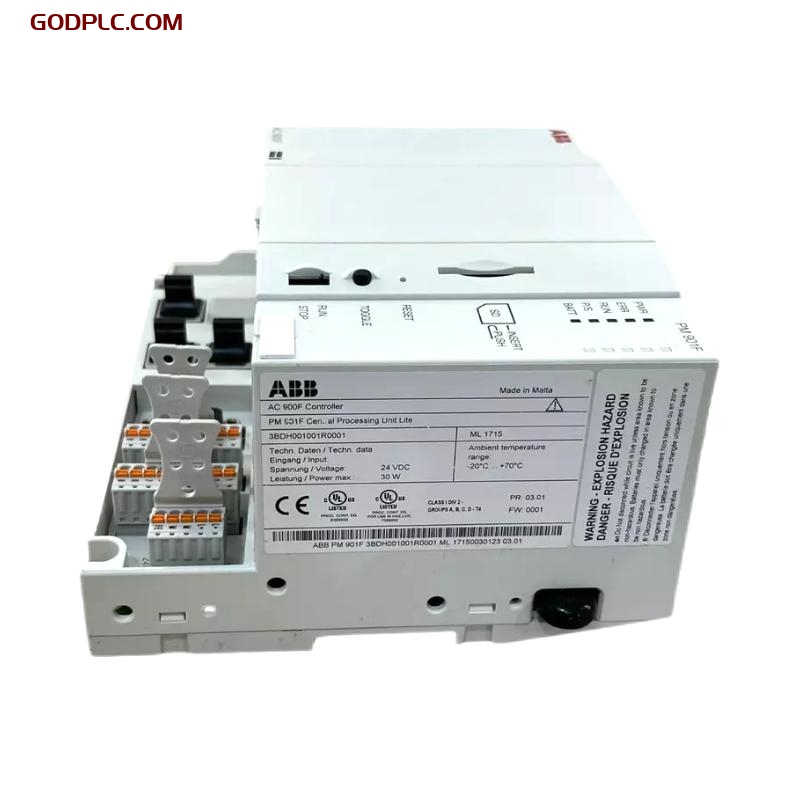

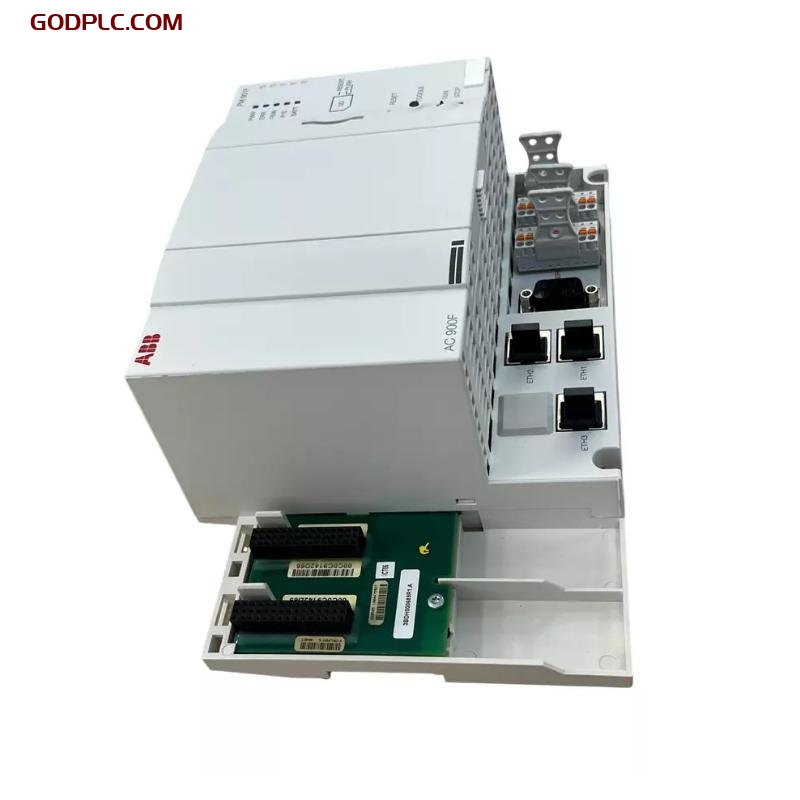

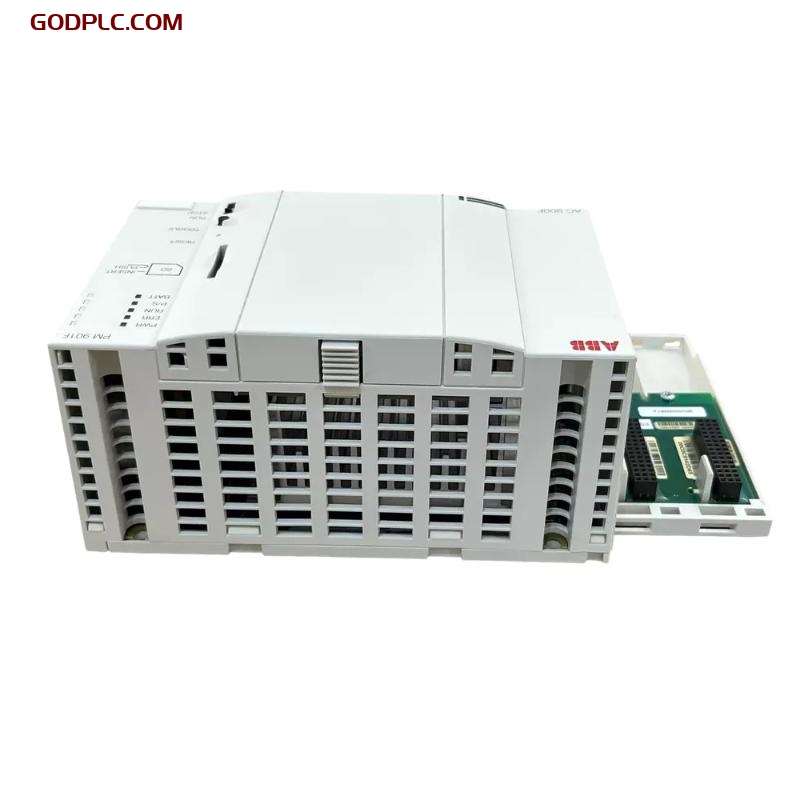

ABB PM901F 3BDH001001R0001 CPU Module In Stock
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ABB PM901F 3BDH001001R0001 CPU module is a fundamental unit in the Freelance AC 900F controller family, designed specifically for automation control systems. It offers robust processing power and flexible connectivity options, making it an ideal solution for industrial applications requiring high performance, reliability, and expandability. The module supports up to 400 I/Os and is equipped with 3 MB of battery-buffered SRAM, ensuring reliable data storage. With three Ethernet interfaces, a 400 MHz CPU clock, and built-in SD card support, it delivers an excellent balance of functionality and versatility.
The PM901F CPU module also supports new Ethernet-based protocols like Modbus TCP and IEC 60870-5-104, enhancing compatibility with various devices and systems. It meets G3 compliance standards, ensuring superior electromagnetic compatibility (EMC) and stability in harsh industrial environments. The module requires an external 24V DC power supply, offering stable power support for diverse industrial automation scenarios.
Key Features
-
Enhanced Connectivity: Three Ethernet ports and multiple serial ports provide extensive connection options, increasing system flexibility and expandability.
-
Built-in SD Card Support: Allows for storage of operating systems, applications, and runtime data, improving storage and data access capabilities.
-
Supports New Ethernet Protocols: Includes Modbus TCP and IEC 60870-5-104, improving interoperability with modern devices and control systems.
-
G3 Compliance: Offers excellent resistance to electromagnetic interference, making it suitable for use in complex and harsh industrial environments.
-
Built-in Power Supply: Simplifies installation and maintenance by eliminating the need for an external power module, enabling more centralized management.
-
Software Compatibility: Supports software versions 2016 and above, ensuring long-term stability and compatibility.
Technical Specifications
Table 1: Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 227 × 152 × 95 mm |
| Weight | 1.07 kg |
Table 2: General Information
| Item | Specification |
|---|---|
| Product Type | CPU Module |
| Series | Freelance AC 900F |
| Max I/O Support | 400 I/Os |
| Operating System | Loaded during software installation |
| Power Requirement | External 24 V DC power supply |
| CPU Clock Frequency | 400 MHz |
| Controller Memory | 11 MB |
| Battery-buffered SRAM | 3 MB |
| DRAM Memory | 8 MB |
| Communication Interfaces | 3 Ethernet ports, serial communication |
| Slot Availability | 2 slots for Communication Interface Modules |
| SD Card Support | Yes |
| Software Version | 2016 or higher |
| Compatible Display Unit | TD 951F (not included) |
| Compatible Battery | TA 951F (not included) |
Table 3: Protocols and Certifications
| Item | Specification |
|---|---|
| Supported Ethernet Protocols | Modbus TCP, IEC 60870-5-104 |
| Compliance Standard | G3 Standard |
| Communication Protocols | Ethernet-based protocols supported |
Industry Applications
The ABB PM901F CPU module is widely used in industrial automation, particularly in process control, energy management, building automation, and smart manufacturing systems. Its powerful processing capabilities and efficient connectivity make it a versatile solution for a range of complex automation systems.
-
Process Control: With its robust processing power and reliable network connectivity, the PM901F can be effectively integrated into process control systems, ensuring stability and safety in production processes, especially in industries like chemicals, oil, and gas.
-
Energy Management: Supporting Modbus TCP and IEC 60870-5-104, the PM901F easily integrates into energy management systems, optimizing energy usage, reducing consumption, and improving system efficiency.
-
Building Automation: The module can control HVAC, lighting, and electrical distribution systems in building automation, providing intelligent building management solutions.
-
Smart Manufacturing: With built-in Ethernet protocols and strong processing capabilities, the PM901F is ideal for smart factories and industrial IoT applications, helping businesses achieve efficient, flexible production management.
-
Safety Monitoring: Due to its strong resistance to electromagnetic interference and high reliability, the PM901F is also suitable for industrial safety monitoring systems, ensuring stable operation in extreme environments.
ABB PM901F 3BDH001001R0001 CPU Module In Stock is in stock. Please contact us for a quick quote and competitive pricing.
