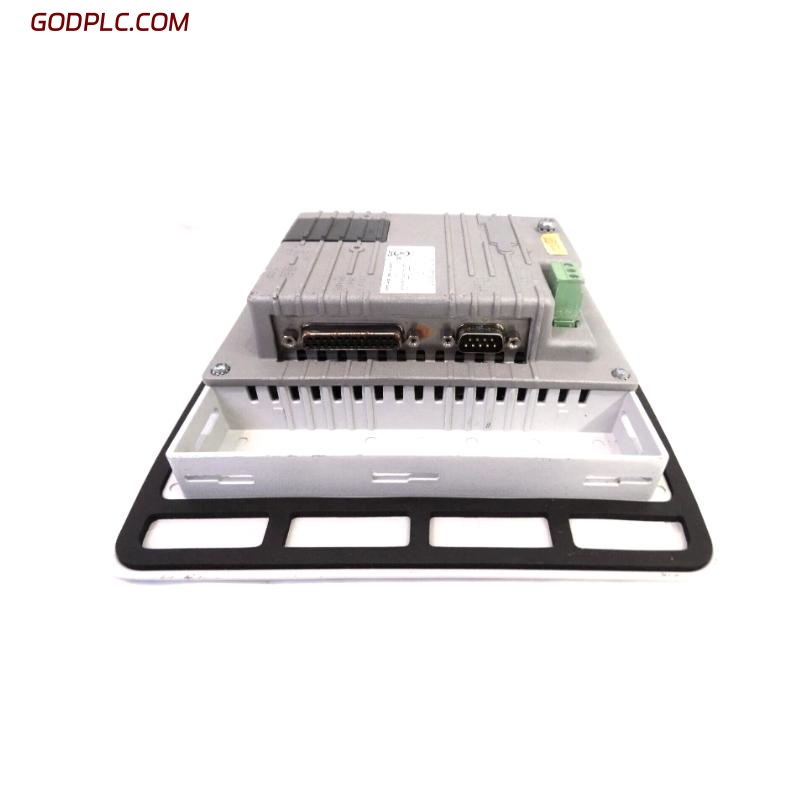

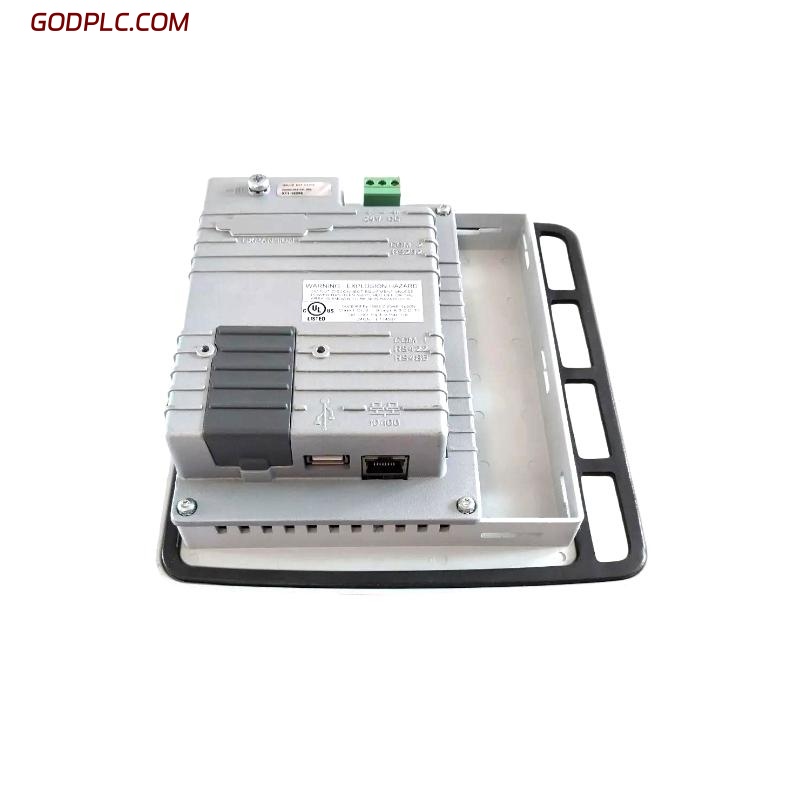

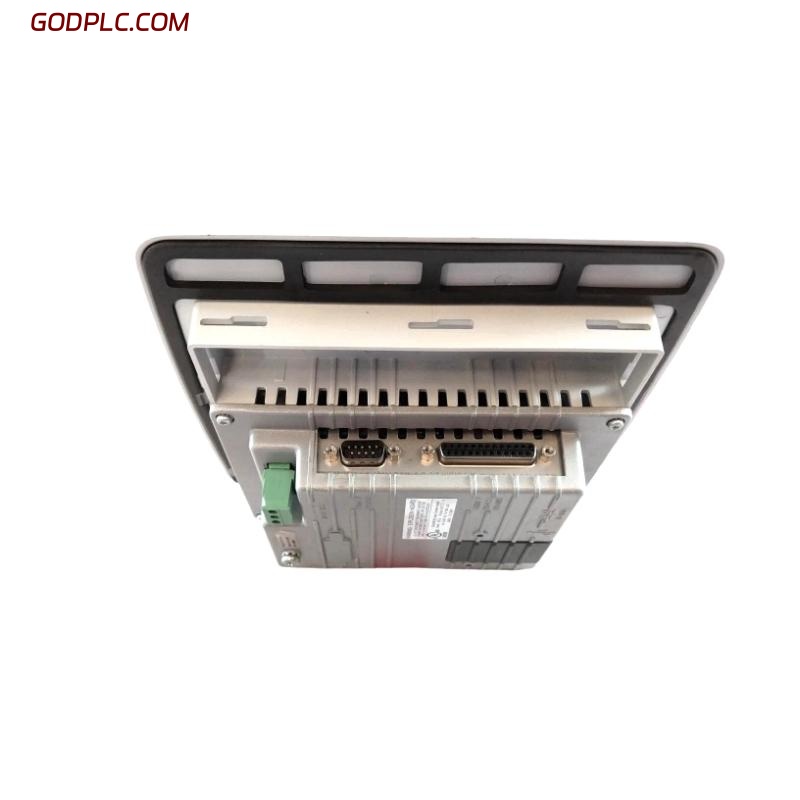

ABB PP820 3BSE042243R1 Operation Panel
Product Overview
The ABB PP820 3BSE042243R1 Operation Panel is a robust, user-friendly interface device designed for local operation and monitoring within ABB control systems. This industrial-grade panel provides reliable access to control functions, system diagnostics, and process visualization. With its compact design, high-resolution display, and intuitive interface, the PP820 is ideal for installation in demanding environments where reliable human-machine interaction is essential for safe and efficient operations.
Key Features
-
High-Resolution Display – Provides clear visualization of process information, alarms, and system status
-
Durable Industrial Design – Built to operate reliably in harsh industrial environments with resistance to dust, moisture, and vibration
-
User-Friendly Interface – Features intuitive menus and controls for efficient operation and system monitoring
-
Seamless System Integration – Fully compatible with ABB AC 800M, Freelance, and other ABB automation platforms
-
Compact Form Factor – Saves space within control panels while maintaining excellent functionality
-
Flexible Mounting Options – Supports panel, cabinet, or field mounting for versatile installation
-
Fast Response Time – Enables real-time system access for rapid operator interaction
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Front panel : 202 x 187 x 6 mm |
| Weight | 0.95 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply Voltage | 24 V DC (nominal) |
| Display Type | High-contrast LCD display |
| Interface Type | Keypad or touch-enabled (depending on version) |
| Communication | Integrated system bus or serial interface |
| Power Consumption | Low power consumption for efficient operation |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration Resistance | Compliant with IEC 60068 standards |
| Ingress Protection | IP65 (front panel) |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB AC 800M, Freelance, and related control systems |
| Mounting Type | Panel-mounted, field installation, or cabinet integration |
Industry Applications
-
Process Industries – Provides reliable local control and monitoring for chemical, oil & gas, and pharmaceutical operations
-
Power Generation – Supports turbine, generator, and substation control with operator access to system status and alarms
-
Water and Wastewater Treatment – Ensures efficient monitoring and operation of pumps, valves, and treatment systems
-
Manufacturing Automation – Facilitates real-time operator interaction with automated production lines
-
Utilities and Infrastructure – Enhances system accessibility in power distribution, transportation, and facility management applications
The ABB PP820 3BSE042243R1 Operation Panel delivers reliable, user-friendly access to ABB control systems, ensuring efficient, safe, and intuitive operator interaction across diverse industrial environments.
ABB PP820 3BSE042243R1 Operation Panel is in stock. Please contact us for a quick quote and competitive pricing.
