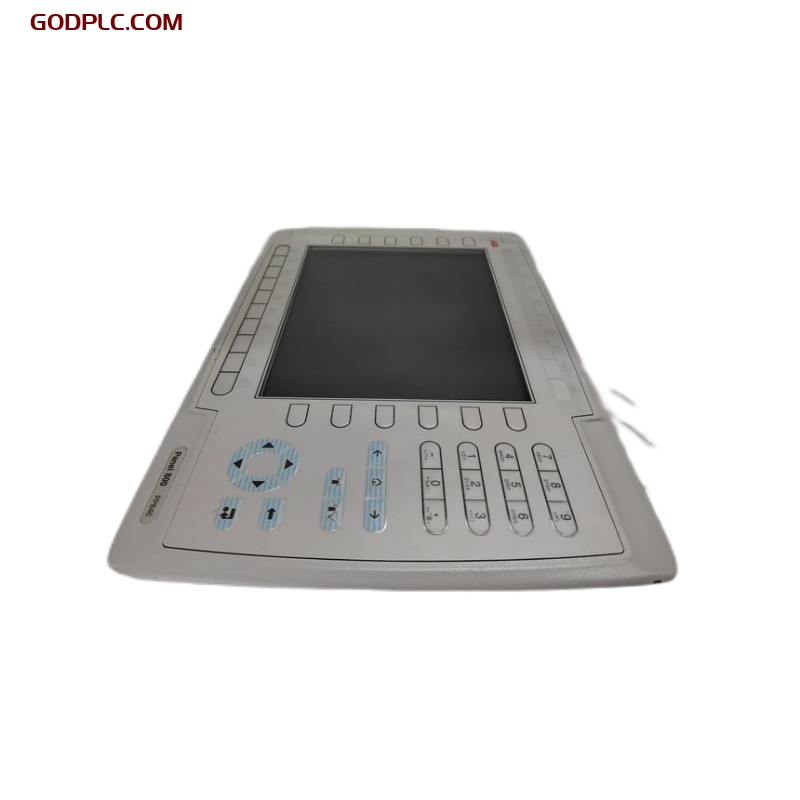

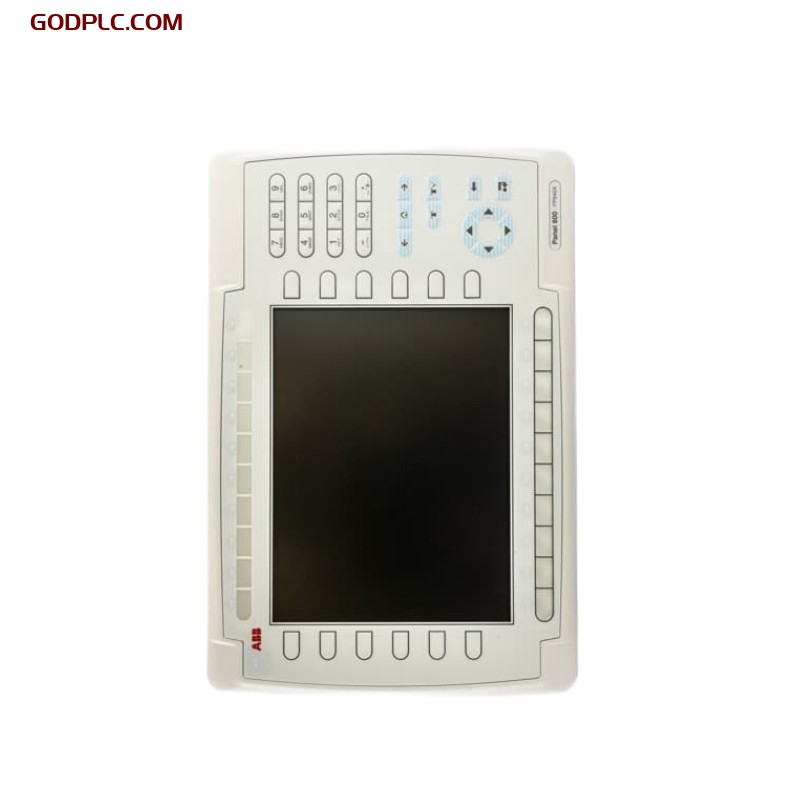

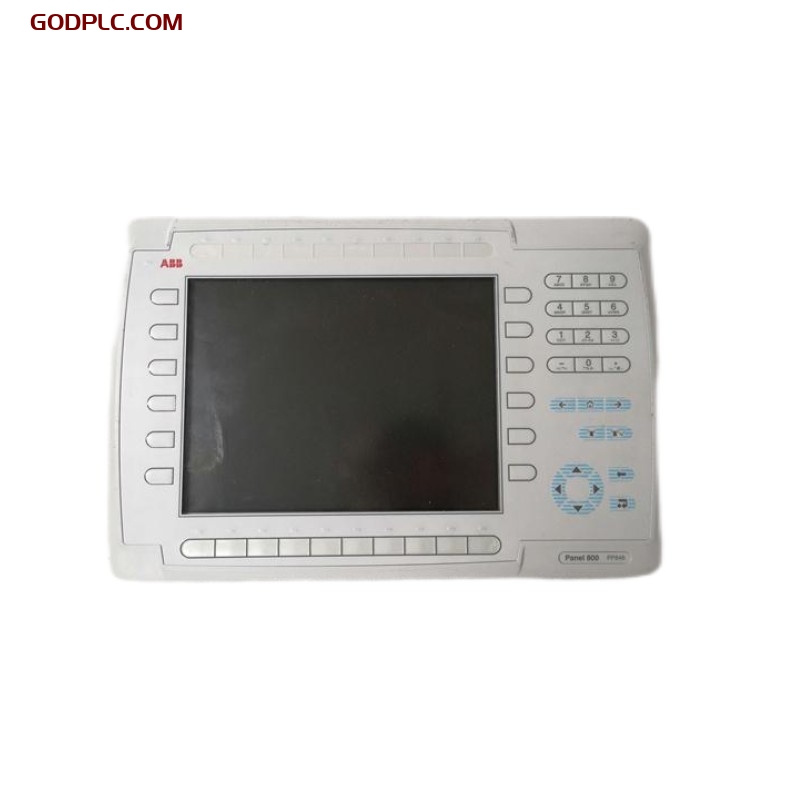

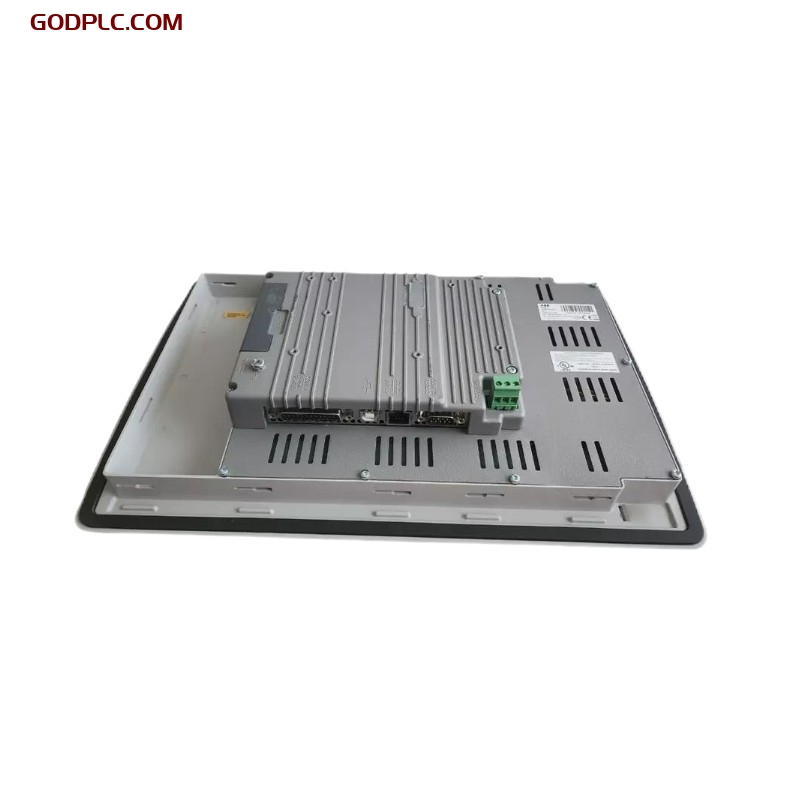

ABB PP846A 3BSE042238R2 Operation Panel Screen
1. Product Overview
The ABB PP846A 3BSE042238R2 operation panel is a high-performance HMI (Human-Machine Interface) tailored for industrial automation systems. With its 10.4-inch TFT touch display, robust industrial-grade construction, and wide compatibility with automation networks, it provides operators with real-time system monitoring, control, and diagnostics functionality.
Designed to integrate seamlessly into ABB’s 800xA automation platform, the PP846A delivers excellent visibility, intuitive user interaction, and outstanding environmental resistance. It is suitable for a wide range of applications including manufacturing, power distribution, process industries, and building automation.
2. Key Features
-
High-Resolution Touch Display: 10.4-inch TFT LCD for crystal-clear system visualization and precise control.
-
Industrial Durability: Designed to operate reliably in harsh environments with IP65 front panel protection.
-
Multi-Protocol Communication: Supports Modbus TCP/IP, Ethernet/IP, Profibus, and more for easy integration.
-
Compact Panel Mount: Saves space and simplifies installation and maintenance.
-
800xA System Integration: Fully compatible with ABB 800xA for unified control and monitoring.
-
Expandable Architecture: Supports external memory, firmware upgrades, and remote access.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 382 x 252 x 6 mm |
| Weight | 2.5 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | PP846A 3BSE042238R2 |
| Manufacturer | ABB |
| Mounting Type | Panel Mount |
| Power Supply | 24 V DC ±10% |
| Operating Temp. | -10°C to +60°C |
| Storage Temp. | -20°C to +70°C |
| Protection Level | IP65 (front panel) |
| Humidity | 5% – 95% RH (non-condensing) |
3.3 Display & Touch Interface
| Item | Specification |
|---|---|
| Display Type | TFT Color LCD |
| Screen Size | 10.4 inches |
| Resolution | 800 × 600 pixels |
| Backlight | LED, ≥ 50,000 hours lifespan |
| Touch Technology | Resistive touch with multi-point support |
3.4 Communication & Interfaces
| Item | Specification |
|---|---|
| Interface Types | Ethernet, USB, RS-232, RS-485 |
| Supported Protocols | Modbus TCP/IP, OPC, Profibus, etc. |
| Data Storage | Built-in Flash, SD card expansion |
| System Compatibility | Fully compatible with ABB 800xA systems |
4. Industry Applications
-
Manufacturing: Enables real-time production monitoring and efficient process control on shop floors.
-
Power & Energy: Used in power generation and distribution systems for secure and smart monitoring.
-
Petrochemical: Helps operators monitor hazardous processes and maintain system safety and performance.
-
Water Treatment: Assists in real-time control of pumps, filters, and water quality regulation.
-
Building Automation: Integrated into smart building systems for energy, HVAC, and lighting control.
ABB PP846A 3BSE042238R2 Operation Panel Screen is in stock. Please contact us for a quick quote and competitive pricing.
