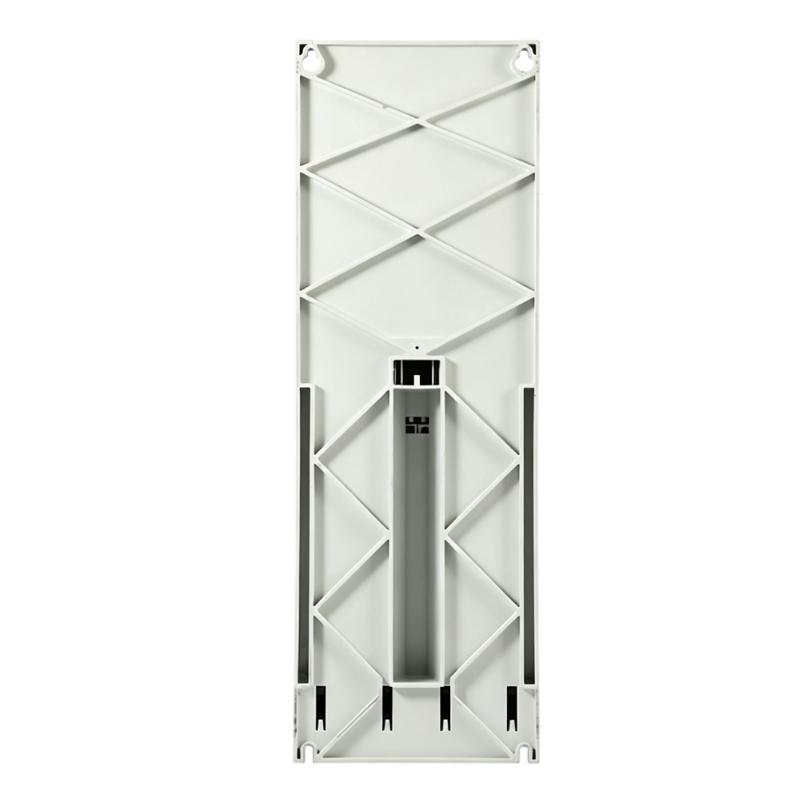

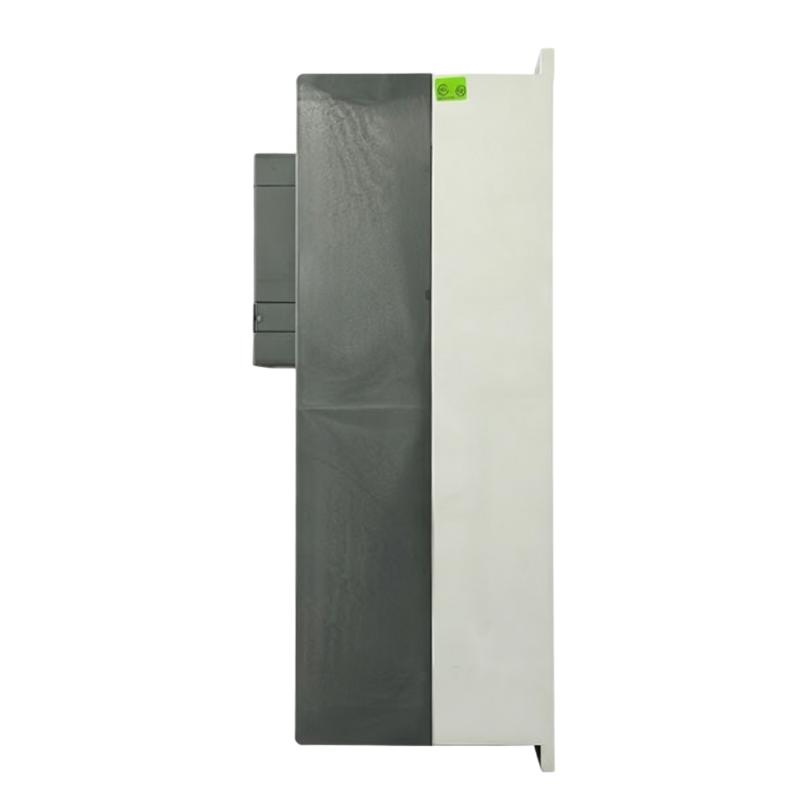

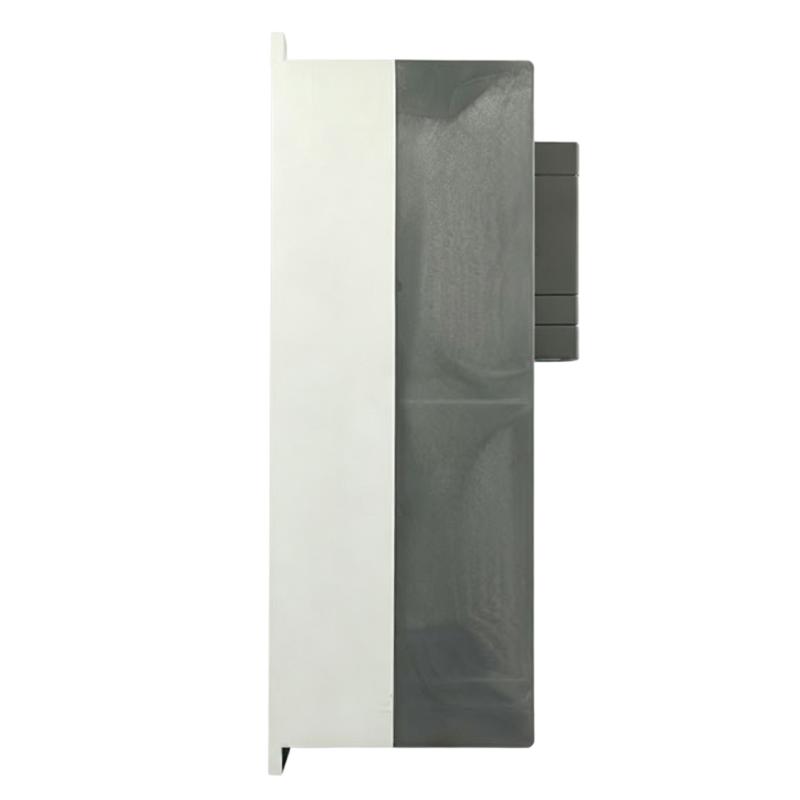

ABB PSE300-600-70 1SFA897114R7000 Soft Starter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | PSE300-600-70 |
| Ordering Number | 1SFA897114R7000 |
| Product Type | Soft Starter |
| Product Series | PSE |
| Rated Operational Current | 300 A |
| Rated Operational Voltage | 208–600 V AC |
| Rated Control Supply Voltage | 100–250 V AC, 50/60 Hz |
| Control Method | Two-phase control |
| Motor Power at 230 V | 75 kW |
| Motor Power at 400 V | 132 kW |
| Motor Power at 500 V | 160 kW |
| Starting Method | Soft Start with Voltage or Torque Ramp |
| Stopping Method | Soft Stop with Voltage or Torque Ramp |
| Adjustable Motor Current | 30–100% of rated current |
| Current Limit | 1.5–7 × Ie |
| Starting Capacity | Up to 4 × Ie for 10 seconds |
| Start Ramp Time | 1–30 seconds |
| Stop Ramp Time | 0–30 seconds |
| Initial Start Voltage | 30–70% |
| Built-in Bypass | Yes |
| Motor Protection | Electronic overload, underload and locked-rotor protection |
| Kickstart Function | Yes |
| Analog Output | 4–20 mA |
| Communication | Built-in Modbus RTU; FieldBusPlug support |
| Display | Illuminated display with symbol-based interface |
| Relay Signals | RUN, TOR and Event |
| Typical Applications | Pumps, fans, compressors and conveyors |
| Ambient Operating Temperature | -25 to +60 °C |
| Main Terminal Type | Bars |
| Main Circuit Connection | 20 × 5 mm busbar with 10.2 mm hole |
| Main Circuit Tightening Torque | 28 N·m |
| Control Circuit Tightening Torque | 0.5 N·m |
| Protection | Main terminals IP00 |
| Power Dissipation | Approx. 18 W |
| Dimensions | 550 × 190 × 236.5 mm |
| Weight | 13.9 kg |
FAQ
Q1: What is the main function of the ABB PSE300-600-70 soft starter?
The PSE300-600-70 is designed to control the starting and stopping of three-phase AC motors by gradually increasing or decreasing the motor voltage and torque. Instead of applying full line voltage directly to the motor, the soft starter provides a controlled acceleration profile, helping reduce starting current, mechanical shock and stress on connected equipment.
Q2: What motor current is the PSE300-600-70 designed for?
The soft starter has a rated operational current of 300 A and an adjustable motor-current setting of approximately 30–100% of the rated current. The actual motor current setting should be configured according to the motor nameplate data and the required starting conditions rather than simply using the maximum 300 A value.
Q3: What supply voltage can the PSE300-600-70 handle?
The main circuit operating voltage is 208–600 V AC. The control supply voltage is 100–250 V AC at 50/60 Hz. The control supply and motor power circuit should be wired according to the applicable ABB connection diagram, with the correct protection and isolation devices installed upstream.
Q4: Does the PSE300-600-70 have a built-in bypass?
Yes. The PSE300-600-70 includes an integrated bypass function. After the motor has completed its starting sequence, the bypass reduces the amount of power dissipated by the soft starter during normal running. This also helps simplify installation compared with systems requiring a separate external bypass contactor.
Q5: What protection functions are available on the PSE300-600-70?
The unit provides several motor and operating protection functions, including electronic overload protection, underload protection and locked-rotor protection. It also supports current limiting and other starting-related functions. These protections help prevent abnormal motor conditions from causing excessive electrical or mechanical stress on the motor and driven equipment.
Q6: What is the purpose of the torque ramp and current limit functions?
The torque ramp controls how motor torque develops during acceleration and deceleration, which is particularly useful for applications where sudden mechanical forces need to be minimized. The current-limit function restricts the starting current to a configured level, helping reduce the impact of motor starting on the electrical supply while maintaining controlled acceleration.
Q7: Which applications are suitable for the PSE300-600-70?
The PSE series is intended for general-purpose three-phase motor applications. Typical applications include pumps, fans, compressors and conveyors. The adjustable ramp, current-limit and protection functions make the PSE300-600-70 suitable for installations where direct-on-line starting would produce excessive electrical current or mechanical impact.
Q8: What should be checked when commissioning the PSE300-600-70?
Before commissioning, verify the motor rated current, supply voltage, control voltage, phase sequence, terminal connections and protective devices. Configure the motor current and starting parameters according to the actual motor and load characteristics. During the first start, monitor acceleration, starting current, motor temperature and abnormal vibration or noise. If the motor fails to accelerate correctly, check the current limit, ramp time, load condition and protection settings before repeated starting attempts.
ABB PSE300-600-70 1SFA897114R7000 Soft Starter is in stock. Please contact us for a quick quote and competitive pricing.
