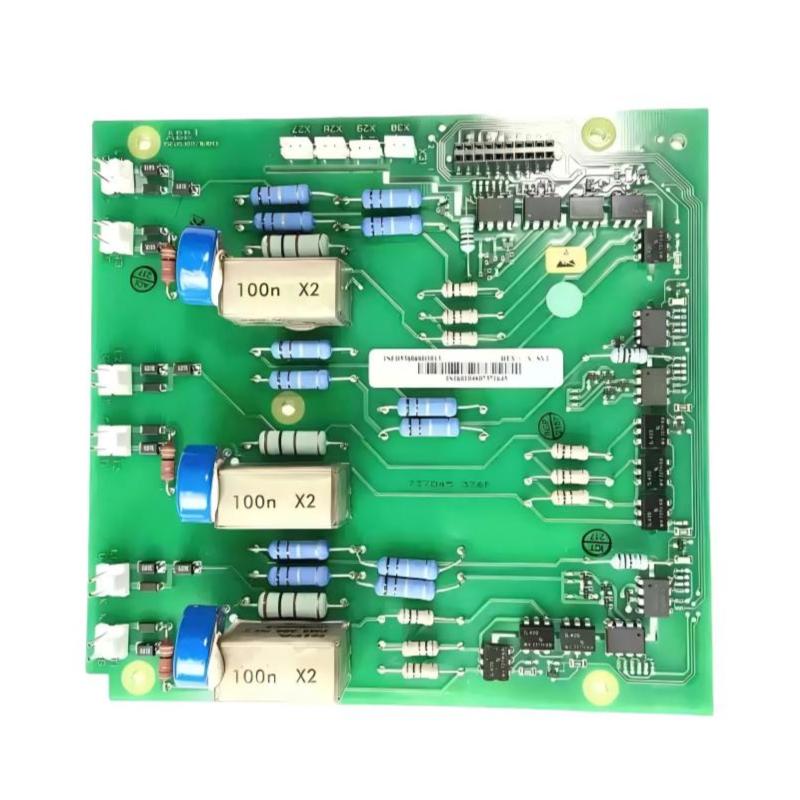

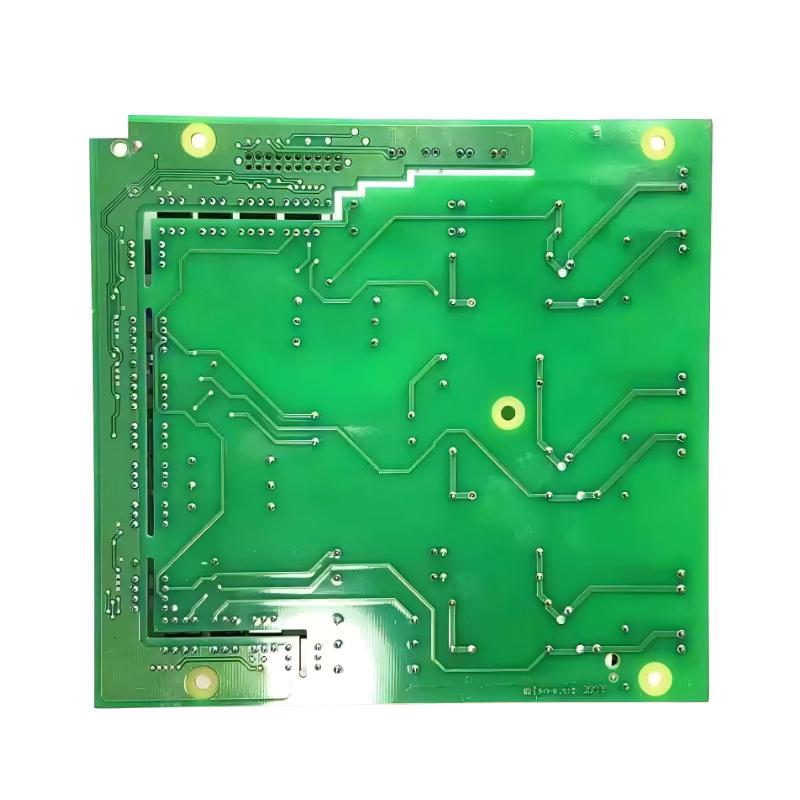

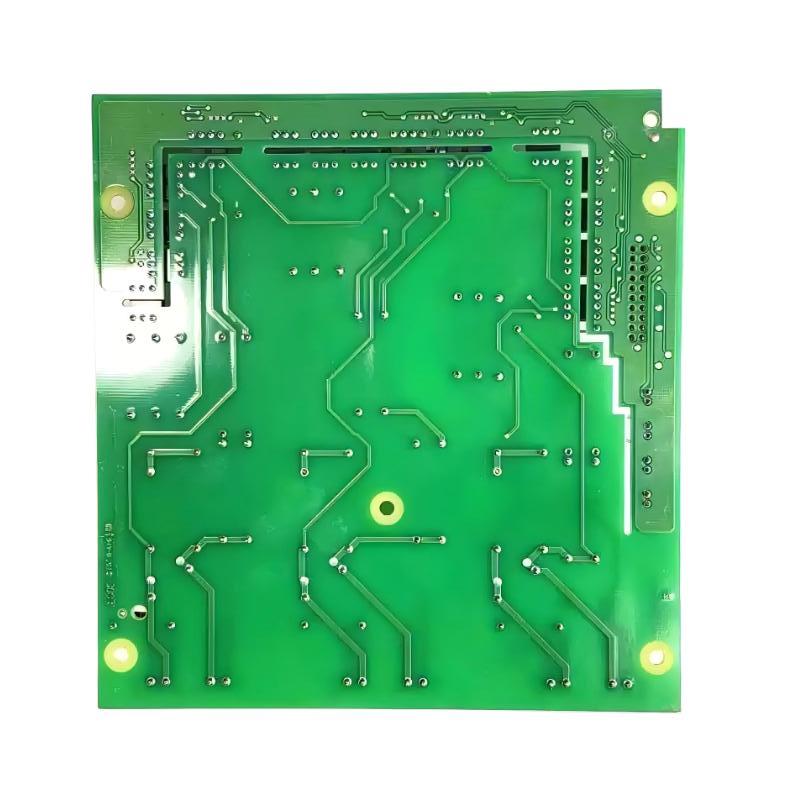

ABB PSPCB-690/T 1SFA899020R7690 High-Voltage Driver Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Type | High-Voltage Driver Board |
| Model | PSPCB-690/T |
| Order Number | 1SFA899020R7690 |
| Board Type | High-Voltage Circuit Board |
| Application | ABB PST Series and PSTB Series Soft Starters |
| Compatible Soft Starters | PST30…PST300 and PSTB370…PSTB1050 |
| Rated Voltage Class | 690 V |
| Main Function | Provides high-voltage circuit control within the soft starter and interfaces with the associated power switching section |
| Electrical Function | Processes and distributes control signals required by the high-voltage power circuit |
| System Interface | Interfaces with the soft starter control circuitry and high-voltage power components |
| Installation Position | Internal section of the soft starter |
| Installation Type | Internal PCB replacement |
| Board Version | Non-coated HV board |
| Maintenance | Inspect the PCB, connectors and associated wiring for contamination, corrosion, overheating or physical damage |
| Replacement Requirement | Verify the soft starter model, board type and complete ABB order number before replacement |
| Safety Requirement | Disconnect, isolate and discharge the soft starter before servicing or replacing the board |
| Operating Environment | Follow the environmental requirements of the corresponding ABB PST/PSTB soft starter |
| Dimensions | 250 × 35 × 230 mm |
| Weight | 0.4 kg |
FAQ
1. What is the ABB PSPCB-690/T 1SFA899020R7690?
The ABB PSPCB-690/T is a high-voltage circuit board used as a replacement component in compatible ABB PST and PSTB soft starters. It works within the high-voltage section of the starter and interfaces with the control and power circuitry.
2. Which ABB soft starters use the PSPCB-690/T?
ABB identifies 1SFA899020R7690 for PST30 through PST300 soft starters and PSTB370 through PSTB1050 soft starters. The exact starter model should be checked before ordering to ensure the board configuration is correct.
3. What is the main function of the PSPCB-690/T?
The board handles control functions associated with the high-voltage circuit and provides the required interface between the soft starter control system and its power switching components.
4. Is the PSPCB-690/T a low-voltage or high-voltage board?
It is the high-voltage board for the applicable ABB PST/PSTB soft starter. ABB lists the PSPCB-LV/T separately as the low-voltage board, so the two boards should not be treated as interchangeable.
5. What should be checked before replacing the 1SFA899020R7690?
Check the complete soft starter model, existing board designation, order number and connector arrangement. The replacement should be the correct PSPCB-690/T version for the equipment. The power section and associated wiring should also be inspected for damage before installing a new board.
6. Can the PSPCB-690/T be replaced while the soft starter is powered?
No. The soft starter must be completely disconnected from the power supply and properly isolated before the board is removed. The required discharge time and site electrical safety procedures must also be followed because the board is part of the high-voltage section.
7. Should the low-voltage board also be replaced when changing the PSPCB-690/T?
ABB’s spare-parts documentation notes that PST(B) soft starters have separate high-voltage and low-voltage PCBAs and recommends replacing both boards when a replacement is performed. The actual maintenance decision should follow the equipment condition and applicable ABB service procedure.
8. What maintenance is recommended for the PSPCB-690/T?
During scheduled maintenance, inspect the PCB for contamination, corrosion, overheating, damaged components and loose connections. Check the connectors and associated wiring carefully, and make sure the soft starter’s cooling system is operating correctly. Any abnormal switching or repeated protection fault should be investigated together with the related power components.
ABB PSPCB-690/T 1SFA899020R7690 High-Voltage Driver Board is in stock. Please contact us for a quick quote and competitive pricing.
