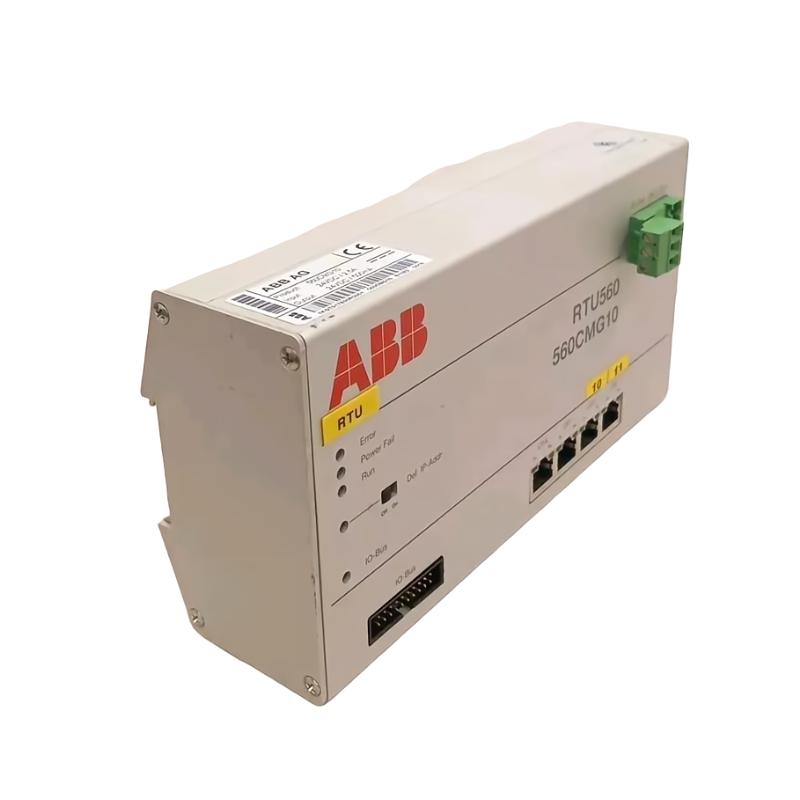

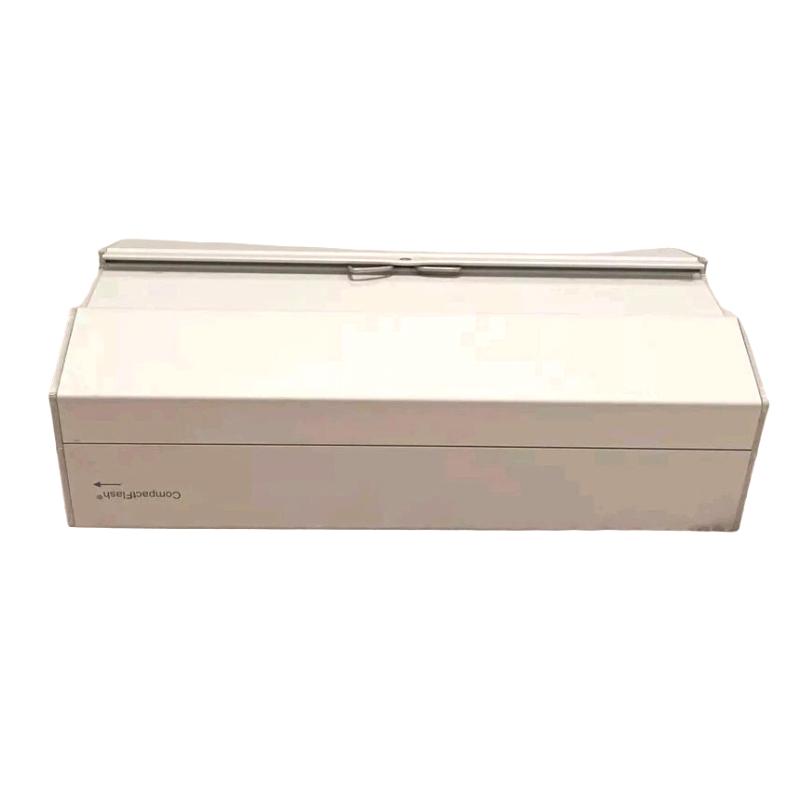

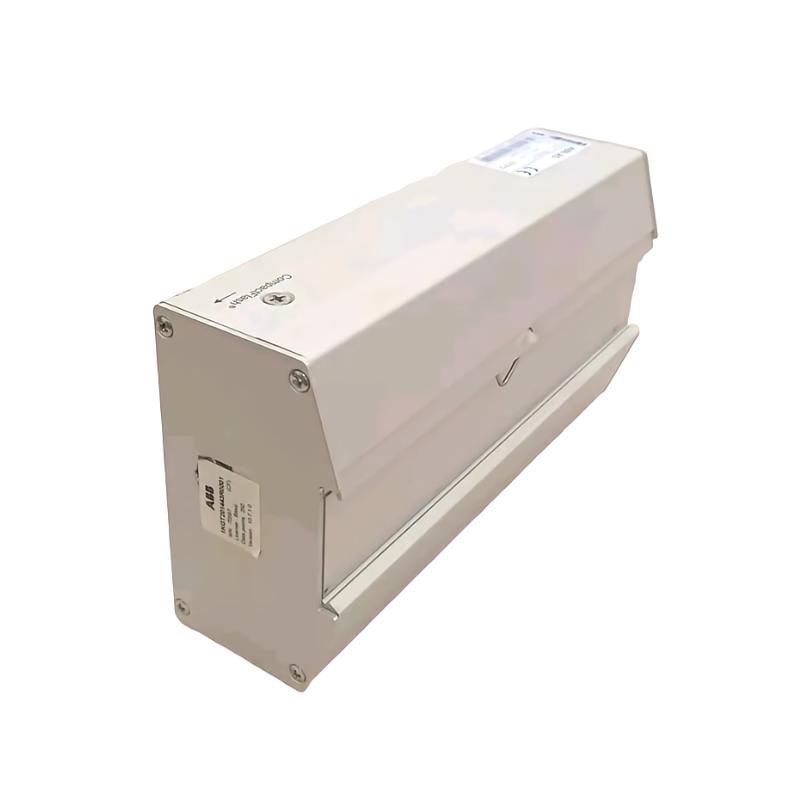

ABB RTU560 560CMG10 1KGT017600R001 Remote Terminal Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Remote Terminal Unit (RTU) |
| Model | RTU560 560CMG10 |
| Ordering Number | 1KGT017600R001 |
| Manufacturer | ABB |
| Product Type | Remote Terminal Unit |
| Series | RTU560 Series |
| Main Functions | Data Acquisition, Remote Monitoring, Telemetry, Telecontrol, and Communication Gateway Functions |
| Application Areas | Substation Automation, Power Dispatching Systems, Transmission and Distribution Networks, Industrial Automation |
| Processing Capability | Real-Time Data Processing and Event Management |
| Communication Protocols | IEC 60870-5-101, IEC 60870-5-104, IEC 61850, DNP3, Modbus, and other protocols depending on configuration |
| Data Storage | Event Logs, Alarm Records, and Historical Data Storage |
| Network Interfaces | Ethernet and Serial Communication Interfaces |
| Redundancy Features | Support for System and Communication Redundancy |
| Mounting Method | DIN Rail Mounting or Cabinet Installation |
| Rated Frequency | 50/60 Hz |
| Power Supply | Industrial Wide-Range Power Input |
| Operating Environment | Utility, Energy, and Industrial Control Applications |
| Dimensions | 150 × 60 × 160 mm |
| Weight | 0.95 kg |
FAQ
Q1: What is the primary function of the RTU560 560CMG10?
A1: The RTU560 560CMG10 is designed to collect operational data from field devices and transmit it to control centers or SCADA systems. It also receives remote control commands and executes monitoring, automation, and control functions, making it a key component in modern power system automation and industrial communication networks.
Q2: Which communication protocols are supported by the RTU560 560CMG10?
A2: The unit supports a wide range of industry-standard communication protocols, including IEC 60870-5-101, IEC 60870-5-104, IEC 61850, DNP3, and Modbus. This flexibility allows seamless integration with protection relays, meters, PLCs, SCADA systems, and other intelligent electronic devices from different manufacturers.
Q3: How does the RTU560 560CMG10 enable remote monitoring?
A3: The RTU continuously collects status indications, analog measurements, alarm signals, and operational data from connected equipment. This information is transmitted in real time to a central monitoring system, allowing operators to supervise network performance, identify abnormal conditions, and perform remote control operations without requiring on-site intervention.
Q4: Is the RTU560 560CMG10 suitable for IEC 61850-based digital substations?
A4: Yes. The RTU560 platform is designed to support IEC 61850 communication and can be integrated into modern digital substations. It facilitates data exchange between intelligent electronic devices (IEDs), supports interoperability, and helps simplify system integration while improving overall automation efficiency.
Q5: What data recording capabilities are available in the RTU560 560CMG10?
A5: The unit provides comprehensive event logging, alarm recording, communication diagnostics, and historical data storage. These records are valuable for fault analysis, operational audits, maintenance planning, and performance evaluation, helping utilities maintain reliable and efficient system operation.
Q6: How does the RTU560 560CMG10 improve power system reliability?
A6: By delivering real-time monitoring, fast event processing, and secure remote control capabilities, the RTU560 enables operators to respond quickly to system disturbances. Support for communication redundancy and high-availability system architectures further enhances operational continuity and minimizes downtime during network failures.
Q7: Can the RTU560 560CMG10 be integrated with third-party equipment?
A7: Yes. Thanks to its support for multiple open communication standards, the RTU560 can interface with a broad range of third-party devices, including protection relays, energy meters, PLCs, controllers, and automation systems. This interoperability simplifies system expansion and reduces integration complexity.
Q8: What advantages does the RTU560 560CMG10 offer for smart grid applications?
A8: The RTU560 combines advanced communication capabilities, flexible protocol support, reliable data processing, and scalable architecture in a compact platform. It enables efficient information exchange across substations and control centers, supports remote asset management, and provides the foundation for intelligent grid monitoring, automation, and operational optimization.
ABB RTU560 560CMG10 1KGT017600R001 Remote Terminal Unit is in stock. Please contact us for a quick quote and competitive pricing.
