1. What is the primary function of the RUSB-02 USB DDCS Adapter?

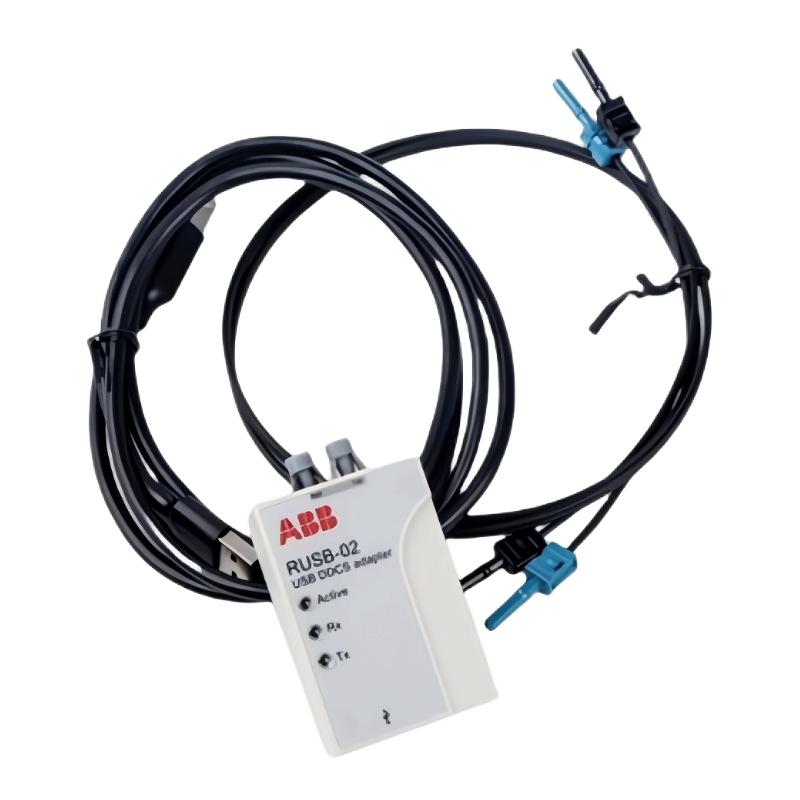

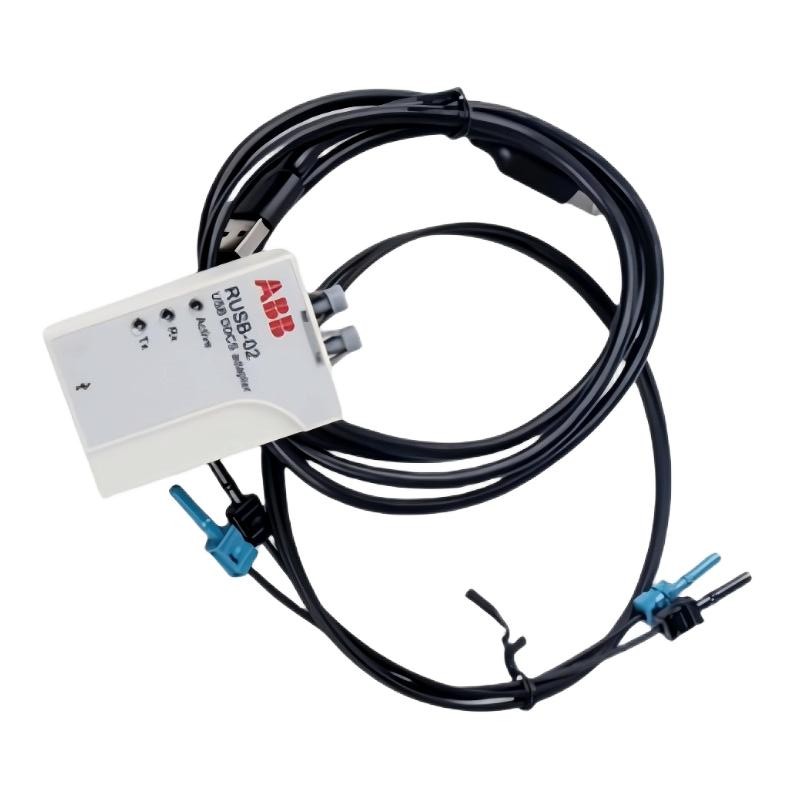

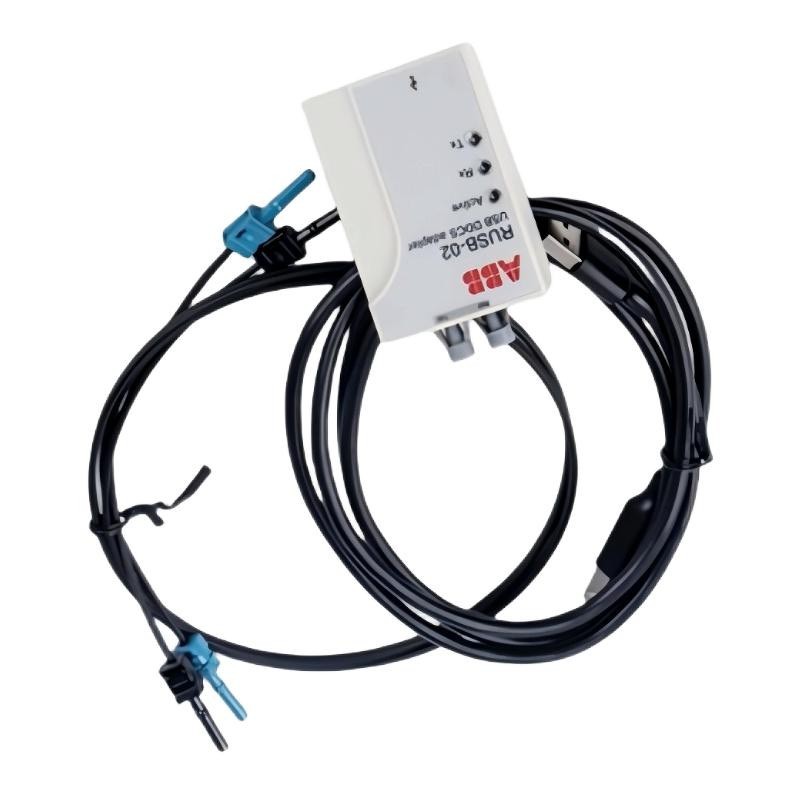

The RUSB-02 USB DDCS Adapter is designed to establish communication between a PC and ABB industrial drive systems through the DDCS fiber optic communication interface. It enables engineers and maintenance personnel to perform parameter configuration, diagnostics, firmware operations, and real-time monitoring using ABB commissioning software. The adapter acts as a bridge between standard USB communication and ABB’s DDCS protocol.

2. Which ABB software tools are commonly used with the RUSB-02 adapter?

The adapter is commonly used with ABB DriveWindow and other ABB commissioning or diagnostic applications. These software tools allow users to access drive parameters, monitor operating conditions, upload or download configurations, and troubleshoot faults. Proper driver installation is typically required to ensure stable communication between the PC and the connected drive system.

3. Why does the adapter use DDCS fiber optic communication instead of standard electrical communication?

DDCS fiber optic communication provides strong immunity against electromagnetic interference, which is critical in industrial environments where high-power drives and switching equipment generate electrical noise. Fiber optic transmission also offers electrical isolation between the PC and the drive system, reducing the risk of communication errors, grounding issues, and hardware damage caused by voltage fluctuations.

4. What should be checked if the PC cannot detect the RUSB-02 adapter?

If the adapter is not recognized, users should first verify that the USB drivers are correctly installed and compatible with the operating system. The USB cable and fiber optic connections should also be inspected for damage or loose connections. In addition, the correct COM port assignment and ABB communication software settings should be confirmed. Restarting the software or reconnecting the adapter may also help restore communication.

5. Can the RUSB-02 be used for firmware updates on ABB drives?

Yes, the adapter can be used during firmware update procedures for compatible ABB drive systems. Stable communication is essential during firmware transfer, so it is important to ensure uninterrupted power supply and secure fiber optic connections throughout the update process. Interruptions during firmware loading may result in incomplete installation or drive startup issues.

6. What are the advantages of using fiber optic communication in industrial drive systems?

Fiber optic communication offers high noise immunity, stable data transmission, and improved electrical isolation compared to conventional copper-based communication systems. In industrial drive applications, this helps maintain reliable communication even in environments with strong electromagnetic fields, high switching frequencies, or long cable routing distances. It also minimizes the possibility of communication disturbances affecting control performance.

7. How should the RUSB-02 adapter be maintained in industrial environments?

The adapter should be kept clean and protected from excessive dust, moisture, and mechanical impact. Fiber optic connectors should be inspected regularly to ensure that they remain free from contamination or scratches, as damaged optical surfaces may reduce communication quality. During storage and transport, protective caps should be used on optical ports to prevent dirt accumulation.

8. What are the common causes of unstable DDCS communication?

Unstable DDCS communication can result from damaged fiber optic cables, incorrect connection orientation, loose connectors, excessive bending of optical fibers, or incompatible software settings. Electrical grounding problems in surrounding equipment may also indirectly affect system stability. Regular inspection of communication hardware and correct installation practices are important to maintain reliable data transmission between the PC and the drive system.
