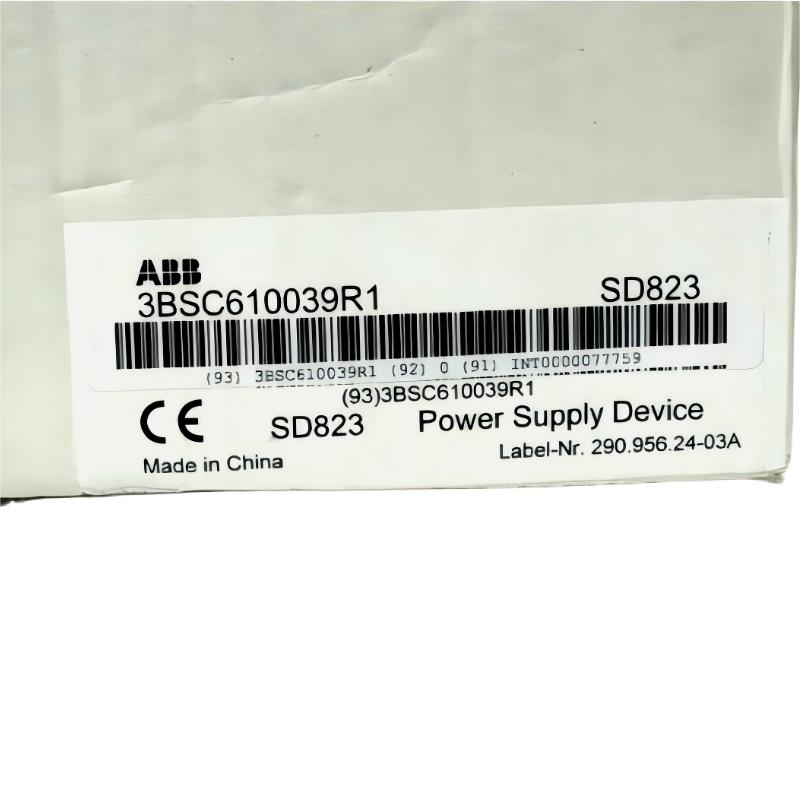

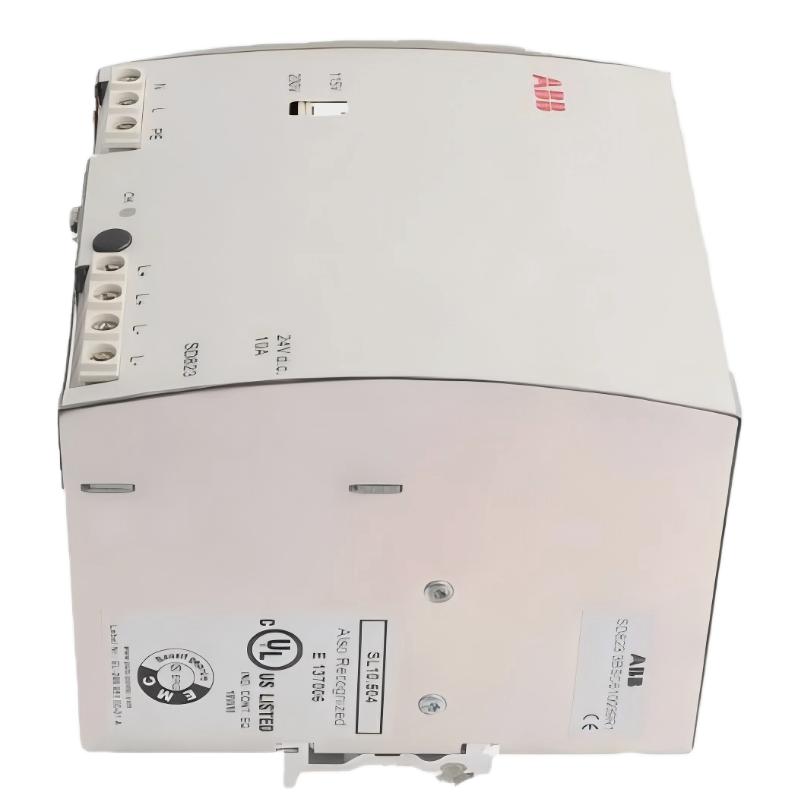

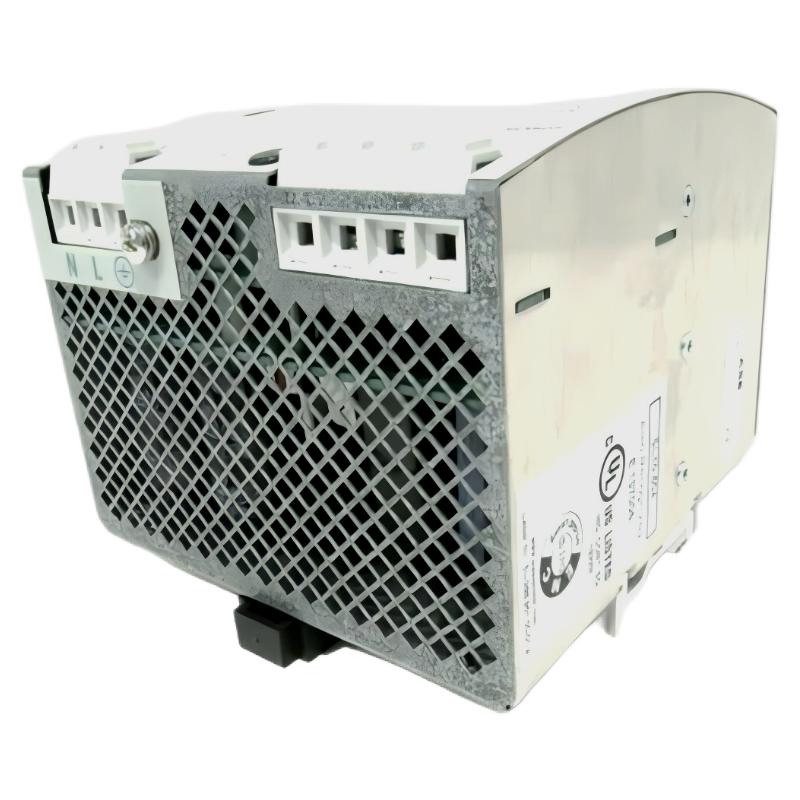

ABB SD823 3BSC610039R1 Power Supply
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Power Supply Module |
| Model | SD823 |
| Order Number | 3BSC610039R1 |
| Manufacturer | ABB |
| Input Voltage | 24 V DC |
| Output Voltage | 5 V DC |
| Output Current | Up to 10 A |
| Rated Power | Approx. 50 W |
| Redundancy Support | Yes (parallel operation supported) |
| Mounting Type | DIN Rail |
| Protection Features | Overvoltage, overcurrent, short circuit protection |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Compatible System | ABB AC 800M Control System |
| Dimensions | 120 × 125 × 110 mm |
| Weight | 1.1 kg |
FAQ
1. What systems is the SD823 power supply designed for?
The SD823 is specifically designed for use within ABB AC 800M control systems. It provides stable and reliable DC power to controllers and I/O modules, making it suitable for a wide range of industrial automation applications such as power generation, oil & gas, water treatment, and manufacturing processes.
2. Does the SD823 support redundant power configurations?
Yes, the SD823 supports redundancy through parallel operation with another identical module. In a redundant setup, if one power supply fails, the other unit continues to deliver power without interruption. This significantly improves system availability and is especially important in critical industrial processes where downtime must be minimized.
3. What protection features are included in the SD823?
The module is equipped with comprehensive protection mechanisms, including overvoltage protection, overcurrent protection, and short circuit protection. These features help prevent damage to both the power supply and connected equipment, ensuring safe operation even under abnormal electrical conditions.
4. How stable is the output voltage under varying load conditions?
The SD823 provides regulated output voltage, maintaining stability even when there are fluctuations in input voltage or load demand. This stable power delivery is essential for sensitive control equipment, reducing the risk of system errors, signal inconsistencies, or unexpected shutdowns.
5. Is the SD823 suitable for harsh industrial environments?
Yes, the SD823 is built to meet industrial standards and can operate reliably in environments with temperature variations, electrical noise, and mechanical stress. Its robust design and high-quality components ensure long-term performance in demanding applications.
6. How is the SD823 installed and maintained?
The module is designed for DIN rail mounting, allowing for quick and straightforward installation in standard control cabinets. Its modular design also simplifies maintenance and replacement, enabling technicians to minimize downtime during servicing.
7. What should be considered during wiring and installation?
Proper polarity must be observed when connecting the input power, and all wiring should comply with ABB installation guidelines. Secure connections and appropriate cable sizing are essential to ensure stable operation. It is also recommended to verify that the load requirements are within the module’s rated capacity before powering up.
8. How does the SD823 enhance overall system reliability?
By delivering consistent power, supporting redundancy, and incorporating multiple protection features, the SD823 helps prevent common power-related failures. This contributes to improved system uptime, reduced maintenance needs, and more reliable operation of the entire automation system.
ABB SD823 3BSC610039R1 Power Supply is in stock. Please contact us for a quick quote and competitive pricing.
