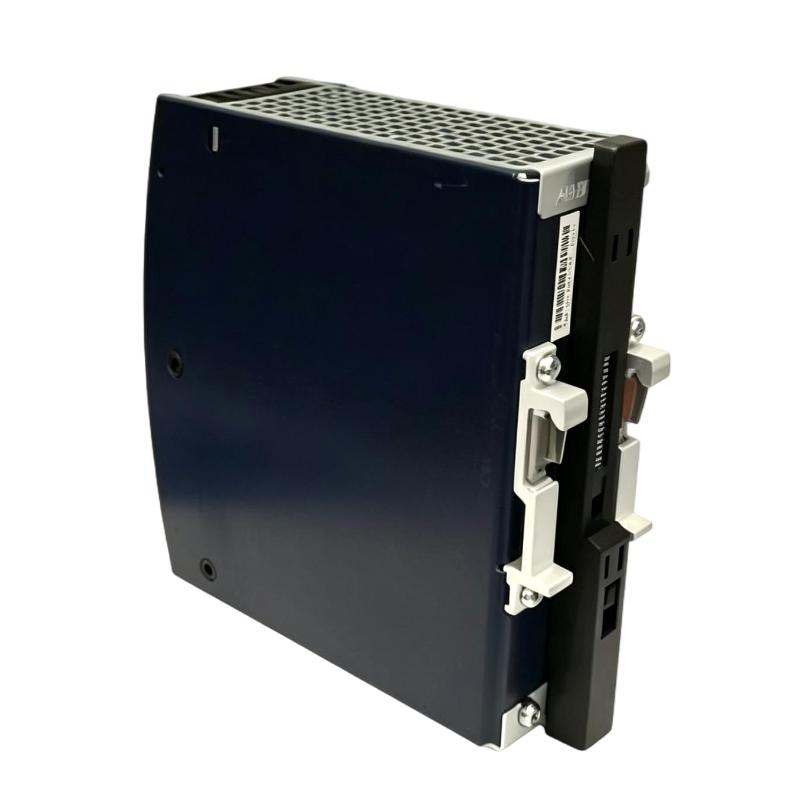

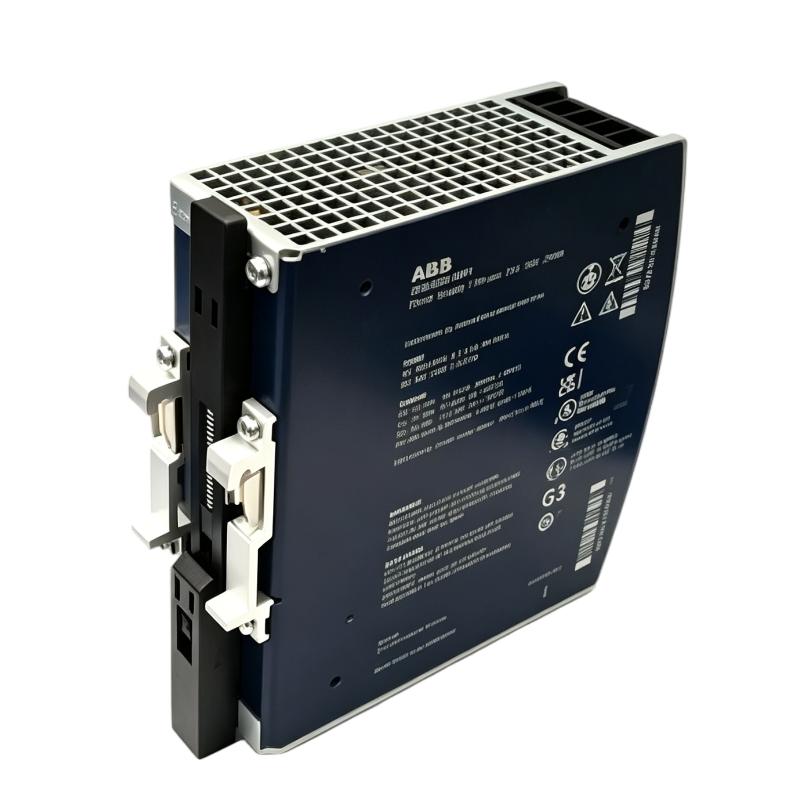

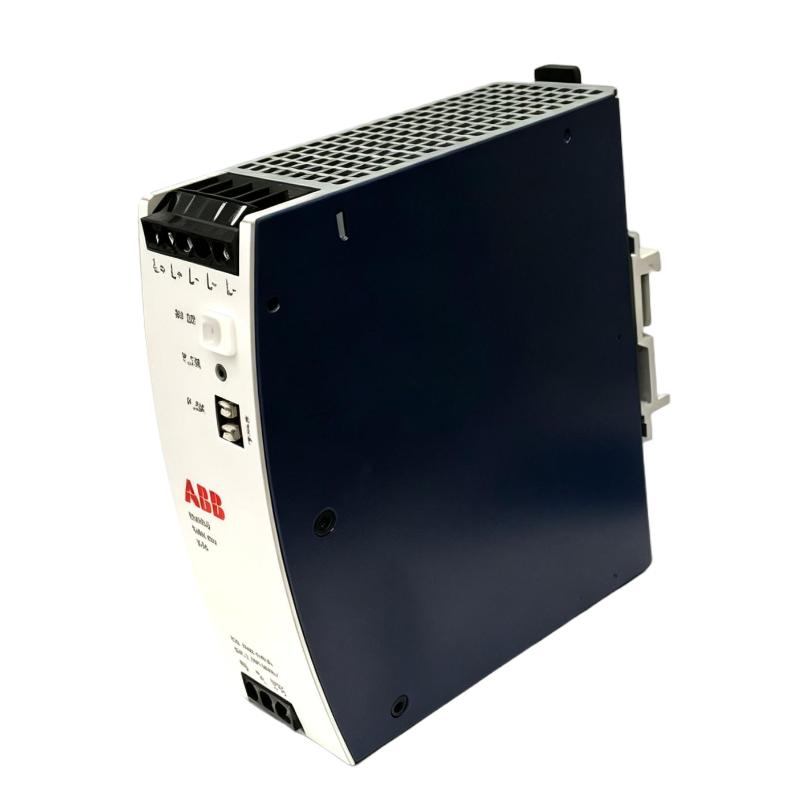

ABB SD853 3BSE088188R1 Power Supply
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | SD853 |
| Ordering Number | 3BSE088188R1 |
| Product Type | Power Supply Unit |
| Product Series | ABB System 800xA |
| Rated Input Voltage (AC) | 100–240 V AC |
| Rated Input Voltage (DC) | 110–150 V DC |
| Allowable Input Voltage Range | 85–264 V AC / 88–180 V DC |
| Input Frequency | 50–60 Hz ±6% |
| Rated Output Voltage | 24 V DC |
| Rated Output Current | 10 A |
| Rated Output Power | 240 W |
| Efficiency | Up to 95.2% |
| Mounting Type | DIN Rail Mounting |
| Protection Features | Output overvoltage protection, short-circuit protection, and overload handling |
| Monitoring Function | DC-OK relay contact |
| Power Factor | 0.99 at 120 V AC / 0.97 at 230 V AC at rated output power |
| Operating Temperature | -25°C to +70°C, with power derating above 60°C |
| Protection Rating | IP20 |
| Redundancy Support | Parallel connection for load sharing; verify system requirements before configuring redundant operation |
| Certifications | CE, ATEX Zone 2, IECEx Zone 2, Class I Division 2 |
| Dimensions | 124 × 39 × 117 mm |
| Weight | 0.6 kg |
FAQ
Q1: What is the main function of the ABB SD853 power supply?
The ABB SD853 converts an AC or DC input into a regulated 24 V DC output for compatible industrial control and I/O equipment. It is designed to provide a stable power source for automation systems and their associated components.
Q2: What input voltage does the ABB SD853 support?
The nominal input ranges are 100–240 V AC and 110–150 V DC. The documented allowable ranges are 85–264 V AC and 88–180 V DC. The actual supply configuration must comply with the equipment’s installation requirements.
Q3: Can the SD853 supply power to a 24 V DC control system?
Yes. Its rated output is 24 V DC, with a maximum rated current of 10 A and rated power of 240 W. Before connecting equipment, calculate the total load and allow sufficient capacity for startup current and transient loads.
Q4: Does the ABB SD853 support parallel operation?
The SD853 supports parallel connection for load sharing. However, parallel operation does not automatically guarantee a redundant power supply system. Check the system design, wiring instructions, load distribution, and any required redundancy or voting equipment before installation.
Q5: What does the DC-OK relay contact indicate?
The DC-OK relay contact provides a monitoring signal related to the DC output status. It can be incorporated into a control system or alarm circuit to help identify power supply problems. Refer to the terminal diagram and product documentation for the correct wiring and signal interpretation.
Q6: What protection functions are available on the SD853?
The unit includes output overvoltage protection and short-circuit handling. Its documented short-circuit response uses a hiccup mode, cycling between operating and recovery intervals. Protection behavior should be considered when diagnosing downstream faults or repeated output interruptions.
Q7: What should be checked if the SD853 output voltage drops or disappears?
Check the input voltage, protective fuses, wiring connections, terminal tightness, and total connected load. Disconnect or isolate downstream loads according to the applicable safety procedure to determine whether an overload or short circuit is causing the interruption. Also check the DC-OK status and allow the unit to cool if overheating is suspected.
Q8: What installation conditions are important for reliable operation?
Mount the SD853 securely on a suitable DIN rail and provide adequate ventilation. Observe the specified operating temperature range and derating requirements, maintain correct polarity and grounding, and protect the unit from conductive dust, moisture, and other environmental hazards. Installation and maintenance should be performed by qualified personnel with the power safely isolated.
