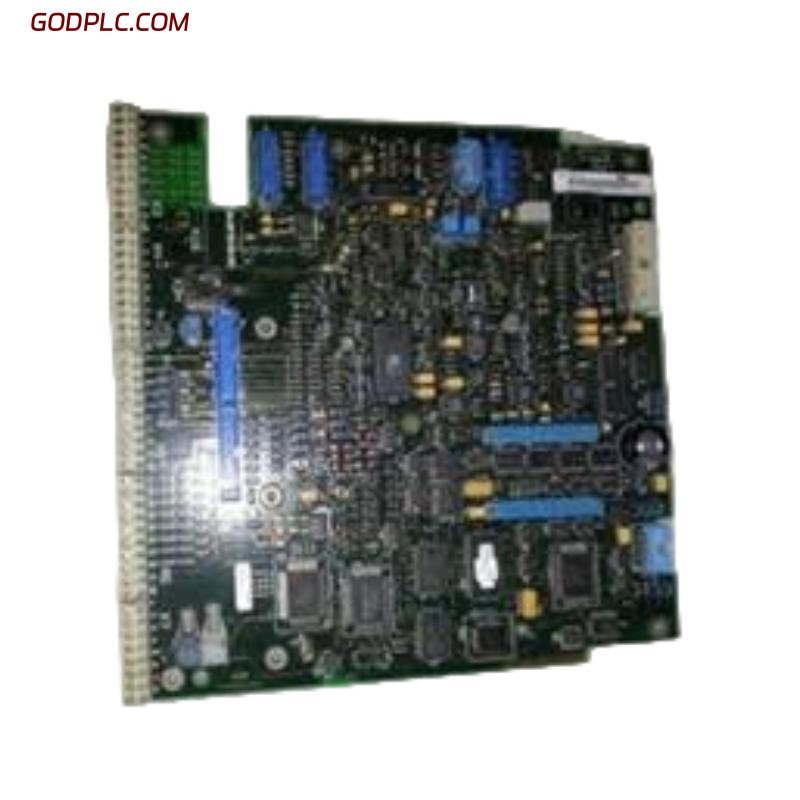

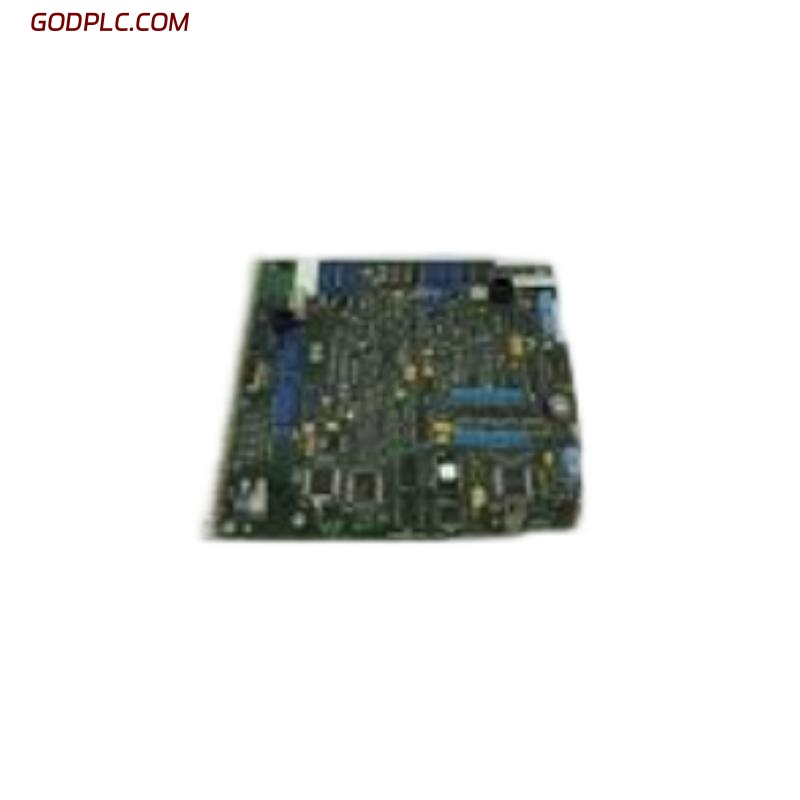

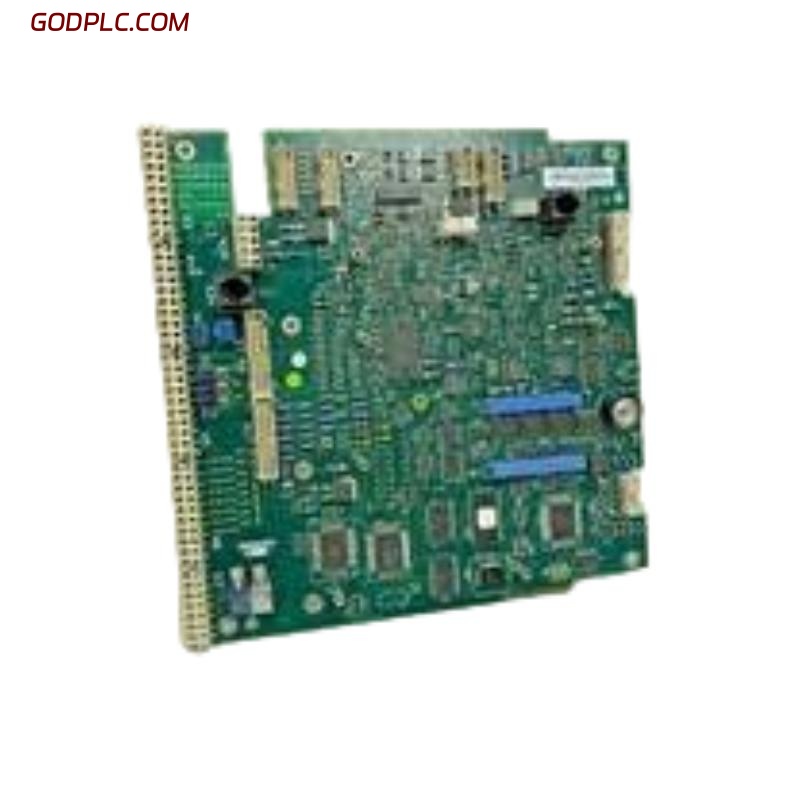

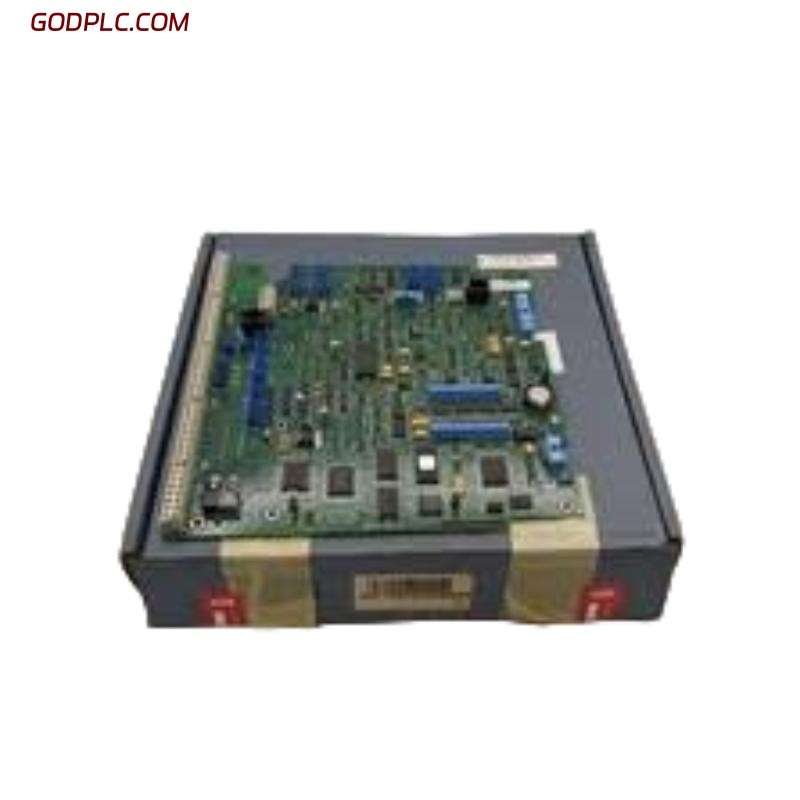

ABB SDCS-AC-CON-2 Control Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ABB SDCS-AC-CON-2 is an advanced control board developed for ABB’s DCS500 and DCS600 drive systems.
It functions as the central control unit within the converter system, responsible for managing power electronics, analog and digital signals, encoder interfaces, and communication between control and power modules.
This control board integrates several essential functions into a compact and reliable module. It is widely used in industrial automation and drive control systems for process industries, including metals, paper, chemical, and power generation sectors.
Although the SDCS-AC-CON-2 has been discontinued, it remains in service across numerous installations worldwide and is available as a high-quality replacement or spare part.
Key Features
-
Designed for ABB DCS500 and DCS600 drive converter systems
-
Centralized control and communication interface for converter modules
-
Multiple analog and digital I/O channels
-
Integrated encoder input and fieldbus connectivity options
-
Stable operation with industrial-grade reliability
-
Compact size for convenient installation and maintenance
-
Compatible with I/O expansion modules such as SDCS-IOB boards
-
Proven performance in long-term industrial applications
Technical Specifications
| Parameter | Value | Description |
|---|---|---|
| Product Name | ABB SDCS-AC-CON-2 | Main control board for DCS500/DCS600 converters |
| Part Numbers | SDCS-CON-2, 3ADT309600R1, 3ADT220072R0004 | Common manufacturing identifiers |
| Function | Converter control and I/O management | Central control logic for drive system |
| Power Supply Voltage | 24 V DC | Standard operating voltage |
| I/O Type | Analog, Digital, Encoder | Configurable input/output modes |
| Communication | Internal system bus and external interfaces | Provides system-level data communication |
| Mounting Type | Plug-in module | Designed for easy replacement and maintenance |
| Operating Temperature | 0 °C – 55 °C | Suitable for standard industrial environments |
| Storage Temperature | −25 °C – 70 °C | Safe storage range |
| Humidity (non-condensing) | 5 % – 95 % RH | Industrial tolerance range |
| Dimensions (L × W × H) | 10.3 cm × 5.25 cm × 8.3 cm | Approximate board size |
| Dimensions (inch) | 4.05″ × 2.07″ × 3.27″ | Converted to imperial units |
| Weight | 0.2 kg – 0.37 kg | Depending on board revision |
| Material | Industrial FR-4 PCB with metal connectors | High-quality electronic substrate |
| Country of Origin | Sweden | ABB manufacturing origin |
| Product Status | Discontinued | Available as refurbished or spare part |
ABB SDCS-AC-CON-2 Control Board is in stock. Please contact us for a quick quote and competitive pricing.
