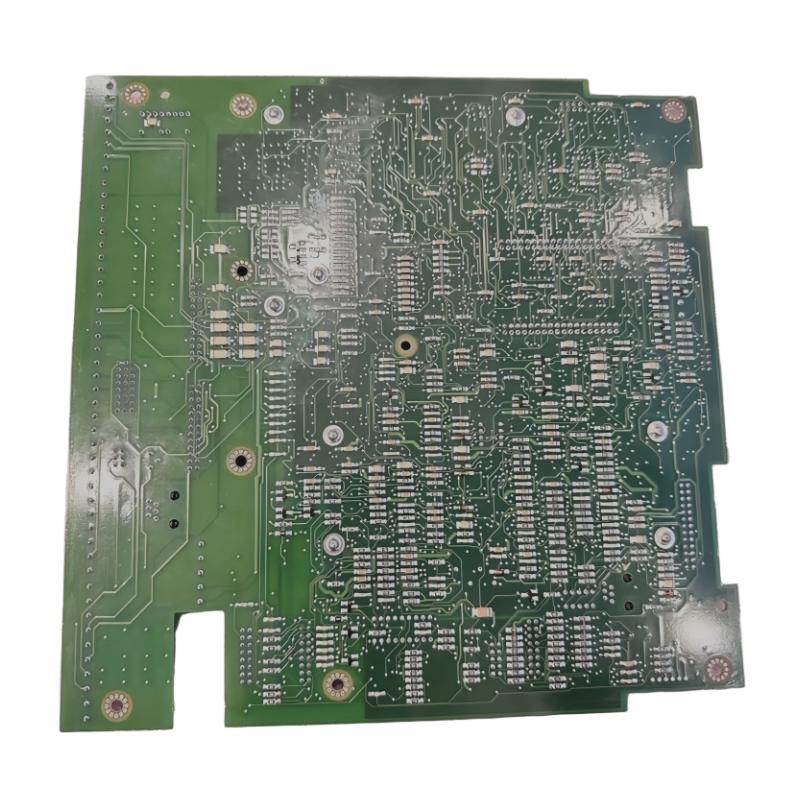

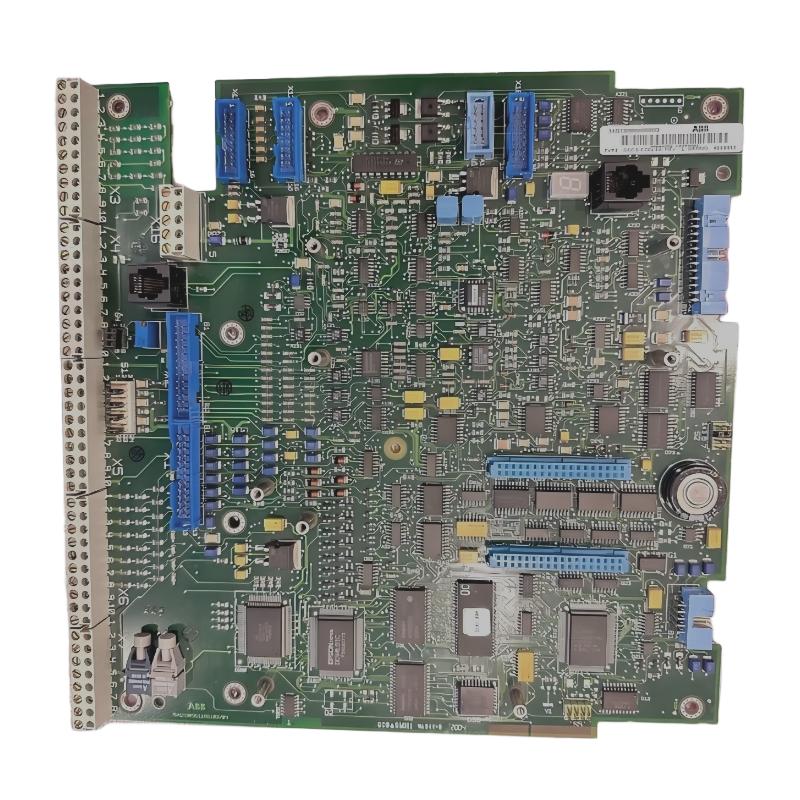

Q1: What is the main function of the ABB SDCS-CON-2A Control Board?

The SDCS-CON-2A is the central processing and control unit within ABB DC drive systems. Its primary role is to execute all real-time control algorithms that govern motor operation. This includes speed regulation, torque control, excitation management, and system protection logic. It continuously processes feedback signals from the drive system and converts them into precise control outputs. In industrial operation, it ensures that motor performance remains stable under varying load conditions while maintaining system safety and operational efficiency. It essentially functions as the decision-making core of the entire drive architecture.

Q2: What systems are compatible with SDCS-CON-2A?

This control board is designed for ABB DCS series DC drive systems. Compatibility depends on the exact system configuration, firmware generation, and hardware revision. Not all DCS systems use the same control architecture, so proper verification of ordering number and system documentation is required before replacement or installation. Using a compatible control board ensures correct execution of control logic, proper communication with peripheral modules, and stable system startup without configuration conflicts or runtime errors.

Q3: Does SDCS-CON-2A require parameter reconfiguration after replacement?

In most cases, full parameter reconfiguration is not required because system parameters are typically stored in non-volatile memory within the drive system rather than on the control board itself. However, after replacement, a full system validation process is strongly recommended. This includes checking parameter integrity, verifying communication with all connected modules, confirming correct execution of control loops, and performing controlled start-up and load tests. If firmware versions differ, partial alignment or compatibility adjustments may be required to ensure consistent system behavior and avoid unexpected operational deviations.

Q4: What are the key installation precautions for SDCS-CON-2A?

Before installation, the entire drive system must be powered down and the DC link voltage must be fully discharged to eliminate electrical hazards. Because the board contains sensitive electronic components, strict electrostatic discharge (ESD) protection must be applied during handling. The module must be aligned precisely with the connector system and inserted without excessive force to avoid damaging the backplane or internal circuitry. After installation, all mechanical locking points and connectors must be checked, followed by a staged power-up procedure to ensure that the system initializes correctly and communication remains stable.

Q5: What are the most common causes of faults in SDCS-CON-2A?

Fault conditions can originate from multiple sources. Hardware failure of the control board is possible but relatively uncommon compared to external causes. More frequently, faults are related to unstable power supply conditions, communication disruptions between modules, incorrect parameter settings, or malfunctioning peripheral components. Environmental influences such as electromagnetic interference, grounding issues, high temperature, or humidity fluctuations can also affect system stability. In some cases, firmware mismatches between system components may result in inconsistent control behavior or fault triggering.

Q6: How can engineers determine whether SDCS-CON-2A is defective?

A defective control board may present symptoms such as failure to start the drive system, unstable motor speed, incorrect torque response, loss of excitation control, or repeated system fault alarms. Engineers should begin with a visual inspection to identify signs of overheating, component damage, or connector issues. Electrical measurements should confirm correct power supply levels and signal integrity. If no external issues are found, the most reliable diagnostic method is substitution with a known-good control board. This method is widely used in industrial environments because it isolates the fault source quickly and avoids unnecessary replacement of other system components.

Q7: Is SDCS-CON-2A suitable for continuous industrial operation?

Yes. The SDCS-CON-2A is designed for continuous 24/7 operation in demanding industrial environments. It is built using industrial-grade electronic components that can withstand electrical noise, thermal stress, and long operational cycles. When installed in a properly ventilated control cabinet with stable power supply and appropriate environmental protection, it delivers reliable long-term performance. It is commonly used in heavy industries such as steel, mining, power generation, and paper production where continuous operation and high system availability are critical requirements.

Q8: What maintenance practices help improve long-term reliability of SDCS-CON-2A?

Although the control board itself requires minimal direct maintenance, overall system reliability depends on preventive maintenance practices. Regular inspection of connectors, grounding systems, and cabinet cleanliness helps prevent issues caused by dust accumulation or poor electrical contact. Stable power quality should be ensured to avoid stress on sensitive components. Cooling and ventilation systems should be maintained to prevent overheating. Additionally, periodic review of system diagnostics and fault logs helps detect early warning signs of degradation. During scheduled maintenance shutdowns, functional testing under different operating conditions is recommended to ensure consistent performance and reduce the risk of unexpected downtime.
