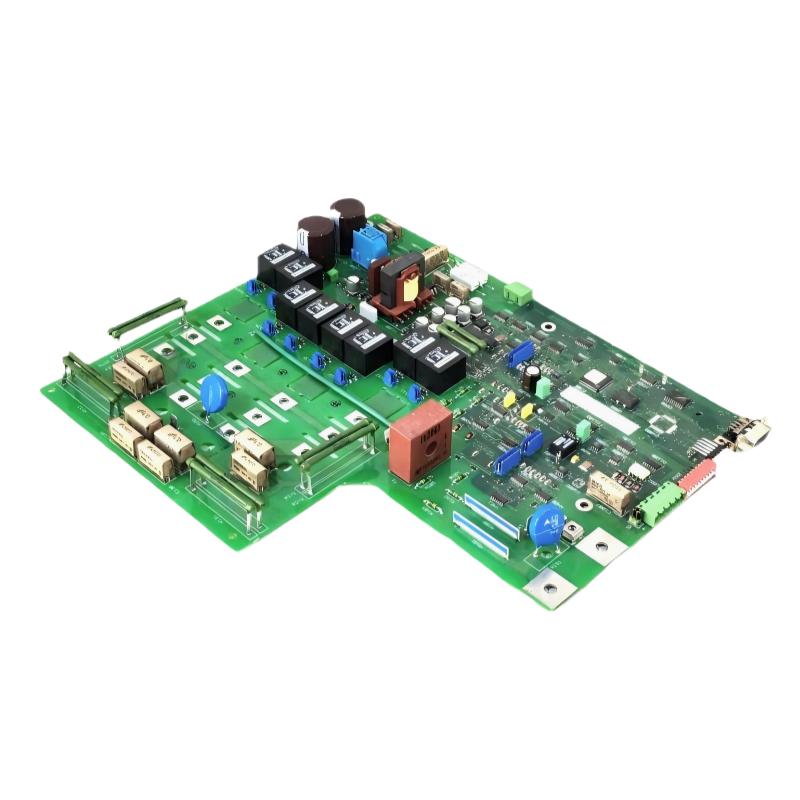

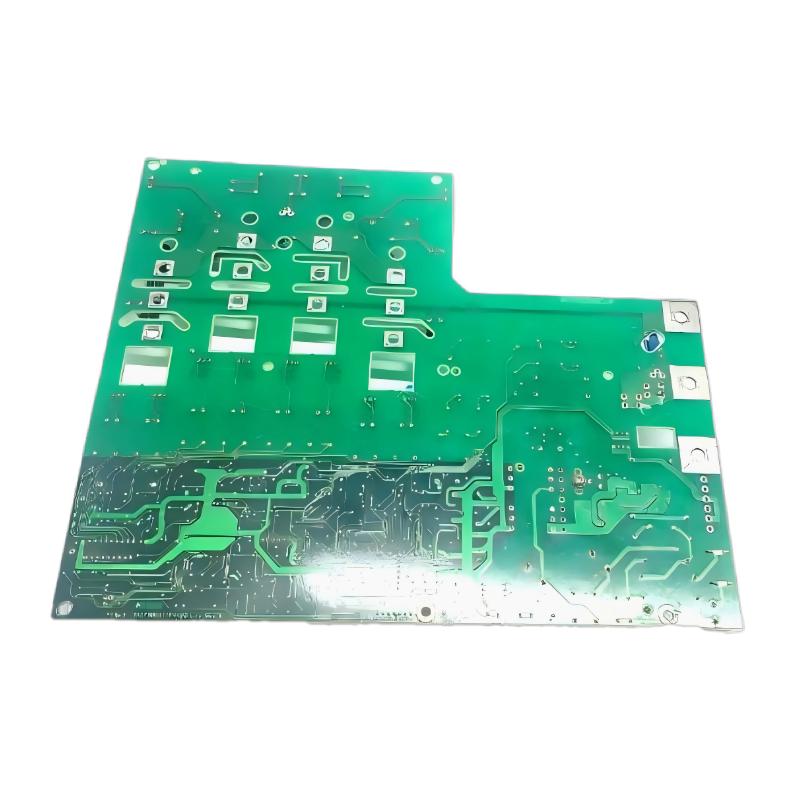

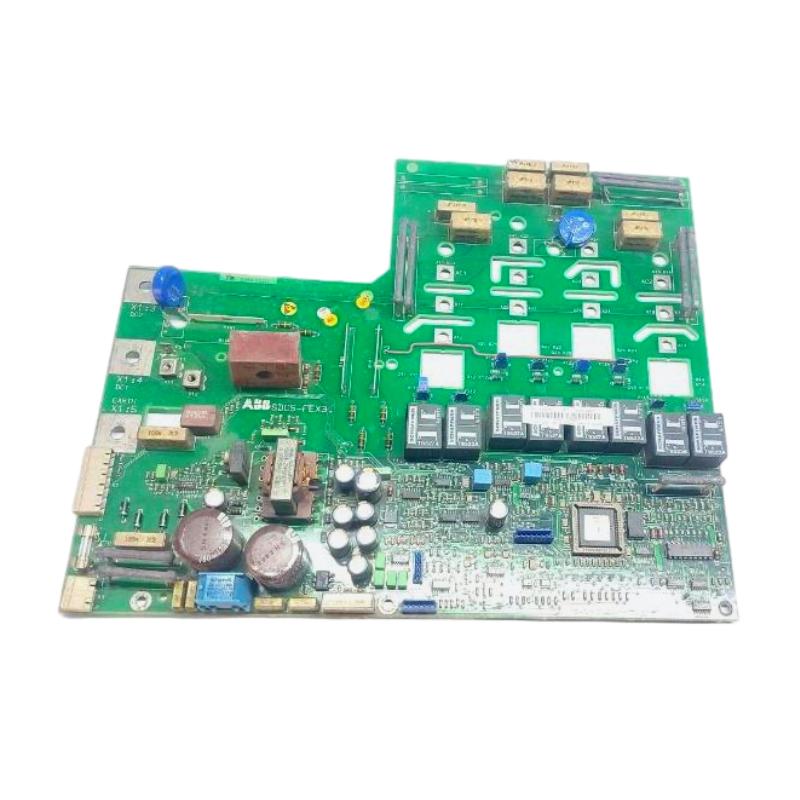

Q1: What is the main function of the SDCS-FEX-31 excitation board?
A: The SDCS-FEX-31 is responsible for controlling the field excitation current of a DC motor within ABB DC drive systems. Its primary function is to regulate the magnetic field strength of the motor, which directly influences torque production and speed behavior. By precisely controlling excitation current, the board ensures stable motor operation under varying load conditions. In industrial DC drive applications, this function is critical because the excitation system defines how efficiently and accurately the motor responds to control commands. It also enables advanced operating modes such as field weakening, which extends the speed range of the motor beyond its base speed while maintaining stable performance.

Q2: In which ABB systems can this excitation board be used?
A: The SDCS-FEX-31 is designed for use in ABB DCS500 and DCS600 series DC drive systems. It is integrated as part of a modular drive architecture where it works alongside the armature control unit and main drive controller. In these systems, the excitation board is not a standalone device but a dedicated functional module responsible for field circuit control. It is commonly deployed in heavy industrial environments such as steel processing, paper machines, rolling mills, mining equipment, and large winding systems where precise DC motor control is required for high torque and stable speed regulation.

Q3: How does the excitation board regulate field current?
A: The board regulates field current through a closed-loop control system. It receives reference signals from the main drive controller and continuously compares them with real-time feedback from the field current circuit. Based on this comparison, it adjusts the excitation output dynamically to maintain the desired magnetic flux level. This closed-loop behavior ensures that the motor field remains stable even under rapidly changing load conditions. It also allows precise tuning of motor characteristics, such as torque response and speed stability, which is especially important in applications requiring high precision and consistent mechanical output.

Q4: What protection mechanisms are built into the SDCS-FEX-31?
A: The excitation board includes several critical protection features to ensure safe and reliable operation. These include overcurrent protection to prevent excessive field current, overtemperature protection to avoid thermal damage, and field loss detection to identify abnormal or missing excitation conditions. When a fault is detected, the board can limit output or shut down excitation to protect both the motor and the drive system. In addition, diagnostic signals are transmitted to the main control system, allowing operators to quickly identify and troubleshoot issues. These protections are essential in preventing uncontrolled motor behavior and ensuring system stability in demanding industrial environments.

Q5: What role does field weakening play in system operation?
A: Field weakening is a key operating mode enabled by the excitation board. By reducing the field current, the magnetic flux in the motor decreases, allowing the motor to operate at higher speeds beyond its rated base speed. This is particularly useful in applications where extended speed range is required without increasing supply voltage. However, as flux decreases, available torque also reduces, so the system must carefully balance speed and load requirements. The SDCS-FEX-31 manages this process dynamically, ensuring smooth transition between constant torque and field-weakening regions while maintaining system stability and preventing overspeed conditions.

Q6: How does the excitation board interact with the main DC drive controller?
A: The SDCS-FEX-31 communicates with the main DC drive controller through dedicated control and feedback interfaces. It receives setpoints such as desired field current or flux level and sends back real-time operating data, including actual current and fault status. This interaction forms a coordinated control system where the main controller manages overall drive operation while the excitation board handles precise field regulation. This division of control responsibilities ensures fast response times and high accuracy in both armature and field circuits, which is essential for stable DC motor performance under dynamic industrial conditions.

Q7: What are the recommended installation practices for reliable operation?
A: Proper installation is essential to ensure stable long-term operation. The board must be securely inserted into its designated slot within the drive system to guarantee proper electrical contact. The control cabinet should provide adequate ventilation to maintain stable operating temperatures, as thermal conditions directly affect performance and reliability. Wiring must follow ABB system guidelines to avoid signal interference or incorrect connections. A solid grounding system is also required to minimize electrical noise and improve immunity against industrial interference. Careful installation reduces the risk of communication errors and ensures consistent excitation control performance.

Q8: What maintenance is recommended for this excitation board?
A: Maintenance for the SDCS-FEX-31 is generally preventive and focuses on ensuring stable operating conditions rather than frequent component servicing. Regular inspection of terminal connections is recommended to ensure secure contact and avoid signal instability. The control cabinet should be kept clean to prevent dust accumulation, which can negatively affect heat dissipation and electrical insulation. Operators should periodically review system diagnostics and fault logs to detect early signs of abnormal behavior. In high-demand environments such as continuous production lines, more frequent inspections may be required. While the board itself is designed for long service life, maintaining stable environmental conditions is key to ensuring consistent excitation performance and preventing unexpected system interruptions.
