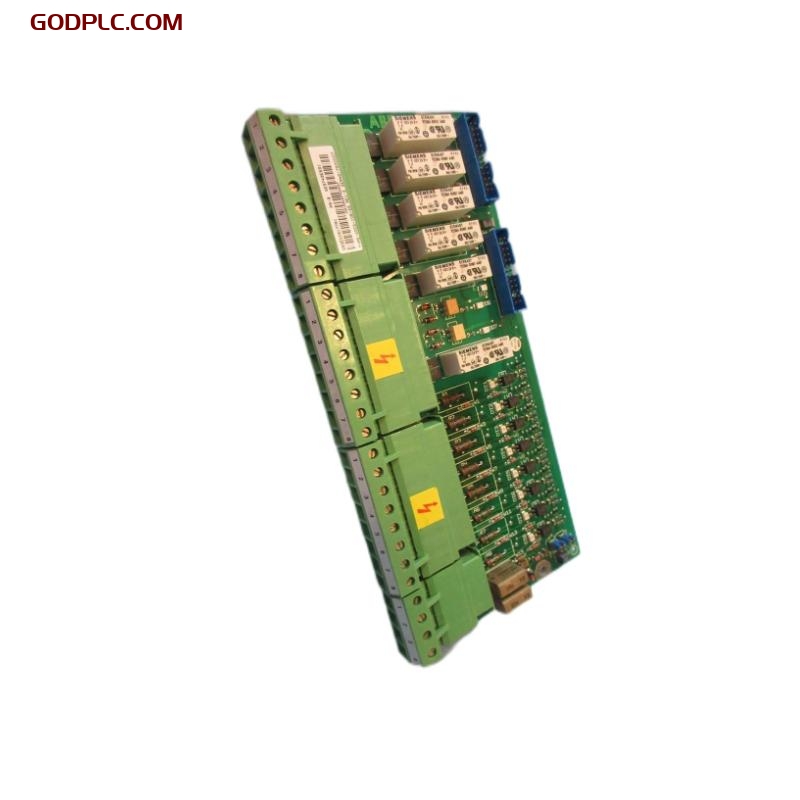

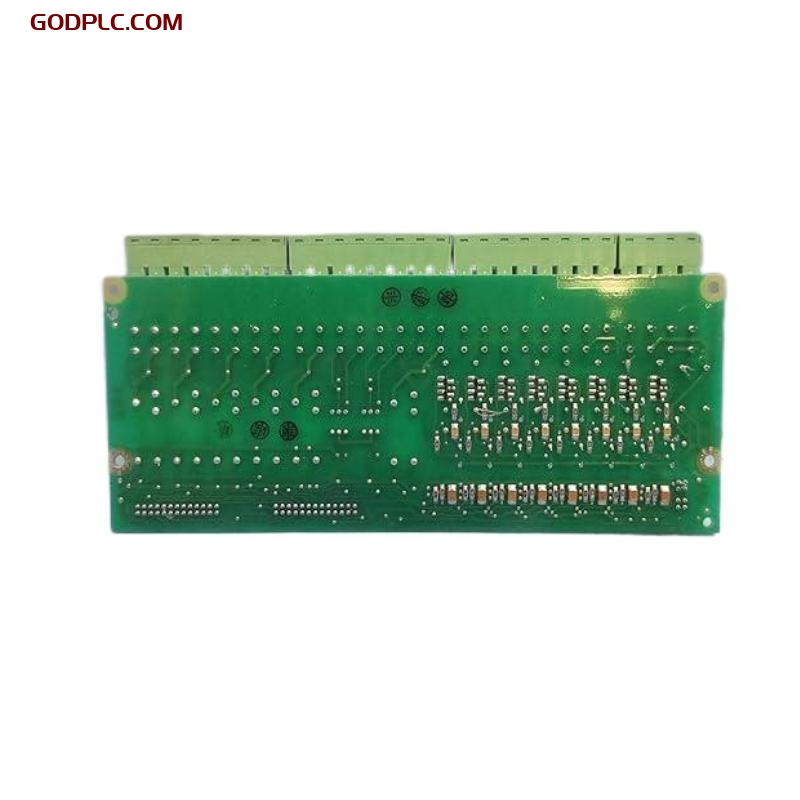

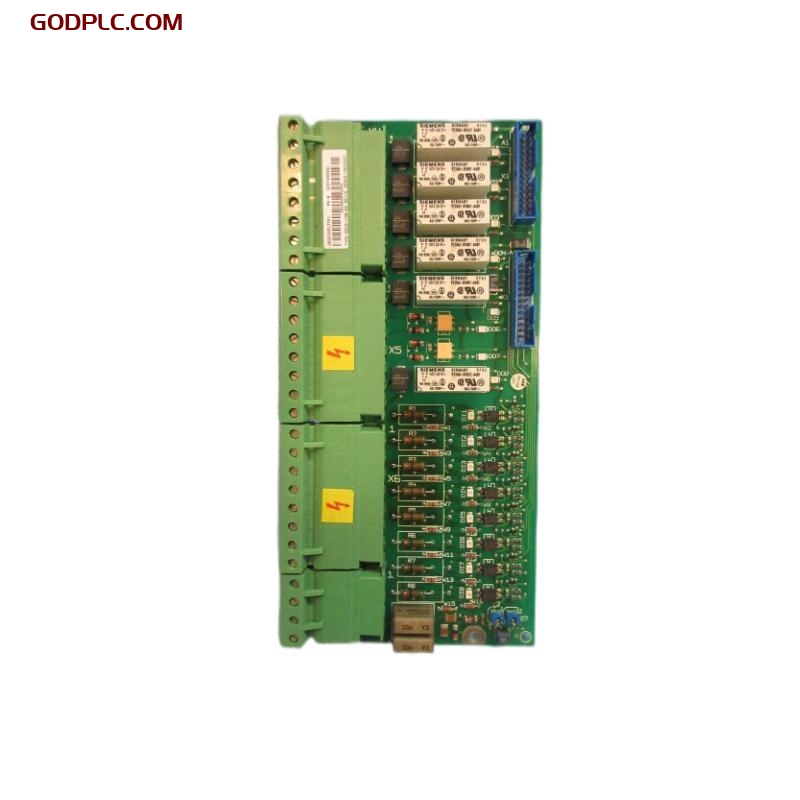

ABB SDCS-IOB-1 3BSE004084R1 Interface Board
__________________________________________________________________________________________
Product Overview
The ABB SDCS-IOB-1 3BSE004084R1 Interface Board is a key module in ABB’s drive control systems, specifically designed to handle input/output operations for industrial DC drive applications. This board facilitates seamless communication between the control unit and external devices, offering reliable signal interfacing and I/O expansion. Built with robust components and high compatibility, the SDCS-IOB-1 ensures dependable operation in demanding industrial environments, such as manufacturing plants, steel mills, and paper production facilities.
Key Features
-
Flexible I/O Integration: Supports both analog and digital input/output signals, ensuring flexible system integration.
-
Reliable Signal Processing: Converts and transmits signals between drive control units and external field devices with high accuracy.
-
DIN Rail Mountable: Compact design with convenient DIN rail mounting for easy installation in control cabinets.
-
Industrial Durability: Engineered to operate reliably in harsh conditions with temperature and vibration resistance.
-
System Compatibility: Fully compatible with ABB’s DCS drive systems, enabling straightforward expansion or replacement.
-
Simplified Maintenance: Modular structure allows for quick diagnostics and easy servicing, reducing downtime.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 230 x 110 x 20 mm |
| Weight | 0.3 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | SDCS-IOB-1 |
| Part Number | 3BSE004084R1 |
| Module Type | Interface Board |
| Mounting | DIN Rail Mountable |
| Application | I/O Expansion and Signal Interfacing |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC |
| Input Types | Digital and Analog |
| Output Types | Digital and Analog |
| Operating Temp | -10°C to +60°C |
| Storage Temp | -25°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | ABB DCS Series Drives |
| Communication Interface | Direct interface to control and I/O modules |
| Configuration Software | ABB DriveWindow, DriveComposer |
Industry Applications
-
Steel and Metal Processing: Interfaces sensors and actuators in rolling mills and furnaces.
-
Pulp and Paper: Ensures accurate signal exchange between drives and paper machine components.
-
Marine and Offshore: Used in propulsion and deck machinery automation for signal management.
-
Oil & Gas: Supports control systems in drilling and refining processes.
-
Manufacturing Automation: Provides signal interfacing for motors, conveyors, and automated machinery in production lines.
The ABB SDCS-IOB-1 3BSE004084R1 Interface Board is a robust and versatile solution for enhancing communication between drive systems and field devices. With its compact design, industrial-grade construction, and reliable signal handling capabilities, it serves as an essential component for maintaining performance and control accuracy in complex industrial applications.
