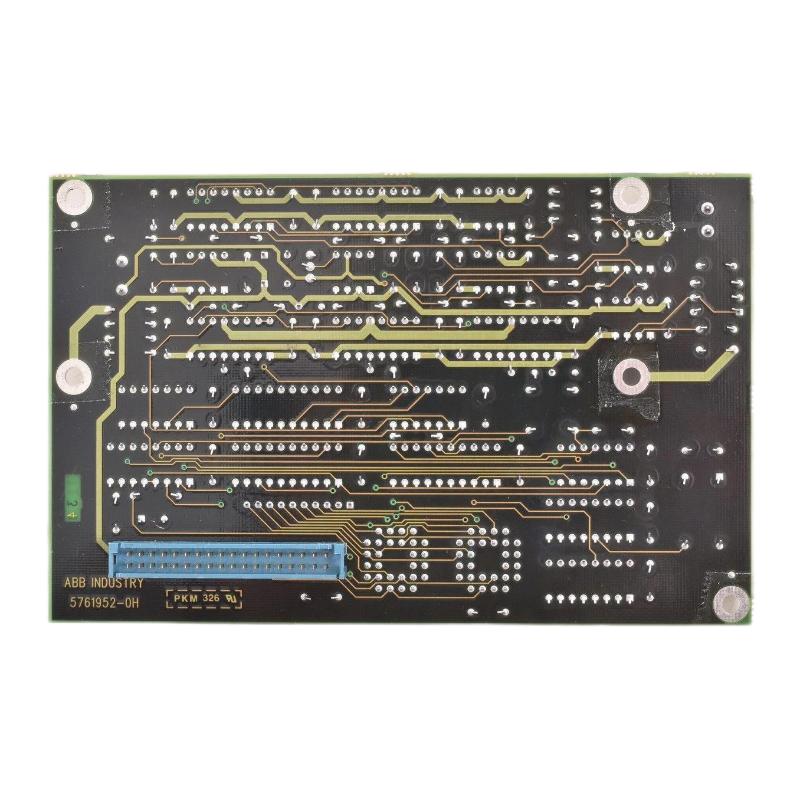

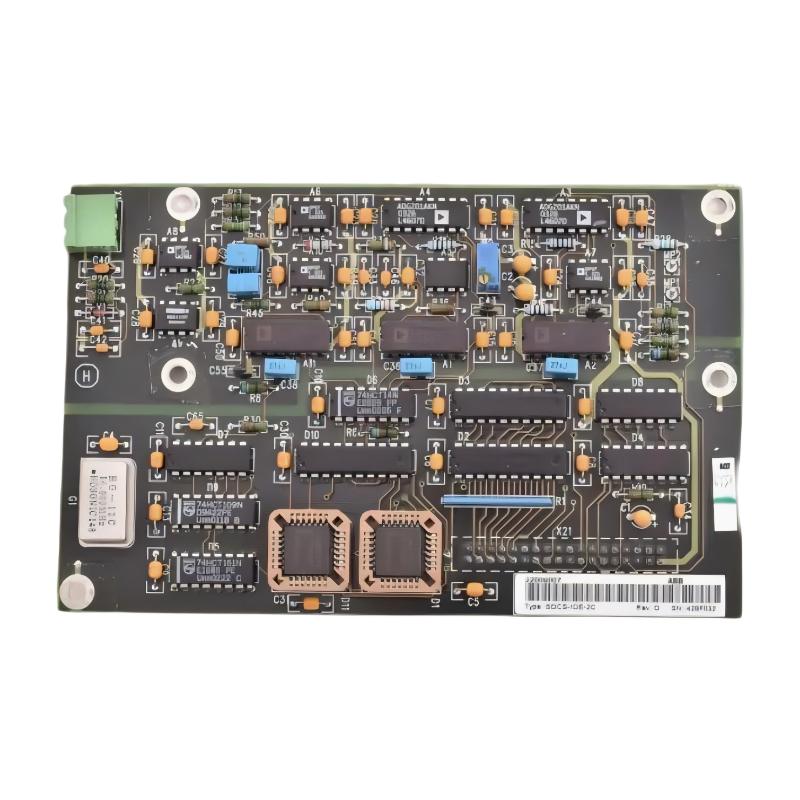

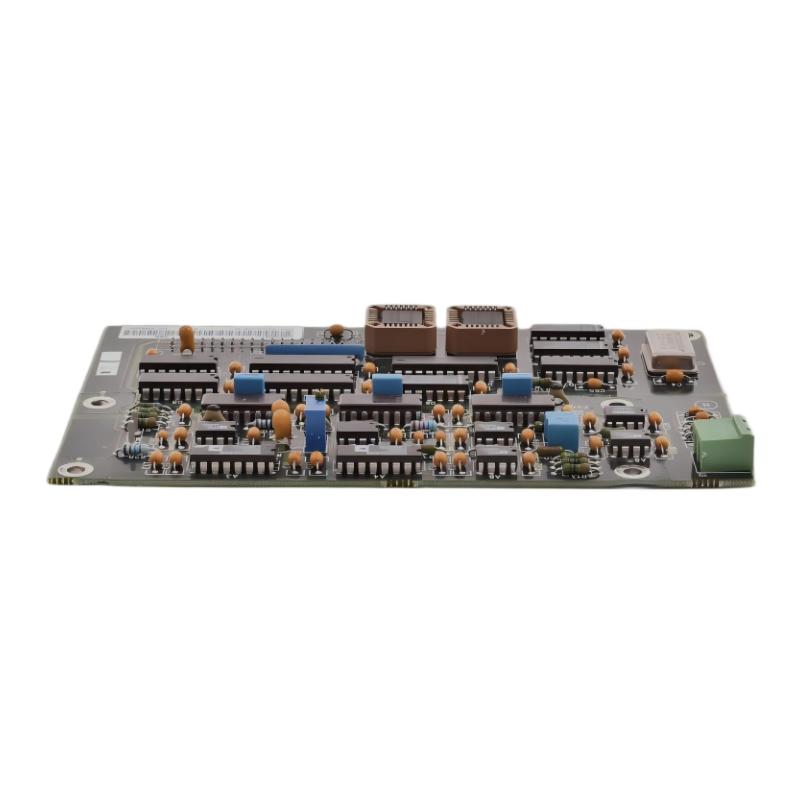

Q1: What is the main function of the ABB SDCS-IOE-2 I/O Expansion Board?

A: The SDCS-IOE-2 is designed to expand the I/O capacity of ABB SDCS control systems. In practical applications, the main controller often has limited native input and output channels, especially in complex automation or drive systems. This expansion board allows engineers to increase the number of available signal channels without redesigning the core control architecture. It enables additional sensors, switches, interlocks, and auxiliary control signals to be integrated into the same system. By extending the I/O structure, it improves system scalability, making it suitable for applications where control requirements grow over time or where distributed signal acquisition is needed across large industrial installations.

Q2: How does the SDCS-IOE-2 integrate with the SDCS control system?

A: The module integrates directly through the SDCS internal backplane communication structure. Once installed, it becomes part of the system’s native signal architecture rather than functioning as an external peripheral. This allows seamless data exchange between the expansion board and the main controller. No additional external communication gateways are required. The system automatically recognizes the expanded I/O resources, provided that hardware compatibility and configuration alignment are ensured. This tight integration helps maintain deterministic communication behavior, which is critical for real-time industrial automation processes.

Q3: What types of signals can be expanded using this module?

A: The SDCS-IOE-2 primarily supports system-level I/O expansion, including digital signal extensions and internal control signals used within the ABB SDCS architecture. In many industrial setups, it is used to increase the number of interlocking signals, status feedback inputs, permissive conditions, and auxiliary control outputs. It is not typically used for standalone analog processing but rather for extending the logical and digital communication capacity of the control system. This makes it particularly useful in complex drive systems where additional safety logic, sequencing conditions, or machine coordination signals are required.

Q4: What are the key installation considerations for the SDCS-IOE-2?

A: Installation should always be performed with the control system fully powered down and secured according to industrial safety procedures. Proper electrostatic discharge protection is required because the board contains sensitive electronic components. The module must be correctly aligned with the SDCS backplane connector to ensure proper signal contact. Improper seating can lead to communication instability or intermittent I/O behavior. Wiring and configuration should follow ABB system documentation to ensure correct mapping of expanded I/O channels. After installation, system diagnostics should be run to confirm successful recognition of the expansion module and proper signal communication.

Q5: How does the expansion board affect system performance?

A: When properly integrated, the SDCS-IOE-2 has minimal impact on system processing speed because it operates within the existing system communication structure. However, it significantly increases system capability by allowing more field signals to be handled simultaneously. In well-designed systems, this expansion does not introduce noticeable latency because the communication is handled through optimized internal bus architecture. Performance is primarily influenced by overall system configuration, signal load distribution, and controller capacity rather than the expansion board itself.

Q6: What could cause communication issues with the SDCS-IOE-2?

A: Communication issues are typically related to installation or system-level configuration rather than the module itself. Common causes include improper seating on the backplane connector, contamination or oxidation on contact surfaces, or incorrect system configuration after expansion. Electrical noise from nearby power components can also affect signal integrity if grounding and shielding are not properly implemented. In some cases, firmware mismatch or incompatible hardware revisions within the SDCS system can lead to recognition issues. A structured diagnostic approach is recommended, starting from physical inspection and moving toward system-level configuration verification.

Q7: Can the SDCS-IOE-2 be used for system expansion in existing installations?

A: Yes, it is specifically designed for system scalability in existing ABB SDCS installations. One of its key advantages is the ability to upgrade or extend control system capacity without replacing the entire controller hardware. This is particularly valuable in industrial environments where production lines evolve over time and require additional sensors or control points. However, system compatibility must be verified before expansion, including hardware revision alignment and controller capacity limits. Proper configuration ensures that the added I/O resources are fully integrated into existing control logic without disruption.

Q8: In which industrial applications is the SDCS-IOE-2 commonly used?

A: The SDCS-IOE-2 is widely used in heavy industrial automation environments where ABB SDCS systems are deployed. Typical applications include steel production lines, rolling mills, mining equipment, cement plants, power generation systems, and large-scale process industries such as oil and gas or chemical processing. In these environments, control systems often require a large number of interlocking signals, safety conditions, and auxiliary control functions. The expansion board supports these requirements by increasing system flexibility and allowing engineers to design more complex automation logic without changing the core controller hardware architecture.
