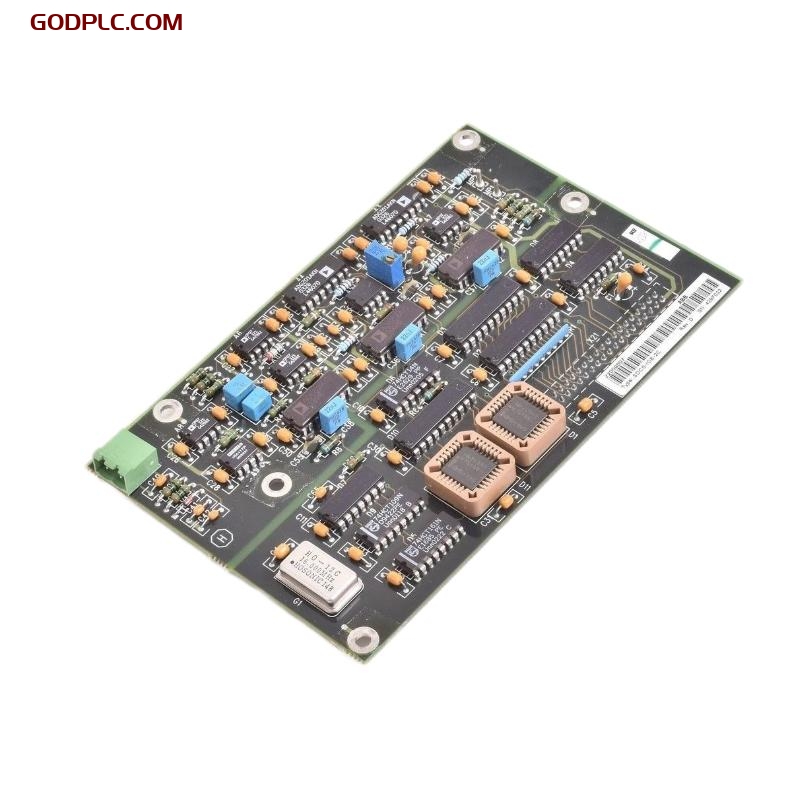

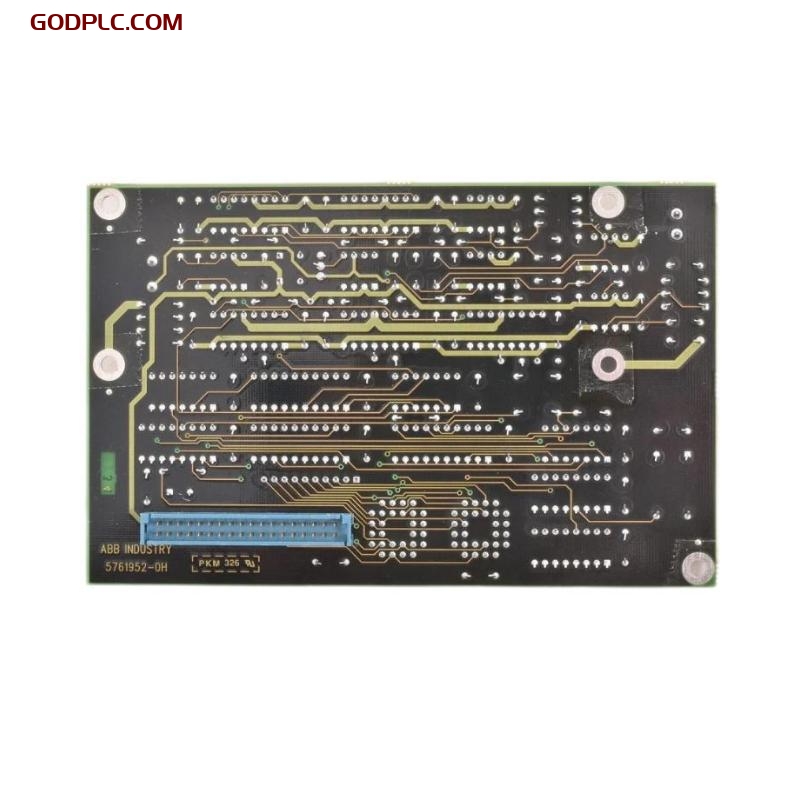

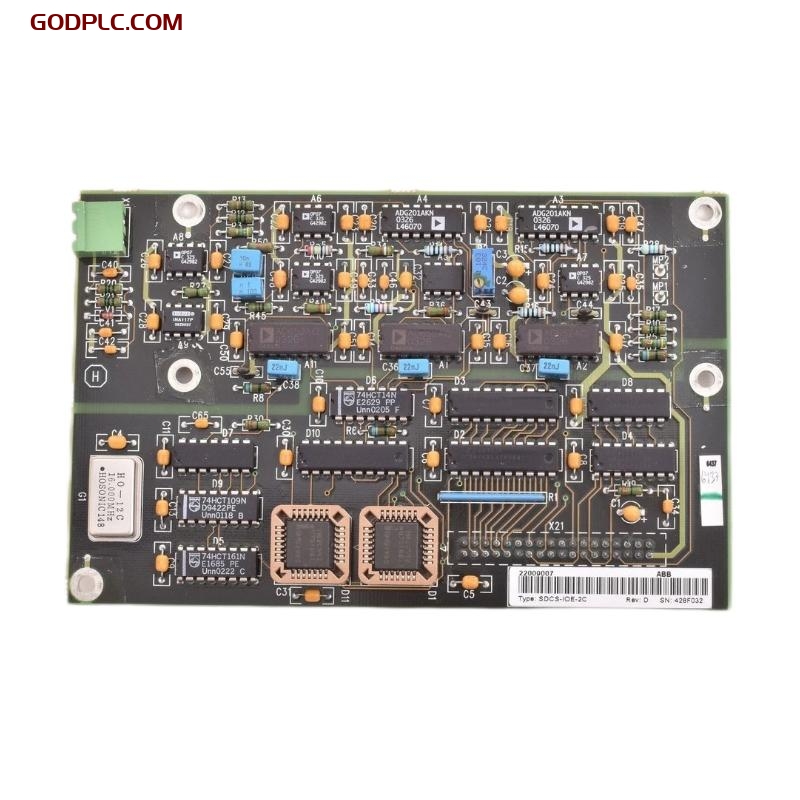

ABB SDCS-IOE-2C 3ADT220090R0007 Measuring Board
__________________________________________________________________________________________
Product Overview
The ABB SDCS-IOE-2C 3ADT220090R0007 Measuring Board is an essential I/O extension component designed for use in ABB’s DC drive systems. This module is part of the SDCS (Semiconductor Drive Control System) series, functioning as a measurement and interface board that supports precise signal acquisition and processing. It plays a critical role in ensuring accurate monitoring and control within high-performance industrial drive applications.
Key Features
-
Signal Measurement and Processing: Captures and processes analog and digital signals for reliable system feedback and control.
-
Integrated with ABB DC Drives: Fully compatible with ABB’s DCS 500/600 series drives, enabling seamless integration.
-
Robust Design for Harsh Environments: Built to endure industrial operating conditions with high stability and reliability.
-
Compact and Modular Construction: Easily mountable within existing drive enclosures to facilitate upgrades and maintenance.
-
Optimized for Performance Monitoring: Enables accurate system diagnostics, improving operational safety and efficiency.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 220 x 100 x 25 mm |
| Weight | 0.35 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | SDCS-IOE-2C |
| Ordering Code | 3ADT220090R0007 |
| Module Type | Measuring / I/O Extension Board |
| Mounting Method | Screw-mounted inside drive enclosure |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | Supplied via host drive system |
| Input Types | Analog and digital input channels |
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB DCS500, DCS600 Drive Systems |
| Communication Interface | Internal drive bus |
| Configuration Software | ABB DriveWindow or equivalent tools |
Industry Applications
-
Steel and Metal Processing: Ensures precision feedback for heavy-duty DC motor applications.
-
Pulp and Paper Mills: Supports consistent control in demanding continuous production lines.
-
Mining and Hoisting Systems: Facilitates accurate monitoring in safety-critical applications.
-
Marine Propulsion Drives: Contributes to smooth control in shipboard drive systems.
-
Manufacturing and Assembly Lines: Enhances automation and feedback loops for variable speed motor controls.
The ABB SDCS-IOE-2C 3ADT220090R0007 Measuring Board is a reliable and performance-driven solution that enhances the capability of ABB DC drives. Its role in signal acquisition and integration makes it indispensable for precision control and system reliability in complex industrial environments.
ABB SDCS-IOE-2C 3ADT220090R0007 Measuring Board is in stock. Please contact us for a quick quote and competitive pricing.
