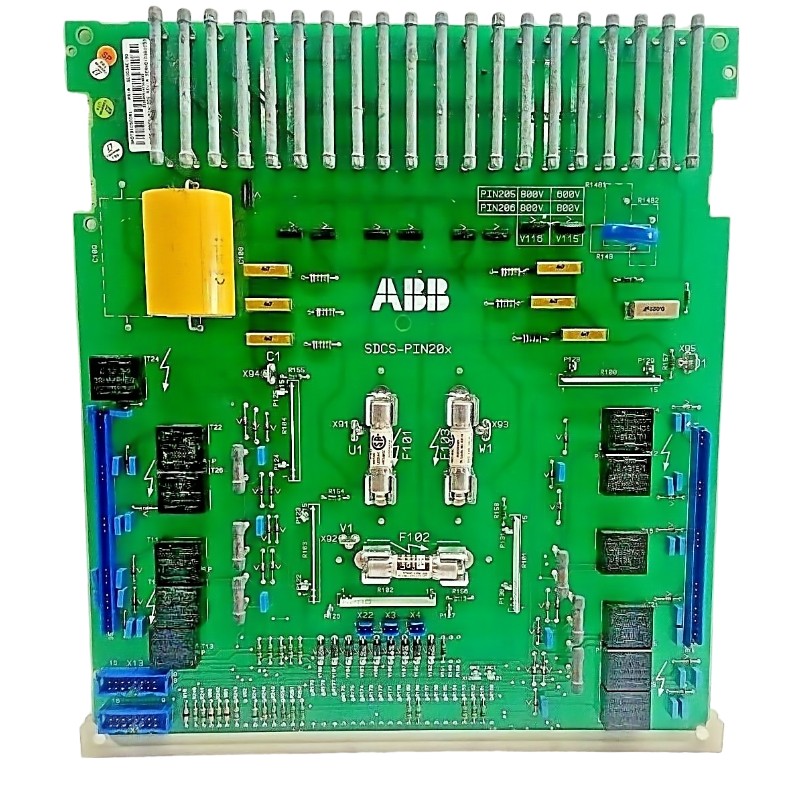

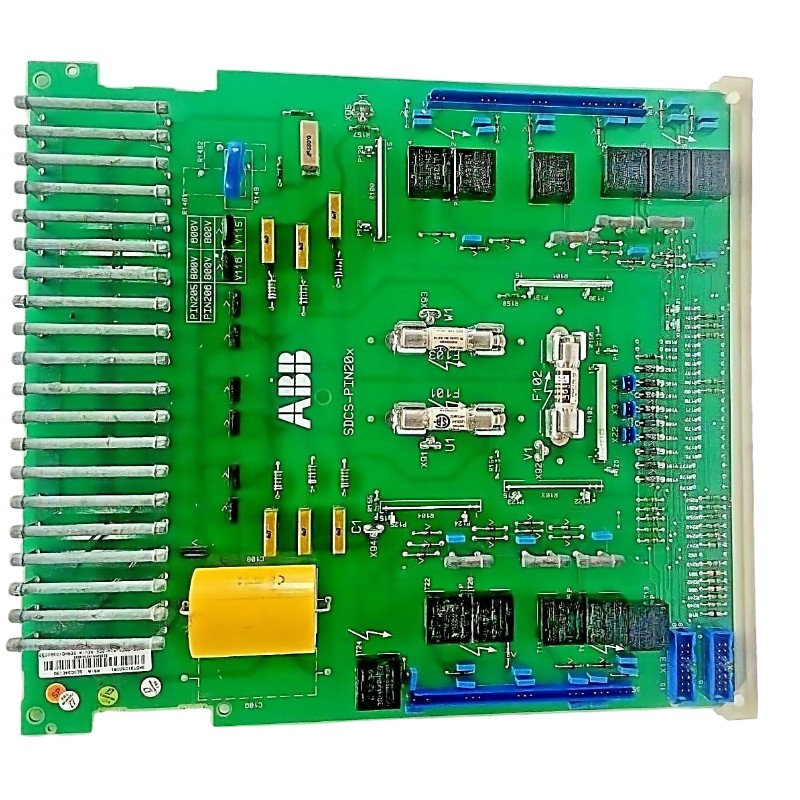

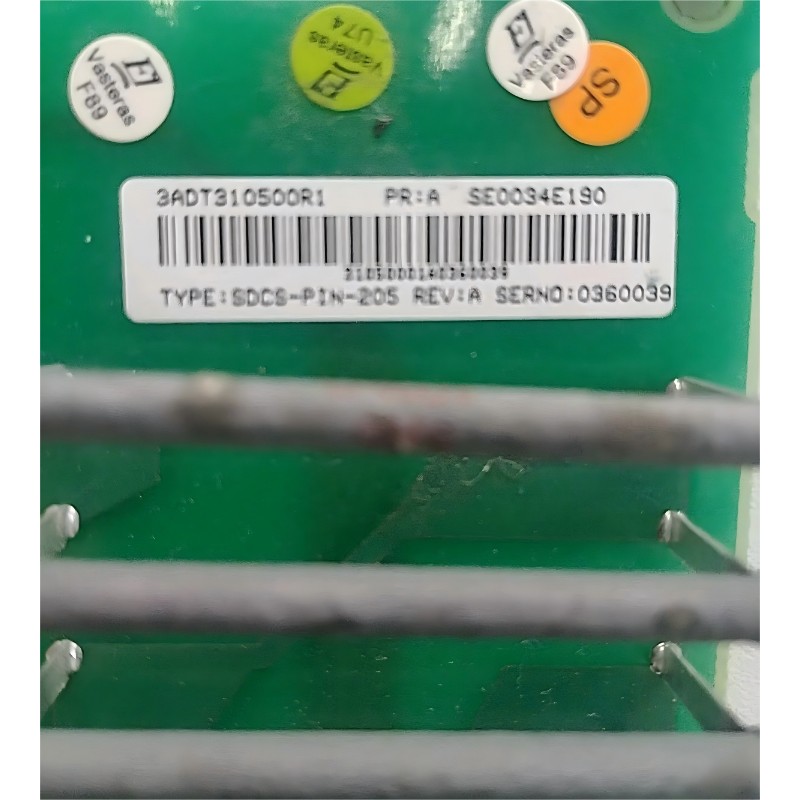

Q1: What is the primary function of the ABB SDCS-PIN-205 Power Interface Board?

A: The ABB SDCS-PIN-205 Power Interface Board is a critical interface module within the ABB SDCS DC drive control system. Its primary responsibility is to establish reliable electrical communication between the control electronics and the power section of the drive. The board manages the transmission of control signals, distributes interface power where required, and supports feedback signals that allow the controller to monitor the operating status of the drive. By ensuring accurate communication between multiple functional modules, the SDCS-PIN-205 helps maintain stable motor operation, improves control accuracy, and enhances the overall reliability of the drive system. Because it serves as an essential communication bridge, the performance of this board directly influences system efficiency, response speed, and long-term operational stability in demanding industrial environments.

Q2: What symptoms may indicate that the SDCS-PIN-205 Power Interface Board has failed?

A: A defective SDCS-PIN-205 can produce a variety of operating problems depending on the nature of the failure. Common symptoms include failure of the drive to start, unexpected shutdowns during operation, unstable motor speed, loss of communication between control modules, abnormal fault alarms, missing feedback signals, or intermittent control responses. In some situations, the controller may enter protection mode because it cannot establish proper communication with the power section. Since similar symptoms may also be caused by power supply issues, damaged wiring, processor faults, or connector problems, technicians should perform a systematic inspection of the complete drive system before concluding that the interface board is defective. Careful diagnosis helps prevent unnecessary component replacement and reduces maintenance costs.

Q3: What precautions should be taken before replacing the SDCS-PIN-205?

A: Before replacing the SDCS-PIN-205, all incoming power sources must be completely disconnected, and sufficient time should be allowed for the DC bus capacitors to discharge fully. Maintenance personnel should always follow proper electrostatic discharge (ESD) protection procedures by using grounded wrist straps and handling the board only by its edges. The replacement module should be verified to match both the model number SDCS-PIN-205 and the ordering number 3ADT310500R1 to ensure complete compatibility with the original system. During installation, all connectors should be carefully aligned to prevent bent pins or damaged sockets, and every connection should be checked for secure engagement. After installation, the drive should undergo a complete functional test to verify communication, control performance, alarm status, and overall operating stability before returning the equipment to production.

Q4: Does the SDCS-PIN-205 require routine preventive maintenance?

A: Although the SDCS-PIN-205 is designed as a highly reliable industrial electronic module with a long service life, routine preventive maintenance is strongly recommended during scheduled equipment inspections. Maintenance should include cleaning accumulated dust from the PCB surface, inspecting connectors for looseness or corrosion, checking electronic components for signs of overheating or discoloration, and confirming that the cooling system inside the control cabinet is operating correctly. Technicians should also verify that the incoming power supply remains stable and that the cabinet grounding system is functioning properly. These preventive measures help identify potential problems before they develop into serious failures, reduce unexpected production interruptions, and significantly extend the operational life of both the interface board and the complete drive system.

Q5: Can the SDCS-PIN-205 be replaced with another SDCS interface board that looks similar?

A: No. Even if several ABB SDCS interface boards share similar physical dimensions or connector arrangements, each model is designed with specific hardware circuitry, signal assignments, communication characteristics, and firmware compatibility. Installing an incorrect board may result in communication failures, incorrect control behavior, unexpected drive alarms, or even damage to other system components. To maintain proper system performance and ensure reliable long-term operation, the replacement board should always have the identical model number and ordering number specified by the equipment manufacturer. Following this practice minimizes commissioning problems and guarantees full compatibility with the existing drive configuration.

Q6: Which environmental factors have the greatest impact on the service life of the SDCS-PIN-205?

A: The long-term reliability of the SDCS-PIN-205 depends heavily on the operating environment. Excessive ambient temperature, high humidity, conductive dust, corrosive gases, severe vibration, poor ventilation, unstable input power, and electrical surges can all accelerate the aging of electronic components and increase the likelihood of premature failure. Electromagnetic interference and inadequate grounding may also affect signal quality and communication reliability. To maximize service life, the board should be installed inside a clean, properly ventilated control cabinet with stable environmental conditions. Regular inspection of cabinet cooling systems, air filters, power quality, and grounding connections helps maintain optimal operating conditions and significantly improves long-term system reliability.

Q7: How can technicians determine whether the SDCS-PIN-205 is actually defective?

A: Troubleshooting should begin by verifying that all required power supply voltages are present and within specification. Technicians should then inspect interface connections, communication signals, and diagnostic information provided by the drive controller. A careful visual inspection may reveal burnt components, damaged connectors, cracked solder joints, or evidence of overheating on the PCB. If communication faults continue after all external wiring and associated modules have been confirmed to be operating correctly, installing a known-good SDCS-PIN-205 as a temporary replacement is often the most reliable diagnostic method. If the drive returns to normal operation after the replacement, the original interface board can generally be identified as the source of the failure. This substitution technique is widely used in industrial maintenance because it reduces troubleshooting time while providing a high level of diagnostic confidence.

Q8: In which industrial applications is the ABB SDCS-PIN-205 commonly installed?

A: The ABB SDCS-PIN-205 is widely used in industrial facilities that rely on ABB SDCS DC drive systems for precise motor control and continuous production. Typical applications include steel rolling mills, paper manufacturing lines, mining conveyors, cement production equipment, cable manufacturing machinery, crane and hoisting systems, marine propulsion equipment, chemical processing plants, and power generation facilities. These industries operate under demanding conditions where equipment availability, control precision, and operational reliability are essential. By providing dependable communication between the control electronics and the power section, the SDCS-PIN-205 helps ensure accurate drive control, stable motor performance, efficient production processes, and reduced maintenance downtime throughout the service life of the equipment.
