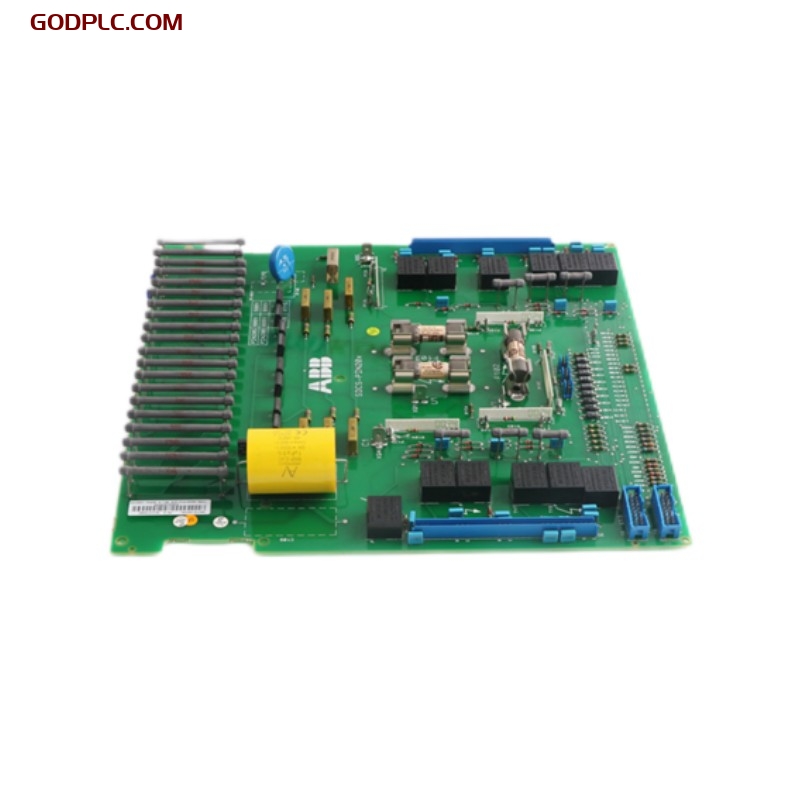

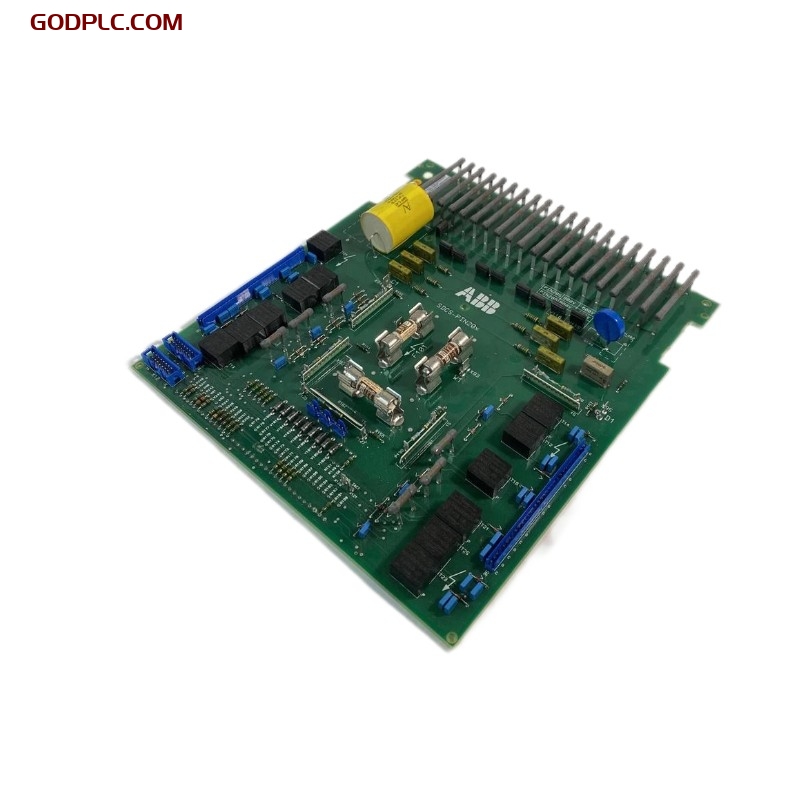

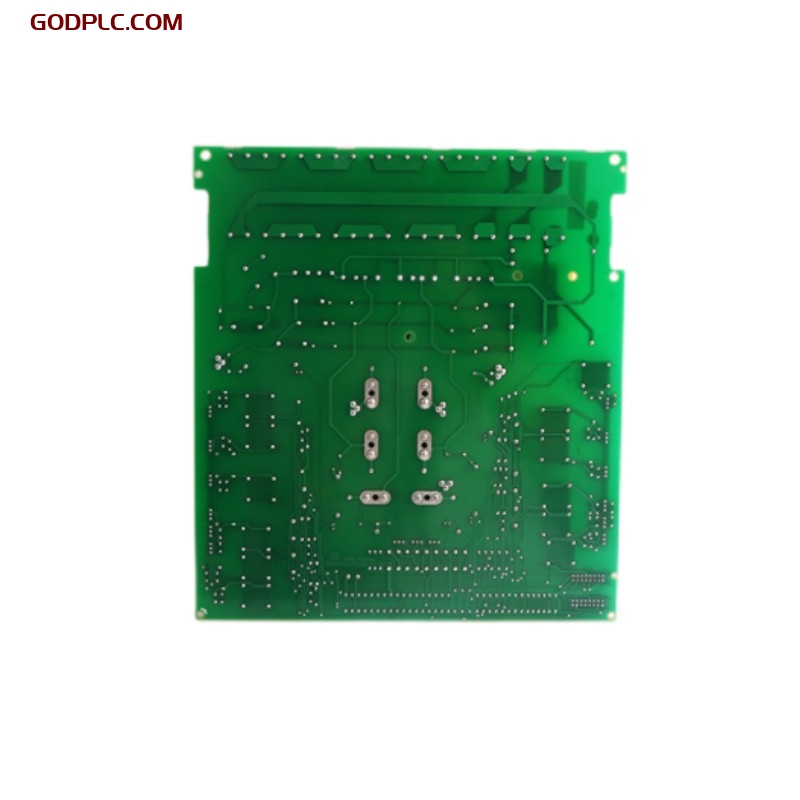

ABB SDCS-PIN-205C 64351141 Power Interface Board
Product Overview
The ABB SDCS-PIN-205C 64351141 Power Interface Board is a specialized circuit board designed to function within ABB’s drive systems, particularly in DCS (Drive Control System) applications. As a power interface module, it facilitates the connection and transmission of electrical signals between control units and power modules, playing a critical role in signal conditioning, electrical isolation, and system safety. The board is engineered for high performance, reliability, and seamless integration into ABB’s drive solutions, ensuring accurate communication and power management in industrial automation environments.
Key Features
-
Signal Interface Functionality: Acts as a bridge between control logic and power components, enabling accurate and reliable signal transmission.
-
High Voltage Isolation: Provides essential electrical isolation between high-power and low-power sections, enhancing system protection and operator safety.
-
Optimized for ABB Drives: Specifically designed for compatibility with ABB drive systems, ensuring optimal performance and integration.
-
Robust Design: Engineered with high-quality components to endure industrial conditions such as electrical noise, temperature fluctuations, and vibration.
-
Diagnostic Support: Equipped with signal conditioning and diagnostic features to support maintenance and fault detection efforts.
-
Compact Form Factor: Designed to fit within tight control cabinets while maintaining accessibility and ease of installation.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 220 x 120 x 30 mm |
| Weight | 0.4 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | SDCS-PIN-205C |
| Part Number | 64351141 |
| Module Type | Power Interface Board |
| Application | ABB DCS Drive Systems |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Operating Voltage | 24 V DC (Control) |
| Insulation Voltage | Up to 600 V AC |
| Power Consumption | < 5 W |
| Operating Temp | 0°C to +70°C |
| Storage Temp | -25°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP00 (typically mounted in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB DCS Drive Systems |
| Interface Type | Signal and Power I/O |
| Configuration Tools | ABB DriveWindow, DCS Tools Suite |
Industry Applications
-
Motor Control Systems: Used within ABB drives for interfacing power components and ensuring smooth motor operation.
-
Steel and Metal Processing: Supports the heavy-duty control needs of rolling mills and other high-load applications.
-
Pulp and Paper Industry: Ensures accurate drive control in demanding environments involving large motors and variable speeds.
-
Automotive Manufacturing: Plays a critical role in the precise speed and torque control required in automated assembly lines.
-
Marine and Offshore: Used in vessel propulsion and auxiliary drives, where robust and reliable power interface solutions are essential.
-
Water and Wastewater Treatment: Supports reliable operation of pumps and blowers controlled by ABB drive systems.
The ABB SDCS-PIN-205C 64351141 Power Interface Board is a key component in achieving reliable, high-performance operation in ABB drive systems. With its robust design, electrical isolation, and signal interfacing capabilities, it ensures safe and efficient communication between control and power elements. This makes it an essential part of drive-based automation solutions across various industrial sectors.
