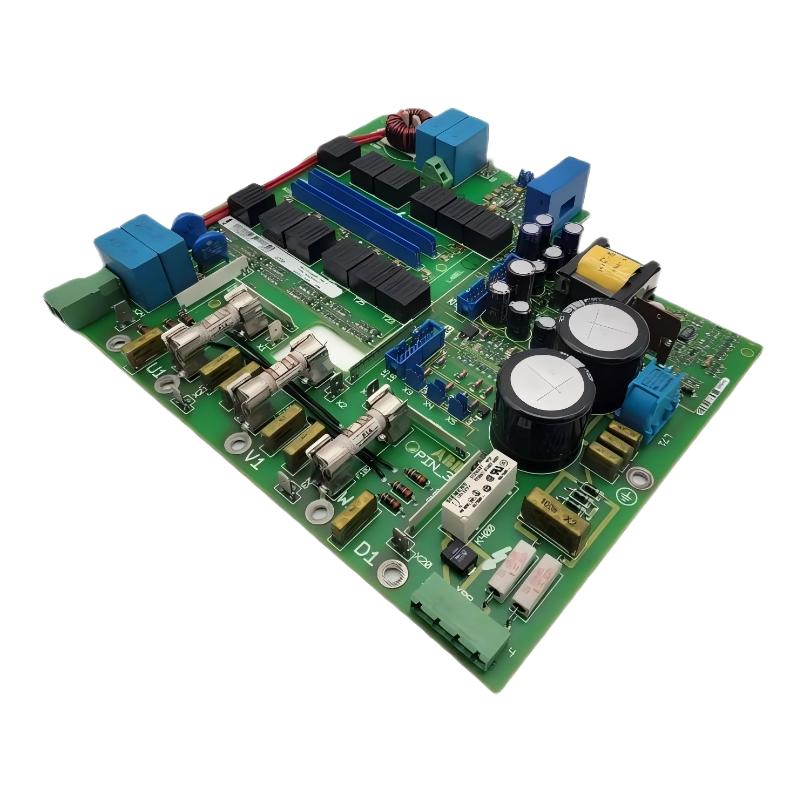

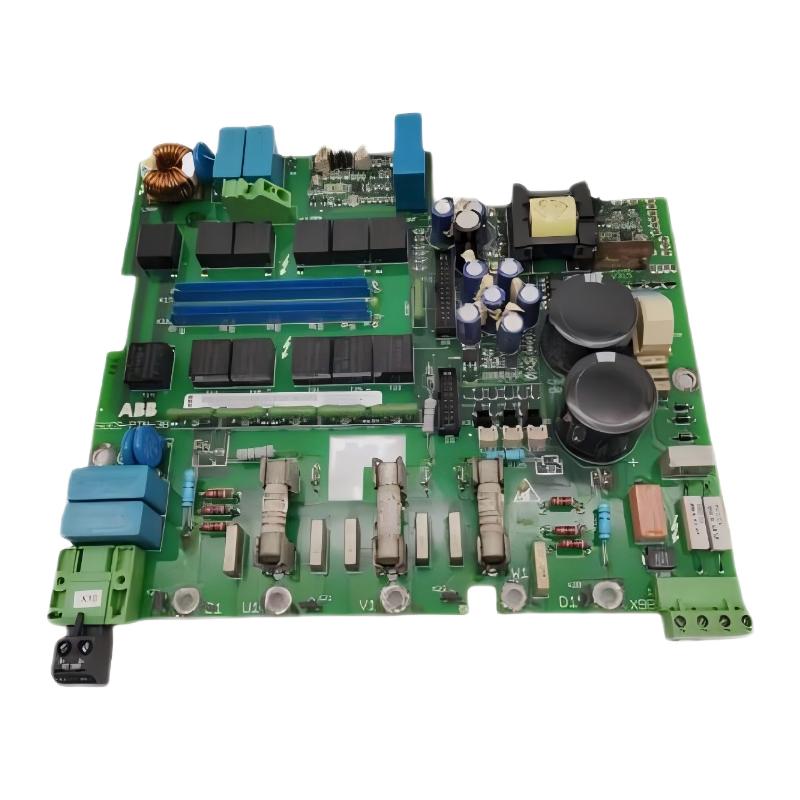

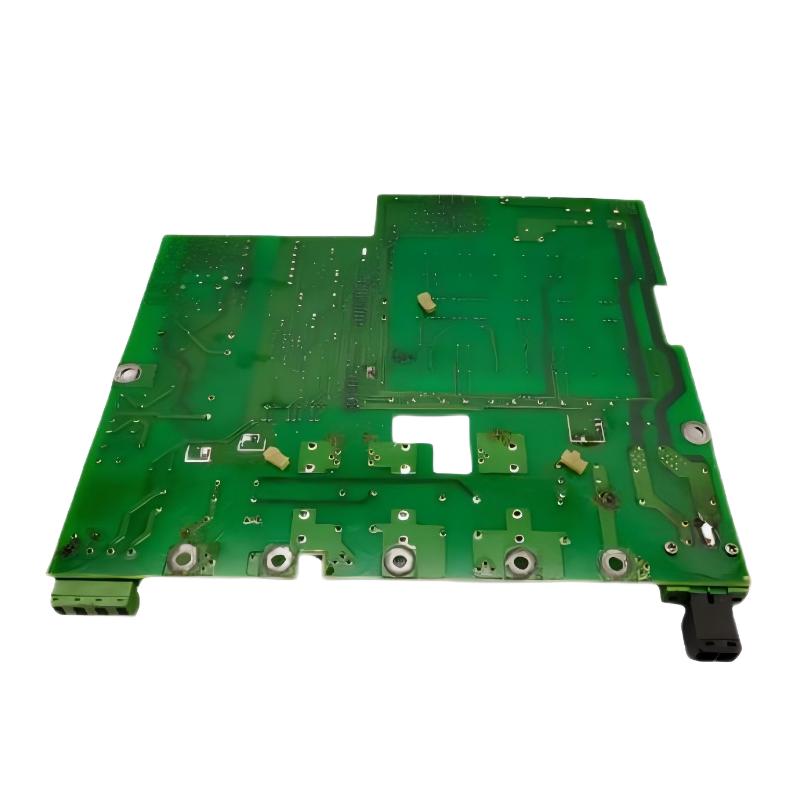

Q1. What is the primary function of the ABB SDCS-PIN-3B Power Interface Board?

The ABB SDCS-PIN-3B Power Interface Board is an essential interface module within the ABB SDCS DC drive control platform. Its primary responsibility is to establish reliable communication between the drive controller and the power section while providing electrical isolation and stable signal transmission. The board transfers command signals from the control processor to the power electronics and simultaneously receives operational feedback required for closed-loop motor control. By maintaining accurate data exchange between multiple system modules, it enables precise drive regulation, fast response to operating changes, and consistent system performance. In demanding industrial applications, the SDCS-PIN-3B plays a critical role in ensuring operational stability, minimizing communication errors, and supporting the safe and efficient operation of the complete drive system.

Q2. What installation procedures should be followed when replacing or installing the SDCS-PIN-3B?

Before installing or replacing the SDCS-PIN-3B, technicians should disconnect all incoming power sources and verify that the DC bus has completely discharged to a safe voltage level. Proper electrostatic discharge (ESD) protection, including grounded wrist straps and anti-static work surfaces, should always be used to protect sensitive electronic components. The board should be inserted carefully into the designated slot without applying excessive force, ensuring that every connector is fully seated and mechanically secure. After installation, all wiring, terminal connections, and neighboring modules should be inspected for proper alignment and secure engagement. Once power is restored, the controller should recognize the module without generating fault alarms, and complete communication, functional, and operational tests should be performed before returning the equipment to normal production service.

Q3. How should communication or interface problems involving the SDCS-PIN-3B be diagnosed?

Troubleshooting communication problems should begin with a thorough inspection of all physical connections associated with the SDCS-PIN-3B. Engineers should verify that connectors are fully inserted, cable assemblies are undamaged, and terminal contacts are free from corrosion or contamination. Communication wiring should also be checked for broken conductors, loose shielding, grounding issues, or electromagnetic interference that may affect signal quality. After confirming hardware integrity, the controller configuration should be reviewed to ensure that firmware versions, communication parameters, hardware addresses, and software settings are compatible with the installed system. Diagnostic LEDs, controller event logs, and fault history provide valuable information for identifying abnormal operating conditions. If communication problems persist after these checks, replacing the interface board with a verified functional unit is one of the most effective methods for determining whether the SDCS-PIN-3B itself is responsible for the fault.

Q4. How does the SDCS-PIN-3B improve the reliability of an ABB DC drive system?

The SDCS-PIN-3B significantly improves system reliability by serving as a stable interface between the control electronics and the high-power drive circuitry. It ensures that critical control commands and feedback signals are transmitted accurately while providing electrical isolation that protects sensitive control components from voltage fluctuations and electrical noise generated by the power section. The board also supports synchronized communication between multiple control modules, allowing the drive system to respond quickly to load variations and process changes. By maintaining signal integrity in electrically noisy industrial environments, the SDCS-PIN-3B reduces communication errors, improves control precision, minimizes unexpected shutdowns, and contributes to long-term operational stability in continuous manufacturing applications.

Q5. Which environmental conditions may affect the long-term performance of the SDCS-PIN-3B?

Although the SDCS-PIN-3B is designed for demanding industrial environments, maintaining appropriate operating conditions is essential for achieving maximum service life. Elevated ambient temperatures accelerate the aging of semiconductor devices, capacitors, and other electronic components, while excessive humidity increases the risk of insulation degradation and condensation-related failures. Dust accumulation may obstruct airflow, reduce cooling efficiency, and contaminate electrical contacts, potentially leading to intermittent communication issues. Exposure to corrosive gases can damage PCB traces and connector surfaces, while continuous vibration may weaken solder joints and mechanical connections over time. Installing the board inside a clean, well-ventilated control cabinet with stable environmental conditions greatly improves long-term reliability and minimizes maintenance requirements.

Q6. How can technicians determine whether the SDCS-PIN-3B has developed a hardware failure?

Hardware failures are typically identified through a combination of system diagnostics, operational symptoms, and physical inspection. Common indicators include repeated startup failures, unstable motor control, communication interruptions, persistent interface alarms, controller messages indicating hardware faults, or modules that are no longer recognized by the system. Technicians should inspect the PCB for visible damage such as burned components, cracked solder joints, swollen capacitors, overheated connectors, or discoloration caused by excessive heat. Diagnostic software and event history should also be reviewed to identify recurring faults associated with the interface board. After eliminating possible external causes such as power supply abnormalities, damaged wiring, or incorrect configuration, replacing the SDCS-PIN-3B with a verified working module provides the most reliable confirmation of a hardware-related failure.

Q7. Does the SDCS-PIN-3B require preventive maintenance during normal operation?

The SDCS-PIN-3B is designed as a highly reliable industrial electronic module and generally requires very little routine maintenance. However, preventive inspections performed during scheduled equipment shutdowns can significantly extend its operational life and improve overall system reliability. Maintenance activities should include cleaning accumulated dust from the control cabinet, checking connector tightness, inspecting terminals for oxidation or corrosion, verifying secure mounting, and looking for signs of overheating, moisture exposure, or mechanical damage. Engineers should also confirm that cabinet ventilation remains unobstructed and that cooling fans, filters, and surrounding control components are functioning properly. Performing these inspections on a regular basis helps detect developing issues before they become serious failures, reducing unplanned downtime and supporting continuous industrial operation.

Q8. In which industrial applications is the ABB SDCS-PIN-3B most commonly used?

The ABB SDCS-PIN-3B Power Interface Board is widely used in industrial facilities that rely on ABB DC drive technology for high-performance motor control. Typical applications include steel rolling mills, paper and pulp manufacturing lines, mining hoists and conveyor systems, cement production equipment, power generation facilities, petrochemical processing plants, marine propulsion systems, port cranes, and other heavy industrial machinery operating under demanding conditions. Within these applications, the board provides dependable communication between the drive controller and power electronics, ensuring precise signal transmission, stable system coordination, and reliable closed-loop control. Its industrial-grade construction allows it to withstand continuous operation in challenging environments, helping manufacturers improve production efficiency, reduce unexpected downtime, maintain consistent process quality, and achieve long-term operational reliability across critical automation systems.
