Technical Specifications

FAQ

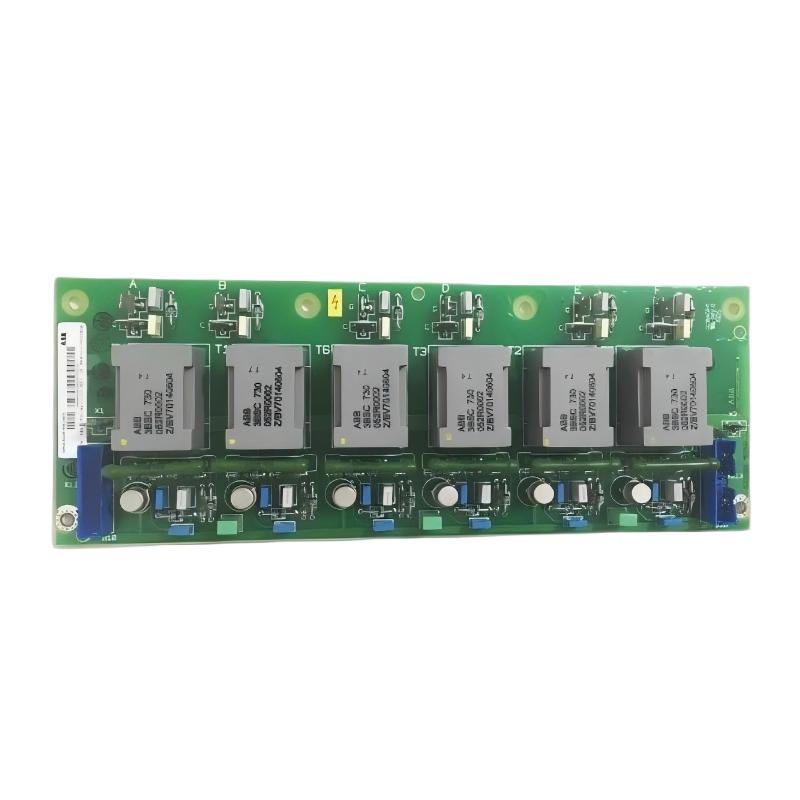

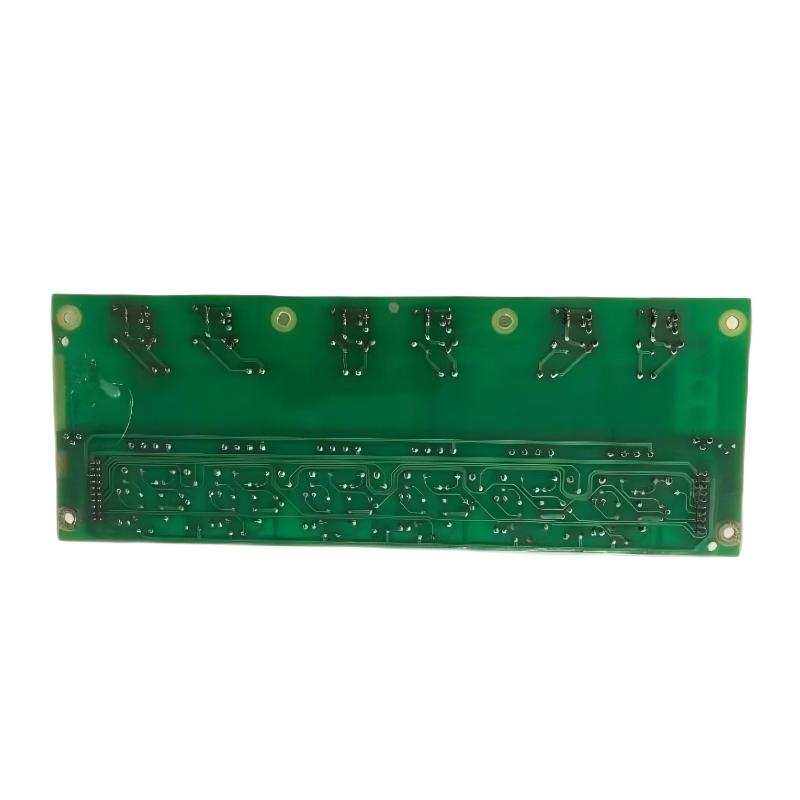

Q1. What is the main function of the ABB SDCS-PIN-46 Pulse Transformer Board?

The SDCS-PIN-46 is a key interface module in ABB DC drive systems responsible for transferring and isolating trigger pulse signals between the control unit and the thyristor power stage. Its primary function is to ensure that low-voltage control signals generated by the drive controller are safely and accurately transmitted to the high-voltage power section through pulse transformer coupling. This electrical isolation is critical because it protects sensitive control electronics from high-voltage transients, switching noise, and electromagnetic interference commonly present in industrial environments. By maintaining precise pulse timing and waveform integrity, the SDCS-PIN-46 directly influences the firing accuracy of thyristors, which in turn controls the DC output voltage, motor speed, and torque stability. In continuous industrial operations, this board plays a fundamental role in ensuring stable and predictable drive performance.

Q2. What should be considered during installation or replacement of the SDCS-PIN-46?

Before installation, the entire drive system must be fully de-energized, and the DC bus voltage must be verified as safely discharged. Proper electrostatic discharge (ESD) protection is essential to prevent damage to sensitive electronic components. During installation, the board must be carefully aligned with its slot and inserted evenly without applying excessive force, as connector misalignment can result in pin damage or poor electrical contact. After mechanical installation, all surrounding wiring, connectors, and adjacent modules should be inspected to ensure proper seating and secure connections. Once power is restored, the system should be carefully monitored for correct module recognition, absence of fault codes, and stable pulse output. Functional testing under no-load and controlled load conditions should be performed before returning the system to normal production operation.

Q3. How should pulse signal issues be diagnosed in the SDCS-PIN-46?

When pulse-related issues occur, troubleshooting should begin with a systematic inspection of the entire firing signal chain. First, verify that the controller is generating correct firing commands and that no configuration or firmware-related faults are present. Next, inspect all physical connections between the controller, interface board, and power stage, including connectors, wiring harnesses, shielding integrity, and grounding conditions. Poor grounding or damaged shielding is a common cause of unstable pulse transmission in industrial environments. If the external circuit is confirmed to be intact, attention should be directed to the SDCS-PIN-46 itself, checking for signs of overheating, insulation breakdown, or component degradation. Oscilloscope measurements of pulse waveform quality can help identify distortion or timing deviation. If all external factors are excluded, substituting the board with a known-good unit is the most reliable method to isolate internal hardware failure.

Q4. Why is pulse isolation important in DC drive systems?

Pulse isolation is critical in DC drive systems because the control electronics operate at low voltage levels, while the thyristor power stage operates under high voltage and high current conditions. Without proper isolation, electrical noise, voltage spikes, and ground potential differences from the power stage could directly affect the control system, leading to signal distortion, malfunction, or even hardware damage. The SDCS-PIN-46 uses pulse transformer technology to physically and electrically separate these two domains while still allowing accurate signal transmission. This ensures that trigger pulses maintain correct timing and amplitude while preventing harmful interference from propagating back into the controller. As a result, the system achieves higher reliability, improved safety, and more stable motor control under demanding industrial conditions.

Q5. What environmental conditions can impact the performance of the SDCS-PIN-46?

Although designed for industrial environments, the SDCS-PIN-46 is still sensitive to extreme operating conditions over long periods. High ambient temperatures accelerate insulation aging and reduce transformer efficiency. Excess humidity can lead to condensation, which increases the risk of leakage currents and signal instability. Dust accumulation inside control cabinets may interfere with heat dissipation and contribute to connector contamination. Corrosive gases can gradually degrade PCB traces and metallic contact surfaces, while continuous mechanical vibration may weaken solder joints and connector integrity over time. To ensure long-term reliability, the board should be installed in a clean, well-ventilated electrical cabinet with stable temperature and humidity control, along with regular preventive inspection.

Q6. How can a hardware failure in the SDCS-PIN-46 be identified?

Hardware failure in the SDCS-PIN-46 typically manifests as missing or distorted trigger pulses, unstable motor operation, erratic DC output, or persistent drive alarms related to firing circuit faults. A visual inspection should first be performed to check for discoloration, burned components, cracked solder joints, or damaged connectors. Diagnostic tools such as oscilloscopes can be used to verify whether pulse signals are being transmitted correctly and consistently. If the waveform shows distortion, delay, or complete absence, the board may be malfunctioning. It is also important to rule out external causes such as controller faults, wiring issues, grounding problems, or power supply instability. Once these are excluded, replacing the board with a verified working unit is the most definitive method to confirm hardware failure.

Q7. Does the SDCS-PIN-46 require preventive maintenance?

The SDCS-PIN-46 is generally a low-maintenance component, but preventive maintenance is still recommended as part of routine system care. Regular inspections should include checking for dust buildup inside the control cabinet, verifying that connectors remain tightly seated, and ensuring that no signs of corrosion or overheating are present. Cooling airflow should remain unobstructed to avoid localized thermal stress. Additionally, surrounding components such as thyristor modules, control cards, and wiring harnesses should be inspected because failures in adjacent systems can indirectly affect pulse signal quality. Although the board itself does not require calibration or frequent servicing, maintaining a clean and stable operating environment significantly improves long-term reliability and reduces unexpected downtime.

Q8. In which industrial applications is the SDCS-PIN-46 commonly used?

The SDCS-PIN-46 is widely used in ABB DC drive systems deployed in heavy industrial sectors where precise motor control is required under high load conditions. Typical applications include steel rolling mills, paper production lines, mining conveyors and hoisting systems, cement manufacturing plants, power generation facilities, petrochemical processing units, and large industrial machinery in ports and shipyards. In these environments, continuous operation and stable torque control are essential for production efficiency and safety. The board ensures accurate and reliable pulse triggering for thyristor-based converters, enabling smooth speed regulation and consistent system performance. Its robust design makes it suitable for harsh environments where electrical noise, vibration, and temperature variations are common challenges.
