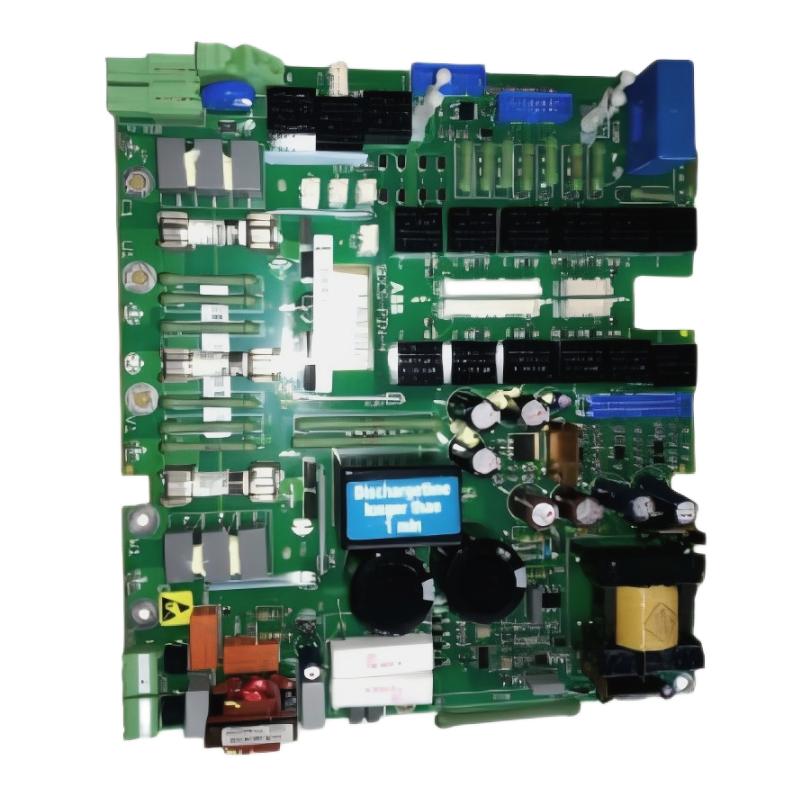

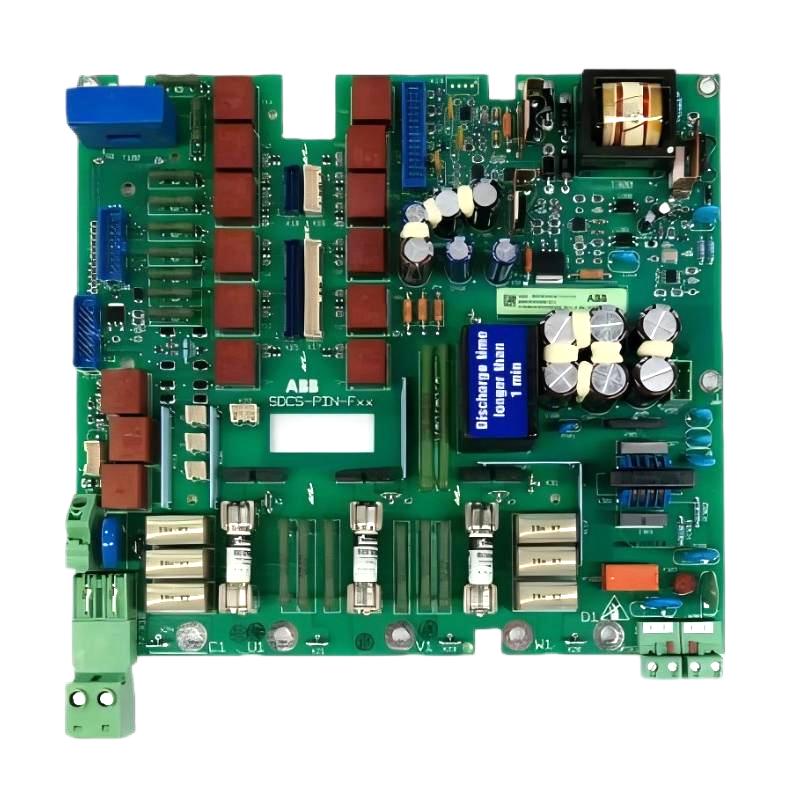

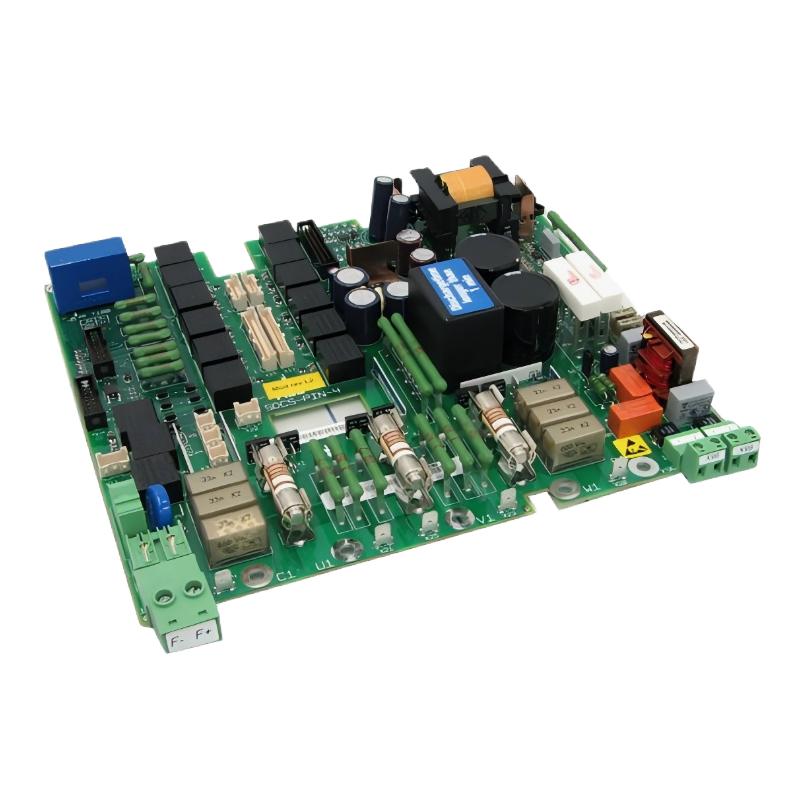

1. What is the primary function of the ABB SDCS-PIN-4B Power Interface Board?

The ABB SDCS-PIN-4B Power Interface Board serves as a critical interface module within ABB SDCS drive control systems. Its primary responsibility is to distribute power, manage interface connections, and facilitate reliable communication between the main control board and other functional modules installed inside the drive cabinet. In addition to supplying stable operating power, the board transfers control signals while maintaining electrical isolation where required. This design helps protect sensitive electronic circuits from voltage fluctuations, electrical noise, and disturbances generated by the power conversion stage. By ensuring dependable power delivery and signal integrity, the SDCS-PIN-4B contributes significantly to the stability, efficiency, and long-term reliability of industrial drive systems operating under continuous heavy-duty conditions.

2. Which ABB systems typically use the SDCS-PIN-4B Power Interface Board?

The SDCS-PIN-4B is primarily installed in ABB SDCS-based DC drive systems and related industrial automation equipment. It is commonly used in high-performance motor control applications where multiple control boards and interface modules require stable power distribution and coordinated communication. Industries including steel production, paper manufacturing, mining, cement processing, chemical plants, marine propulsion, power generation, and material handling frequently rely on drive systems equipped with this board. Because these applications often operate around the clock in demanding environments, the Power Interface Board plays an essential role in maintaining uninterrupted communication between system components while ensuring reliable electrical performance throughout the entire control architecture.

3. What symptoms may indicate a failure of the SDCS-PIN-4B board?

A malfunctioning SDCS-PIN-4B can produce a wide variety of system faults depending on the nature of the failure. Common symptoms include the inability of the drive to power up correctly, communication failures between control modules, unstable auxiliary power supplies, unexpected system shutdowns, repeated fault alarms, initialization failures, or intermittent operation. In some situations, connected interface boards may receive insufficient operating voltage, causing unpredictable control behavior or complete loss of communication with peripheral devices. Since the Power Interface Board acts as a central distribution point, its failure may simultaneously affect several subsystems, making systematic troubleshooting essential before replacement.

4. How can technicians verify whether the SDCS-PIN-4B is functioning correctly?

Proper diagnosis begins with a thorough visual inspection of the PCB to identify damaged components, overheated areas, cracked solder joints, loose connectors, or signs of moisture contamination. Technicians should then measure all incoming and outgoing supply voltages to verify that the board distributes power correctly throughout the drive system. Communication lines and interface signals should also be checked using appropriate diagnostic equipment to ensure stable transmission between modules. When available, an oscilloscope can be used to examine signal quality and detect excessive electrical noise or abnormal waveform distortion. Combining these electrical measurements with the drive’s diagnostic logs and fault history provides a comprehensive assessment of the board’s operational condition.

5. What precautions should be taken when replacing the SDCS-PIN-4B Power Interface Board?

Before replacing the board, the drive system must be completely isolated from all power sources, and sufficient time should be allowed for the DC bus capacitors to discharge fully. Standard lockout and tagout procedures should always be followed to ensure personnel safety. The replacement board must have the identical model number SDCS-PIN-4B and ordering number 3ADT316300R1510 to guarantee compatibility with the existing control system. During handling and installation, anti-static protection such as an ESD wrist strap should be used to prevent electrostatic damage to sensitive electronic components. After installation, technicians should carefully verify connector alignment, secure mounting, and cable integrity before restoring power and performing comprehensive functional testing.

6. Why is electrical isolation important for a Power Interface Board in industrial drive systems?

Electrical isolation is one of the most important design features of modern industrial drive electronics because it protects sensitive control circuits from hazardous voltages generated by the power stage. The SDCS-PIN-4B helps isolate interface signals and power distribution paths, reducing the effects of electromagnetic interference, voltage surges, ground loops, and transient electrical disturbances. This isolation improves communication reliability between control modules, minimizes the possibility of unexpected system faults, and enhances operator safety during normal operation. In harsh industrial environments where large motors and switching devices generate significant electrical noise, effective isolation is essential for maintaining accurate control and preventing damage to critical electronic equipment.

7. Which operating conditions can reduce the service life of the SDCS-PIN-4B?

The long-term reliability of the SDCS-PIN-4B can be affected by several environmental and operational factors. Continuous exposure to elevated temperatures, excessive humidity, airborne conductive dust, corrosive atmospheres, and strong mechanical vibration may accelerate component aging and reduce insulation performance. Unstable input power, repeated voltage surges, poor cabinet ventilation, and inadequate cooling can also place additional thermal stress on the board’s electronic components. Furthermore, loose electrical connectors and insufficient preventive maintenance may gradually degrade signal quality and power distribution performance. Regular inspections, cabinet cleaning, proper airflow management, and stable operating conditions are highly recommended to maximize service life and reduce the risk of unexpected downtime.

8. What commissioning checks should be completed after installing a new SDCS-PIN-4B board?

Following installation, technicians should perform a complete commissioning procedure before returning the drive system to production. First, verify that the board is correctly seated in its designated slot and that every connector is fully inserted and securely locked. After power is restored, observe the drive startup sequence and confirm that no fault messages or diagnostic alarms are generated. All distributed supply voltages should be measured to ensure that connected modules receive stable operating power. Communication between the main controller and peripheral interface boards should also be verified to confirm normal data exchange. Finally, the drive should be tested under both no-load and full-load operating conditions while continuously monitoring system status, control response, communication stability, and overall operating performance to ensure that the newly installed Power Interface Board functions reliably within the complete drive control system.
