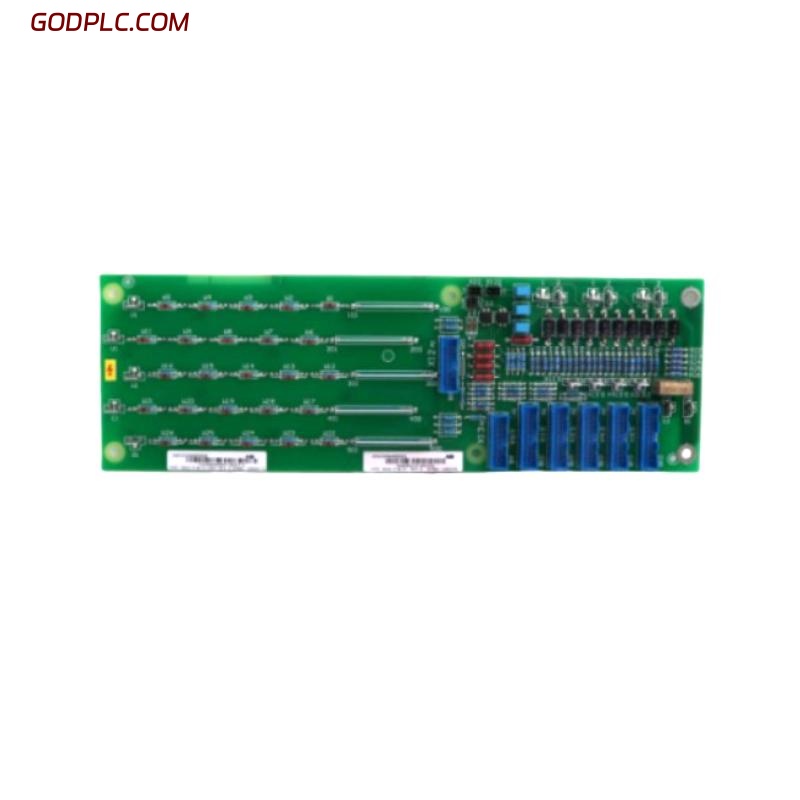

ABB SDCS-PIN-51 Multi-Channel Pulse Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | SDCS-PIN-51 |
|---|---|
| Product Type | Multi-Channel Pulse Input Module |
| Primary Function | High-speed pulse acquisition |
| Input Channels | Five |
| Supported Signals | Encoder pulses, digital pulse signals |
| Signal Format | Differential (TTL/HTL) and single-ended |
| Input Frequency Range | Up to 150 kHz per channel |
| Isolation | Galvanic isolation per channel |
| Protective Coating | Industrial-grade moisture and dust resistant coating |
| Power Supply | Supplied via SDCS backplane |
| Operating Temperature | –10°C to +70°C |
| Storage Temperature | –25°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Dimensions (L × W × H) | 13.0 cm × 6.5 cm × 2.2 cm |
| Weight | 0.52 kg |
| Installation Method | Rack-mounted in SDCS control system |
| Application | Multi-channel pulse counting in industrial automation systems |
FAQ
- Q: How many channels does the SDCS-PIN-51 support?
A: The module supports five independent pulse input channels. - Q: What is the maximum pulse frequency per channel?
A: Each channel can handle up to 150 kHz. - Q: Are differential signals supported?
A: Yes, both differential (TTL/HTL) and single-ended signals are supported. - Q: Does the module provide electrical isolation?
A: Yes, each channel has galvanic isolation to prevent interference. - Q: Can it operate in humid industrial environments?
A: Yes, it is designed for 5–95% non-condensing humidity. - Q: What are the module’s dimensions and weight?
A: Dimensions are 13.0 cm × 6.5 cm × 2.2 cm, and it weighs 0.52 kg. - Q: How is the SDCS-PIN-51 installed?
A: It is securely rack-mounted within the SDCS control system. - Q: What applications is the SDCS-PIN-51 suitable for?
A: Ideal for high-speed multi-channel pulse counting, encoder monitoring, and digital signal acquisition.
ABB SDCS-PIN-51 Multi-Channel Pulse Input Module is in stock. Please contact us for a quick quote and competitive pricing.
