1. What is the primary function of the ABB SDCS-PIN-H01 Power Interface Board?

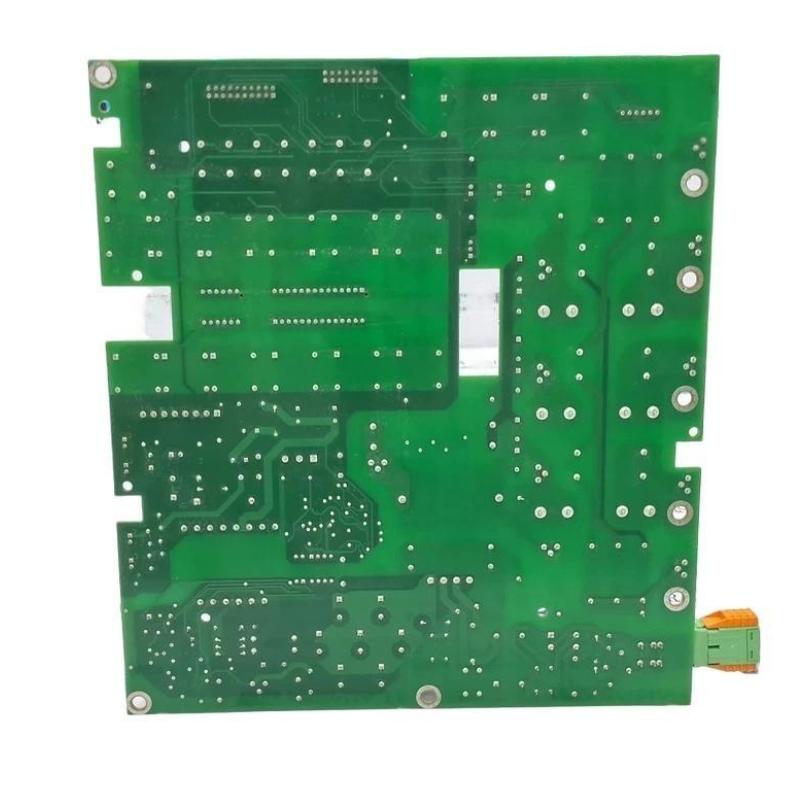

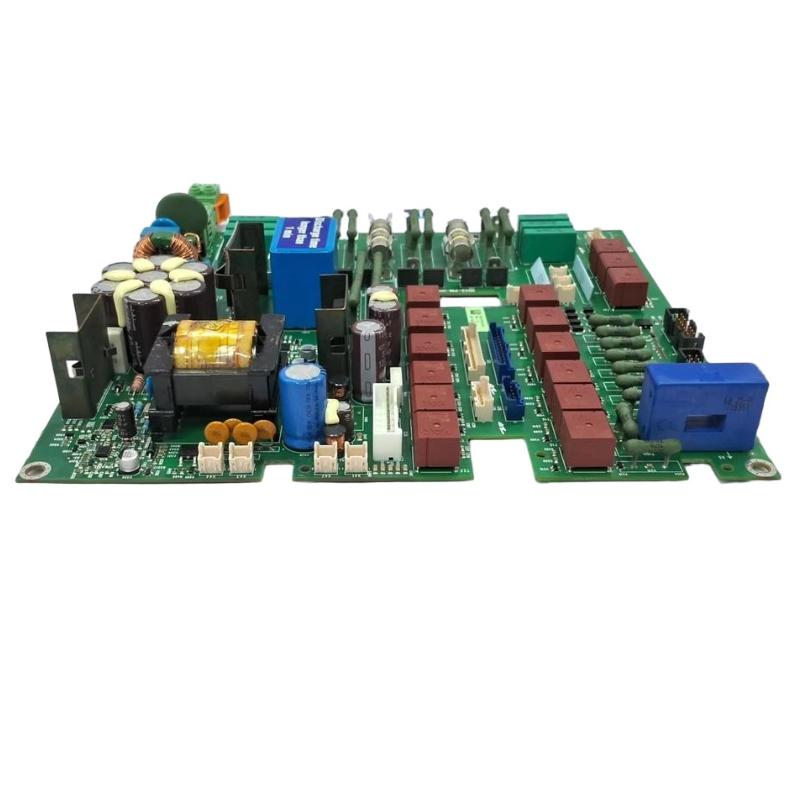

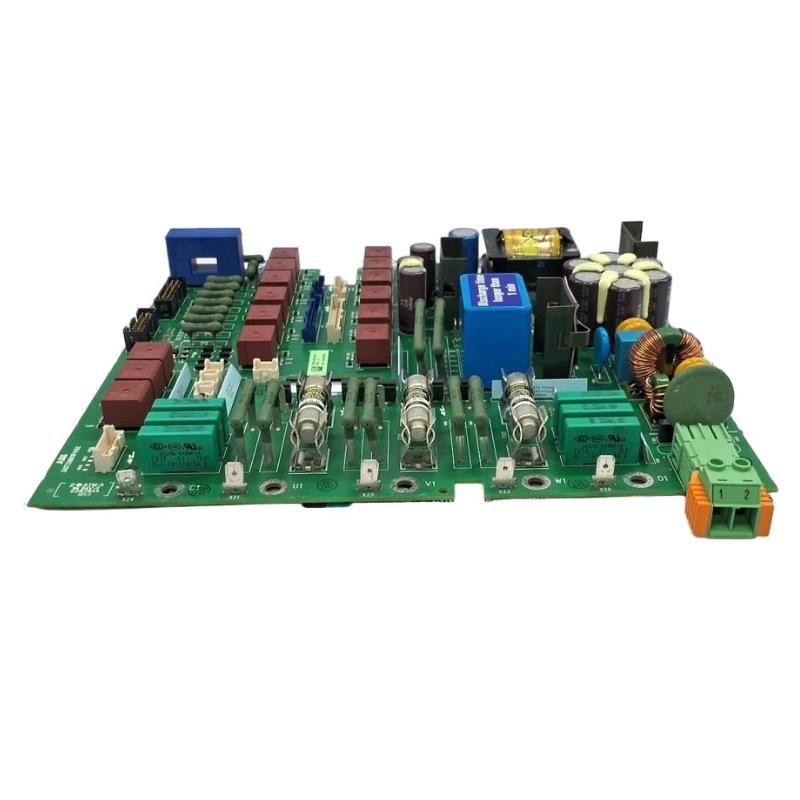

The ABB SDCS-PIN-H01 Power Interface Board is an important interface module used in ABB SDCS drive control systems. Its main purpose is to provide reliable electrical connections between different control components while supporting power distribution and signal transmission functions within the drive system. The board acts as a communication and power management link between the main control unit and other electronic modules, ensuring that each connected component receives stable operating power and accurate control signals.

In industrial drive applications, multiple electronic boards must operate together to achieve precise motor control, protection functions, and system monitoring. The SDCS-PIN-H01 helps maintain proper coordination between these modules by providing a stable interface structure. Its reliable design improves system availability, reduces signal interference, and supports consistent performance in demanding industrial environments where continuous operation is required.

2. What ABB systems and applications commonly use the SDCS-PIN-H01 board?

The SDCS-PIN-H01 is designed for ABB SDCS series industrial drive systems and related automation control equipment. It is mainly used in applications where reliable communication and power distribution between control modules are required. These systems are commonly found in industries such as steel production, paper manufacturing, mining, cement processing, marine equipment, power generation, and heavy machinery.

Industrial applications using DC drive technology often require precise speed regulation, stable torque control, and high operational reliability. The SDCS-PIN-H01 supports these requirements by providing dependable electrical interfaces between system components. Its role is particularly important in large drive cabinets where several control boards and auxiliary modules must operate together without interruption.

3. What symptoms may indicate a failure of the SDCS-PIN-H01 Power Interface Board?

A faulty SDCS-PIN-H01 may cause various operational problems within the ABB drive system. Common symptoms include abnormal startup behavior, loss of communication between control modules, unstable operation of connected boards, unexpected drive shutdowns, repeated fault alarms, or failure of certain control functions.

Because the board provides important connections between multiple electronic components, a failure may affect several parts of the system simultaneously. For example, unstable power distribution may cause connected modules to restart unexpectedly, while damaged interface circuits may result in communication errors or incorrect control responses.

When these problems occur, technicians should review drive fault records, inspect the board condition, and perform electrical measurements to determine whether the SDCS-PIN-H01 is the source of the problem. Proper diagnosis helps prevent unnecessary replacement of other system components.

4. How can technicians test whether the SDCS-PIN-H01 is functioning correctly?

Testing the SDCS-PIN-H01 requires a combination of visual inspection, electrical testing, and system diagnostics. The first step is to check the board for visible signs of damage, including burned components, damaged PCB traces, loose connectors, corrosion, overheating marks, or contamination caused by dust and moisture.

Electrical testing should then be performed to verify that the board receives the correct input power and provides stable outputs to connected modules. Technicians should check interface connections and confirm that communication signals are transmitted correctly between the main controller and other boards.

For advanced troubleshooting, measurement instruments such as multimeters and oscilloscopes can be used to analyze voltage stability, signal quality, and possible interference. ABB drive diagnostic information and alarm history should also be reviewed because they can provide important clues about interface-related failures.

5. What precautions should be taken when replacing the SDCS-PIN-H01 board?

Before replacing the SDCS-PIN-H01, the entire drive system must be safely shut down and disconnected from all power sources. Technicians should confirm that stored electrical energy has been fully discharged before performing maintenance work to avoid electrical hazards.

The replacement board should be verified carefully to ensure that the model SDCS-PIN-H01 and ordering number 3ADT318800R1501 match the original installed component. Using an incorrect board version may result in system compatibility problems or abnormal operation.

During installation, proper anti-static protection should be used because the PCB contains sensitive electronic components that can be damaged by electrostatic discharge. After installation, all connectors should be checked carefully to ensure correct positioning and secure contact. The drive system should then undergo startup verification, communication testing, and operational checks before being returned to service.

6. Why is electrical isolation important for the SDCS-PIN-H01 Power Interface Board?

Electrical isolation is essential in industrial drive systems because control circuits and power circuits operate under different electrical conditions. High-power converters, motors, and switching devices can generate electrical noise, voltage spikes, and transient disturbances that may affect sensitive control electronics.

The SDCS-PIN-H01 provides isolation between different circuit sections to reduce the influence of these disturbances. This improves system stability by protecting control modules from unwanted electrical interference and helping maintain reliable signal transmission.

Good isolation performance also increases equipment safety and reduces the possibility of damage caused by abnormal electrical conditions. In industrial environments with heavy electrical loads, reliable isolation technology is critical for maintaining long-term drive performance and minimizing unexpected downtime.

7. What factors can affect the service life and reliability of the SDCS-PIN-H01?

The reliability of the SDCS-PIN-H01 depends on operating conditions, electrical environment, and maintenance practices. Factors such as high temperature, insufficient cooling, excessive humidity, dust accumulation, chemical contamination, and mechanical vibration can accelerate electronic component aging.

Electrical conditions also play an important role. Unstable power supply, voltage surges, poor grounding, and frequent electrical disturbances may increase stress on the board and reduce long-term reliability. In addition, loose connectors or poor cabinet maintenance can lead to intermittent faults and communication problems.

To improve service life, regular preventive maintenance should be carried out. This includes keeping the control cabinet clean, checking ventilation systems, inspecting connectors, monitoring power quality, and identifying early signs of deterioration before they develop into major failures.

8. What commissioning checks should be completed after installing a new SDCS-PIN-H01 board?

After installing a new SDCS-PIN-H01 Power Interface Board, a complete commissioning process should be performed to ensure correct operation within the ABB drive system. First, technicians should confirm that the board is properly installed and that all connectors are correctly positioned and securely connected.

After power is restored, the drive system should be monitored during startup to verify that initialization completes successfully without generating alarms or fault messages. Communication between the main controller and connected modules should be checked to ensure reliable data exchange.

The stability of power distribution and interface signals should also be verified using appropriate measurement tools. After initial checks are completed, the drive should be tested under both no-load and normal operating conditions while monitoring system response, communication performance, and diagnostic information.

Completing these commissioning procedures ensures that the SDCS-PIN-H01 is operating correctly and that the ABB drive system can achieve stable and reliable long-term performance in industrial applications.
