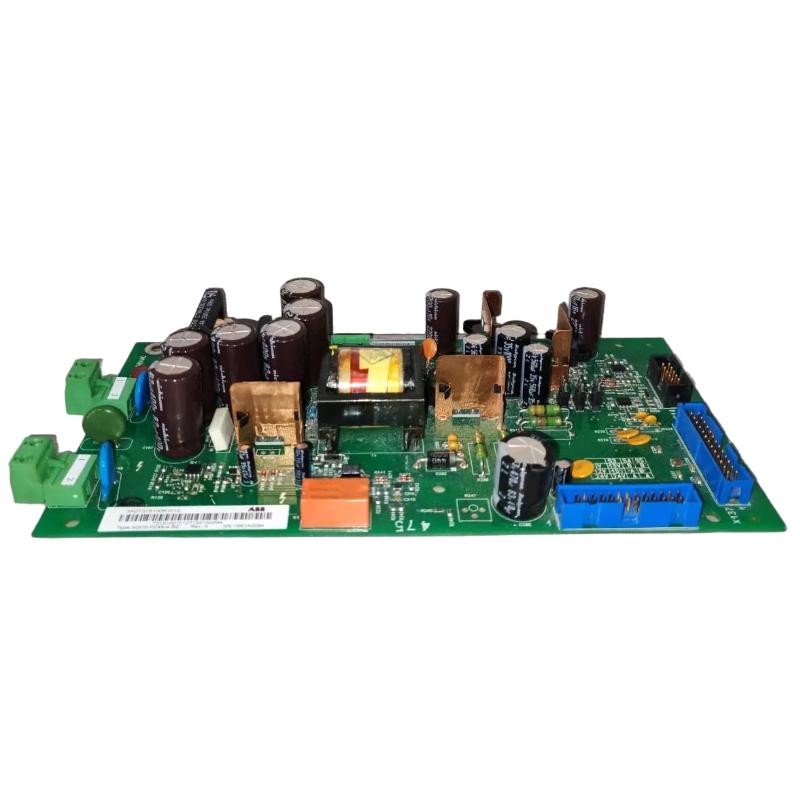

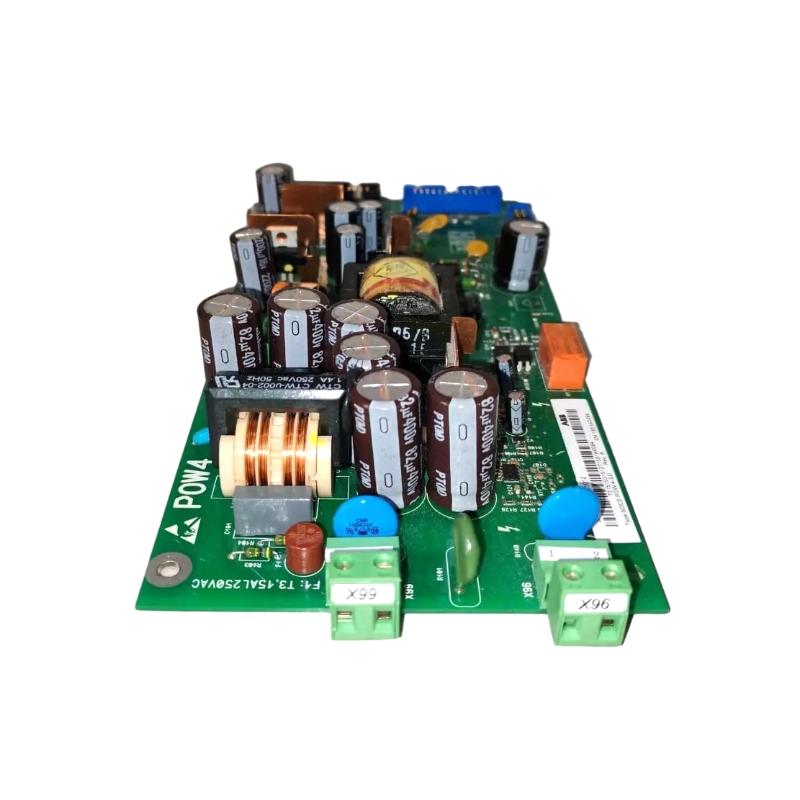

ABB SDCS-POW-4 3ADT315100R1012 Power Supply
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model Number | SDCS-POW-4 |
| ABB Type Designation | SDCS-POW-4-SD |
| Ordering Number | 3ADT315100R1012 |
| Product Type | Power Supply Board |
| Product Series | ABB DCS800 / Industrial Drive Systems |
| Main Function | Provides auxiliary DC voltages for control boards and other electronic components |
| Power Supply Technology | Switched-mode power supply, flyback configuration |
| Auxiliary Input Voltage | 115 V AC / 230 V AC, automatic detection |
| Input Voltage Tolerance | -15% / +10% |
| Input Frequency | 45–65 Hz |
| Power Consumption | 120 VA |
| Power Loss | ≤ 60 W |
| Recommended Fuse | 6 A time-delay fuse |
| Encoder Supply Options | 5 V DC, 12 V DC, 15 V DC, or 24 V DC, selectable by jumpers |
| Maximum Encoder Supply Current | 250 mA |
| Relay Output | X96, associated with digital output DO8 |
| Main Connectors | X99, X96, X37, X137, X14 |
| Mounting Type | Electronic support / drive module tray |
| Dimensions | 105 × 125 × 60 mm |
| Weight | 0.8 kg |
FAQ
Q1: What is the main function of the ABB SDCS-POW-4 power supply board?
The ABB SDCS-POW-4-SD is an auxiliary power supply board used in compatible industrial drive systems. It generates the DC voltages required by the control board and other electronic components, helping maintain stable operation of the drive’s control circuitry.
Q2: What is the difference between ordering numbers 3ADT315100R1012 and 3ADT315100R1001?
Ordering number 3ADT315100R1012 identifies the SDCS-POW-4-SD power supply board and is listed as a replacement for 3ADT315100R1001. Before replacing an existing board, verify the full part number, hardware revision, connector arrangement, and compatibility with the installed equipment.
Q3: What input voltage does the SDCS-POW-4-SD support?
The SDCS-POW-4 power supply design supports 115 V AC or 230 V AC auxiliary input, with automatic voltage detection. The documented input frequency range is 45–65 Hz. Confirm the specific unit’s nameplate and equipment wiring diagram before connecting the supply.
Q4: Which ABB drive systems can use the SDCS-POW-4 power supply board?
The SDCS-POW-4 design is associated with ABB DCS800 drive systems, including converter frame sizes D5, D6, and D7, as well as certain rebuild configurations. The SDCS-POW-4-SD designation may relate to a specific product version, so verify compatibility with the drive model and existing board before ordering.
Q5: What are the common symptoms of an SDCS-POW-4 power supply failure?
Possible symptoms include the control board failing to start, missing auxiliary voltages, encoder supply problems, or drive faults related to control electronics. These symptoms can also result from an external power supply issue, a blown fuse, loose connectors, or a fault in another board. Diagnosis should begin with checking the supply and wiring.
Q6: How should I troubleshoot an SDCS-POW-4 that does not provide the expected output voltages?
Isolate the equipment according to the applicable electrical safety procedure before inspection. A qualified technician should verify the AC input, check the fuse and connectors, and measure the specified output voltages using the manufacturer’s service procedure. If the input is correct but the outputs remain abnormal, further board-level testing may be required.
Q7: How is the encoder supply voltage selected on the SDCS-POW-4?
Depending on the drive configuration, the encoder supply can be set to 5 V, 12 V, 15 V, or 24 V DC using the designated jumpers. The supply source is also affected by the jumper setting on the SDCS-CON-4 control board. Always follow the applicable hardware manual and encoder specifications before changing these settings.
Q8: What should be checked after replacing the SDCS-POW-4-SD board?
Confirm that the replacement part number is correct and compatible with the installed drive. Check all connectors, wiring, fuse ratings, and jumper settings before restoring power. After installation, verify the auxiliary supply voltages, confirm that the control board starts correctly, and check for active faults before returning the equipment to normal service.
ABB SDCS-POW-4 3ADT315100R1012 Power Supply is in stock. Please contact us for a quick quote and competitive pricing.
