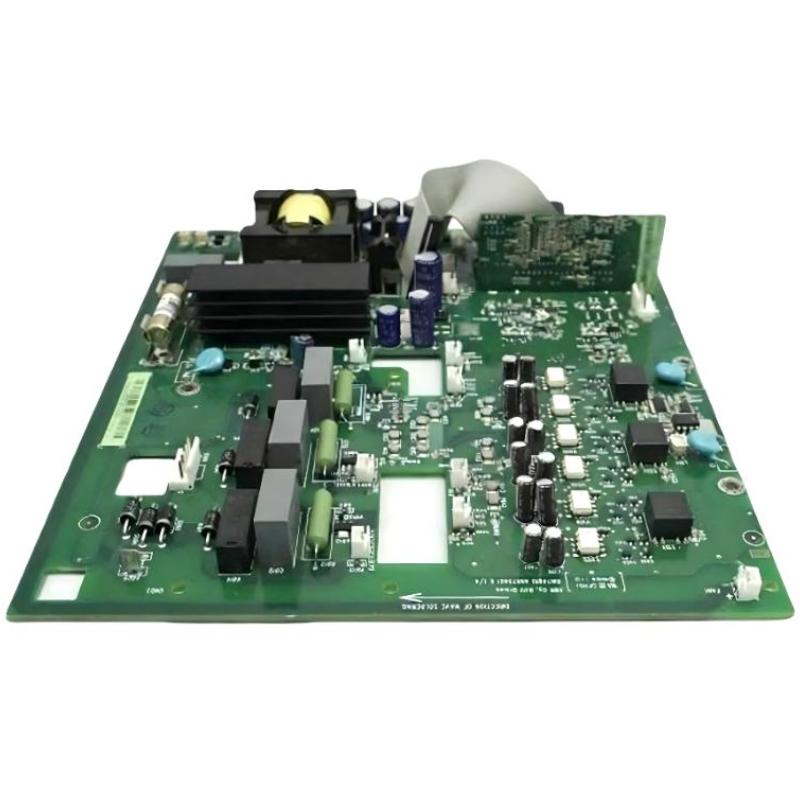

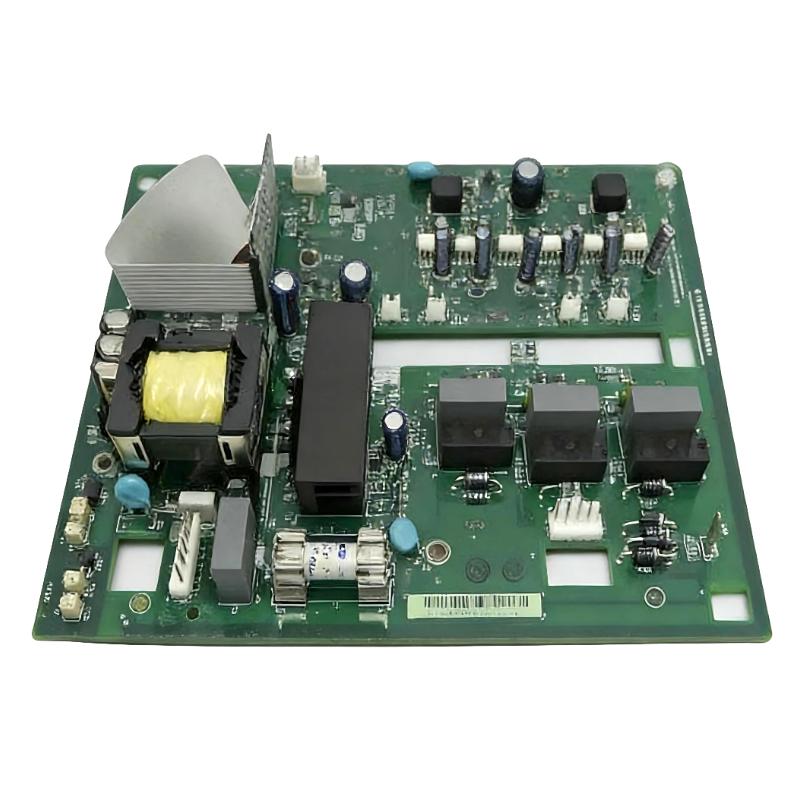

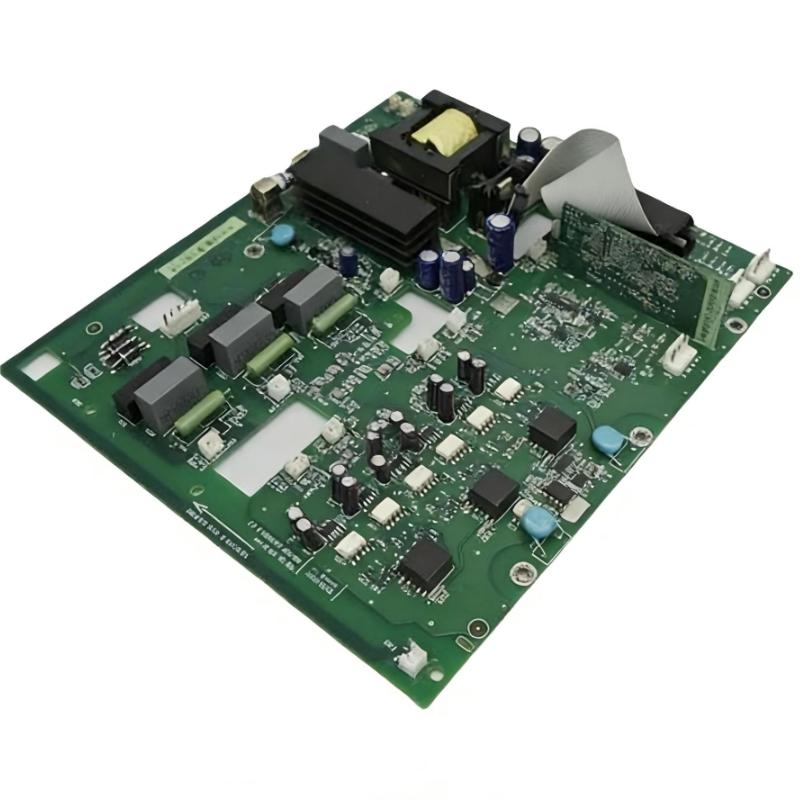

1. What is the primary function of the ABB SINT4610C Main Circuit Interface Board?

The ABB SINT4610C Main Circuit Interface Board serves as a critical interface between the main power circuit and the drive control electronics. Its primary responsibility is to transmit control signals, feedback information, and monitoring data while maintaining electrical isolation between high-power and low-voltage control circuits. This separation helps improve system safety, minimizes electrical interference, and ensures accurate communication throughout the drive system. The board plays an essential role in coordinating the operation of power modules, control processors, and protection circuits, contributing to stable drive performance, fast response, and reliable long-term operation in industrial automation applications.

2. What should be inspected before installing the SINT4610C Main Circuit Interface Board?

Before installation, technicians should verify that the board model SINT4610C and part number 68646618 match the equipment requirements. The circuit board should be carefully inspected for damaged connectors, bent pins, cracked solder joints, loose components, or signs of moisture contamination that may have occurred during transportation or storage. The installation slot and backplane connectors should also be checked to ensure they are clean and free of oxidation or debris. During installation, proper electrostatic discharge (ESD) protection should always be used to protect sensitive electronic components. After installation, verify that the board is fully seated, securely fastened, and all related wiring is properly connected before restoring power to the system.

3. Why is the SINT4610C Interface Board not recognized by the drive system?

Failure of the drive system to recognize the interface board may result from several different causes. Improper installation, incomplete insertion into the backplane, damaged connectors, insufficient control power, communication failures, or hardware defects on the board itself can all prevent normal operation. In addition, incompatible firmware versions, incorrect system configuration, or faults occurring on other interconnected control boards may also interfere with board recognition. A complete troubleshooting procedure should include inspection of all physical connections, verification of power supply voltages, examination of controller diagnostic messages, confirmation of communication status, and comparison with a known working board whenever possible to accurately identify the source of the problem.

4. How can communication problems involving the SINT4610C Main Circuit Interface Board be diagnosed?

Communication issues should be investigated systematically by examining both hardware and software conditions. Begin by inspecting all board connectors, ribbon cables, backplane contacts, and communication interfaces for loose connections, oxidation, or mechanical damage. Next, review the drive controller’s alarm history and diagnostic logs for communication-related fault codes. Verify that the control power supply remains stable and that surrounding interface boards are functioning correctly. If no hardware problems are found, technicians should examine firmware compatibility, configuration parameters, and communication settings within the control system. If necessary, replacing the suspected board with a verified operational unit can help determine whether the communication failure originates from the interface board or another system component.

5. Can the SINT4610C Main Circuit Interface Board be replaced while the drive remains energized?

In normal industrial maintenance practice, replacing the interface board while the equipment remains energized is not recommended unless the manufacturer specifically supports hot-swappable operation. The board is directly involved in communication between the control electronics and the main power circuit, making it highly sensitive to electrical transients during installation or removal. Performing replacement under live conditions may result in electrical damage to sensitive components, unexpected controller faults, communication interruptions, or even shutdown of the drive system. The safest maintenance procedure is to completely isolate the equipment from its power source, confirm that all stored electrical energy has been discharged, and then perform the replacement according to approved maintenance procedures.

6. How can the service life of the SINT4610C Main Circuit Interface Board be extended?

Long-term reliability depends largely on maintaining suitable operating conditions and performing regular preventive maintenance. The control cabinet should remain clean, dry, and properly ventilated to minimize dust accumulation and excessive heat. High humidity, conductive contamination, corrosive gases, and excessive vibration should be avoided because they may accelerate deterioration of electronic components. During scheduled maintenance, technicians should inspect connector integrity, verify secure board installation, check cabinet cooling performance, and monitor diagnostic information for early signs of abnormal operation. Preventive inspection and timely correction of minor issues can significantly reduce unexpected failures while extending the operational lifespan of both the interface board and the complete drive system.

7. Is additional configuration required after replacing the SINT4610C Main Circuit Interface Board?

In many standard drive systems, replacing the SINT4610C with the identical model does not require extensive software configuration. However, after installation, technicians should verify that the controller correctly identifies the replacement board and that all communication channels operate normally. Drive diagnostics, status indicators, fault history, and system initialization should all be reviewed before returning the equipment to production. In installations using customized firmware, application-specific configurations, or integrated control networks, additional parameter verification or firmware compatibility checks may be necessary to ensure reliable communication and stable system performance after replacement.

8. How can a faulty SINT4610C Main Circuit Interface Board be accurately diagnosed?

Accurate diagnosis requires a combination of visual inspection, electrical testing, and system-level troubleshooting. Technicians should first examine the board for burned components, damaged connectors, cracked solder joints, discoloration caused by overheating, or other visible signs of failure. Electrical inspections should include verification of control voltages, signal continuity, and communication integrity between connected modules. The drive controller’s diagnostic records should also be analyzed for recurring communication faults, hardware alarms, initialization failures, or protection events. After eliminating external causes such as defective power supplies, damaged wiring, controller malfunctions, or communication network problems, replacing the suspected interface board with a confirmed working unit remains one of the most reliable methods for determining whether the SINT4610C itself requires repair or replacement.
