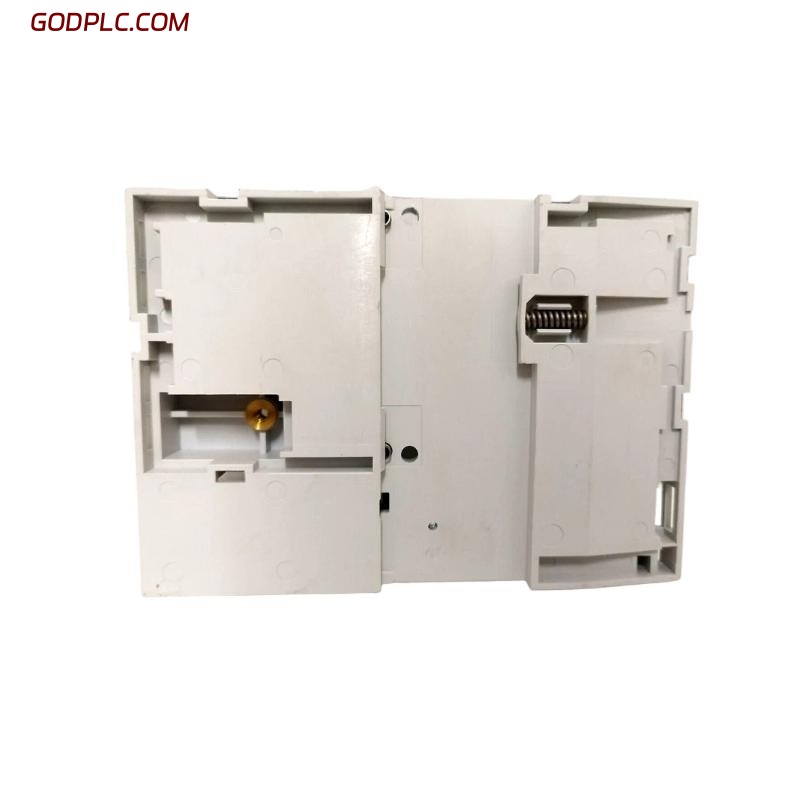

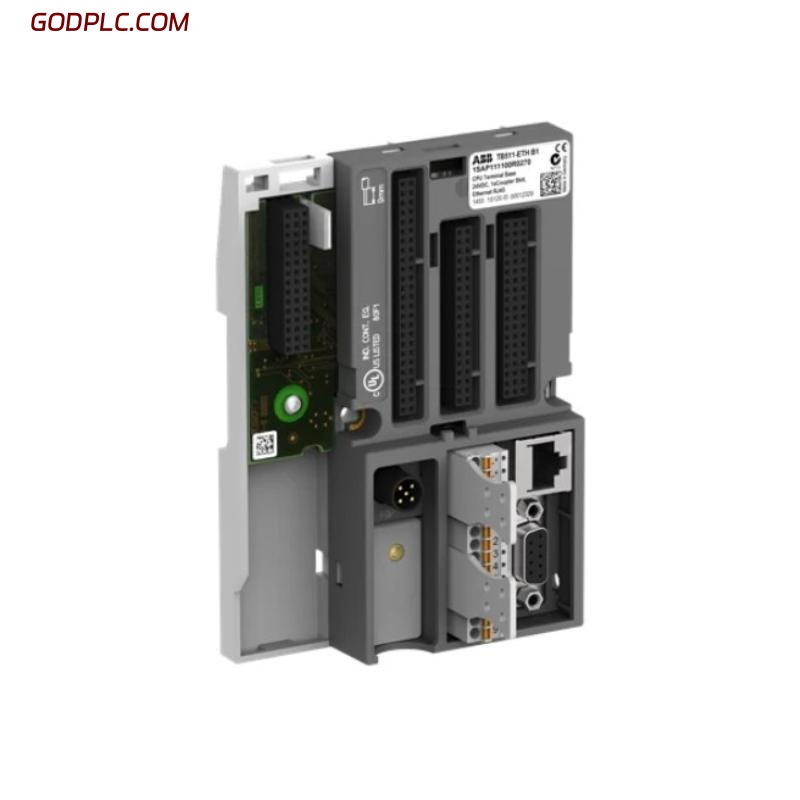

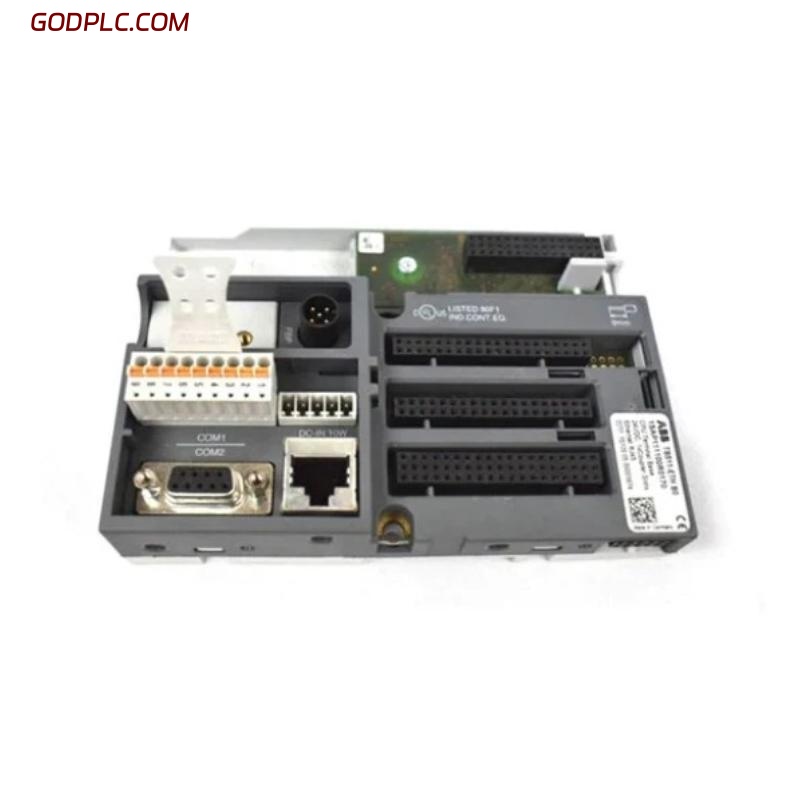

ABB TB511-ETH 1SAP111100R0270 Terminal Base
Product Overview
The ABB TB511-ETH (Part No. 1SAP111100R0270) is an advanced Ethernet terminal base unit engineered for use with ABB’s AC500 and S500 I/O systems. Serving as both a physical mounting platform and a communication interface, this unit enables efficient data exchange over Ethernet networks and seamless integration of I/O modules. Designed for industrial automation environments, it provides robust, modular connectivity with minimal installation complexity.
Key Features
-
Built-in Ethernet Port – Ensures fast and reliable communication via 10/100 Mbps RJ45 interface
-
Supports Modular I/O Expansion – Designed for seamless integration with ABB S500 I/O modules
-
High-Speed Communication – Compatible with Modbus TCP, PROFINET, and Ethernet/IP protocols
-
DIN Rail Mountable – Compact, tool-free installation in standard control panels
-
Diagnostic Indicators – Onboard LEDs display communication and power status for easy troubleshooting
-
Industrial-Grade Durability – Withstands harsh operating conditions typical in automation environments
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 28 x 135 x 95.5mm |
| Weight | 0.164 kg |
Electrical & Communication Characteristics
| Item | Specification |
|---|---|
| Communication Interface | 1 × Ethernet (RJ45), 10/100 Mbps |
| Supported Protocols | Modbus TCP, Ethernet/IP, PROFINET |
| System Bus | Internal S500 I/O backplane bus |
| Voltage Supply | 24 V DC |
| Power Consumption | < 2 W typical |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Rating | IP20 (when properly installed) |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB AC500 PLC and S500 I/O module series |
| Mounting Type | DIN rail mounting |
Industry Applications
-
Discrete Manufacturing – Enables fast I/O communication in automated assembly lines
-
Process Control – Integrates distributed I/O in refineries and chemical plants
-
Water & Wastewater – Connects field instruments and actuators in treatment systems
-
Power Generation – Interfaces with protection and monitoring devices in substations
-
Building Automation – Supports control of lighting, HVAC, and utility management systems
The ABB TB511-ETH 1SAP111100R0270 Terminal Base provides a dependable and efficient solution for Ethernet-based I/O communication within ABB control architectures. Its modularity, speed, and ease of installation make it ideal for modern, distributed automation applications.
ABB TB511-ETH 1SAP111100R0270 Terminal Base is in stock. Please contact us for a quick quote and competitive pricing.
