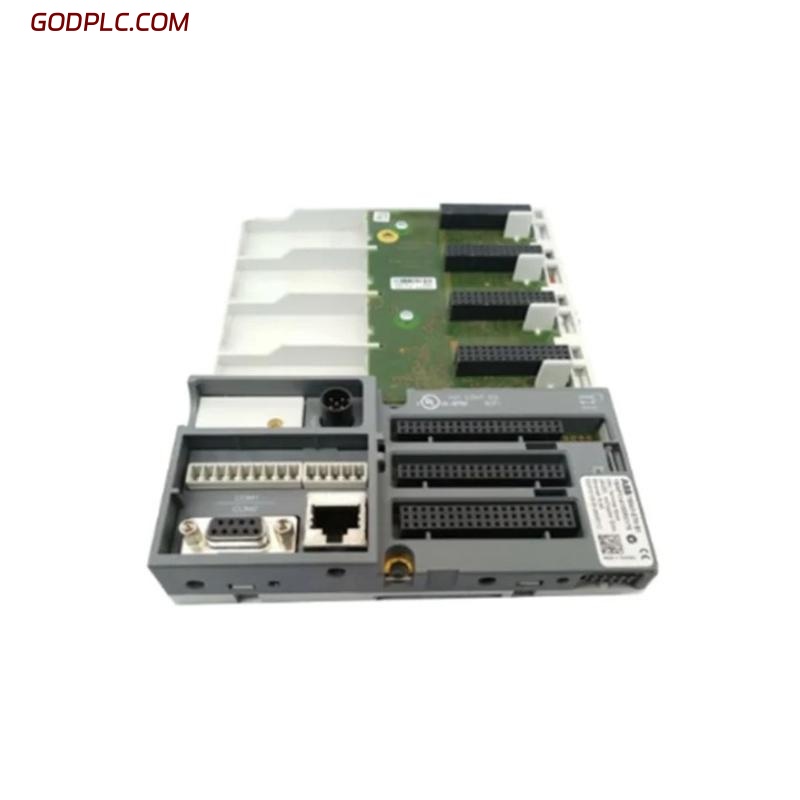

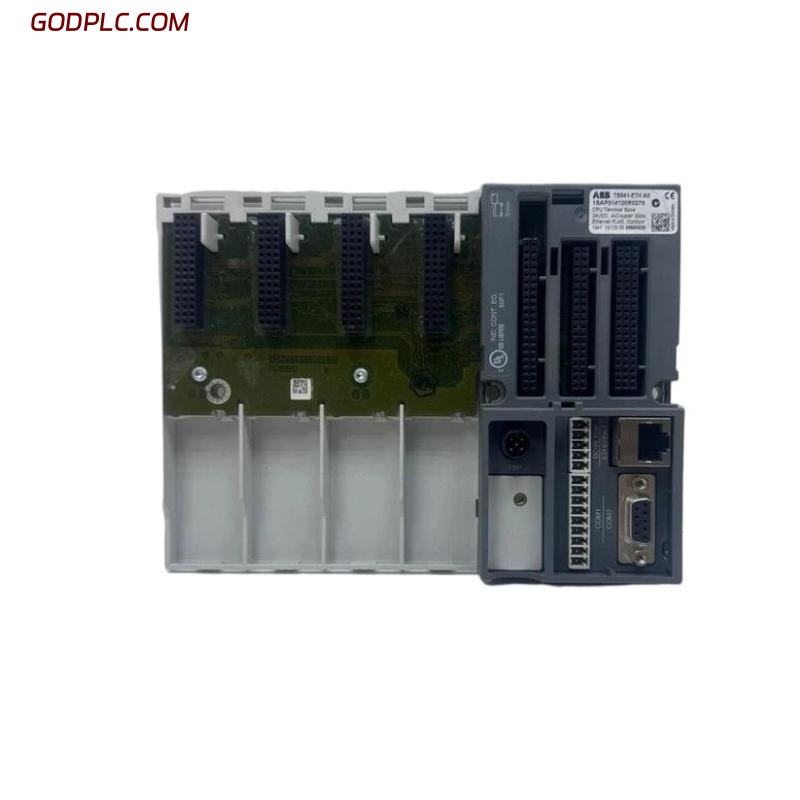

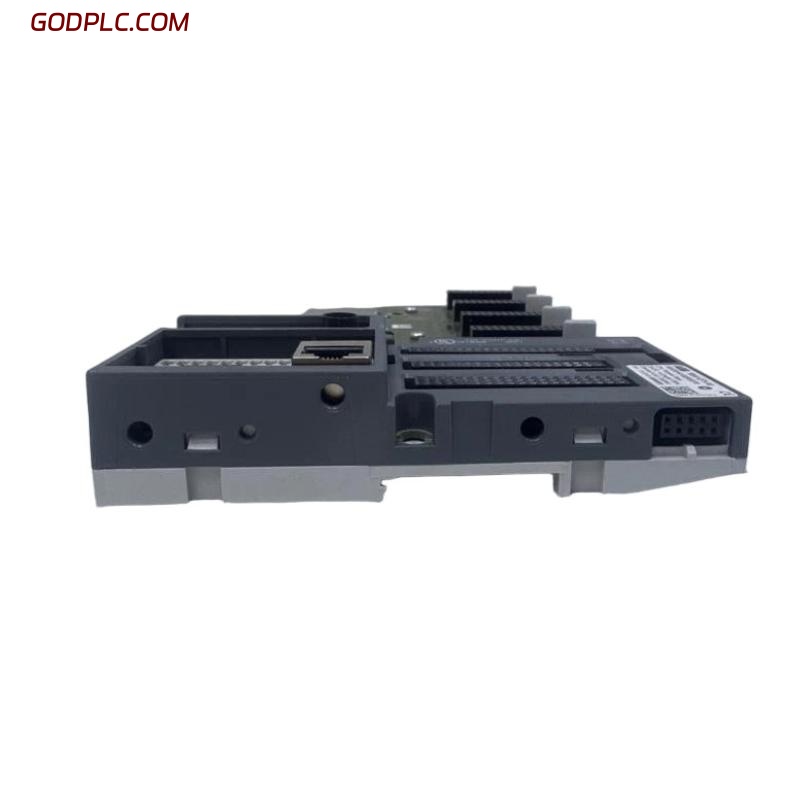

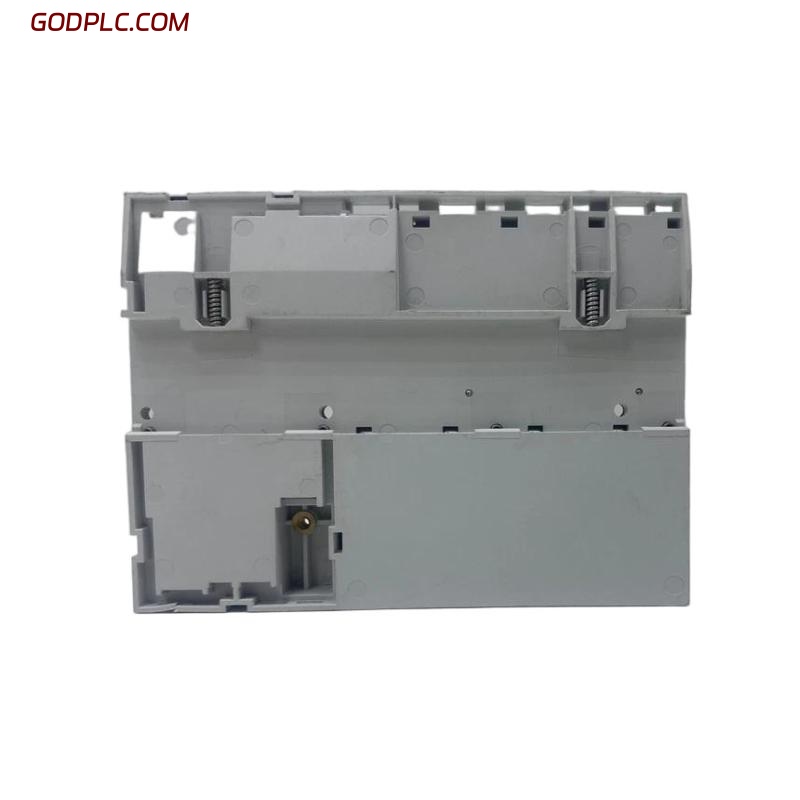

ABB TB541-ETH 1SAP114100R0270 Terminal Base/Base Plate
Product Overview
The ABB TB541-ETH Terminal Base/Base Plate is engineered to provide a secure mounting and Ethernet communication interface for ABB safety and control system modules. It facilitates reliable network connectivity within ABB’s modular control systems, enabling streamlined data exchange and integration. Designed for ease of installation and maintenance, the TB541-ETH supports robust electrical connections and stable mechanical support in industrial environments.
Key Features
-
Integrated Ethernet Port – Supports 10/100 Mbps Ethernet communication for connected modules
-
Durable Mechanical Construction – Ensures stable mounting and secure electrical contacts
-
Simplified Wiring – Enables easy connection and replacement of modules in control panels
-
Wide Compatibility – Compatible with various ABB safety and control modules requiring Ethernet connectivity
-
Diagnostic Indicators – Includes LEDs for link status, network activity, and error monitoring
-
Industrial-Grade Reliability – Designed to withstand vibration, temperature fluctuations, and electrical noise
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 28 x 135 x 179.5mm |
| Weight | 0.24 kg |
Electrical and Communication Characteristics
| Item | Specification |
|---|---|
| Communication Interface | Ethernet 10/100 Mbps |
| Connector Type | RJ45 Modular Jack |
| Power Supply | Powered via system backplane or external source |
| Status Indicators | LEDs for link, activity, and fault conditions |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Complies with IEC 60068-2 standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Safety and Control Systems |
| Mounting Type | DIN rail or panel-mounted within control cabinets |
Industry Applications
-
Process Control – Provides Ethernet communication interface for safety modules in industrial plants
-
Power Industry – Supports network connectivity in turbine and generator safety systems
-
Oil & Gas – Enables Ethernet-based communication in safety instrumented systems
-
Water & Wastewater – Facilitates reliable data exchange for municipal treatment facilities
-
Manufacturing – Integrates modular safety systems with Ethernet communication
The ABB TB541-ETH 1SAP114100R0270 Terminal Base/Base Plate delivers a robust Ethernet communication platform for ABB’s safety and control modules. Its durable design and integrated diagnostic features ensure dependable operation in critical industrial network environments.
ABB TB541-ETH 1SAP114100R0270 Terminal Base/Base Plate is in stock. Please contact us for a quick quote and competitive pricing.
