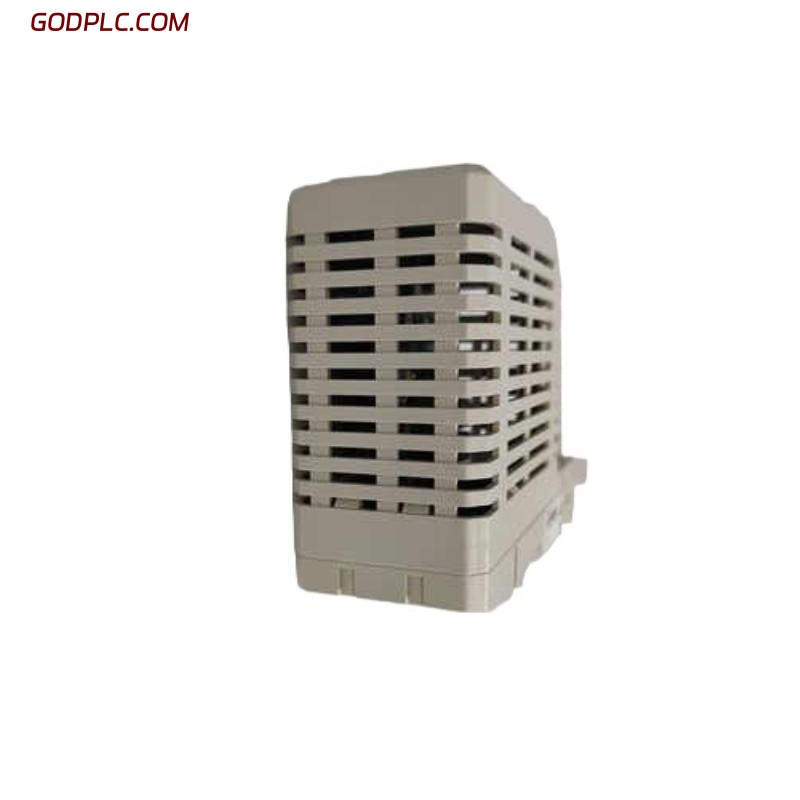

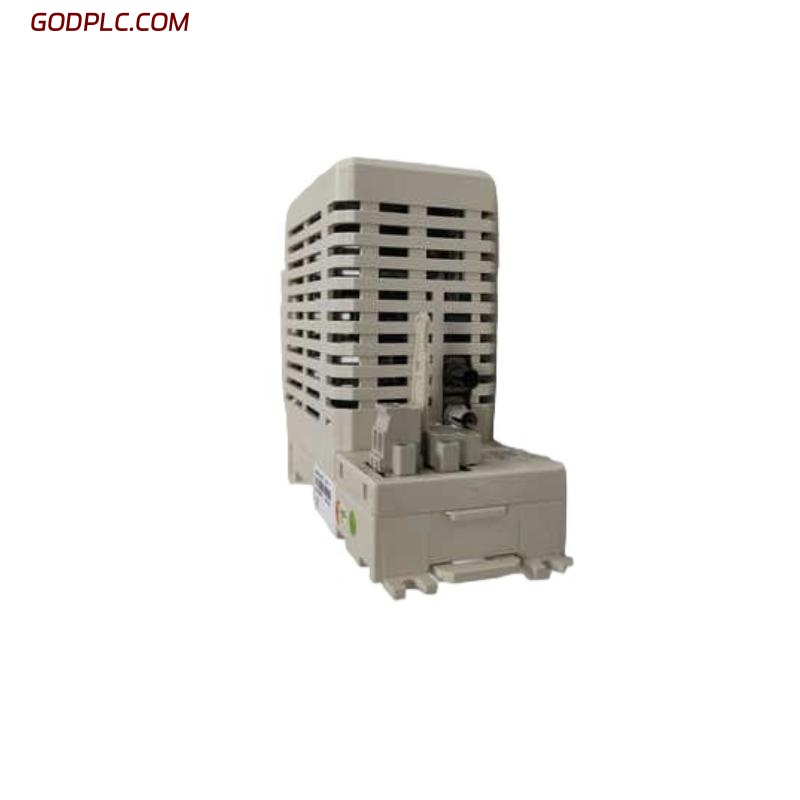

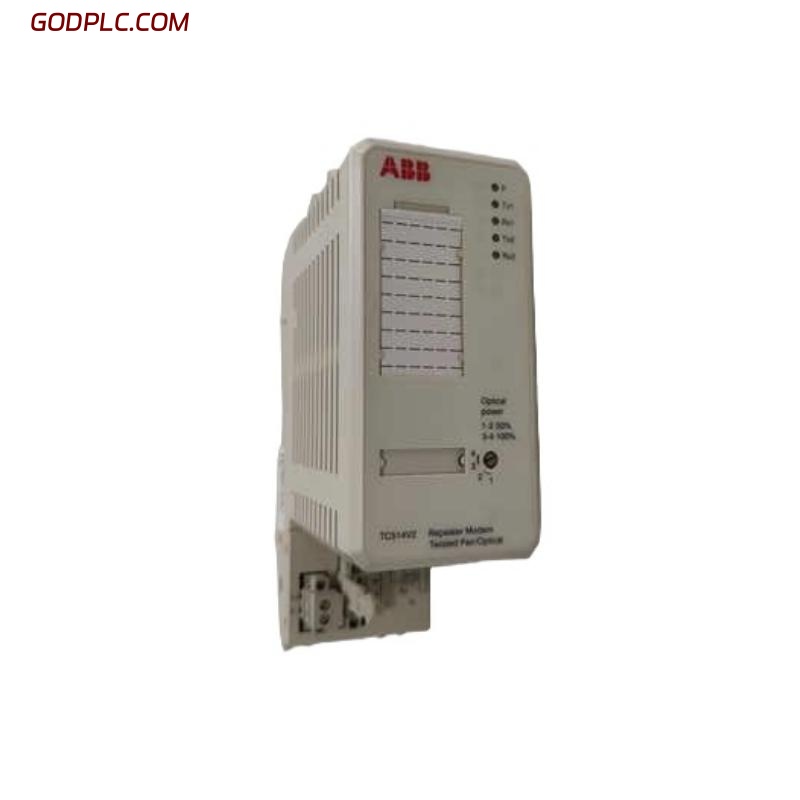

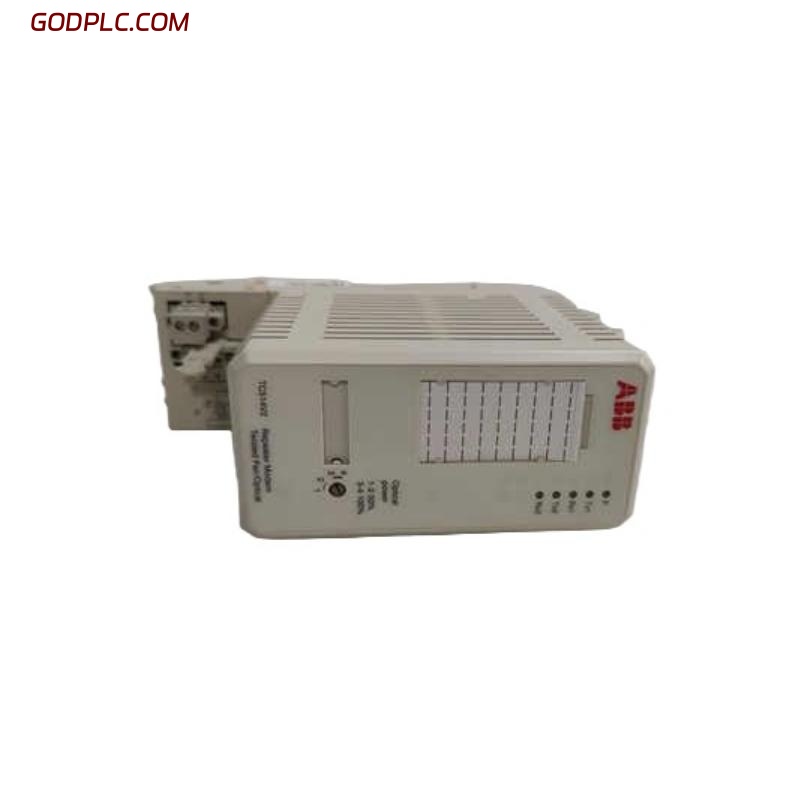

ABB TC514V2 3BSE013281R1 Twisted Pair To Optical Repeater
Product Overview
The ABB TC514V2 3BSE013281R1 is a high-performance twisted pair to optical repeater designed for reliable and interference-resistant communication within ABB’s Advant Controller 400 Series and Symphony Plus systems. It converts standard electrical (twisted pair) signals into optical signals, allowing data to travel over long distances without degradation. The TC514V2 enhances the integrity of system communications by mitigating electromagnetic interference (EMI) in electrically noisy industrial environments.
Key Features
-
Twisted Pair to Fiber Optic Conversion – Converts RS-485 or similar signals to fiber optics
-
Extended Communication Range – Supports long-distance signal transmission without signal loss
-
High Immunity to EMI – Ideal for harsh environments where electrical noise is present
-
Integrated Diagnostics – Provides signal status indicators and fault detection
-
Plug-and-Play Integration – Designed for easy installation into ABB control networks
-
Durable Industrial Design – Suitable for continuous operation in demanding applications
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 168 x 122 x 58 mm |
| Weight | 0.34 kg |
Electrical and Optical Characteristics
| Item | Specification |
|---|---|
| Input Signal Type | Twisted pair (RS-485, differential signal) |
| Output Signal Type | Fiber optic signal (single- or multi-mode, depending on configuration) |
| Data Transmission Rate | Up to 1 Mbps (typical) |
| Communication Distance | Up to 2 km (multi-mode), up to 15 km (single-mode) |
| Optical Connectors | ST or SC type (varies by configuration) |
| Supply Voltage | 24 V DC (nominal) |
| Power Consumption | < 3 W |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| EMC Compliance | Meets IEC/EN industrial standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Advant Controller 400 Series, Symphony Plus |
| Mounting Type | DIN rail mounted |
Industry Applications
-
Power Generation – Provides EMI-free communication between distributed control units
-
Oil & Gas – Enables remote signal transmission in high-noise environments
-
Chemical Processing – Maintains signal integrity across large production areas
-
Water and Wastewater – Facilitates long-distance control system networking
-
Transportation and Infrastructure – Supports reliable data transmission in rail and tunnel systems
The ABB TC514V2 3BSE013281R1 Twisted Pair To Optical Repeater offers robust and noise-immune communication for industrial automation systems, ensuring stable and long-range data transfer where reliability and signal clarity are critical.
ABB TC514V2 3BSE013281R1 Twisted Pair To Optical Repeater is in stock. Please contact us for a quick quote and competitive pricing.
