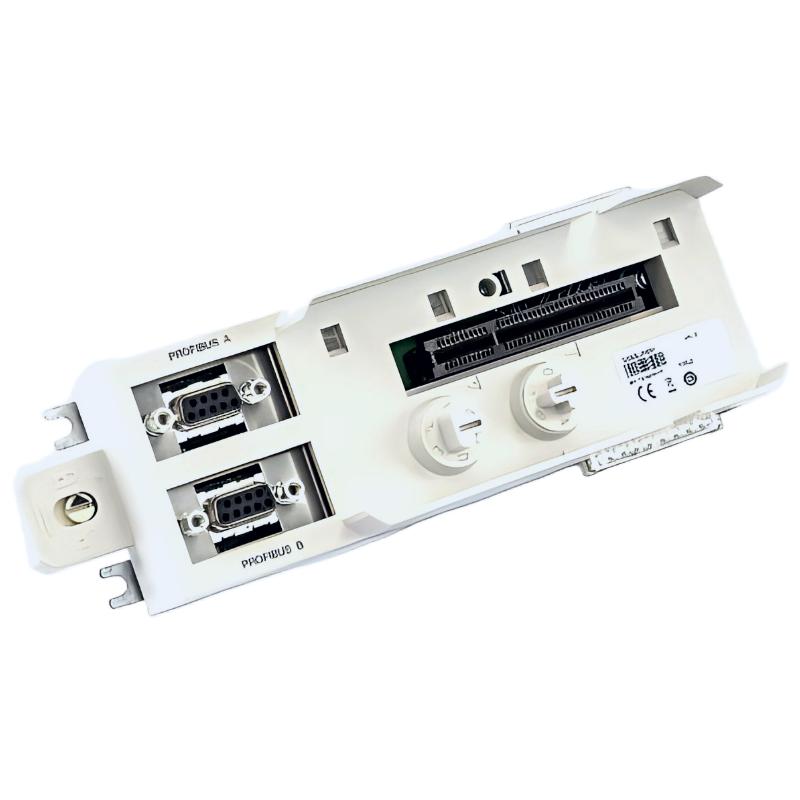

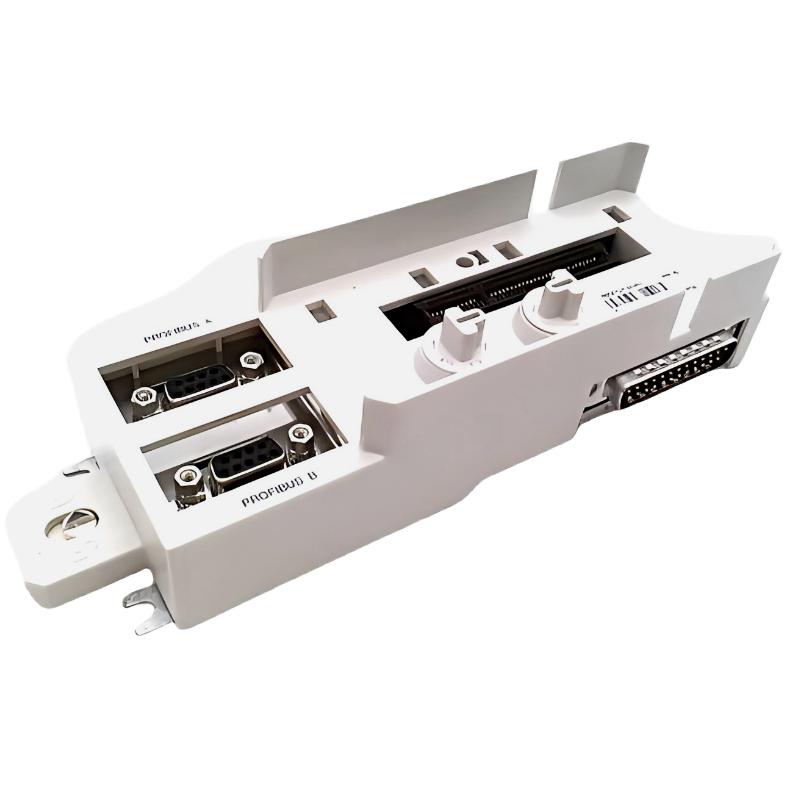

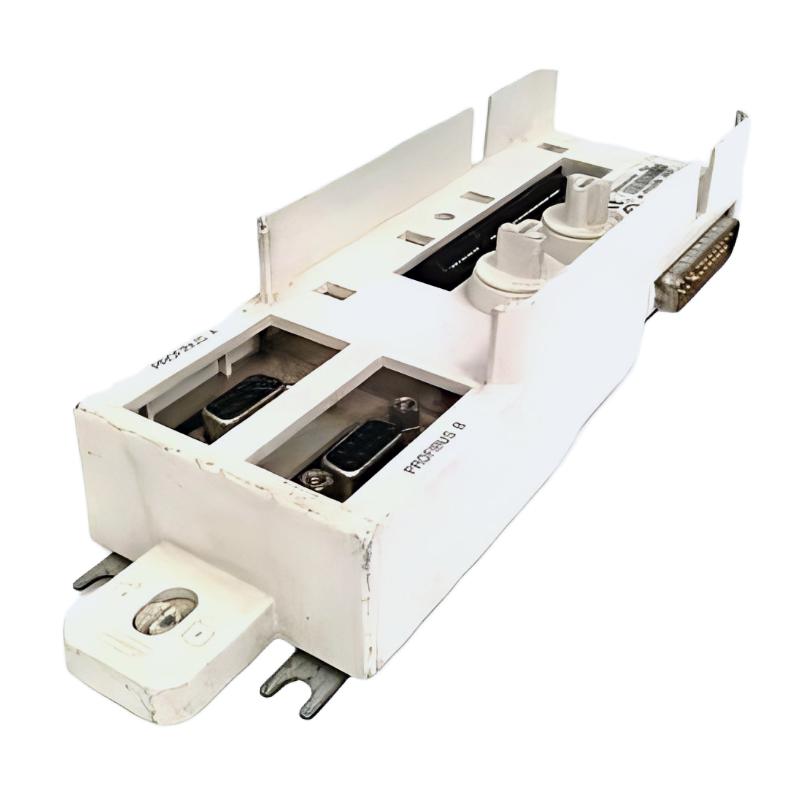

ABB TP854 3BSE025349R1 Base Plate
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TP854 |
| Order Number | 3BSE025349R1 |
| Product Name | Base Plate |
| Main Function | Provides mechanical mounting and structural support for system modules |
| Compatible Systems | ABB industrial automation systems (e.g., AC 800M) |
| Mounting Method | Cabinet panel or DIN rail installation |
| Installation Structure | Modular system mounting base |
| Material | Industrial-grade metal construction |
| Surface Treatment | Anti-corrosion coating |
| Load Capacity | Designed for stable module fixation |
| Grounding | Supported via mechanical installation structure |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Class | Depends on cabinet environment (typically IP20) |
| Dimensions | 216 x 49.5 x 72 mm |
| Weight | 0.234 kg |
FAQ
1. What is the main function of the TP854 Base Plate?
The TP854 Base Plate is used in ABB automation systems to provide a stable mechanical foundation for mounting system modules. It ensures secure and organized installation inside the control cabinet, helping maintain structural integrity and reliable long-term operation of the system.
2. Where is the TP854 typically used?
The TP854 is commonly used in ABB industrial automation environments such as AC 800M-based systems. It is designed for cabinet-level modular installations where controllers, communication modules, and other components need to be securely mounted and aligned.
3. Does the TP854 perform any electrical function?
No, the TP854 is a passive mechanical component and does not process signals or perform control functions. However, due to its metal construction, it can contribute to system grounding when properly installed, which helps improve electrical stability and noise resistance.
4. How is the TP854 installed?
The base plate is installed using screws or mounting fixtures inside a control cabinet or on a DIN rail structure. System modules are then mounted onto the plate according to the system design. Proper alignment and secure fastening are essential for stable operation.
5. What materials are used in the TP854?
The TP854 is made from industrial-grade metal with an anti-corrosion surface coating. This ensures high mechanical strength, durability, and resistance to harsh industrial environments over long-term use.
6. Can the TP854 be used in different cabinet configurations?
Yes, the TP854 is designed to be flexible and compatible with various standard industrial cabinet layouts. It can be integrated into different system architectures as long as installation requirements and mechanical guidelines are followed.
7. What issues may occur if the TP854 is installed incorrectly?
Improper installation may lead to misalignment of modules, reduced structural stability, or increased vibration. Over time, this can negatively affect system reliability and may cause operational instability or maintenance difficulties.
8. How does the TP854 improve system reliability?
The TP854 improves system reliability by providing a rigid and stable mounting platform for system modules. It reduces mechanical stress, minimizes vibration effects, and ensures consistent module alignment, contributing to long-term stable operation of the control system.
ABB TP854 3BSE025349R1 Base Plate is in stock. Please contact us for a quick quote and competitive pricing.
