ABB TU516 1SAP212000R0001 Module Termination Unit
Product Overview

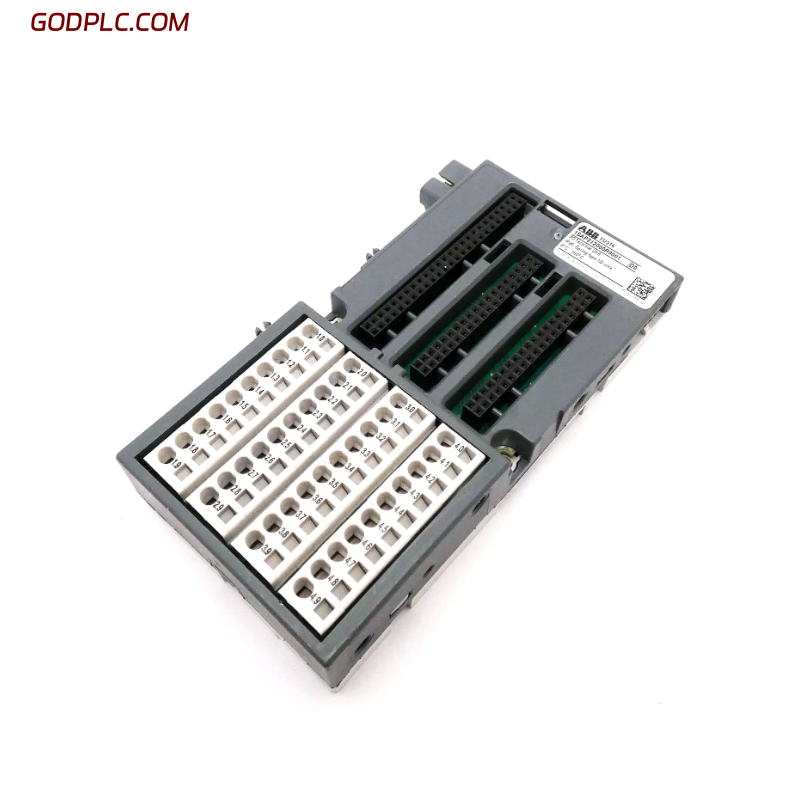

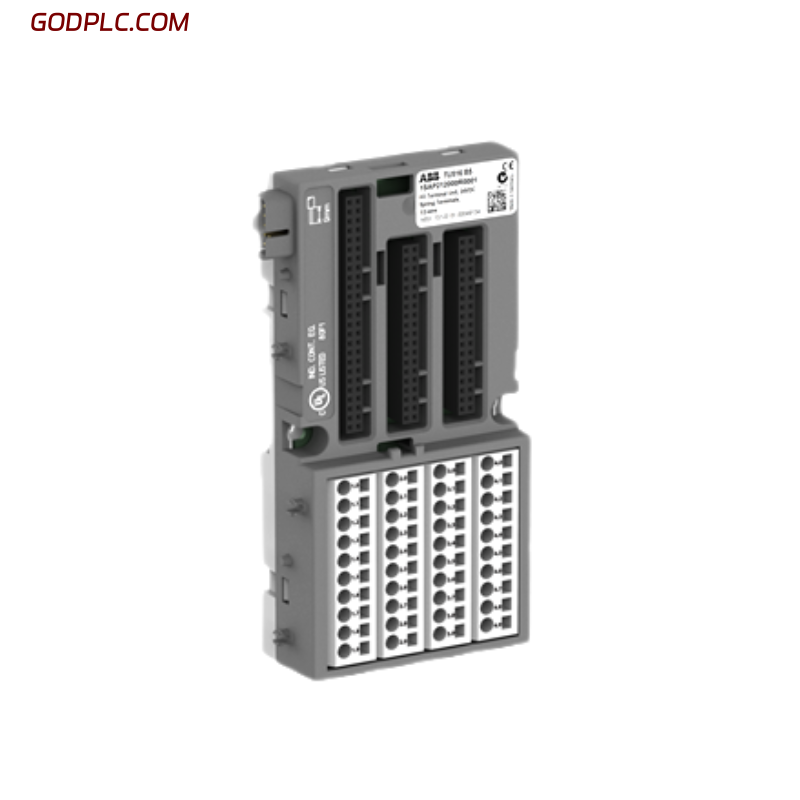

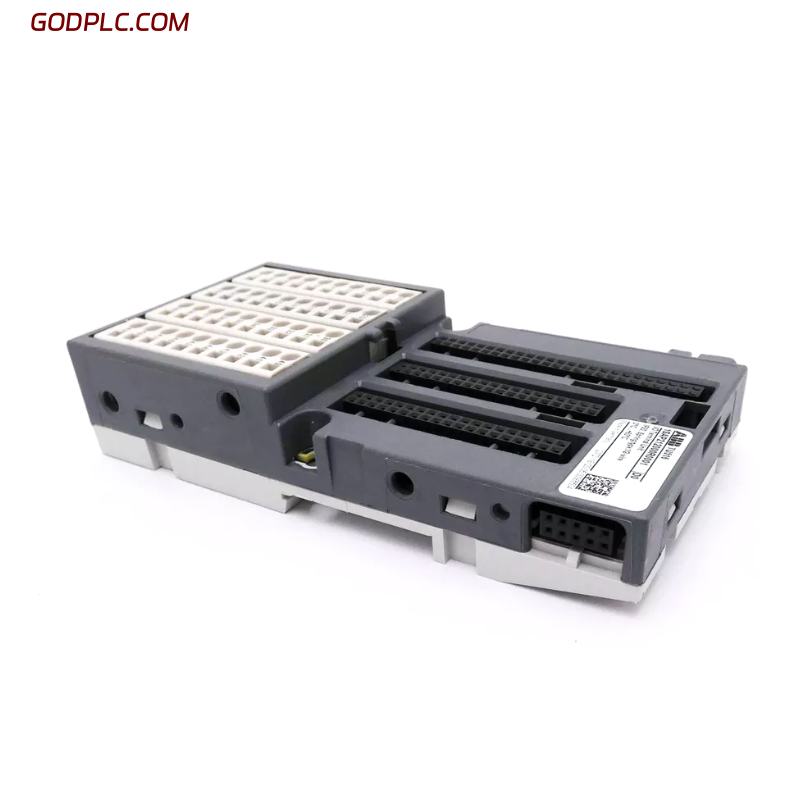

The ABB TU516 1SAP212000R0001 is a 40-channel termination unit engineered for ABB’s AC500 PLC and S500 I/O systems. It serves as the electrical interface between field wiring and I/O modules, ensuring reliable signal distribution and simplifying wiring organization. The TU516 is equipped with screw-type terminals and a compact, DIN rail-mountable design, making it ideal for use in space-constrained control cabinets across a wide range of industrial automation applications.
Key Features
-
40-Channel Support – Accommodates high-density I/O requirements for digital or analog signals
-
Screw-Type Terminals – Ensures secure and vibration-resistant wiring connections
-
Plug-in Module Interface – Enables fast and easy I/O module installation and replacement
-
DIN Rail Mountable – Simplifies cabinet installation with standardized mounting
-
Clear Identification – Terminal labeling and layout support easy maintenance and troubleshooting
-
System Integration – Fully compatible with AC500 CPU and S500 I/O module families
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 28 x 135 x 67.5 mm |
| Weight | 0.159 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Rating | Up to 250 V AC/DC |
| Current Capacity | Max 10 A per channel |
| Terminal Type | Screw terminals (40 channels) |
| Isolation | Channel-to-channel isolation as per system design |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB AC500 PLC, S500 I/O modules |
Industry Applications
-
Industrial Automation – Connects sensors, actuators, and field devices to PLC systems
-
Power Generation and Distribution – Facilitates signal interface in control panels
-
Water and Wastewater – Supports field wiring in treatment and distribution systems
-
Process Industries – Ideal for complex wiring environments in chemical and food plants
-
Transportation and Infrastructure – Enables robust I/O termination in tunnel, rail, and airport control systems
The ABB TU516 1SAP212000R0001 Module Termination Unit is a compact, reliable solution for connecting field signals to ABB control systems. Its 40-channel capacity, secure terminal design, and seamless integration with AC500 and S500 platforms make it a valuable component in any modern industrial automation setup.
ABB TU516 1SAP212000R0001 Module Termination Unit is in stock. Please contact us for a quick quote and competitive pricing.
