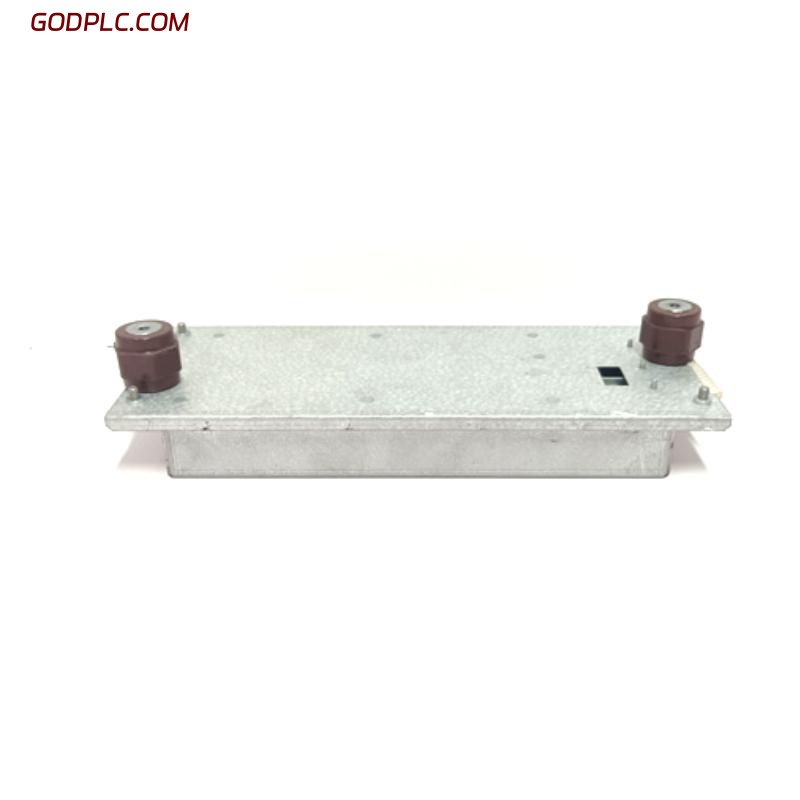

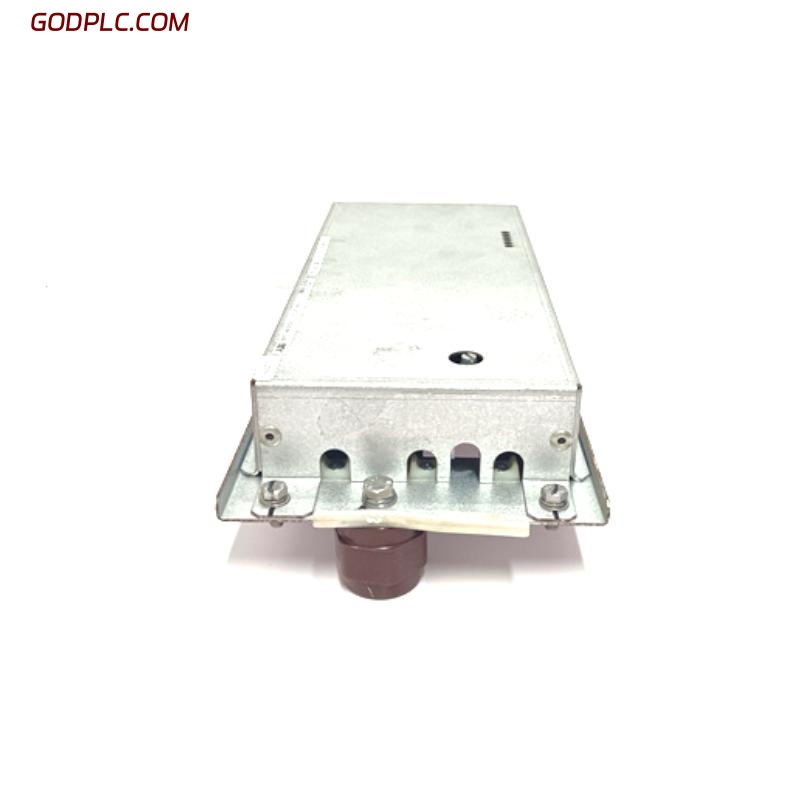

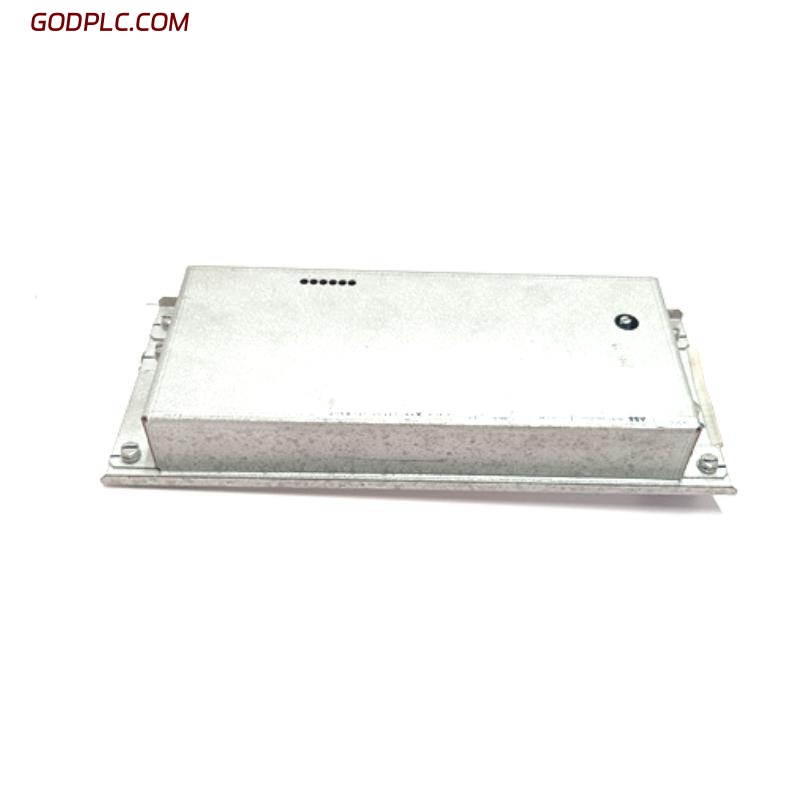

ABB UDC920BE01 3BHE034863R0001 digital control module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ABB UDC920BE01 (3BHE034863R0001) is an advanced digital control module designed for precision industrial automation applications. This unit forms a critical component in ABB’s control system solutions, offering reliable performance in process control and monitoring applications across various industries.
_
Key Features
-
High-precision control: Delivers accurate process control with advanced algorithms
-
Dual-processor architecture: Ensures reliable operation and fault tolerance
-
Flexible I/O configuration: Supports multiple signal types and field devices
-
Real-time diagnostics: Comprehensive system monitoring capabilities
-
Cybersecurity features: Built-in protection for industrial networks
-
Hot-swappable design: Enables maintenance without system shutdown
_
Technical Specifications
Table 1: Physical Parameters
| Parameter | Value |
|---|---|
| Dimensions (W×H×D) | 110mm × 160mm × 75mm |
| Weight | 1.8kg |
| Mounting | DIN rail or panel |
| Protection class | IP20 |
| Cooling | Natural convection |
_
Table 2: General Information
| Parameter | Value |
|---|---|
| Model number | UDC920BE01 3BHE034863R0001 |
| Manufacturer | ABB |
| Product category | Digital control module |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% (non-condensing) |
| MTBF | >100,000 hours |
_
Table 3: Electrical Specifications
| Parameter | Value |
|---|---|
| Power supply | 24V DC ±10% |
| Power consumption | 30W maximum |
| Input voltage range | 19-30V DC |
| Inrush current | 15A for 20ms |
| Isolation voltage | 1500V AC |
_
Table 4: Processing Capabilities
| Parameter | Value |
|---|---|
| Processor type | Dual-core industrial CPU |
| Processing speed | 800MIPS |
| Memory capacity | 1GB RAM, 2GB Flash |
| Control loop execution | 1ms cycle time |
| Maximum I/O points | 2048 digital/512 analog |
_
Table 5: Communication Interfaces
| Parameter | Value |
|---|---|
| Ethernet ports | 2 × Gigabit Ethernet |
| Fieldbus interfaces | PROFIBUS DP, Modbus TCP |
| Serial communication | RS-232/RS-485 |
| Protocol support | OPC UA, IEC 61850, DNP3 |
| Data throughput | 100Mbps sustained |
_
Table 6: Environmental Compliance
| Parameter | Value |
|---|---|
| EMC immunity | EN 61000-6-2 |
| EMC emissions | EN 61000-6-4 |
| Shock resistance | 15g, 11ms duration |
| Vibration resistance | 2g, 10-150Hz |
| Certifications | UL, CE, ATEX (optional) |
_
Industry Applications
-
Power generation: Turbine control, boiler management systems
-
Oil and gas: Wellhead control, compressor stations
-
Chemical processing: Reactor control, batch processing
-
Pharmaceutical: Cleanroom automation, process validation
-
Water/wastewater: Pump control, filtration systems
-
Pulp and paper: Quality control, production line automation
ABB UDC920BE01 3BHE034863R0001 digital control module is in stock. Please contact us for a quick quote and competitive pricing.
