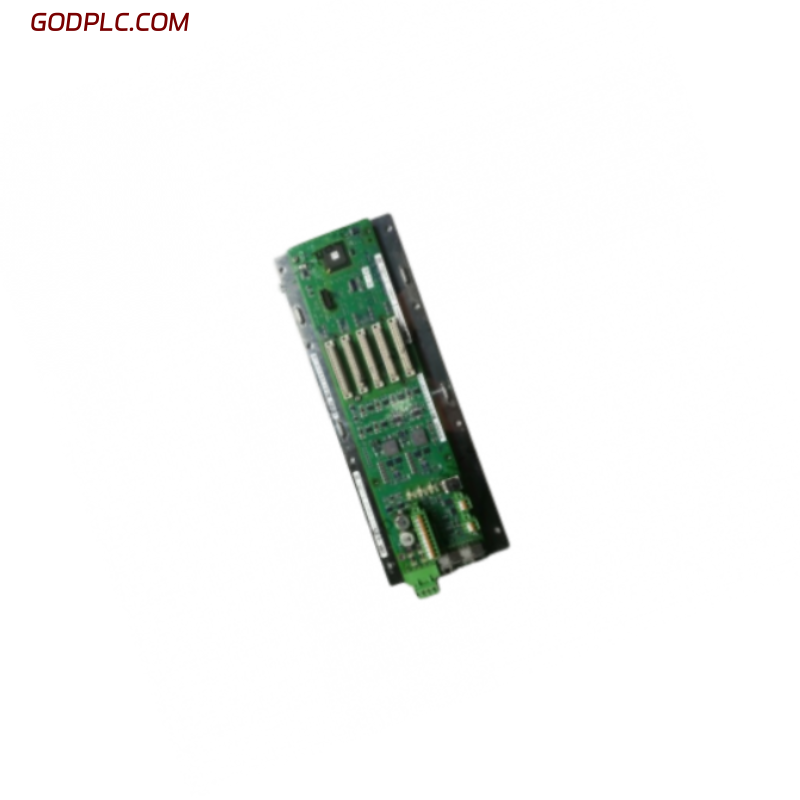

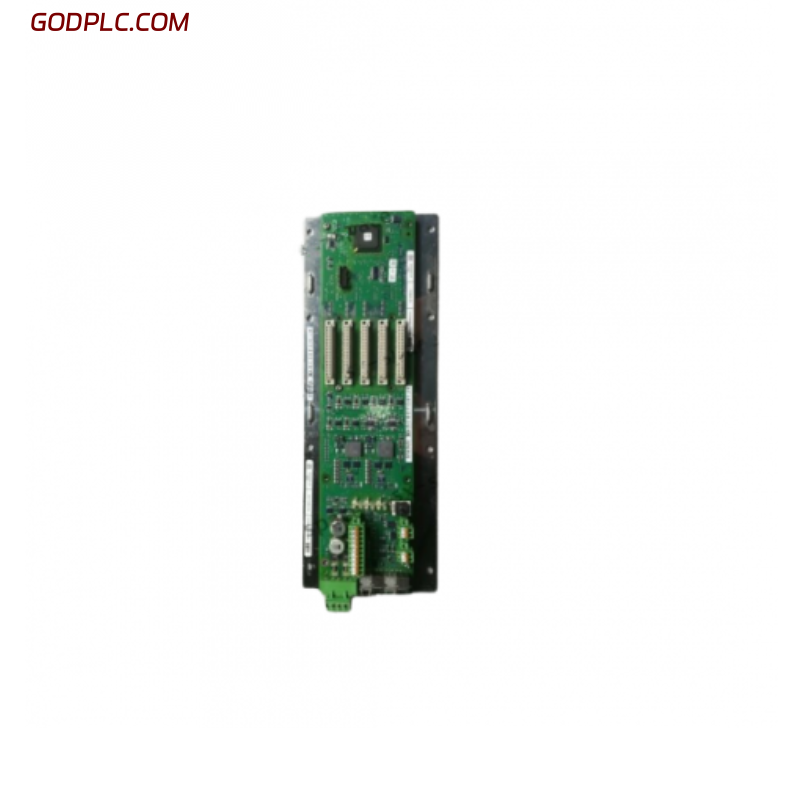

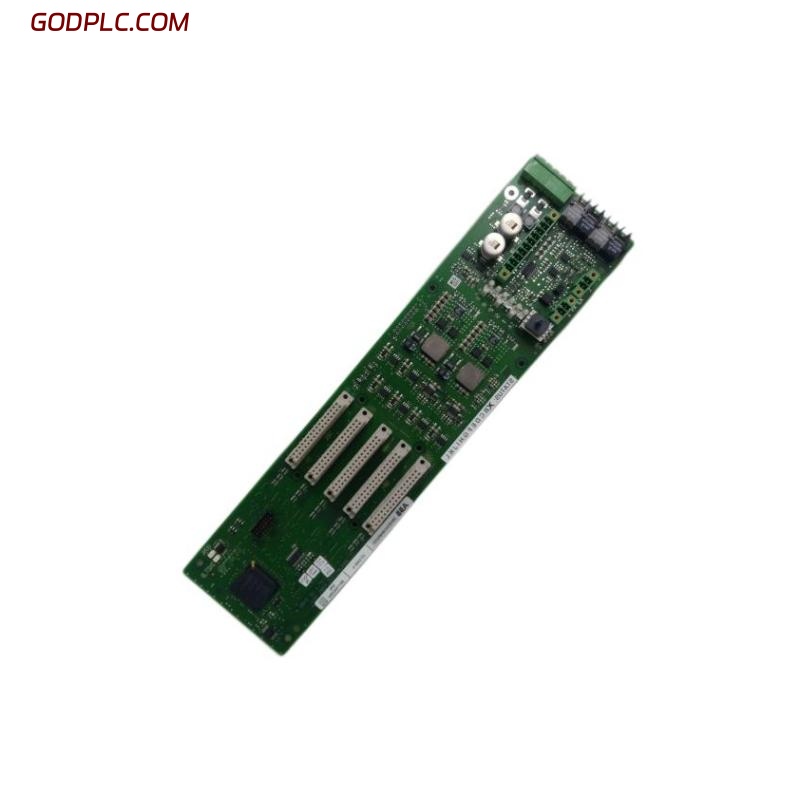

ABB UDD406A 3BHE041464R0101 digital input/output module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ABB UDD406A (3BHE041464R0101) is a high-performance digital input/output module designed for industrial automation systems. As part of ABB’s advanced control product line, this module provides reliable signal processing and interface capabilities for critical automation applications in various industrial environments.
_
Key Features
-
High-density I/O configuration: Supports multiple signal types in compact form factor
-
Galvanic isolation: 1500V AC isolation between channels and system
-
Real-time diagnostics: Continuous monitoring of channel status
-
Hot-swappable design: Enables module replacement without system shutdown
-
Flexible configuration: Software-configurable input types and ranges
-
Robust construction: Designed for harsh industrial environments
_
Technical Specifications
Table 1: Physical Parameters
| Parameter | Value |
|---|---|
| Dimensions (W×H×D) | 45mm × 125mm × 117mm |
| Weight | 0.65kg |
| Mounting | DIN rail |
| Protection class | IP20 |
| Connector type | Removable screw terminal |
_
Table 2: General Information
| Parameter | Value |
|---|---|
| Model number | UDD406A 3BHE041464R0101 |
| Manufacturer | ABB |
| Product category | Digital I/O module |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% (non-condensing) |
| MTBF | >150,000 hours |
_
Table 3: Electrical Specifications
| Parameter | Value |
|---|---|
| Power supply | 24V DC ±10% |
| Power consumption | 5W typical |
| Input voltage range | 0-30V DC |
| Output current capacity | 0.5A per channel |
| Isolation voltage | 1500V AC |
_
Table 4: I/O Characteristics
| Parameter | Value |
|---|---|
| Number of channels | 16 digital I/O |
| Input type | Sink/source configurable |
| Input voltage levels | 0-5V, 0-24V, 0-30V selectable |
| Output type | Solid-state relay |
| Switching frequency | 100Hz maximum |
| Response time | <1ms |
_
Table 5: Communication Interface
| Parameter | Value |
|---|---|
| Backplane interface | Proprietary high-speed bus |
| Data update rate | 1ms cycle time |
| Protocol support | ABB control system protocol |
| Maximum cable length | 100m (shielded cable) |
_
Table 6: Environmental Compliance
| Parameter | Value |
|---|---|
| EMC immunity | EN 61000-6-2 |
| EMC emissions | EN 61000-6-4 |
| Vibration resistance | 2g (10-150Hz) |
| Shock resistance | 15g (11ms) |
| Certifications | UL, CE, cULus |
_
Industry Applications
-
Manufacturing automation: Production line control, machine monitoring
-
Energy management: Power distribution systems, substation automation
-
Process industries: Chemical plant control, batch processing
-
Building automation: HVAC control, access systems
-
Transportation systems: Signaling control, conveyor systems
-
Water treatment: Pump control, valve actuation
ABB UDD406A 3BHE041464R0101 digital input/output module is in stock. Please contact us for a quick quote and competitive pricing.
