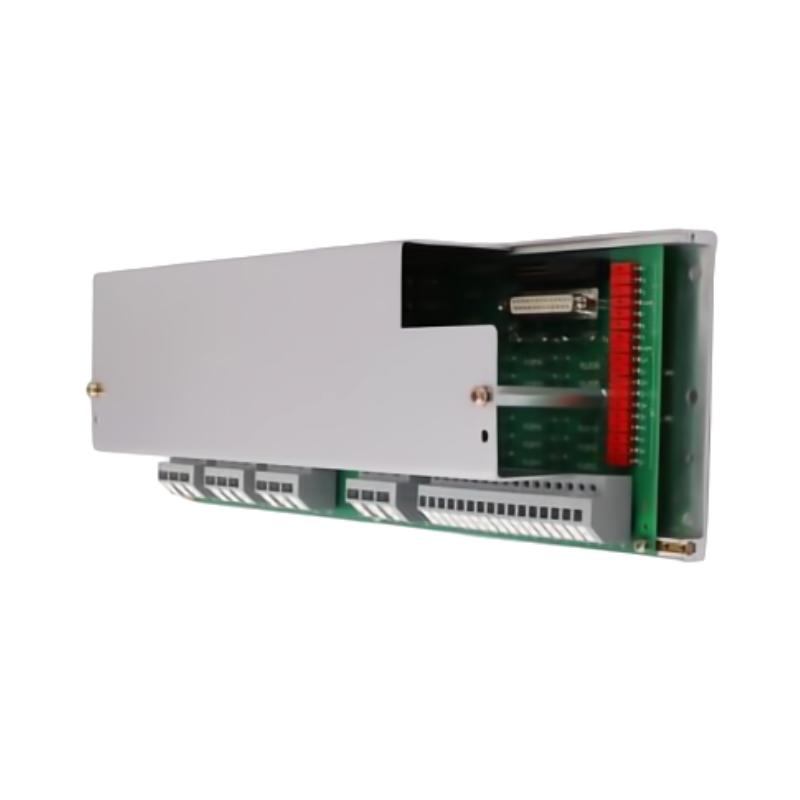

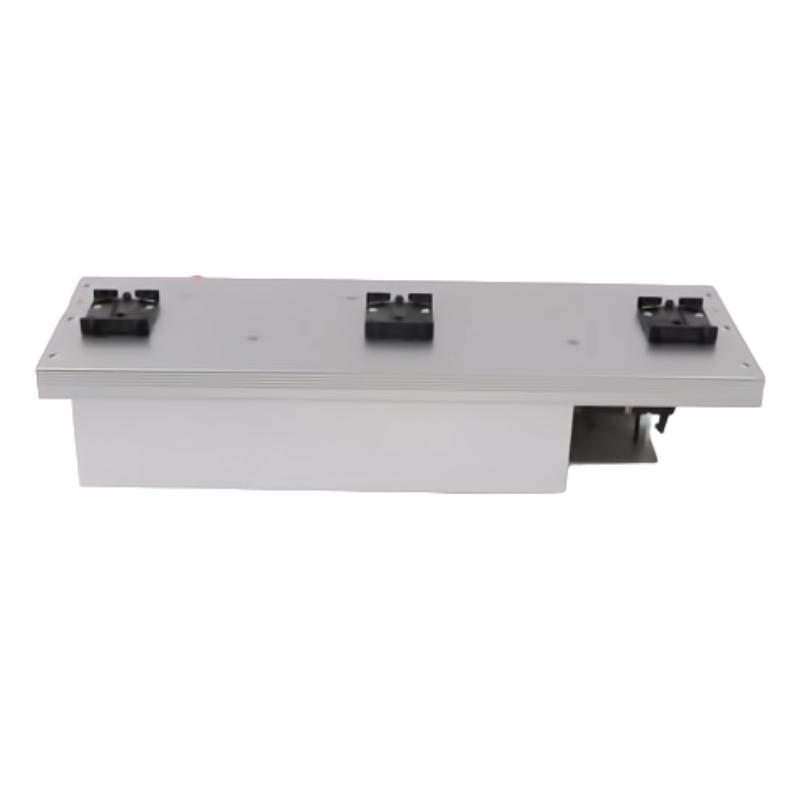

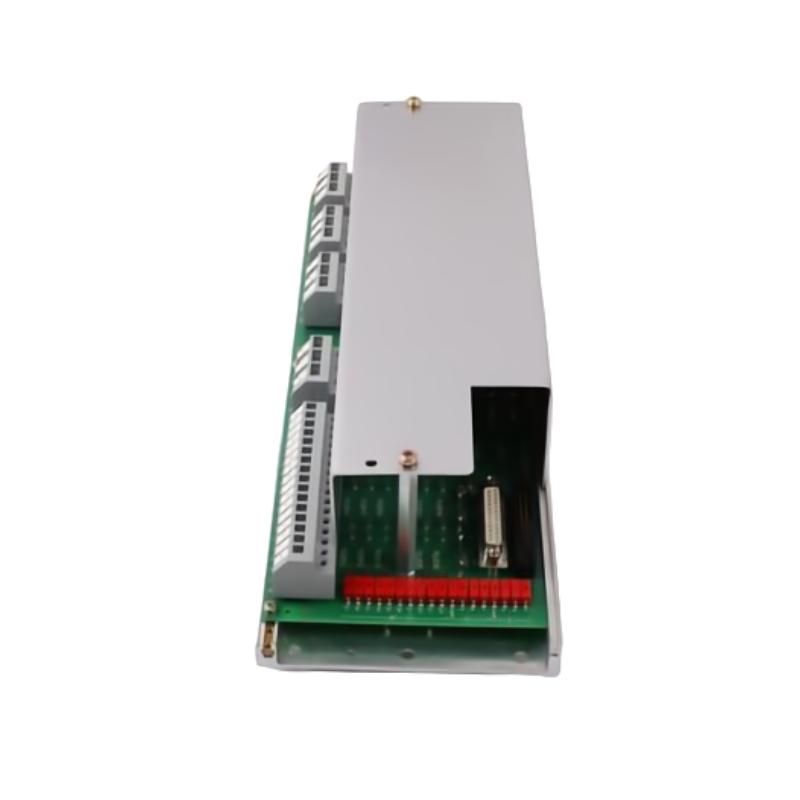

1. What is the main function of the ABB UNC 4672A,V1 HIEE205012R0001?

The ABB UNC 4672A,V1 HIEE205012R0001 is an analog measurement card designed for analog signal acquisition and measurement in industrial control systems. Its primary role is to receive compatible analog signals from field devices and make the measured information available to the control system for monitoring, analysis, and control logic. In industrial automation and process-control applications, analog measurement data is commonly used to represent operating conditions and process parameters. Proper integration therefore requires the measurement card, field signal source, I/O architecture, and control-system configuration to be correctly matched.

2. Where is the UNC 4672A,V1 typically used?

The UNC 4672A,V1 is intended for industrial automation, process control, and electrical measurement applications where analog signals need to be acquired and monitored. It can function as part of a control system’s analog measurement architecture and can be used to collect information such as voltage, current, and other compatible analog signals. The measured information may then be used for equipment monitoring, process supervision, control functions, or troubleshooting. The exact application depends on the system architecture and signal configuration, so compatibility with the target control system and field instrumentation should be confirmed before installation.

3. How should the UNC 4672A,V1 be checked if the analog signal is abnormal?

Start by confirming that the control system correctly recognizes the measurement card and check the system diagnostics for I/O or communication alarms. Then inspect the field signal source, input wiring, terminals, and common connections. If a measured value remains at zero, verify that the field device is actually producing an output signal and that the input circuit is not open. If the measurement fluctuates significantly, investigate the stability of the signal source, wiring connections, and possible electrical interference. Comparing the control-system reading with the value measured directly at the field device using suitable test equipment can help determine whether the problem originates from the signal source, wiring, or measurement card.

4. What can cause inaccurate measurements on the UNC 4672A,V1?

Inaccurate measurements can be caused by an unstable field signal, incorrect wiring, poor terminal connections, damaged cables, electrical interference, or incorrect system configuration. If the input signal itself is unstable, the measurement card will naturally receive a changing signal. Incorrect channel configuration or an inappropriate signal setting can also cause the value displayed by the control system to differ from the actual field condition. Troubleshooting should therefore begin at the signal source and continue through the wiring, terminals, measurement card, and control-system configuration. Comparing the actual field signal with the value reported by the control system is an effective way to narrow down the source of the problem.

5. How can you determine whether the problem is in the measurement card or the field sensor?

A step-by-step signal-path inspection can help distinguish between a field-device problem and a measurement-card problem. First, verify that the field sensor or transmitter is producing the expected analog output. Then inspect the complete signal path between the field device and the UNC 4672A,V1, including cables, terminals, and connections. If the field device produces a normal signal but the control system reports an abnormal value, the wiring, input channel, or measurement card should be investigated further. If the field device itself produces an incorrect signal, the sensor, transmitter, or its power supply should be checked first. Using an appropriate test instrument to independently measure the field signal and comparing it with the control-system reading can provide strong evidence for fault isolation.

6. What should be considered when installing the HIEE205012R0001?

Before installation, verify that the HIEE205012R0001 is compatible with the existing ABB control-system hardware and software configuration. Installation and wiring should be performed according to the applicable site maintenance and electrical safety procedures. Each signal channel should be carefully matched with its corresponding field device to prevent incorrect wiring or signal connections. Analog signal cables should also be routed appropriately and kept away from high-power cables where practical to reduce the possibility of electromagnetic interference. After installation, all terminals and connectors should be checked for secure connections. The individual measurement channels should then be tested using the control-system diagnostics and suitable field signal measurements.

7. What should be done if one UNC 4672A,V1 measurement channel has no signal?

If only one measurement channel has no valid data, first inspect the corresponding field signal source and input wiring. Confirm that the sensor or transmitter is operating correctly and check the cable for an open circuit, short circuit, or loose terminal. The control-system configuration should then be reviewed to verify that the channel is correctly enabled and that its settings correspond to the actual field signal. If the field signal, wiring, and configuration are all confirmed to be correct but the channel still produces no valid reading, the measurement card should be investigated further. Comparing the affected channel with a known-good channel under similar conditions can be useful for identifying whether the problem is isolated to the field circuit or the measurement hardware.

8. How should the ABB UNC 4672A,V1 be maintained for reliable operation?

Routine maintenance should focus on the measurement card installation, terminal connections, analog signal wiring, and control-system diagnostic information. Periodic inspections should check for loose terminals, aging cables, damaged insulation, contamination, or other conditions that could affect signal integrity. Attention should also be given to analog alarms, unexpected signal fluctuations, sudden value changes, and measurements that remain outside their normal operating range. For analog circuits that are susceptible to electrical interference, shielding and grounding should be checked and signal cables should be routed appropriately away from sources of high electrical noise. If a particular channel repeatedly develops abnormal readings, the field sensor, signal wiring, and measurement card should all be investigated rather than immediately replacing the module. Proper wiring, regular inspection, and timely troubleshooting can improve the long-term reliability of the HIEE205012R0001 in an industrial control system.
