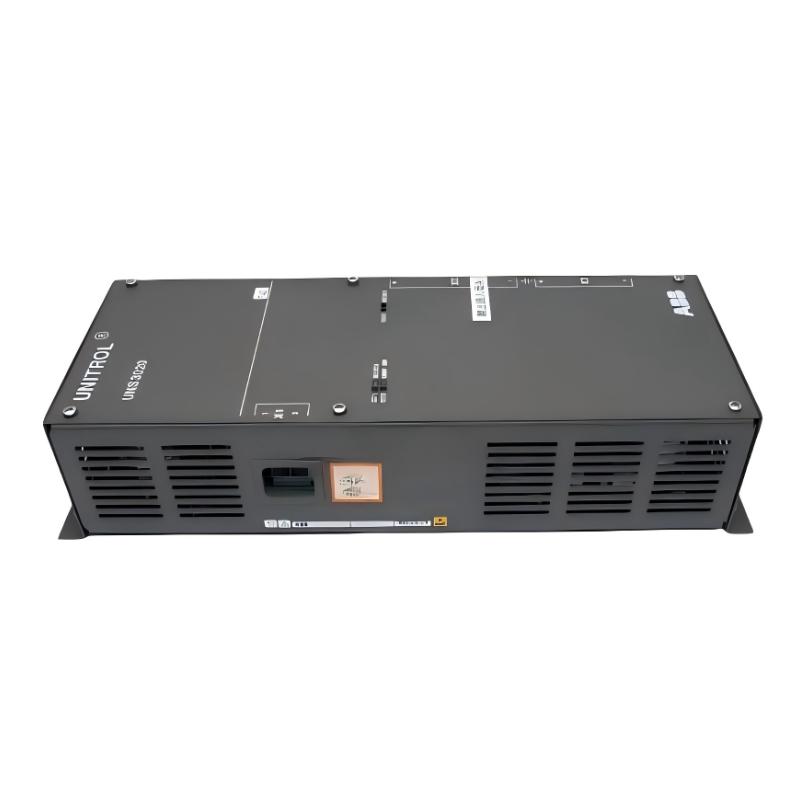

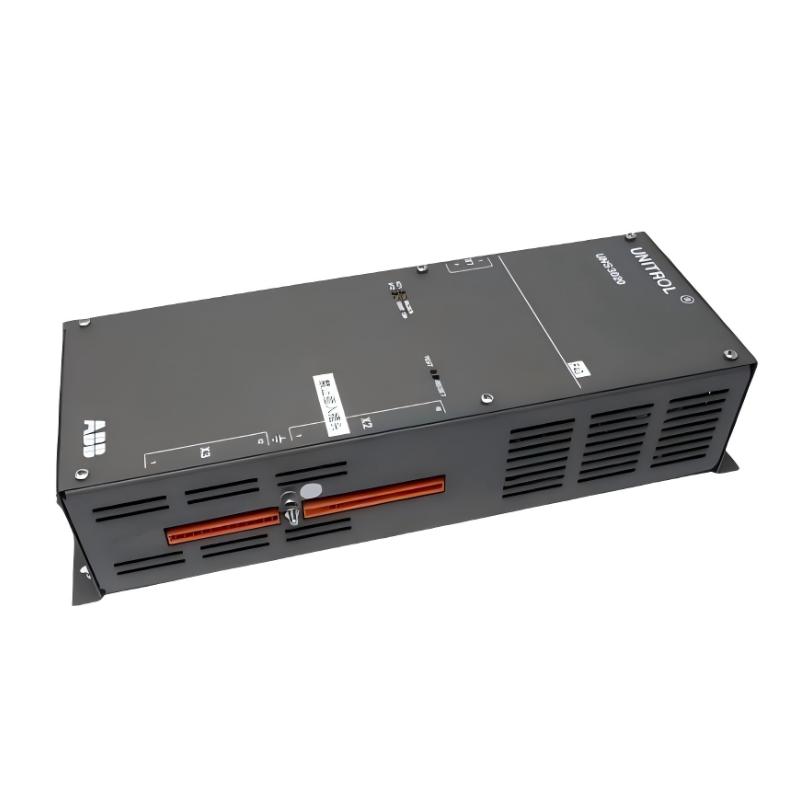

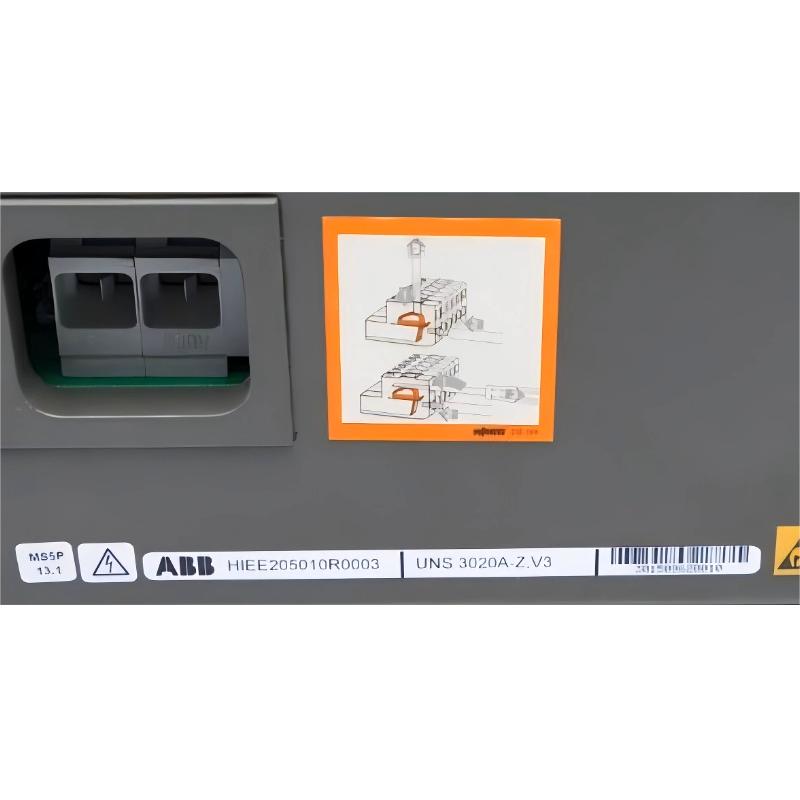

1. What is the main function of the ABB UNS 3020A-Z, V3 Ground Fault Relay?
The ABB UNS 3020A-Z, V3 is a ground fault relay designed to detect abnormal electrical conditions associated with ground faults and provide an appropriate protection response. Ground fault protection is important in industrial electrical systems because an unintended current path to ground can result in equipment damage, unstable operation, or potentially dangerous electrical conditions. The relay works as part of the overall protection and control architecture, monitoring the relevant electrical condition and providing a signal to the associated control or protection system when a fault is detected.

2. Where is the UNS 3020A-Z, V3 Ground Fault Relay typically used?
The relay is intended for compatible ABB industrial electrical and control equipment where ground fault monitoring and protection are required. Typical applications can include industrial power systems, motor control equipment, drive systems, and other electrical protection applications. Its exact role depends on the electrical architecture of the host equipment and the protection scheme used by the system. Before installation or replacement, the relay model and part number should be checked against the equipment configuration to ensure that the protection circuit is correctly matched.

3. What symptoms may indicate a problem with the UNS 3020A-Z, V3?
Possible symptoms include unexpected ground fault alarms, incorrect relay status, repeated protective trips, failure to respond when a fault condition occurs, or abnormal indications from the associated control system. In some cases, the relay may appear to operate intermittently because of loose wiring, unstable sensing signals, or problems in the external electrical circuit. A similar alarm can also be caused by a genuine ground fault elsewhere in the equipment. Therefore, technicians should not assume that the relay itself has failed simply because a ground fault alarm is present. The sensing circuit, wiring, electrical load, and system diagnostics should also be checked.

4. How should the ABB UNS 3020A-Z, V3 be troubleshot?
Troubleshooting should begin with a review of the system alarm and protection status to determine the exact fault condition reported by the equipment. Next, inspect the relay terminals, sensing circuits, connectors, and related wiring for loose connections, damaged insulation, corrosion, or other abnormalities. The associated electrical circuit should then be checked to determine whether a genuine ground fault exists. If the external circuit is confirmed to be normal, verify the relay’s power and control connections and compare its status with the system diagnostic information. A structured test should distinguish between an actual ground fault, a sensing circuit problem, a wiring fault, and an internal relay problem before replacement is considered.

5. What can cause false ground fault alarms?
False or unexpected ground fault indications can be caused by damaged insulation, moisture, wiring problems, loose terminals, electrical interference, incorrect sensing connections, or abnormal leakage current in the monitored circuit. Problems with grounding can also affect protection measurements and create unstable readings. In addition, a malfunction in an associated sensing or control circuit may produce a fault indication even when the main electrical equipment is operating normally. The best troubleshooting approach is to compare the relay indication with the actual electrical condition and systematically inspect the sensing circuit, wiring, grounding, and connected equipment.

6. What precautions should be taken when replacing the UNS 3020A-Z, V3 Ground Fault Relay?
Ground fault protection devices are part of an electrical safety system, so replacement should be performed only after following the applicable electrical isolation and safety procedures. Verify the exact model and part number before installation and record the original wiring and terminal arrangement. Ensure that the equipment is in a safe state before disconnecting the relay or its associated sensing circuits. After installing the replacement, carefully check every connection and confirm that the protection circuit has been restored correctly. The system should then be tested according to the applicable commissioning procedure to ensure that the relay can detect and respond to the required ground fault condition.

7. How can the UNS 3020A-Z, V3 be tested after installation?
After installation, verify that all relay connections, sensing circuits, and control wiring are correctly connected. Check the system status during startup and confirm that there are no unexpected protection alarms. Where the equipment’s maintenance procedure permits functional testing, simulate or apply the approved test condition for the ground fault protection circuit and verify that the relay responds correctly. The corresponding status or protection signal should also be confirmed at the associated control system. Testing should be performed according to the equipment’s approved maintenance procedure rather than by creating an uncontrolled electrical fault, as improper testing can damage equipment or compromise personnel safety.

8. What should be checked if the ground fault protection remains abnormal after replacing the relay?
If the protection system remains abnormal after installing a replacement relay, the relay itself should not immediately be considered defective. First inspect the sensing circuit, wiring, terminals, grounding connections, and associated electrical equipment. Determine whether the system is detecting a genuine ground fault or whether the fault indication is being generated by an incorrect sensing signal. Power and control connections should also be verified, followed by a review of system diagnostics and protection settings where applicable. If the electrical circuit is healthy but the protection signal remains incorrect, associated sensing components or control interfaces may need further investigation. A complete check of the protection chain is essential before replacing additional components.
