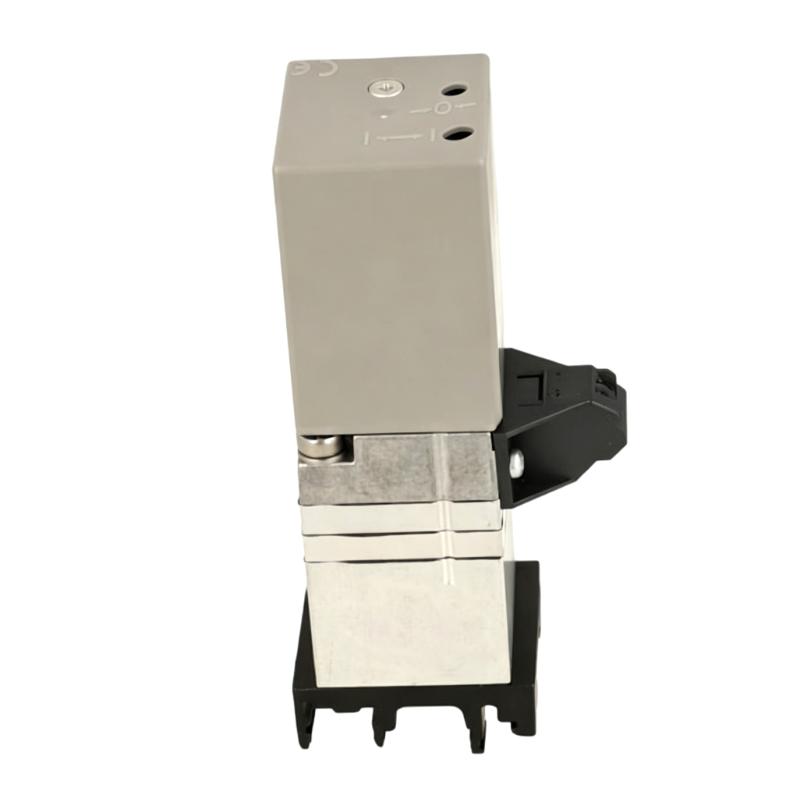

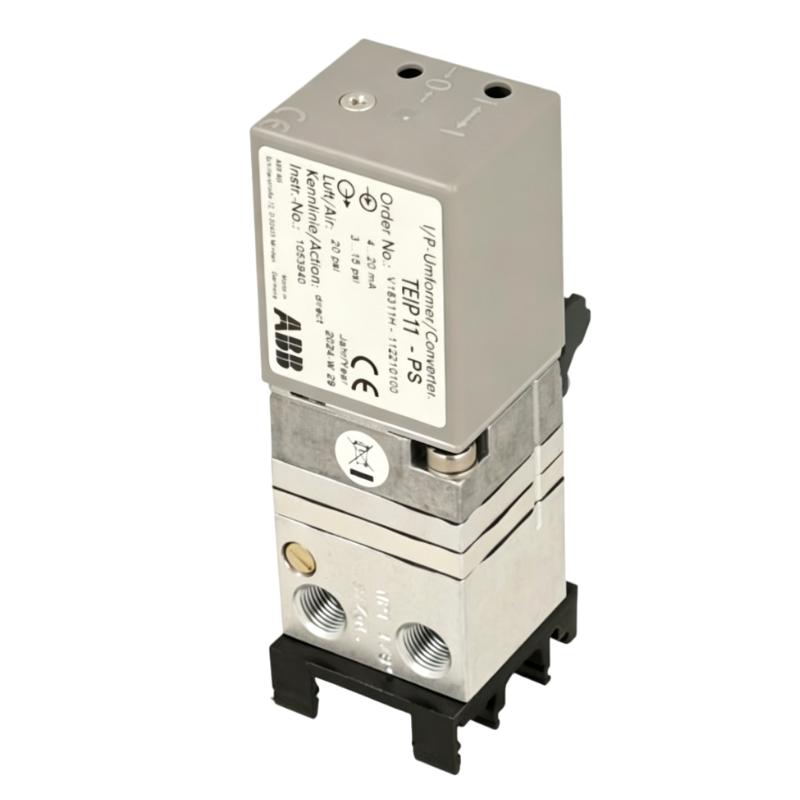

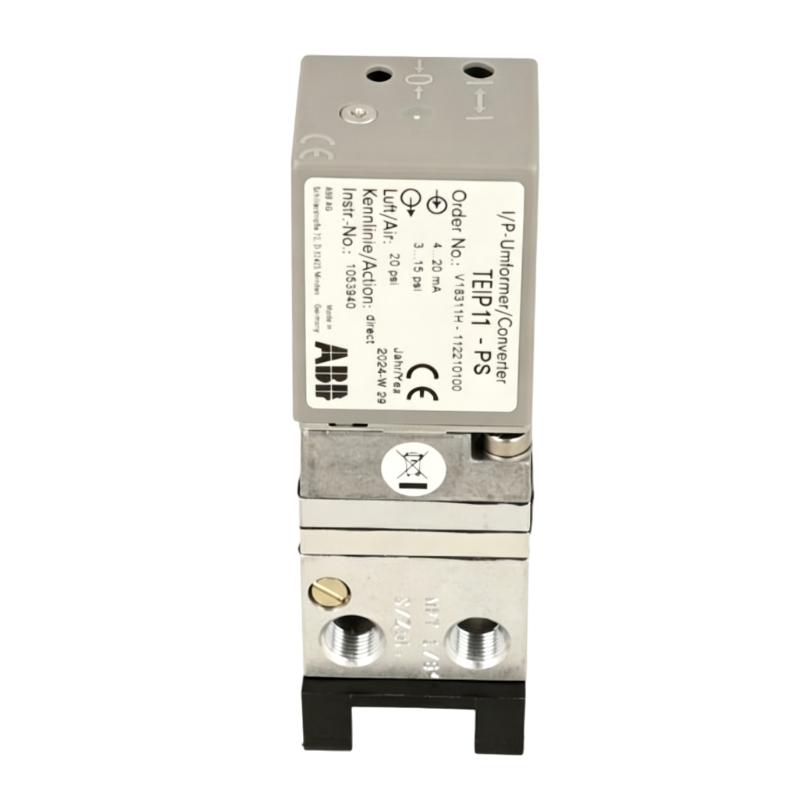

1. What is the main function of the ABB V18311H-112110100 I/P Signal Converter?
The ABB V18311H-112110100 is an I/P, or current-to-pressure, signal converter used to transform an electrical control signal into a proportional pneumatic pressure signal. It is designed for industrial automation applications where a PLC, DCS, or other controller provides a standard 4–20 mA signal while the final control device, such as a pneumatic actuator or control valve, requires a pneumatic input. The converter provides a practical interface between electronic control systems and pneumatic field equipment, allowing electrical control commands to be translated into corresponding pneumatic output pressure.

2. What input signal does the V18311H-112110100 accept?
The V18311H-112110100 is designed for a standard 4–20 mA analog input signal. This type of current signal is widely used in industrial process control because it provides good resistance to electrical interference and allows the controller to transmit a proportional process command over long cable runs. In a typical application, approximately 4 mA represents the lower end of the control range and 20 mA represents the upper end. When troubleshooting the converter, the input current should be checked to determine whether the problem originates from the controller or from the I/P converter itself.

3. What pneumatic output does the ABB V18311H-112110100 provide?
The standard pneumatic output range is 0.2–1.0 bar, equivalent to approximately 3–15 psi. The output pressure changes proportionally according to the electrical input signal, allowing the converter to control pneumatic actuators and other pneumatic devices. A stable and correctly regulated output is important because variations in pneumatic pressure can directly affect valve position or actuator movement. During commissioning or troubleshooting, the relationship between the 4–20 mA input and pneumatic output should be checked to determine whether the converter is responding correctly across its operating range.

4. What supply pressure is required for the V18311H-112110100?
The specified supply pressure range is 6–30 psi. The compressed-air supply should be clean, stable, and suitable for the converter and the connected pneumatic equipment. Insufficient supply pressure can prevent the converter from generating the required output pressure, while an unsuitable or unstable air supply may result in poor control performance. When troubleshooting an output-pressure problem, the air supply should therefore be checked before assuming that the I/P converter has failed. Air tubing, fittings, filters, and regulators should also be inspected for leakage, blockage, or incorrect adjustment.

5. What are the common symptoms of a faulty ABB V18311H-112110100?
Common symptoms may include no pneumatic output, incorrect output pressure, unstable pressure, slow response, failure to follow the 4–20 mA command, or a control valve that does not reach the expected position. Before replacing the converter, the input current should be measured to verify that the controller is providing the correct signal. The compressed-air supply and pneumatic connections should also be inspected for adequate pressure, leakage, or blockage. If the electrical input and air supply are both correct but the output remains abnormal, the V18311H-112110100 may require further testing, adjustment, maintenance, or replacement.

6. How should the V18311H-112110100 be installed and commissioned?
Installation should be performed according to the equipment design and applicable industrial maintenance procedures. The converter should be correctly mounted and connected to the 4–20 mA control loop and pneumatic supply and output lines. Before commissioning, technicians should verify wiring polarity, pneumatic connections, supply pressure, and the condition of the connected actuator or valve. The input signal can then be increased gradually through its operating range while monitoring the pneumatic output. The output should respond smoothly and proportionally to the input command. Any significant deviation should be investigated before the converter is placed into continuous process operation.

7. Why might the pneumatic output remain incorrect even when the 4–20 mA signal is normal?
If the electrical input is correct but the pneumatic output is abnormal, several other factors should be considered. The compressed-air supply may be insufficient or unstable, or there may be a restriction or leakage in the pneumatic tubing. Incorrect connections, contamination, mechanical problems, or an internal fault in the I/P conversion mechanism can also affect output pressure. The connected actuator or valve may itself have a mechanical problem that makes the converter appear to be malfunctioning. A systematic check of the electrical input, air supply, converter output, pneumatic lines, and final control element can help isolate the actual cause instead of replacing the converter unnecessarily.

8. Can the ABB V18311H-112110100 be used directly with a PLC or DCS output?
Yes, the V18311H-112110100 is designed to interface with standard industrial 4–20 mA control signals, making it suitable for applications where a PLC, DCS, or other controller needs to operate pneumatic equipment. The controller provides the electrical current command, while the I/P converter transforms that command into a proportional pneumatic pressure output. Proper loop wiring and signal configuration are essential for correct operation. The pneumatic supply must also meet the converter’s requirements, and the output must be compatible with the connected actuator or control valve. During commissioning, technicians should verify the complete signal path from the controller output through the converter to the final pneumatic device.
